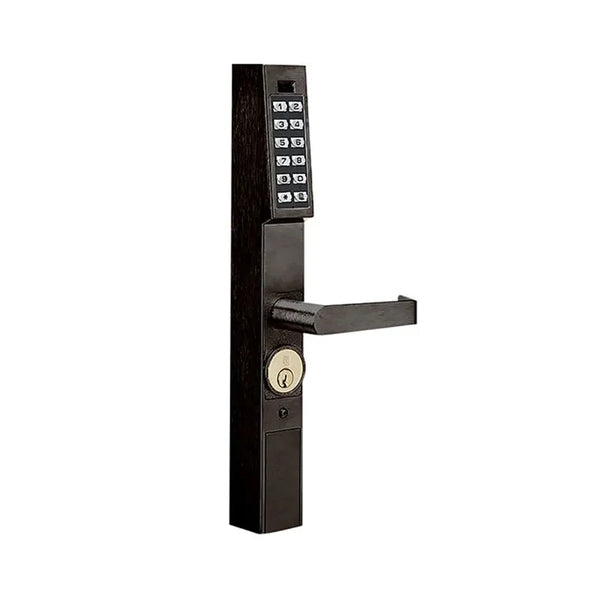

Alarm Lock Trilogy DL1300 — Narrow Stile Keypad Trim, 26D/10B, 2,000 Users, Audit Trail
CALL FOR PRICING
Alarm Lock Trilogy DL1300 is a stand-alone, battery-powered narrow-stile keypad trim for aluminum storefront doors using Adams Rite® style latches/bolts. Supports up to 2,000 users, 40,000-event audit trail, and 500-event schedules; keypad or DL-Windows PC programmable. Weather-resistant with all-metal 12-button keypad and key override. Works with AR 4710/4730/4900 deadlatches and 1850/1950/MS1850S/MS1950 deadbolts (with compatible inside hardware).
Lead time: Commonly stocked in 26D Satin Chrome and 10B Duronodic Bronze.
Trilogy DL1300 — Narrow Stile Keypad Retrofit Trim
-
VendorAlarm Lock (Napco Security Technologies)
-
Series / ModelTrilogy Narrow Stile — DL1300 (PIN only)
-
Users / Features2,000 users • 40k event audit • 500-event schedules
-
ProgrammingKeypad or DL-Windows PC (AL-PCI2-U / AL-DTM III)
-
Power2 × CR123 3V lithium (included), low-battery alert
-
Use / RangeWeather-resistant; approx. −31°F to +151°F (−35°C to +66°C)
-
Door / PrepNarrow stile aluminum; retrofit outside trim (non-handed)
-
Compatible Inside LocksAdams Rite® 4710/4730/4900 deadlatches; 1850/1950/MS1850S/MS1950 deadbolts

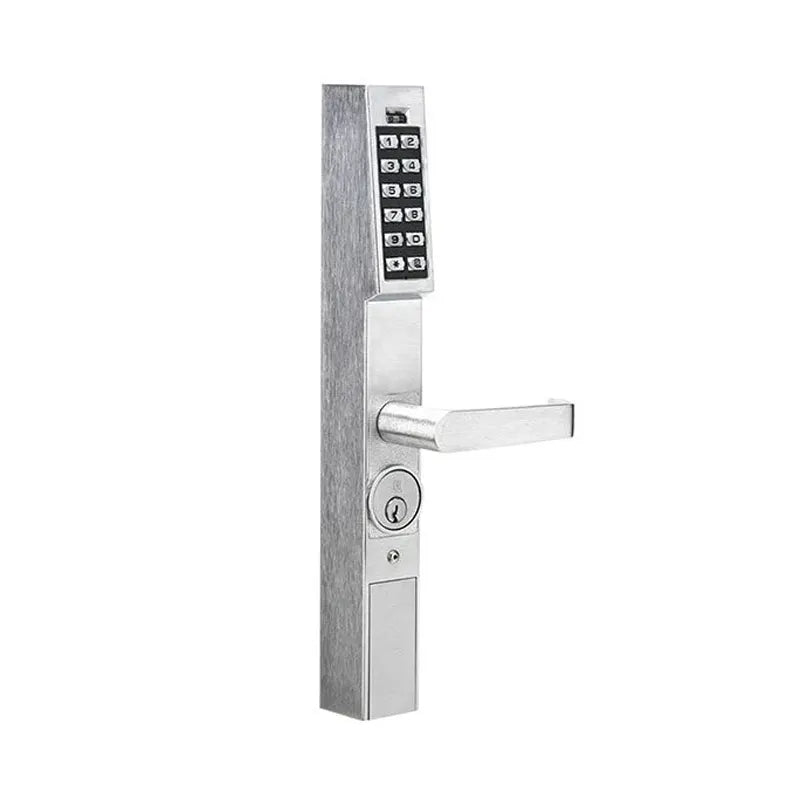

- 26D / 626 — Satin Chrome (DL1300/26D1)

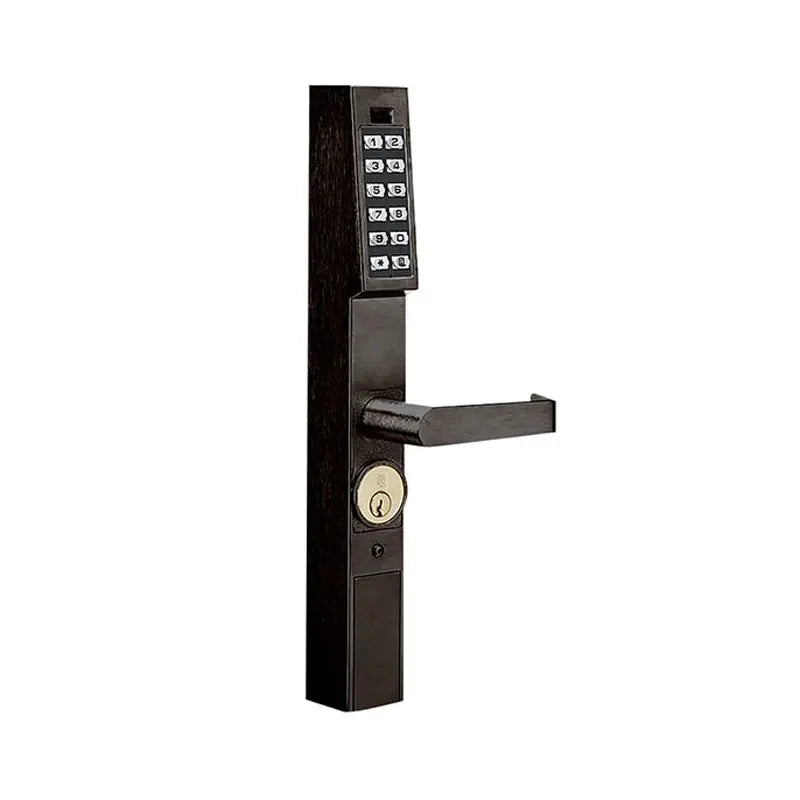

- 10B / 613 — Duronodic Bronze (DL1300/10B1)
| Users | 2,000 PIN users |
| Audit / Schedules | 40,000-event audit trail; 500-event schedules; real-time clock |
| Keypad | All-metal, 12-button; vandal-resistant |
| Cylinder | Mortise cylinder key override (Alarm Lock cam) |
| Power | 2 × CR123 lithium; ~100k typical cycles |
| Operating Range | ≈ −31°F to +151°F (−35°C to +66°C) |
| Trim Size | Approx. 14-3/8″ H × 1-3/4″ W × 1-5/8″ D |
| Compatibility | Adams Rite® 4710/4730/4900, 1850/1950/MS1850S/MS1950 |
Programming & maintenance references for Trilogy Narrow Stile.
Installation Difficulty
Level 3 — Intermediate: Narrow-stile prep, cylinder cam selection, DL-Windows setup recommended.
