The DL2700 electronic digital lock leverset is programmable through the keypad for 100 user entry codes for secure keyless entry. Cylindrical lock mechanism has a fixed 6-pin key cylinder with SC1 keyway for key override. For installation on exterior and interior doors, and rated for temperatures from -31 to +151 degrees F (-35 to +66 degrees C). Lever handle is reversible for right- or left-hand operation. Stainless steel trim with satin chrome finish resists corrosion.
Features
In an hour, add a dependable wireless access control keyless door lock, one door at a time—easily retrofit standard knobsets
Support 100 PIN codes (3-5 or 6 digits)
Multi-level user codes & one-time service codes. Free passage, group- or total lock-out modes, too on Trilogy security locks
All keyless entry door locks are fingertip programmable at vandalproof all-metal keypad
Long-life battery operation, low battery alert
Key override on all Trilogy electronic locks, standard core (supplied) or interchangeable core prep
Non-handed cylindrical models
Programmable relay functions
Durable BHMA Grade 1 Lockset
Weatherproof models -31˚ to +151˚F (-35˚ to +66˚C). Rugged electronic door lock
Specs
More codes: up to 100 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
5AA battery operated; 175,000 cycles, typ.
For outdoors, specify WP weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging Recommended for Experienced Installers, but not rocket science.
Simplex Mechanical Pushbutton Lock 1000 Series - Knob
$375.00
The Simplex 1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with knob option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Features
Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
Number of Codes: Single access code—one easy-to-manage code for all users
Programming: Lock is easily programmed via keypad without removing lock from the door
Specs
Construction: Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Factory-handed for left-hand doors; easily field reversible
Backset: 2¾" (70 mm), 2⅜" (60 mm)
Latch: ½" (13 mm) throw latch, ¾"
Minimum Stile Recommended: 5" (127 mm)
Strike: Standard strike plate; ASA strike plate
Schlage core
Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through bore holes required.
Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm)
Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Warranty: 3-year warranty
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging Recommended for Experienced Installers, but not rocket science.

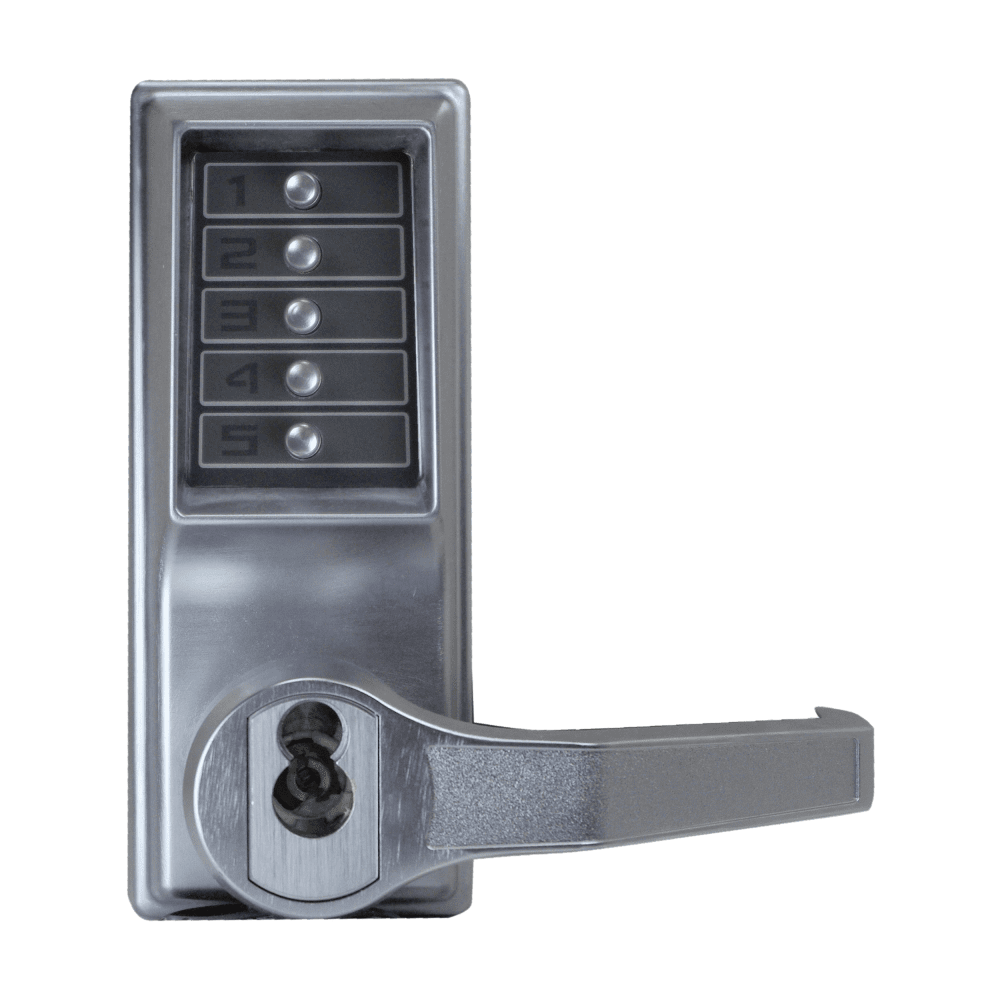

Simplex Mechanical Pushbutton Lock L1000 Series - Lever
$387.00
The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Features
Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
Number of Codes: Single access code—one easy-to-manage code for all users
Programming: Lock is easily programmed via keypad without removing lock from the door
Handing: Factory-handed , handing required when ordering.
Specs
Construction: Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Factory-handed for left-hand doors; not field reversible.
Backset: 2¾" (70 mm), 2⅜" (60 mm)
Latch: ½" (13 mm) throw latch, ¾"
Minimum Stile Recommended: 5" (127 mm)
Strike: Standard strike plate; ASA strike plate
Key Override: Schlage core
Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through bore holes required.
Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm)
Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Warranty: 3-year warranty
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging Recommended for Experienced Installers, but not rocket science.
