Hinges
Commercial Door Butt Hinges, Continuous Hinges, and Reinforcing Pivots from PDQ, Select Products, and Adams Rite. Our products meet the requirements of the Buy American Act.
PDQ Butt Hinges - 2 Ball Bearing - Steel
$5.65
2 Ball Bearings for standard applications. Steel for interior doors and non-corrosive environments.
PDQ Butt Hinges are a secure and long-lasting solution for mounting commercial doors.
Features
- Size: 4-1/2” x 4-1/2”
- 5 Knuckle
- Non-Removable Pin
- Groove in pin accepts set screw in center barrel
- Set screw secured using a 3/32” hex (allen) wrench and is not accessible when door is closed
Specs
- Steel Applications: Interior and non-corrosive environments
- All hinges packed with Machine Screws (12-24 x 1/2” FHMS) and Wood Screws (12 x 1-1/4” FHWS)
- Five (5) year limited warranty
Finish
Satin Chrome Plated Steel 626/US26D
Installation Challenge Level
Easy
Anyone who can read instructions and use basic tools can install this product.
Instructions & Templates
PDQ Butt Hinges - 2 Ball Bearing - Stainless Steel
$16.95
2 Ball Bearings for standard applications. Stainless steel for exterior and corrosive environments.
PDQ Butt Hinges are a secure and long-lasting solution for mounting commercial doors.
Features
- Size: 4-1/2” x 4-1/2”
- 5 Knuckle
- Non-Removable Pin
- Groove in pin accepts set screw in center barrel
- Set screw secured using a 3/32” hex (allen) wrench and is not accessible when door is closed
Specs
- Stainless Steel Applications: Exterior and corrosive environments
- All hinges packed with Machine Screws (12-24 x 1/2” FHMS) and Wood Screws (12 x 1-1/4” FHWS)
- Five (5) year limited warranty
Finish
Stainless Steel 630/US32D
Installation Challenge Level
Easy
Anyone who can read instructions and use basic tools can install this product.
Instructions & Templates
PDQ Butt Hinges - 4 Ball Bearing - Stainless Steel
$27.50
4 Ball Bearings for heavy weight applications. Stainless steel for exterior and corrosive environments.
PDQ Butt Hinges are a secure and long-lasting solution for mounting commercial doors.
Features
- Size: 4-1/2” x 4-1/2”
- 5 Knuckle
- Non-Removable Pin
- Groove in pin accepts set screw in center barrel
- Set screw secured using a 3/32” hex (allen) wrench and is not accessible when door is closed
Specs
- Stainless Steel Applications: Exterior and corrosive environments
- All hinges packed with Machine Screws (12-24 x 1/2” FHMS) and Wood Screws (12 x 1-1/4” FHWS)
- Five (5) year limited warranty
Finish
Stainless Steel 630/US32D
Installation Challenge Level
Easy
Anyone who can read instructions and use basic tools can install this product.
Adams Rite Reinforcing Pivot
$89.00
Reinforcing Pivots provide an economical way to transfer load from hinges of sagging doors. This full-surface reinforcing pivot adds years of life to openings where the hinges or hinge reinforcements have failed. Reinforcing pivots take the load off the top hinge and transfer it to screws that are in shear so they will not pull off. The economical way to solve door sag problems.
Specs
- Door Type: Full surface reinforcing pivots for flush doors
- Finish: Zinc plating over steel
- Material: Heavy-duty 3/16” cold-rolled steel
- Cycle Testing: 1,500,000 repetitions
- Capacity: Supports weights up to 300 lbs.
- Hole Pattern: Symmetrically located. Non-handed
- Hinge Size: The B1923 pivot is designed with a 3/4” offset to match the pivot point of a 4-1/2” wide butt hinge
Installation Challenge Level
Easy
Anyone who can read instructions and use basic tools can install this product.
Instructions & Templates
Select Continuous Hinges - 83" Standard Duty - Full Surface
$163.77
Surface mount on face of existing or new door and frame.

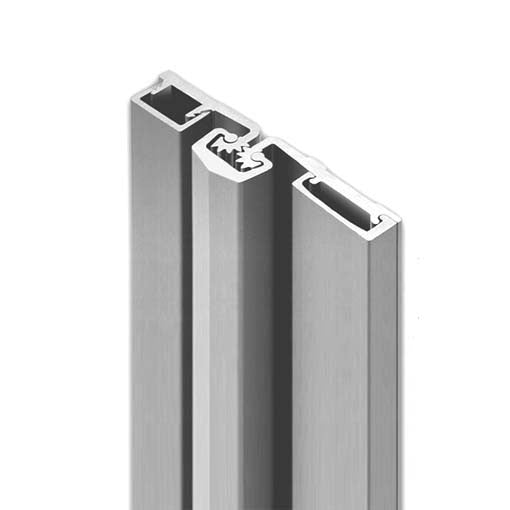

Select Products SL57 Full Surface Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Standard Duty: up to 200 lb., medium-frequency (10 to 24 opens/closes per day)
- Fits narrow (7/8") frame face
- Tamper resistant, removable door leaf cover
- 1/16" door inset
- Standard barrel nuts accommodate 1-3/8" to 1-3/4" doors
- Long barrel nuts available for 2" to 2-1/4" doors
- All SL57 geared continuous hinges are BHMA Grade 1 certified
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates
Select Continuous Hinges - 83" Heavy Duty - Full Surface
$203.94
Surface mount on face of existing or new door and frame.
Select Products SL57 Full Surface Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Heavy Duty:
- up to 200 lb., high-frequency (more than 25 opens/closes per day and/or abused doors - ones that often get slammed against a stop, operate in a school, etc.)
- up to 400 lb., medium-frequency (10 to 24 opens/closes per day)
- up to 600 lb., low-frequency (10 opens/closes per day or less)
- Fits narrow (7/8") frame face
- Tamper resistant, removable door leaf cover
- 1/16" door inset
- Standard barrel nuts accommodate 1-3/8" to 1-3/4" doors
- Long barrel nuts available for 2" to 2-1/4" doors
- All SL57 geared continuous hinges are BHMA Grade 1 certified
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates

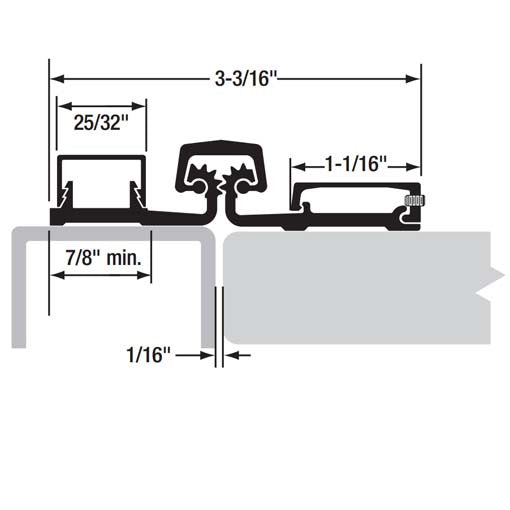

Select Continuous Hinges - 95" Standard Duty - Full Surface
$195.70
Surface mount on face of existing or new door and frame.
Select Products SL57 Full Surface Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Standard Duty: up to 200 lb., medium-frequency (10 to 24 opens/closes per day)
- Fits narrow (7/8") frame face
- Tamper resistant, removable door leaf cover
- 1/16" door inset
- Standard barrel nuts accommodate 1-3/8" to 1-3/4" doors
- Long barrel nuts available for 2" to 2-1/4" doors
- All SL57 geared continuous hinges are BHMA Grade 1 certified
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates
Select Continuous Hinges - 95" Heavy Duty - Full Surface
$229.69
Surface mount on face of existing or new door and frame.
Select Products SL57 Full Surface Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Heavy Duty:
- up to 200 lb., high-frequency (more than 25 opens/closes per day and/or abused doors - ones that often get slammed against a stop, operate in a school, etc.)
- up to 400 lb., medium-frequency (10 to 24 opens/closes per day)
- up to 600 lb., low-frequency (10 opens/closes per day or less)
- Fits narrow (7/8") frame face
- Tamper resistant, removable door leaf cover
- 1/16" door inset
- Standard barrel nuts accommodate 1-3/8" to 1-3/4" doors
- Long barrel nuts available for 2" to 2-1/4" doors
- All SL57 geared continuous hinges are BHMA Grade 1 certified
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates

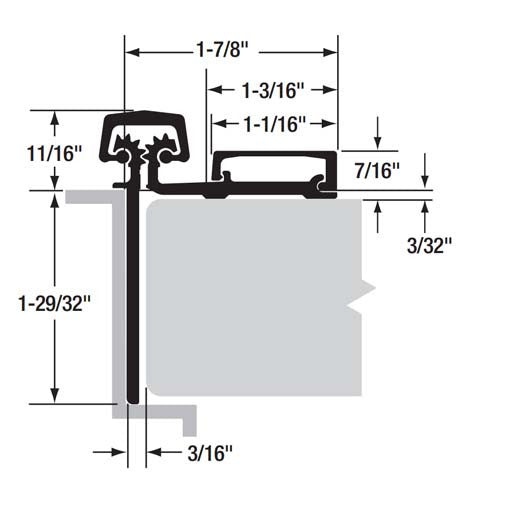

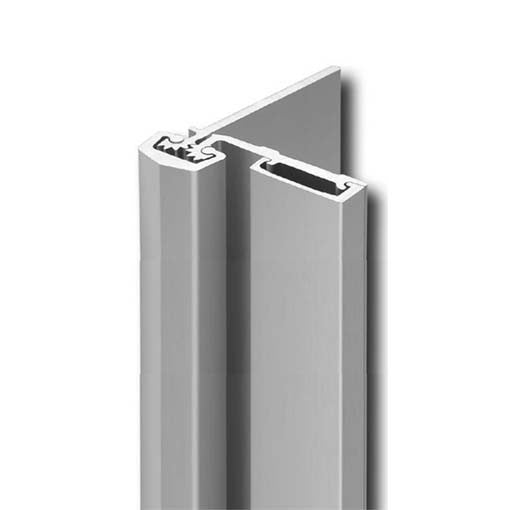

Select Continuous Hinges - 83" Standard Duty - Half Surface
$178.00
Mounts on door face and frame rabbet.
Select Products SL54 Half Surface Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Standard Duty: up to 200 lb., medium-frequency (10 to 24 opens/closes per day)
- Frame leaf covers butt hinge preps
- Tamper-resistant, removable door leaf cover
- 3/32" door inset
- For 1-3/4" doors
- Long barrel nuts available for 2" to 2-1/4" doors
- SL54 HD geared continuous hinges are BHMA Grade 1 certified.
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates
Select Continuous Hinges - 83" Heavy Duty - Half Surface
$210.92
Mounts on door face and frame rabbet.
Select Products SL54 Half Surface Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Heavy Duty:
- up to 200 lb., high-frequency (more than 25 opens/closes per day and/or abused doors - ones that often get slammed against a stop, operate in a school, etc.)
- up to 400 lb., medium-frequency (10 to 24 opens/closes per day)
- up to 600 lb., low-frequency (10 opens/closes per day or less)
- Frame leaf covers butt hinge preps
- Tamper-resistant, removable door leaf cover
- 3/32" door inset
- For 1-3/4" doors
- Long barrel nuts available for 2" to 2-1/4" doors
- SL54 HD geared continuous hinges are BHMA Grade 1 certified.
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates
Select Continuous Hinges - 95" Standard Duty - Half Surface
$232.93
Mounts on door face and frame rabbet.
Select Products SL54 Half Surface Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Standard Duty: up to 200 lb., medium-frequency (10 to 24 opens/closes per day)
- Frame leaf covers butt hinge preps
- Tamper-resistant, removable door leaf cover
- 3/32" door inset
- For 1-3/4" doors
- Long barrel nuts available for 2" to 2-1/4" doors
- SL54 HD geared continuous hinges are BHMA Grade 1 certified.
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates
Select Continuous Hinges - 95" Heavy Duty - Half Surface
$232.93
Mounts on door face and frame rabbet.
Select Products SL54 Half Surface Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Heavy Duty:
- up to 200 lb., high-frequency (more than 25 opens/closes per day and/or abused doors - ones that often get slammed against a stop, operate in a school, etc.)
- up to 400 lb., medium-frequency (10 to 24 opens/closes per day)
- up to 600 lb., low-frequency (10 opens/closes per day or less)
- Frame leaf covers butt hinge preps
- Tamper-resistant, removable door leaf cover
- 3/32" door inset
- For 1-3/4" doors
- Long barrel nuts available for 2" to 2-1/4" doors
- SL54 HD geared continuous hinges are BHMA Grade 1 certified.
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates
Select Continuous Hinges - 83" Standard Duty - Concealed
$144.20
Concealed mount - no mortise required.
Select Products SL24 Concealed Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Standard Duty: up to 200 lb., medium-frequency (10 to 24 opens/closes per day)
- Door edge protector
- Frame leaf covers butt hinge preps
- 1/16"door inset
- For 1-3/4" doors
- All SL24 geared continuous hinges are BHMA Grade 1 certified
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates
Select Continuous Hinges - 83" Heavy Duty - Concealed
$169.94
Concealed mount - no mortise required.
Select Products SL24 Concealed Geared Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Heavy Duty:
- up to 200 lb., high-frequency (more than 25 opens/closes per day and/or abused doors - ones that often get slammed against a stop, operate in a school, etc.)
- up to 400 lb., medium-frequency (10 to 24 opens/closes per day)
- up to 600 lb., low-frequency (10 opens/closes per day or less)
- Door edge protector
- Frame leaf covers butt hinge preps
- 1/16"door inset
- For 1-3/4" doors
- All SL24 geared continuous hinges are BHMA Grade 1 certified
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates
Select Continuous Hinges - 95" Standard Duty - Concealed
$171.26
Concealed mount - no mortise required.
Select Products SL24 Concealed Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Standard Duty: up to 200 lb., medium-frequency (10 to 24 opens/closes per day)
- Door edge protector
- Frame leaf covers butt hinge preps
- 1/16"door inset
- For 1-3/4" doors
- All SL24 geared continuous hinges are BHMA Grade 1 certified
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates
Select Continuous Hinges - 95" Heavy Duty - Concealed
$169.94
Concealed mount - no mortise required.
Select Products SL24 Concealed Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Heavy Duty:
- up to 200 lb., high-frequency (more than 25 opens/closes per day and/or abused doors - ones that often get slammed against a stop, operate in a school, etc.)
- up to 400 lb., medium-frequency (10 to 24 opens/closes per day)
- up to 600 lb., low-frequency (10 opens/closes per day or less)
- Door edge protector
- Frame leaf covers butt hinge preps
- 1/16"door inset
- For 1-3/4" doors
- All SL24 geared continuous hinges are BHMA Grade 1 certified
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates
Select Continuous Hinges - 83" Heavy Duty - Wide Throw
$270.36
Concealed hinge with wide throw for clearance of brick moldings or special door/frame designs.
Select Products SL40 Wide Throw Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Heavy Duty:
- up to 200 lb., high-frequency (more than 25 opens/closes per day and/or abused doors - ones that often get slammed against a stop, operate in a school, etc.)
- up to 400 lb., medium-frequency (10 to 24 opens/closes per day)
- up to 600 lb., low-frequency (10 opens/closes per day or less)
- Frame leaf covers butt hinge preps
- Flush mounted (no door inset)
- For 1-3/4" doors
- SL40 HD geared continuous hinges are BHMA Grade 1 certified.
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates
Select Continuous Hinges - 95" Heavy Duty - Wide Throw
$316.60
Concealed hinge with wide throw for clearance of brick moldings or special door/frame designs.
Select Products SL40 Wide Throw Continuous Hinges can be used on new installations or to replace worn-out or broken hinges. They are stronger than pivots and distribute the weight of a door evenly. Aesthetically pleasing, they are made in Michigan and guaranteed for the life of the opening.
Features
- Heavy Duty:
- up to 200 lb., high-frequency (more than 25 opens/closes per day and/or abused doors - ones that often get slammed against a stop, operate in a school, etc.)
- up to 400 lb., medium-frequency (10 to 24 opens/closes per day)
- up to 600 lb., low-frequency (10 opens/closes per day or less)
- Frame leaf covers butt hinge preps
- Flush mounted (no door inset)
- For 1-3/4" doors
- SL40 HD geared continuous hinges are BHMA Grade 1 certified.
Finishes
Dark Bronze 710/313AN
Clear Aluminum 673/US92
Installation Challenge Level
Easy
Anyone who can read instructions and use a screwdriver can install this product.
Instructions & Templates
Cal-Royal TBH-30 — 4.5″ × 4.5″ Plain-Bearing Butt Hinge (Standard Weight)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal TBH-30 — 4.5″×4.5″ Standard-Weight Plain Bearing Hinge
The Cal-Royal TBH-30 (also cataloged as DBH30) is a 4-1/2″ × 4-1/2″ full-mortise, standard-weight plain-bearing butt hinge designed for standard-weight, low-frequency doors. Features a five-knuckle design, ANSI template screw pattern, and includes wood & machine screws. Optional NRP (non-removable pin) variants available for security applications.
Lead time: Most finishes stock quickly; contact us for large quantities or special finishes.
-
VendorCal-Royal Products
-
SeriesTBH / DBH — Plain Bearing Hinges
-
Size4.5″ × 4.5″ (square corner, 5-knuckle)
-
Leaf Thickness0.134″ (standard weight)
-
MaterialSteel (std) • Stainless (US32D)
-
BearingPlain bearing (no ball bearings)
-
Pin OptionsRemovable pin • NRP (Non-Removable Pin)
-
Fasteners#12 wood & 12-24 machine screws
-
ComplianceANSI/BHMA A156.1 • UL fire-rated
-
WarrantyLifetime mechanical • 3-yr finish
- US26D — Satin Chrome
- US10B — Oil-Rubbed Bronze
- US32D — Satin Stainless
Other finishes: USP, US3, US4, US10, US10A, US15, US15A, US26, DURO/Flat Black + NRP variants.
| Leaf Thickness | 0.134″ |
| Knuckles | 5 |
| Screw Holes | 8 — ANSI template |
| Use | Standard-weight doors • not for heavy closers |
Installation Difficulty
Level 2 — Easy: Basic tools; mortise if new install.
CAL-ROYAL SDH10 (Track w/ Regular Stop for Wood Doors, Top Mount Single Wheel)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal SDH10 — Top-Mount Single-Wheel Sliding Door Hardware (Regular Stop)
Cal-Royal SDH10 is a stainless steel sliding door hardware set for wood doors with a top-mounted single-wheel roller and regular stop. Sets include sliding rod (track), two rollers, floor guide, and complete mounting screws. Rail length options: 6′ 6″ or 8′ 2″.
Lead time: Stocked by distributors; contact us for current availability.
-
VendorCal-Royal Products, Inc.
-
SeriesSDH — Stainless Sliding Door Hardware
-
ModelSDH10 — Top-mount, single-wheel, regular stop
-
FinishUS32D Satin Stainless Steel
-
Door TypeWood doors (1-3/8″ to 1-3/4″)
-
Max Door Weight200 lb (90 kg)
-
Rail Lengths6′ 6″ (suffix 66) • 8′ 2″ (suffix 82)
-
Set IncludesSliding rod (track), 2 rollers, floor guide, mounting screws
- US32D — Satin Stainless (standard)
Other options via accessories: soft-close kits and soft-action stops (see Downloads/Accessories).
| Series / Model | SDH / SDH10 — Top-mount single-wheel, regular stop |
| Finish | US32D Satin Stainless Steel |
| Door Type | Wood doors (1-3/8″–1-3/4″) |
| Max Door Weight | 200 lb (90 kg) |
| Rail Lengths | 6′ 6″ or 8′ 2″ (order by suffix 66 or 82) |
| Included in Set | Sliding rod (track), 2 rollers, 1 floor guide, mounting screws |
Installation Difficulty
Level 2 — Easy: Straightforward rail/roller mounting; accurate layout & level required.
Cal-Royal SDH11 — Top-Mount Spoke-Wheel Sliding Hardware (Regular Stop)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal SDH11 — Top-Mount Spoke-Wheel Sliding Hardware (Regular Stop) for Wood Doors
Cal-Royal SDH11 is a stainless steel sliding door hardware kit for wood doors featuring a top-mounted spoke-wheel roller with regular stop. The set includes a sliding rod (track), spoke-wheel rollers, floor guide, and mounting screws. Available rail lengths: 6′ 6″ (suffix 66) and 8′ 2″ (suffix 82).
Lead time: Typically stocked; confirm current availability.
-
VendorCal-Royal Products, Inc.
-
SeriesSDH — Sliding Door Hardware
-
ModelSDH11 (Top-mount, Spoke-Wheel, Regular Stop)
-
Door TypeWood
-
Door Thickness1-3/8″ to 1-3/4″ (35–45 mm)
-
Max Door Weight200 lb (90 kg)
-
FinishUS32D — Satin Stainless Steel
-
Rail Lengths6′ 6″ (66) • 8′ 2″ (82)
-
Max Door Opening36″ (with 6′ 6″ rail) • 48″ (with 8′ 2″ rail)
-
IncludesSliding rod, 2 spoke-wheel rollers, floor guide, mounting screws
-
Optional StopsSoft Action Stops DS-2200 / DS-2300 (accessory)
-
Optional Soft-CloseSCS40 / SCS80 kits (Top-Mount for wood)
- US32D — Satin Stainless Steel (standard for SDH kits)
*Soft-Close (SCS) kits note additional stock finishes on some configurations; verify per order.
Configuration
-
Rail Length / Variant (with SKU): 6′ 6″ —
SDH1166• 8′ 2″ —SDH1182• Roller set less rail —SDH11LR -
Stops: Standard bumpers included; optional
DS-2200/DS-2300soft action stops -
Soft-Close upgrade:
SCS8016(SCS80) orSCS4016(SCS40) Top-mount kits for wood doors -
Floor guides (accessories):
SDH-FG-ADJ1adjustable guide;SDH-FG-ADJ8roller guide, etc.
| Material | 304 stainless steel |
| Finish | US32D Satin Stainless |
| Mount / Design | Top-mount, spoke-wheel roller |
| Door Type | Wood (interior) |
| Door Thickness | 1-3/8″ to 1-3/4″ |
| Max Door Weight | 200 lb (90 kg) |
| Sliding Rod Lengths | 6′ 6″ • 8′ 2″ |
| Max Door Opening | 36″ (6′ 6″ rail) • 48″ (8′ 2″ rail) |
| Set Contents | Rail, 2 rollers, floor guide, mounting screws |
| Options | Soft action stops DS-2200/2300; Soft-Close SCS kits |
Use case: Decorative/architectural interior wood doors requiring exposed top-mount spoke-wheel aesthetic with smooth travel and no floor track.
- Quiet ball-bearing rollers; clean stainless aesthetic
- Suffix “66” or “82” selects rail length
- Upgrade to soft-action stop or soft-close as needed
Note: Cal-Royal does not publish an SDH11-specific video; the above covers common accessories/soft-close concepts.
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & anchoring; standard carpentry tools.
Cal-Royal SDH12 — Top-Mount Dual-Wheel Sliding Hardware (Regular Stop)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal SDH12 — Top-Mount Dual-Wheel Sliding Hardware (Regular Stop)
Cal-Royal SDH12 is a stainless steel sliding door hardware kit for wood doors featuring a top-mount dual-wheel roller system with a regular stop. Each set includes the sliding rod (track), two dual-wheel rollers, a floor guide, and complete mounting screws. Order by rail length suffix: 66 = 6′ 6″, 82 = 8′ 2″.
Lead time: Common stocking item; contact us for current availability.
-
VendorCal-Royal Products
-
SeriesSDH — Stainless Sliding Door Hardware
-
ModelSDH12 (Top-mount Dual-Wheel, Regular Stop)
-
FinishUS32D Satin Stainless Steel
-
Door TypeWood doors (approx. 1-3/8″–1-3/4″)
-
Max Door Weight200 lb (90 kg)
-
Rail Lengths6′ 6″ (suffix 66) • 8′ 2″ (suffix 82)
-
Set IncludesSliding rod, 2 rollers, floor guide, screws
-
DocsSDH series catalog • SDH part numbers
- US32D — Satin Stainless Steel (standard)
Accessory finishes (handles/guides) may include Black and US10B in the SDH accessories line.
Configuration (select variants / accessories)
- Rail length (variant): 6′ 6″ (66) • 8′ 2″ (82)
- Less-rail roller set: SDH12LR (rollers, stops, guide & screws only)
- Stops (accessories): DS-2100 (for SDH12/SDH30) • DS-2200/DS-2300 soft-action stops (SDH series)
- Soft-Close: SCS kits (SCS80/SCS40) per door weight
- Floor guides / spacers: Adjustable guides (SDH-FG series), spacers, pulls
| Series / Model | SDH / SDH12 — Top-mount dual-wheel, regular stop |
| Finish | US32D (304 stainless) |
| Door Type | Wood (approx. 1-3/8″ to 1-3/4″) |
| Max Door Weight | 200 lb (90 kg) |
| Rail Lengths | 6′ 6″ or 8′ 2″ (order by suffix 66/82) |
| Included | Sliding rod, 2 rollers, floor guide, mounting screws |
Use case: Interior wood sliding/barn doors needing smooth, quiet travel and higher stability from dual wheels.
Reference videos; follow Cal-Royal PDFs for exact steps.
Installation Difficulty
Level 2 — Skilled DIY: Accurate layout, plumb/level required.
Cal-Royal SDH20/SDH30 — Surface Strap Single-Wheel Sliding Door Hardware (Glass/Wood)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal SDH20 / SDH30 — Surface Strap Single-Wheel Sliding Hardware (Regular Stop)
Cal-Royal SDH20 / SDH30 is stainless sliding door hardware with a surface-mount strap single-wheel design. Order by Door Type (Glass = SDH20, Wood = SDH30) and Rail Length (66 = 6′ 6″, 82 = 8′ 2″). Sets include sliding rod (track), two rollers, floor guide, and mounting screws in US32D Satin Stainless Steel.
Lead time: Typically stocked by distributors; contact us for current availability.
-
VendorCal-Royal Products
-
SeriesSDH — Stainless Sliding Door Hardware
-
ModelsSDH20 (Glass) • SDH30 (Wood)
-
Mount / DesignSurface-Mount • Strap Single-Wheel • Regular Stop
-
FinishUS32D Satin Stainless Steel
-
Max Door Weight200 lb (90 kg)
-
Door Thickness (Wood)1-3/8″ to 1-3/4″
-
Door Thickness (Glass)5/16″ to 1/2″
-
Rail Lengths6′ 6″ (suffix 66) • 8′ 2″ (suffix 82)
-
Set IncludesSliding rod (track), 2 rollers, 1 floor guide, mounting screws
- Door Type (variant): Glass (SDH20) • Wood (SDH30)
- Rail Length (variant): 6′ 6″ (66) • 8′ 2″ (82)
- Soft-Stop (accessory variants): SDH23 (Glass) • SDH33 (Wood)
- Soft-Close (kits): SCS prefixed sets (see SCS tables)
- Accessories: SDH floor guides, spacers, pulls/handles
| Models | SDH20 (Glass) • SDH30 (Wood) |
| Mount / Design | Surface mount • Strap single-wheel • Regular stop |
| Finish | US32D Satin Stainless Steel (304) |
| Door Thickness | Wood: 1-3/8″–1-3/4″ • Glass: 5/16″–1/2″ |
| Max Weight | 200 lb (90 kg) |
| Rails | 6′ 6″ or 8′ 2″ (order by suffix 66 / 82) |
| Included | Track, 2 rollers, floor guide, mounting screws |
Use case: Interior sliding doors where a clean strap aesthetic is desired in stainless finish; supports both wood and tempered glass panels.
Reference videos; follow Cal-Royal PDFs for exact steps.
Installation Difficulty
Level 2 — Skilled DIY: Careful layout; ensure plumb/level track and correct standoff for wood/glass.
Cal-Royal BDH30 — Surface Strap-Wheel Barn Door Hardware (Wood), 6′6″ or 8′0″
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal BDH30 — Surface Strap-Wheel Barn Door Hardware (Wood)
Cal-Royal BDH30 is a barn door hardware kit for wood doors with a surface-mount strap wheel design. Order by rail length: 6′ 6″ (BDH3066) or 8′ 0″ (BDH3080). Optional Soft-Close variants use prefix SCSBDH (e.g., SCSBDH3066). Standard finish: BLACK; some distributors also offer US15 Satin Nickel.
Lead time: Typically distributor-stocked; confirm current availability.
- VendorCal-Royal Products, Inc.
- SeriesBDH — Barn Door Hardware (Wood)
- ModelBDH30 — Surface mount, Strap Wheel
- Rail Lengths6′ 6″ (BDH3066) • 8′ 0″ (BDH3080)
- Soft-Close VariantsSCSBDH3066 • SCSBDH3080
- Less-Track SetBDH30LT (no track, hardware only)
- FinishBLACK (std) • US15 Satin Nickel (selected distributors)
- Max Door WeightUp to 132 lb with Soft-Close; higher without soft-close (per distributor data)
- Set IncludesTrack, 2 rollers, 2 stops, floor guide, anti-jump discs, screws (kit); LT = hardware less track
- BLACK (powder-coated matte)
- US15 — Satin Nickel (availability varies)
If US15 is not stocked by your distributor, treat as special order.
| Mount / Design | Surface mount • Strap Wheel |
| Door Type | Wood interior doors |
| Lengths | 6′ 6″ • 8′ 0″ |
| Max Door Weight | 132 lb with Soft-Close (SCS) per spec; distributors list up to ~220–265 lb without SCS |
| Set Contents | 1 track (except LT), 2 rollers, 2 stops, 1 floor guide, 2 anti-jump discs, mounting screws |
Use case: Decorative barn/sliding wood doors where a strap-wheel aesthetic and stainless/black look are desired.
Reference videos; follow Cal-Royal PDFs for exact steps.
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & plumb/level; anchors required.
Cal-Royal BDH31 — Top-Mount Single-Wheel Barn Door Hardware (Wood), 6′6″ or 8′0″
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal BDH31 — Top-Mount Single-Wheel Barn Door Hardware (Wood)
Cal-Royal BDH31 is a barn door hardware kit for wood doors with a top-mount single wheel design. Order by rail length: 6′ 6″ (BDH3166) or 8′ 0″ (BDH3180). Optional Soft-Close variants: SCSBDH3166 / SCSBDH3180. Standard finish: BLACK; some distributors also stock US15 Satin Nickel.
Lead time: Typically distributor-stocked; confirm current availability.
- VendorCal-Royal Products, Inc.
- SeriesBDH — Barn Door Hardware (Wood)
- ModelBDH31 — Top-mount, Single Wheel
- Rail Lengths6′ 6″ (BDH3166) • 8′ 0″ (BDH3180)
- Soft-Close VariantsSCSBDH3166 • SCSBDH3180
- FinishBLACK (std) • US15 Satin Nickel (some distributors)
- Max Door Weight220 lb kit (no SCS) • 132 lb with Soft-Close (SCS)
- Set IncludesTrack, 2 rollers, 2 stops, floor guide, anti-jump discs, mounting screws
- BLACK (powder-coated matte)
- US15 — Satin Nickel (availability varies)
If US15 isn’t stocked by your source, treat as special order.
| Mount / Design | Top-mount • Single Wheel |
| Door Type | Wood interior doors |
| Lengths | 6′ 6″ • 8′ 0″ |
| Max Door Weight | Up to 220 lb (no SCS); 132 lb with SCS |
| Set Contents | 1 track, 2 rollers, 2 stops, 1 floor guide, 2 anti-jump discs, screws |
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & plumb/level; anchors required.
Cal-Royal BDH32 — Surface-Mount Arrowhead Barn Door Hardware (Wood), 6′6″ or 8′0″
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal BDH32 — Surface-Mount Arrowhead Barn Door Hardware (Wood)
Cal-Royal BDH32 is a barn door hardware kit for wood doors with a surface-mount Arrowhead roller. Order by rail length: 6′ 6″ (BDH3266) or 8′ 0″ (BDH3280). Optional Soft-Close variants: SCSBDH3266 / SCSBDH3280. Standard finish: BLACK.
Lead time: Typically distributor-stocked; confirm current availability.
-
VendorCal-Royal Products, Inc.
-
SeriesBDH — Barn Door Hardware (Wood)
-
ModelBDH32 — Surface mount, Arrowhead
-
Rail Lengths6′ 6″ (BDH3266) • 8′ 0″ (BDH3280)
-
Soft-Close VariantsSCSBDH3266 • SCSBDH3280 (132 lb max door w/ SCS)
-
FinishBLACK (standard)
-
Max Door WeightUp to 220 lb (no SCS); 132 lb with SCS
-
Set IncludesTrack, 2 rollers, 2 stops, floor guide, anti-jump discs, mounting screws
| Mount / Design | Surface mount • Arrowhead roller |
| Door Type | Wood interior doors |
| Lengths | 6′ 6″ • 8′ 0″ |
| Max Door Weight | Up to 220 lb (no SCS); 132 lb with SCS |
| Set Contents | 1 track, 2 rollers, 2 stops, 1 floor guide, 2 anti-jump discs, screws |
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & plumb/level; anchors required.
Cal-Royal BDH33 — Surface-Mount “Diamond” Barn Door Hardware (Wood), 6′6″ or 8′0″
Sold Out
Please contact us by email or phone for pricing on this item.
Cal-Royal BDH33 — Surface-Mount “Diamond” Barn Door Hardware (Wood)
Cal-Royal BDH33 is a barn door hardware kit for wood doors with a surface-mount “Diamond” roller design. Order by rail length: 6′ 6″ (BDH3366) or 8′ 0″ (BDH3380). Optional Soft-Close variants: SCSBDH3366 / SCSBDH3380. Standard finish: BLACK. :contentReference[oaicite:0]{index=0}
Lead time: Typically distributor-stocked; confirm current availability.
-
VendorCal-Royal Products, Inc.
-
SeriesBDH — Barn Door Hardware (Wood)
-
ModelBDH33 — Surface mount, Diamond design
-
Rail Lengths6′ 6″ (BDH3366) • 8′ 0″ (BDH3380)
-
Soft-Close VariantsSCSBDH3366 • SCSBDH3380
-
FinishBLACK (standard)
-
Max Door WeightUp to 220 lb (no SCS); 132 lb with SCS
-
Set IncludesTrack, 2 rollers, 2 stops, floor guide, 2 anti-jump discs, mounting screws
Model/part numbers per Cal-Royal BDH part-number sheet (Oct 2024). Specs per BDH catalog. :contentReference[oaicite:1]{index=1}
| Mount / Design | Surface mount • “Diamond” roller |
| Door Type | Wood interior doors |
| Lengths | 6′ 6″ • 8′ 0″ |
| Max Door Weight | Up to 220 lb (no SCS); 132 lb with SCS (per catalog) |
| Set Contents | 1 track, 2 rollers, 2 stops, 1 floor guide, 2 anti-jump discs, screws |
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & plumb/level; proper anchors required.
Cal-Royal BDH34 — Surface-Mount Horseshoe Barn Door Hardware (Wood), 6′6″ or 8′0″
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal BDH34 — Surface-Mount Horseshoe Barn Door Hardware (Wood)
Cal-Royal BDH34 is a barn door hardware kit for wood doors with a surface-mount Horseshoe roller design. Order by rail length: 6′ 6″ (BDH3466) or 8′ 0″ (BDH3480). Optional Soft-Close variants: SCSBDH3466 / SCSBDH3480. A Less-Track kit is available as BDH34LT. Standard finish: BLACK.
Lead time: Typically distributor-stocked; confirm current availability.
-
VendorCal-Royal Products, Inc.
-
SeriesBDH — Barn Door Hardware (Wood)
-
ModelBDH34 — Surface mount, Horseshoe design
-
Rail Lengths6′ 6″ (BDH3466) • 8′ 0″ (BDH3480)
-
Soft-Close VariantsSCSBDH3466 • SCSBDH3480
-
Less-Track SetBDH34LT (hardware kit less sliding track)
-
FinishBLACK (standard)
-
Max Door WeightUp to 220 lb (no SCS); 132 lb with SCS
-
Set IncludesTrack (except LT), 2 rollers, 2 stops, floor guide, 2 anti-jump discs, mounting screws
| Mount / Design | Surface mount • Horseshoe roller |
| Door Type | Wood interior doors |
| Lengths | 6′ 6″ • 8′ 0″ |
| Max Door Weight | Up to 220 lb (no SCS); 132 lb with SCS |
| Set Contents | 1 track (except LT), 2 rollers, 2 stops, 1 floor guide, 2 anti-jump discs, screws |
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & plumb/level; proper anchors required.
Pro AXP-C — ALREX PRO Hydraulic Door-Closer Hinge
$350.00
Pro AXP-C — ALREX PRO Hydraulic Door-Closer Hinge
The ALREX PRO Hydraulic Door-Closer Hinge redefines door control, blending hydraulic precision with spring-hinge reliability. Built for demanding environments, its stainless-steel design ensures smooth, code-compliant performance while preventing disruptive slams—now with UL 10C 3-hour fire-rated certification for commercial use. Hold Open available for non-fire rated openings.
Applications
- Medical
- Arch Doors
- Custom Applications / OEM
- Transom Doors
- Hospitality
- Multi-Family
- Gates
-
Intelligent Speed Control: Adjustable hydraulic tension ensures smooth closing, preventing abrupt closures even in high-traffic areas.
-
5-Year Warranty: Confidence in quality and performance
-
UL 10C Fire Compliance: 3-hour fire-rated protection meets strict commercial building codes (NFPA 80/ADA).
-
Heavy-Duty Construction: 304 stainless steel body withstands 1,000,000+ test cycles.
-
Patent #10633905: Innovative engineering backed by patented technology.
-
Positive Latching Mechanism: Secures doors firmly into frames.
-
Architectural-Grade Aesthetics: Slim profile integrates seamlessly with modern door designs.
- Satin Brass
- Black
- Dark Bronze
- Satin Stainless
| Gauge Of Material (4.0") | .130" |
| Max Door Weight | See Documents Tab for Details |
| Material | Stainless Steel |
| Non-Hold Open | Standard |
| Gauge Of Material (4.5" & 5.0") | .134" |
| Operating Temp. Range | -40°F to 212°F |
| Hole Pattern | ANSI |
Installation Difficulty
Level 1 — Skilled DIY: Anyone who can read instructions and use basic tools can install this product.
Company Info
Resources
Why Buy From Us?
Huge Inventory
Huge Inventory
No Hassle Returns
Satisfaction
Guaranteed
Guaranteed
News & Updates
Sign up to get the latest on sales, new releases and more …
