Washroom Accessories

• Heavy Duty - Round Shaped Rod - 1″ diameter
• Type 304 Stainless Steel - Satin Finish
• Heavy duty solid cast brass plated support posts
• Designed not to turn in support posts
• Surface Mounted

• 0755-SS-18 – 18″ Length (457 mm)
• 0755-SS-24 – 24″ Length (610 mm)

Model / Series
0755-SS

Type
Towel Bar (Heavy-Duty) – Surface Mounted, Stainless Steel

Dimensions
Available in 18″ and 24″ (457 and 610 mm) lengths.

Overall Dimensions
(variable length”) x 2-5/8″ x 2-1/2″ (variable x 67 x 64 mm)

Towel Bar
1″ (25 mm) O.D. x 20 gauge, type 304 stainless steel

Support Posts
Heavy solid cast brass plated to have stainless steel satin finish to match stainless steel

Mounting
Surface Mounted

• Satin Finish

Stainless steel washroom accessory products require regular surface cleaning. Clean with a soft clean rag moistened with a mild detergent, followed by a water-moistened clean rag and then a dry rag.

Stainless steel should be protected against muriatic acid, caustic or abrasive materials, and harsh cleaning detergents.

Surface mount each support post to wall with three (3) 1/4″ diameter [Ø6] oval, pan or round head fasteners of length and type to suit wall conditions (supplied by installer) through mounting holes in posts.

To mount on stud walls, provide concealed backing at screw points, secured to studs. Backing must comply with local building codes. If concealed backing is not provided, secure with toggle bolts.

To mount on solid walls, use plastic or fiber type plugs or expansion bolts.

For compliance with 2010 ADA Accessibility Standards, install unit so that centerline of bar is 48″ [1219] Above Finished Floor (AFF) if clear floor forward reach access is provided or 46″ [1168] AFF if side reach over obstruction is only provided.

• Product Care & Maintenance
• Technical Data Sheet – 0755-SS

• Self-closing door mounted to cabinet with stainless steel spring hinge
• Recessed for side wall installation
• 1.5 gal (5.7 liters) dry solids capacity
• Waste container held in place by “Z” clip retainer
• Safety-edged finger grip provides convenient grip for service
• Door, flanges, waste receptacle and cabinet are 22 gauge type 304 stainless steel alloy 18-8
• Type 304 Stainless Steel - Satin Finish
• Recessed

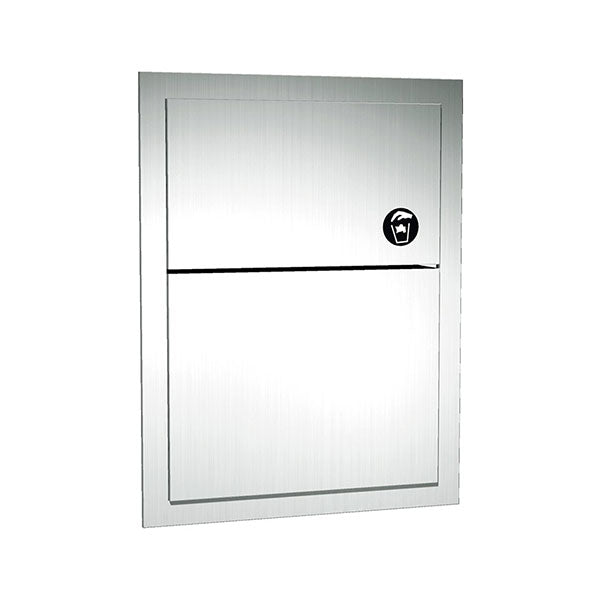

Model
0473

Type
Sanitary Napkin Disposal – Recessed

Overall Dimensions
13″ x 17-1/4″ x 4-1/4″ (330 x 438 x 108 mm)

Wall Opening
11-1/4″ x 15-3/4″ x 4″ (285 x 400 x 102 mm)

Construction
Type 304 Stainless Steel - Satin Finish

Material Gauge
22 Gauge

Mounting
Recessed

Capacity
1.5 gal (5.7 liters) of dry solids

• Satin Finish

Users push door to deposit waste material. Door is self-closing.

Unit is emptied by removing can and removing disposable waxed waste paper bag which is furnished by others.

Waste container is held in place by a “Z” clip retainer to prevent inadvertent dumping of contents.

Unit is mounted in wall recess using #10 self-threading screws (by others) through concealed mounting holes provided.

Top of rough wall opening is 3/4″ [19] below top of unit.

Rough wall opening required is 11-1/4″ x 15-3/4″ x 4″ minimum.

• Product Care & Maintenance
• Technical Data Sheet – 0473

• Automatic touchless operation
• Dispenses liquid soap or gel hand sanitizer
• Seamless drawn construction
• 22 gauge type 304 stainless steel
• Satin Finish
• Translucent removable tank for easy-to-view content level
• LED indicates function and operational condition
• Powered by 6 AA-size batteries (not included)
• Surface or stand mounted
• 33.8 oz. (1000 ml) capacity

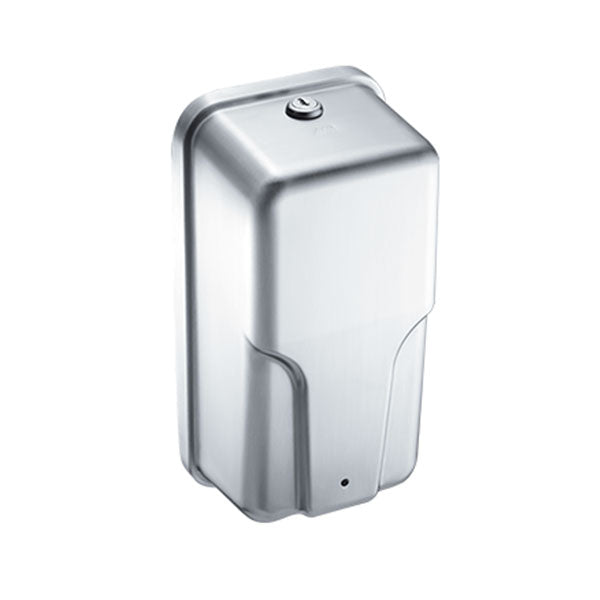

Model
20364

Series
Roval™

Type
Automatic Liquid Soap and Gel Hand Sanitizer Dispenser

Dimensions
5-1/2″ x 10-7/8″ x 4″ (140 x 276 x 102 mm)

Construction
22 gauge Type 304 Stainless Steel

Capacity
33.8 oz. (1000 ml) of liquid soaps and gel hand sanitizer

Power
6 AA-size batteries (not included)

Operation
Automatic – Battery Operated – Touchless

Mounting
Surface or Stand Mounted

Sensor Detection Range
3-1/8″ [80 mm] ± 3/8″ [10 mm]

Dispense Volume
Approximately 0.03 oz. [0.8 ml] per activation

Soap Requirements
Proper usage of this dispenser requires, that only soap/lotion/gel hand sanitizer within the following range for viscosity and pH may be used.

Liquid Soap Viscosity Range (mPa·s or cP)
50 – 3.5k

Gel Hand Sanitizer Viscosity Range (mPa·s or cP)
3.5k – 23k

pH Range
5.5 ~ 8.5

• Satin Finish

Unit operates when an object is positioned within the sensing distance below the dispenser. A measured amount of product is pumped from the nozzle for each activation while battery charge is adequate and appropriate viscosity soap or sanitizer is present in the tank.

Locking door provides security and vandal resistance after soap refill and battery replacement.

Use clean product from a closed container when refilling the reservoir. Clean the soap reservoir of residue on a monthly basis before refilling with fresh product.

Clean the exterior housing regularly with a soft cleaning cloth. Do not soak or submerge the unit and do not clean under running water.

The sensor lens may be cleaned with a soft clean cloth lightly dampened with a suitable general-purpose surface cleaner. Avoid abrasive materials that may scratch the sensor lens.

Replace the batteries at intervals appropriate for the level of use and facility maintenance schedule.

Secure concealed base plate to wall using four suitable self-threading screws through the mounting holes provided and appropriate wall anchors or another suitable mounting system.

For compliance with 2010 ADA Accessibility Standards, install unit so that bottom of unit is 48″ [1219 mm] maximum Above Finished Floor (AFF).

Minimum distance to counter top is 12″ [305 mm].

Install six (6) AA-size 1.5V batteries according to the polarity indication in the concealed battery compartment. Fill tank with appropriate viscosity soap or sanitizer to the correct level and lock the door.

For wall installation, ensure the mounting surface is smooth, flat, vertical and clean, with sufficient clearance above the unit for servicing and lock access.

• Product Care & Maintenance
• Soap & Hand Sanitizer Dispensing Chart
• Owner's Manual – 20364
• Mounting Template – 20364
• Technical Data Sheet – 20364

• L Shaped – Left Hand – 33″ (838 mm) Wide – ADA
• Seat folds up when not in use
• Requires only one hand operation to manually lower to horizontal position for use or raise for departure and arrival
• White solid phenolic seat with black core
• Frame, support legs, flanges, and bracket are type 304 satin finish stainless steel
• Phenolic seat ONLY is field reversible
• Seat is slotted for drainage
• Surface Mounted
• Supports loads up to 500 lbs maximum if installed properly

Model
8206-L

Type
Folding Shower Seat – L Shaped – Left Hand

Seat
½” (13 mm) thick, one piece solid, white colored, black core phenolic

Width
33″ (838 mm)

Projection
22-7⁄8″ (581 mm) from wall

Fold Down Dimensions
33″ x 17″ x 22-7/8″ (838 x 432 x 581 mm)

Fold Up Dimensions
33″ x 35-3/8″ x 22-7/8″ (457 x 899 x 581 mm)

Frame Construction
Type 304 Stainless Steel – Satin Finish

Mounting
Surface Mounted

Compliance
ADA

Supports loads up to 500 lbs maximum if installed properly.

• Seat: White Phenolic with Black Core
• Frame / Body: Type 304 Stainless Steel – Satin Finish

Fold-up Shower Seat requires only one hand operation to manually lower to horizontal position for use or raise for departure and arrival.

Guide bracket with spring detent prevents seat from dropping and provides positive support in usage position as well as spring locked storage position.

This unit is surface mounted. Installer/contractor must provide concealed anchor plate or blocking as specified in construction documents or as required by local building codes prior to wall finishing.

Fasten unit flanges and guide bracket to concealed anchor or blocking plate with appropriate hardware.

Concealed mounting plates or anchors and hardware are not supplied with this product and must be specified separately.

Ensure that mounting configuration complies with local building codes.

• Product Care & Maintenance
• Technical Data Sheet – 8206-L

• Horizontal baby changing station
• 100% high-density polyethylene construction
• Surface Mounted
• Low profile – only 4″ (102 mm) deep when closed
• Designed to support an infant up to 3.5 years old and up to 50 lbs (23 kg)
• Bed is shaped to cradle a child’s body
• Easy one-handed operation
• Adjustable two-part safety strap with Sure-Lock latch
• Two integral bag hooks
• Bed-liner dispenser convertible to a multi-fold towel dispenser
• Damped gas spring aids one-handed operation

Model
9012

Type
Baby Changing Station, HORIZONTAL – PLASTIC

Closed Dimensions
36” x 22” x 4” (914 x 559 x 102 mm)

Open Dimensions
36” x 22” x 20-7/16” (914 x 559 x 519 mm)

Construction
High-Density Polyethylene (HDPE)

Mounting
Surface Mounted

Intended Use
Infants up to 3.5 years old and up to 50 lbs (23 kg)

• ADA compliant
• ASTM F-2285 & F-2388 compliant
• ANSI Z535 compliant
• ANSI 117.1 compliant
• Adjustable safety strap with Sure-Lock latch
• Operable with less than 5 lbs force (22.2N)
• No tight grasping, pinching or twisting of the wrist is required for operation

Unit platform is shaped to cradle a child’s body. Unit is easily opened and closed by user with one hand anywhere on top or front edge of bed or using bag hooks/hand grips on sides.

Bed liner/towel dispenser presents liners or towels for user hygiene and convenience. Dispenser lip retains stack for single liner/towel dispensing.

Safety strap is easily adjustable by user for baby size and Sure-Lock latch securely resists opening until released by opposing finger pressure by adult caretaker.

Ensure that the liner compartment is adequately stocked. Thoroughly clean the unit daily with warm water and mild anti-bacterial detergent, rinse with clean water and dry. Do not use abrasive cleaning agents.

Periodically inspect the unit to ensure that it remains securely attached to the wall and that the unit and wall mounting have not been affected by vandalism or abnormal wear.

Surface mount unit using hardware supplied through recessed mounting holes provided. Hardware kit supplied has fasteners suitable for metal or wood stud walls in dry locations and general hollow wall construction where adequate substrate strength is obtained.

Fasteners and anchors for masonry walls are not provided. Wall reinforcement must be suitable to sustain transfer of maximum unit loading.

Locate wall studs at 16″ (406 mm) O.C. for fastening the station. If two wall studs cannot be used, use two screws into one stud and install suitable toggle fasteners securely at the non-stud location.

Attach unit to wall studs with four 1/4″ x 3″ long Philips pan head self-threading screws with flat washers. Where wall studs are not available, attach with four 1/4″-20 x 3″ toggle bolts with flat washers into toggles or expansion nuts.

Installation should be performed by a qualified technician, and the wall and attachment method must be strong enough to support the rated load.

• Product Care & Maintenance
• Installation & Maintenance Instructions – 9012
• Technical Data Sheet – 9012

• Curved front adds strength and elegance
• Cabinet front is formed seamless
• 22 gauge type 304 stainless steel alloy 18-8
• Concealed, multi-staked piano hinge
• Removable waste can
• Full top edge is hemmed with return to inside for user and service safety
• Type 304 Stainless Steel - Satin Finish
• Surface Mounted
• 1 gal. (3.8 L) capacity

Model
20852

Series
Roval™

Type
Surface Mounted Sanitary Waste Receptacle

Dimensions
7-1/4″ x 10″ x 3-1/2″ (185 x 253 x 89 mm)

Construction
22 gauge type 304 stainless steel alloy 18-8

Capacity
1 gal. (3.8 L)

Mounting
Surface Mounted

• Satin Finish

User lifts lid to deposit waste material. Maintenance schedule determines trash removal cycle. Unload unit by either removing the disposable wax paper liner bag (by others) or unhooking the unit from the mounting screws and inverting to empty into appropriate bulk collection container.

For general utility mount the receptacle 28″ [711] to 40″ [1016] above finished floor (AFF) from top of unit.

For compliance with 2010 ADA Accessibility Standards install unit so that top cover is no higher than 48″ [1219] above finished floor.

Hang unit on wall with two (2) pre-installed #10 x 1-1/4″ [32] self-threading pan head screws (by others) through the mounting keyhole slots provided into suitable wall reinforcements (by others) or two (2) pre-installed #10 x 3/4″ [19] self-threading pan head screws (by others) through the mounting keyhole slots provided into metal partition.

Surface mounting collars conveniently adapt standard recessed mounting cabinets for use on walls with insufficient depth for recessing or wall materials that would make cutouts impossible.

• Product Care & Maintenance
• Surface Mounting Collar Installation
• Technical Data Sheet – 20852

• 1″ diameter (Ø25) bar
• 20 gauge tubing
• Type 304 Stainless Steel - Satin Finish
• Length will be as specified
• Wall Mounted
• Rod is held captive by flanges (#1214-1, sold separately) when installed properly
• Curtain hooks Model 1200-SHU may be used with the rod

• 24″ (610 mm)
• 30″ (762 mm)
• 36″ (914 mm)
• 42″ (1067 mm)
• 48″ (1219 mm)
• 54″ (1372 mm)
• 60″ (1524 mm)
• 66″ (1676 mm)
• 72″ (1829 mm)

Maximum rod length is 120″ (3048 mm). Rods longer than 72″ (1829 mm) require ceiling hanger Model #1224-C18.

Model
1214-2

Type
Shower Curtain Rod – 1″ dia. Bar, Stainless Steel

Diameter
1″ (Ø25)

Tubing
20 gauge

Construction
Type 304 Stainless Steel

Maximum Length
120″ (3048 mm)

Mounting
Wall Mounted

Flanges
#1214-1, sold separately

• Satin Finish

Rod is held captive by flanges (#1214-1, sold separately) when installed properly. Rod may rotate in flanges if turned by hand.

Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others.

Rod will bend and pull from flanges if significant body weight is suspended.

Install rod in straight section between two (2) mounting flanges with no more than 1/4″ [6] total wall clearance.

Rods longer than 72″ [1829] require ceiling hanger Model #1224-C18.

For use with standard shower curtain Model #1200 or #1200-V having 72″ [1829] length and standard hooks (Model #1200-SHU), install unit with rod centerline 74-1/2″ [1892] maximum above finished floor (MAX AFF) or 67″ [1702] above tub rim to obtain 6″ [152] bottom overlap.

Seal screw holes in walls under flange to prevent any sprayed water from possibly infiltrating the wall structure.

• Product Care & Maintenance
• Technical Data Sheet – 1214-2

• Roll formed, interlocking frame with heliarc welded corners
• Corners are ground and polished smooth to a uniform satin finish
• Type 304 stainless steel frame
• Concealed hanging bracket
• Tamper-proof set screws lock onto top and bottom of frame
• One-piece back plate with theft-resistant locking device
• Surface Mounted
• Various sizes and reflective surfaces available

Plate Glass

• 0600-1620 – 16” wide x 20” high (406 x 508 mm)
• 0600-1624 – 16” wide x 24” high (406 x 610 mm)
• 0600-1630 – 16” wide x 30” high (406 x 762 mm)
• 0600-1824 – 18” wide x 24” high (457 x 610 mm)
• 0600-1830 – 18” wide x 30” high (457 x 762 mm)
• 0600-1836 – 18” wide x 36” high (457 x 914 mm)
• 0600-2060 – 20” wide x 60” high (508 x 1524 mm)
• 0600-2430 – 24” wide x 30” high (610 x 762 mm)
• 0600-2436 – 24” wide x 36” high (610 x 914 mm)
• 0600-2442 – 24” wide x 42” high (610 x 1067 mm)
• 0600-2448 – 24” wide x 48” high (610 x 1219 mm)
• 0600-2460 – 24” wide x 60” high (610 x 1524 mm)
• 0600-2472 – 24” wide x 72” high (610 x 1829 mm)
• 0600-3036 – 30” wide x 36” high (610 x 914 mm)
• 0600-3636 – 36” wide x 36” high (914 x 914 mm)
• 0600-3648 – 36” wide x 48” high (914 x 1219 mm)
• 0600-4830 – 48” wide x 30” high (1219 x 762 mm)
• 0600-4836 – 48” wide x 36” high (1219 x 914 mm)
• 0600-6036 – 60” wide x 36” high (1524 x 914 mm)
• 0600-7236 – 72” wide x 36” high (1829 x 914 mm)

Tempered Glass

• 0600-B1824 – 18” wide x 24” high (457 x 610 mm)
• 0600-B1830 – 18” wide x 30” high (457 x 762 mm)
• 0600-B1836 – 18” wide x 36” high (457 x 914 mm)
• 0600-B2430 – 24” wide x 30” high (610 x 762 mm)
• 0600-B2436 – 24” wide x 36” high (610 x 914 mm)
• 0600-B2448 – 24” wide x 48” high (610 x 1219 mm)
• 0600-B2460 – 24” wide x 60” high (610 x 1524 mm)
• 0600-B2472 – 24” wide x 72” high (610 x 1829 mm)

Stainless Steel, Type 304 with #8 Finish

• 0600-C1418 – 14” wide x 18” high (356 x 457 mm)
• 0600-C1824 – 18” wide x 24” high (457 x 610 mm)
• 0600-C1830 – 18” wide x 30” high (457 x 762 mm)
• 0600-C2430 – 24” wide x 30” high (610 x 762 mm)
• 0600-C2436 – 24” wide x 36” high (610 x 914 mm)
• 0600-C2460 – 24” wide x 60” high (610 x 1524 mm)

Series
0600 Series

Type
Stainless Steel Inter-Lok Angle Frame Mirror

Frame
3⁄4″ x 5⁄8″ (19 x 16 mm) roll formed 18 gauge type 304 stainless steel angle

Frame Finish
Uniform satin finish

Construction
Type 304 stainless steel

Mounting
Surface Mounted

Reflective Surface Options
Plate Glass, Tempered Glass, and Stainless Steel Type 304 with #8 Finish

Back Plate
One piece, attached to frame with theft-resistant locking device

Plate Glass
#1 quality polished plate glass with silver coating and protective copper plating. Image quality: BEST.

Tempered Glass
1/4″ (6.4 mm) polished tempered glass with silver coating. Image quality: BETTER.

Stainless Steel with #8 Finish
Type 304 stainless steel polished to a #8 mirror finish. Image quality: FAIR.

Reflective quality may vary by surface type, and the likelihood of distortion increases as reflective surface size increases.

• Frame: Type 304 Stainless Steel - Satin Finish
• Reflective Surface: Plate Glass
• Reflective Surface: Tempered Glass
• Reflective Surface: Type 304 Stainless Steel with #8 Finish

Install bracket level and plumb as per diagram location using #10 self-threading screws (by others).

Hang mirror on bracket and tighten locking screws at top and bottom.

For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards, bottom edge of reflecting surface should be no higher than 40″ [1016] Above Finished Floor.

• Product Care & Maintenance
• Mirror Size Options Chart
• Technical Data Sheet – 0600 Series

• Anti-bacterial, 10 gauge white vinyl fabric
• Standard height of 72″ (1829 mm)
• Multiple widths available
• White Vinyl
• Aluminum or Stainless Steel Grommets
• Self-Extinguishing and NFPA 701 compliant
• Curtain hooks Model № 1200-SHU are recommended

• 1200-V36 – 36″ (762 mm) wide, 6 hooks recommended
• 1200-V42 – 42″ (1067 mm) wide, 7 hooks recommended
• 1200-V48 – 48″ (1219 mm) wide, 8 hooks recommended
• 1200-V60 – 60″ (1524 mm) wide, 10 hooks recommended
• 1200-V72 – 72″ (1829 mm) wide, 12 hooks recommended
• 1200-V84 – 84″ (2134 mm) wide, 14 hooks recommended

Model
1200-V Series

Type
Shower Curtain – 10 ga. White Vinyl, Various Widths

Height
72″ (1829 mm) standard height

Material
10 gauge white vinyl fabric

Grommets
Aluminum or Stainless Steel

Compliance
Self-Extinguishing and NFPA 701 compliant

Curtain should be 6″ (152 mm) wider than opening up to 42″ (1067 mm) and 12″ (305 mm) wider than opening exceeding 42″ (1067 mm).

• 30″ opening – 36″ curtain
• 36″ opening – 42″ curtain
• 42″ opening – 48″ curtain
• 48″ opening – 60″ curtain
• 60″ opening – 72″ curtain
• 72″ opening – 84″ curtain

For openings up to 42″ (1067 mm) wide curtains should be specified an additional 6″ (152 mm) wider than opening and 12″ (305 mm) wider for openings exceeding 42″ (1067 mm).

Shower curtain should be attached with hooks (not provided, order separately) to rod (not provided, order separately). Curtain hooks Model № 1200-SHU are recommended.

• Product Care & Maintenance
• Technical Data Sheet – 1200-V

• Fabricated of 22 gauge stainless steel with satin finish
• Dispenses 400 C-fold or 525 multi-fold paper towels without adjustment or adapters
• Heavy-duty stainless steel piano hinge
• Tumbler lock for security
• Hemmed opening for safe, easy dispensing
• Type 304 Stainless Steel - Satin Finish
• Surface Mounted
• Pull Type

Model
0210

Type
Traditional™ Paper Towel Dispenser (Multi, C-Fold)

Dimensions
11-1⁄8″ x 14-5⁄8″ x 4″ (282 x 371 x 101 mm)

Construction
Type 304 Stainless Steel - Satin Finish

Material Gauge
22 Gauge Stainless Steel

Mounting
Surface Mounted

Operation
Pull Type

Capacity
400 C-Fold or 525 Multi-Fold Paper Towels

• Satin Finish

Towels are self-feeding as withdrawn by hand until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly.

Low level of towel supply is indicated from 25% capacity to empty. Locking door prevents unauthorized access or removal.

Surface mount unit on wall or partition using five #10 self-threading screws (by others) through concealed mounting holes provided.

Four mounting holes through back are keyhole slots for ease in hanging unit on pre-installed screws. Center top mounting hole is horizontal slot for ease of adjustment and vandal resistant locking.

For compliance with 2010 ADA Accessibility Standards install unit so that centerline of towel dispenser slot is 48″ [1219] maximum above finished floor (AFF).

• Product Care & Maintenance
• Technical Data Sheet – 0210

• Vertical space saving footprint
• All purpose valve and a tamper-resistant refill indicator
• Type 304 Stainless Steel - Satin Finish
• Surface Mounted
• Manual Push Button Operation
• Liquid Soap - 40 oz. (1.2 L) Capacity

Model
0347

Type
Liquid Soap Dispenser – Vertical – Surface Mounted

Dimensions
4-13/16” x 8-3/16” x 3-15/16” (122 x 208 x 100 mm)

Spout Projection
3⁄4″ (19 mm)

Construction
Type 304 Stainless Steel - Satin Finish

Mounting
Surface Mounted

Capacity
40 fl. oz. (1.2 L)

Operation
Manual Push Button Operation

Soap Requirements
Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.

Viscosity Range (mPa·s or cP)
100 – 3.5k

pH Range
5.5 ~ 8.5

Soaps containing reportable salts, chlorides and alcohols should be avoided.

• Satin Stainless Steel

Push button to dispense soap. Unit is refilled through hinged door at top requiring special key (supplied) to open.

Soap tank will continue to feed properly until soap level is below valve intake port. Tank supply is replenished manually.

Unit is surface mounted to wall or partition with a wall mounting plate (supplied) and screws (by others). Unit is secured to interlocking wedge bracket and locked in place by a locking screw (supplied) installed through hinged refill door.

Recommended installation for general utility is 42" [1066] Above Finished Floor (AFF) or 6" [152] min above washbasin.

For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards, install unit with centerline of valve button no higher than 48" [1219] AFF.

• Product Care & Maintenance
• Soap Dispensing Chart
• Technical Data Sheet – 0347

• One-piece stainless steel channel encases mirror and backing
• Tight mitered corners add sophistication
• Type 304, alloy 18-8 stainless steel - Satin Finish Frame
• Plate Glass Mirror
• Surface Mounted
• Various sizes and glazing options
• Mirror is held secure by theft-resistant screws

Series
0620 Series

Type
Stainless Steel Chan-Lok Frame Mirror

Dimensions
Various sizes and glazing options

Mounting
Surface Mounted

Frame
18-8, type 304, 20 gauge stainless steel. Exposed surfaces have satin finish. Edges and corners are burr free.

Glass
Standard glazing is #1 quality, 1/4" [6.4] thick plate/float, silver coated and hermetically sealed with a uniform coating of electrolytic copper plating, warranted against silver spoilage for 15 years. Mirrors meet Federal Spec. DD-M-411C, ASTM C-1503, and ASTM C-1036-91.

Filler
Expanded polyethylene microcell foam sheet material, abrasion resistant and shock absorbing, water resistant, 1/8" [3.2] total layer thickness.

Plate Glass
#1 quality polished, silver coated and hermetically sealed with an electrolytic copper plating. Image quality: BEST

Tempered Glass
1/4" [6.4] thick polished tempered glass with two coats of silver. Image quality: BETTER

Important
The reflective quality of tempered glass is not as true as plate glass. As the reflective surface size increases, regardless of glazing type, the likelihood of distortion also increases.

• Type 304, alloy 18-8 stainless steel - Satin Finish Frame

Install “H” wall brackets level and plumb per diagram location using ONLY #8 or #10 Pan Head screws (by others).

Hang mirror on brackets and tighten locking screw (#6-32Fx3/4" Philips Pan Head, supplied separately taped to mirror back) at bottom (note: this screw should be started prior to hanging mirror on wall bracket).

For compliance with 2010 ADA Accessibility Standards and ABA Standards 2015, bottom edge of reflecting surface should be no higher than 40" [1016] Above Finished Floor.

Mirrors larger than 32 sq. ft. (2.97 m²) are fabricated in two (2) or more sections to provide installation and handling ease.

• Product Care & Maintenance
• Technical Data Sheet – 0620 Series
• Mirror Chart

• Type 304 Stainless Steel - Satin Finish
• Surface Mounted
• Concealed, Multi-Staked Piano Hinge
• 1.2 gal (4.5 L) of dry/solids Waste Capacity

Model
0852

Type
Sanitary Napkin Disposal – Surface Mounted

Dimensions
7-7/8" [200] W x 4" [102] D x 9-11/16" [246] H

Construction
Type 304 Stainless Steel - Satin Finish - Concealed, Multi-Staked Piano Hinge

Mounting
Surface Mounted

Capacity
1.2 gal (4.5 L) of dry/solids Waste Capacity

• Satin Stainless Steel
• Matte Black

User lifts lid to deposit waste material. Maintenance schedule determines trash removal cycle.

Unit is emptied by opening top door and removing wax paper collection bag. Waxed paper liner bags are furnished by others.

Surface mount unit on wall or partition using #10 self-threading screws (by others). Two (2) mounting holes through back are keyhole slots for ease in hanging unit on pre-installed screws.

For compliance with 2010 ADA Accessibility Standards, install unit so that top cover is 44" [1118] maximum above finished floor.

• Product Care & Maintenance
• Technical Data Sheet – 0852
• Technical Data Sheet – 0852-41

• Solid formed wire is .098″ diameter (Ø2.5)
• Bright finish
• Formed retainer holds free end closed
• Accommodates 1″ to 1-1/4″ diameter (Ø25 to Ø32) curtain rods
• Open hook design allows easy installation over shower curtain rods
• Free end securely closes into the bottom hook leg-retainer

Product
1200-SHU Shower Curtain Hook – Stainless Steel

Material
Type 304 Stainless Steel

Finish
Bright Finish

Wire Diameter
.098″ [2.5 mm]

Size
1-9/16″ x 2-5/8″ [40 x 67 mm]

Rod Diameter
1″ to 1-1/4″ [25 to 32 mm]

Mounting
Surface Mounted

Mounting Materials
R2

Warranty
One (1) Year from date of Invoice

Size
1-9/16″ x 2-5/8″ (40 x 67 mm)

Grasping hook in both hands, use the thumb of one hand to push the hanger hook in and to one side. Release thumb pressure allowing top hook to bypass and extend over the bottom hook.

Slip the hook over the shower curtain rod (specified separately).

After hanging shower curtain (specified separately) use thumb pressure to replace the free leg of the hook onto the bottom hook leg-retainer.

Open hook and slip over shower curtain rod (specified separately). Hang shower curtain (specified separately) on small hook. Close hook free end into retainer on hook end.

• Product Care & Maintenance
• Technical Data Sheet
