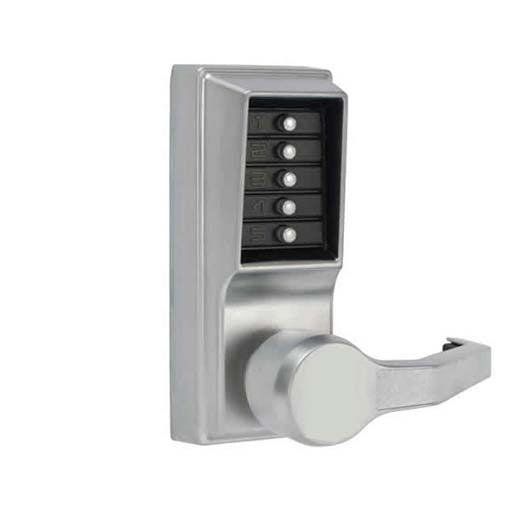

Simplex Mechanical Pushbutton Lock L1000 Series - Lever

The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Features

  • Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Programming: Lock is easily programmed via keypad without removing lock from the door

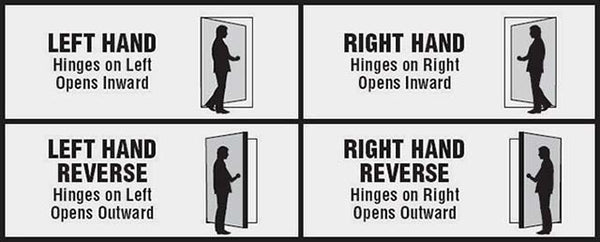

  • Handing: Factory-handed , handing required when ordering.

Specs

  • Construction: Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Factory-handed for left-hand doors; not field reversible.
  • Backset: 2¾" (70 mm), 2⅜" (60 mm)
  • Latch: ½" (13 mm) throw latch, ¾"
  • Minimum Stile Recommended: 5" (127 mm)
  • Strike: Standard strike plate; ASA strike plate
  • Key Override: Schlage core
  • Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through bore holes required.
  • Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm)
  • Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
  • Warranty: 3-year warranty

Finishes

 Satin Chrome 626/US26D

Installation Challenge Level

wrench wrench Challenging
Recommended for Experienced Installers, but not rocket science.

Instructions & Templates
