Alarm Lock Trilogy DL1200 — Narrow Stile Keypad Lever Trim (PIN, 100 Users)
$578.00
Alarm Lock Trilogy DL1200 — Narrow Stile Keypad Lever Trim (PIN, 100 Users)
Alarm Lock Trilogy DL1200 is a narrow-stile, keypad-only outside trim for aluminum storefront doors (Adams Rite® style latches). Supports 100 PIN users, keypad programming, and mechanical key override. Non-handed; works with AR 4500/4700/4900 deadlatches. Powered by two 3V lithium batteries.
-
VendorAlarm Lock / Napco
-
SeriesTrilogy Narrow Stile — T2
-
ModelDL1200 — PIN only, 100 users
-
Door TypeAluminum/glass storefront (narrow stile)
-
Backsets31/32″ • 1-1/8″ • 1-1/2″ (AR latch)
-
Users100 PIN codes (Master/Manager/User/Service)
-
HandingNon-handed (field reversible)
-
Power2 × 3V lithium (CR123A); low-battery alert
-
IncludesOutside keypad trim, straight lever, 1-1/4″ mortise cylinder & 2 keys
Refs: Alarm Lock narrow-stile overview & DL1200 programming/installation sheets. :contentReference[oaicite:0]{index=0}
- US26D — Satin Chrome (DL1200/26D1)
- US10B — Duronodic / Oil-Rubbed Bronze (DL1200/10B1)
Additional finishes sometimes cataloged: Metallic Silver (MS), Metallic Bronze (MB). :contentReference[oaicite:1]{index=1}
| Dimensions | 14-3/8″ H × 1-3/4″ W × 1-5/8″ D |
| Min. stile width | ≈ 2″ |
| Door thickness | Typical alum. storefront (≈1-3/4″) |
| Weight (ship) | ~8 lb |
| Audit / Scheduling | No audit (T2). Scheduling via T3/Networx models only |
| Key override | Schlage C 1-1/4″ mortise cylinder supplied |
| Compatibility | Adams Rite 4500/4700/4900 deadlatch families |
Dims/weight & compatibility: UHS Hardware, SecurityBase, Builders Supply. :contentReference[oaicite:2]{index=2}
Installation Difficulty
Alarm Lock Trilogy DL1300 — Narrow Stile Keypad Trim, 26D/10B, 2,000 Users, Audit Trail
$688.00
Trilogy DL1300 — Narrow Stile Keypad Retrofit Trim
Alarm Lock Trilogy DL1300 is a stand-alone, battery-powered narrow-stile keypad trim for aluminum storefront doors using Adams Rite® style latches/bolts. Supports up to 2,000 users, 40,000-event audit trail, and 500-event schedules; keypad or DL-Windows PC programmable. Weather-resistant with all-metal 12-button keypad and key override. Works with AR 4710/4730/4900 deadlatches and 1850/1950/MS1850S/MS1950 deadbolts (with compatible inside hardware).
Lead time: Commonly stocked in 26D Satin Chrome and 10B Duronodic Bronze.
-
VendorAlarm Lock (Napco Security Technologies)
-
Series / ModelTrilogy Narrow Stile — DL1300 (PIN only)
-
Users / Features2,000 users • 40k event audit • 500-event schedules
-
ProgrammingKeypad or DL-Windows PC (AL-PCI2-U / AL-DTM III)
-
Power2 × CR123 3V lithium (included), low-battery alert
-
Use / RangeWeather-resistant; approx. −31°F to +151°F (−35°C to +66°C)
-
Door / PrepNarrow stile aluminum; retrofit outside trim (non-handed)
-
Compatible Inside LocksAdams Rite® 4710/4730/4900 deadlatches; 1850/1950/MS1850S/MS1950 deadbolts
- 26D / 626 — Satin Chrome (DL1300/26D1)
- 10B / 613 — Duronodic Bronze (DL1300/10B1)
| Users | 2,000 PIN users |
| Audit / Schedules | 40,000-event audit trail; 500-event schedules; real-time clock |
| Keypad | All-metal, 12-button; vandal-resistant |
| Cylinder | Mortise cylinder key override (Alarm Lock cam) |
| Power | 2 × CR123 lithium; ~100k typical cycles |
| Operating Range | ≈ −31°F to +151°F (−35°C to +66°C) |
| Trim Size | Approx. 14-3/8″ H × 1-3/4″ W × 1-5/8″ D |
| Compatibility | Adams Rite® 4710/4730/4900, 1850/1950/MS1850S/MS1950 |
Programming & maintenance references for Trilogy Narrow Stile.
Installation Difficulty
Level 3 — Intermediate: Narrow-stile prep, cylinder cam selection, DL-Windows setup recommended.
Alarm Lock Trilogy PDL1300 — Narrow Stile PIN/Prox Keypad Lever (Audit Trail)
$1,067.00
Trilogy PDL1300 — Narrow Stile PIN/Prox Keypad Lever
Alarm Lock Trilogy PDL1300 is a narrow-stile access trim for aluminum/glass doors (Adams Rite® deadlatches), with a built-in HID prox reader + keypad for PIN or card entry. Supports 2,000 users, 40,000-event audit trail, and up to 500 scheduled events. Battery powered (2 × CR123A), non-handed, vandal-resistant 12-button metal keypad.
- VendorAlarm Lock (Napco)
- Series / ModelTrilogy Narrow Stile / PDL1300
- Users / Audit2,000 users • 40,000-event audit trail
- SchedulesUp to 500 timed events; real-time clock
- EntryPIN (3–6 digits), Prox card/fob, or combo
- Power2 × 3V CR123A lithium (incl.)
- Compat.Adams Rite® 1850, 1950, 4710, 4730, 4900, 4070
- Door/Stile1-3/4″ door • ≥2″ stile
- HandingNon-handed; field reversible
- US26D — Satin Chrome (PDL1300/26D1)
- US10B — Duronodic / Oil-Rubbed Bronze (PDL1300/10B1)
| Code Length | 3–6 digits |
| Dimensions (trim) | ≈14-3/8″ H × 1-3/4″ W × 1-5/8″ D |
| Cylinder | Std. 1-1/4″ mortise cylinder (SC1) |
| Construction | All-metal, vandal-resistant keypad • clutch lever |
| Ship Weight | ~7 lb |
Installation Difficulty

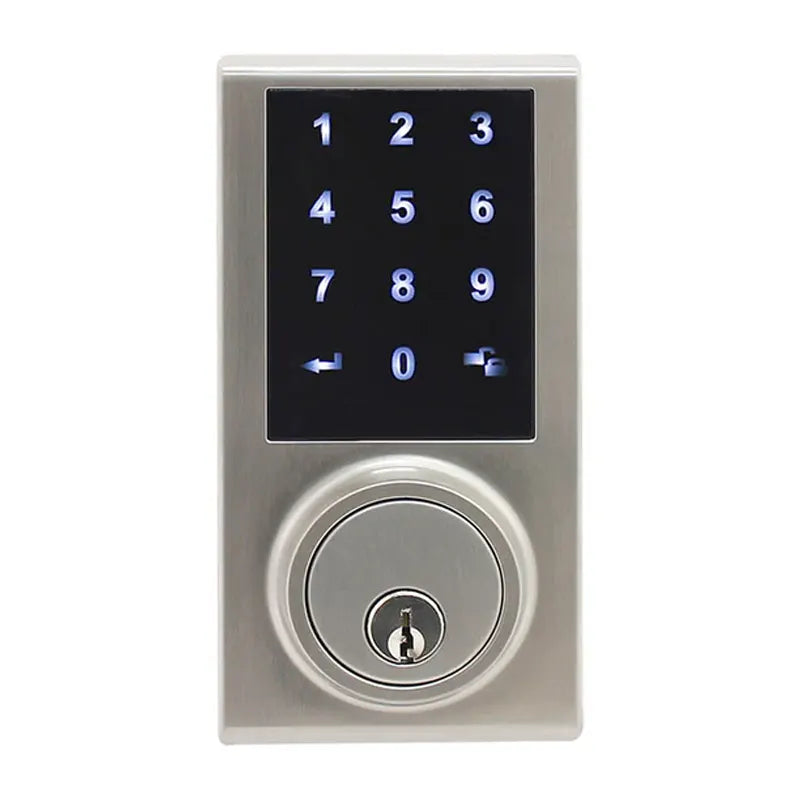

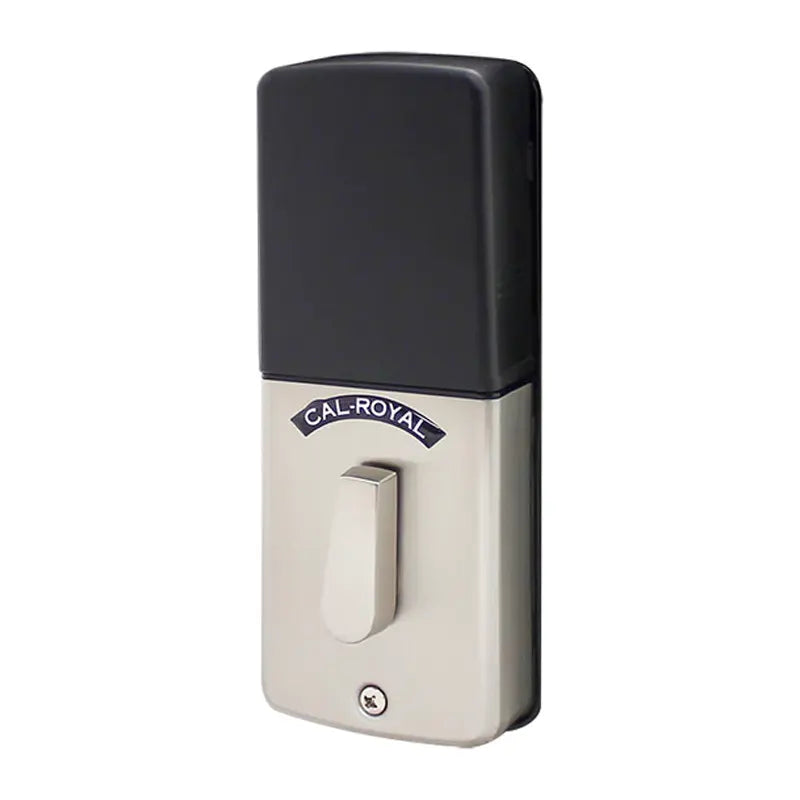

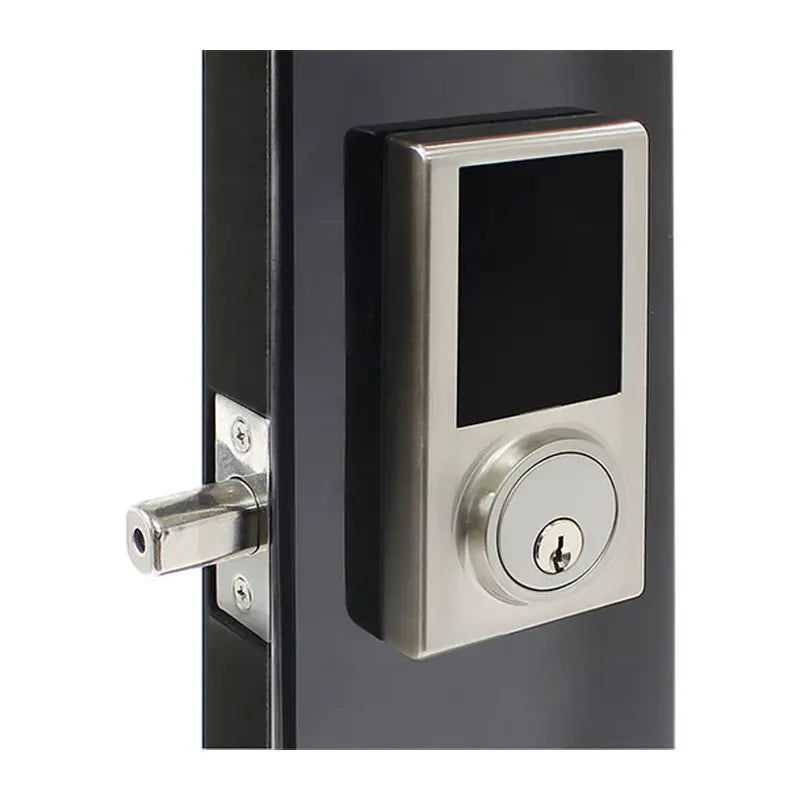

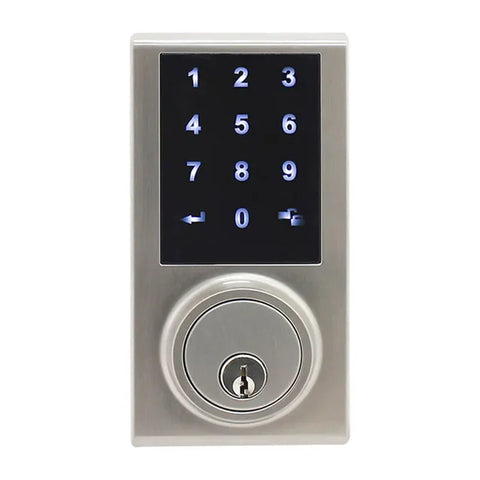

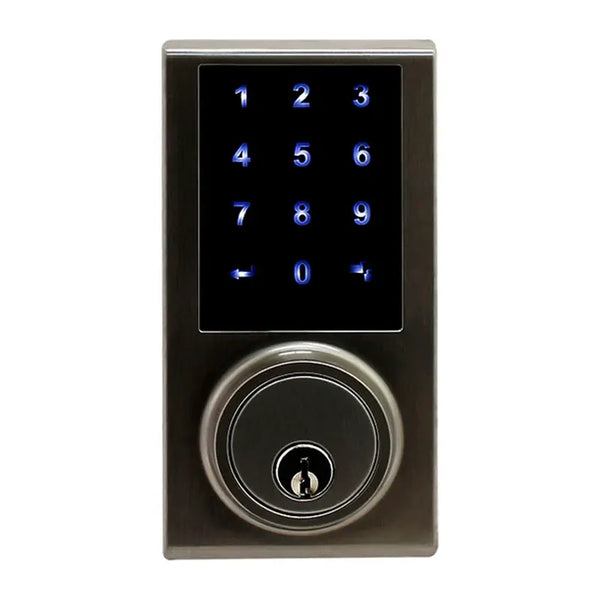

Cal-Royal ZWDB-10 Z-Wave Touch Screen Electronic Deadbolt
$313.00
Cal-Royal ZWDB-10 — Electronic Z-Wave Deadbolt (Keyed Override)
Cal-Royal ZWDB-10 is a Z-Wave enabled touchscreen electronic deadbolt with keyed override. Supports standard 2-1/8″ cross-bore and 1″ edge-bore, adjustable backset 2-3/8″ or 2-3/4″. 30 user codes (4–10 digits), random pre-entry, auto-lock, service code, low-battery alert. Powered by 4× AA.
Main Features
-
Administrator Code - 1 group administrator password, 4-10 digits. It is used for managing all codes. Add / delete user's code individually.
-
User Codes - this feature only opens the lock by entering the code on the touchpad. It can accommodate up to 30 sets of passcode, 4-10 digits.
-
Pre-Entry Codes - random pre-entry code prevents deciphering of user code. It is also useful to remove remaining fingerprint smudges and prevent exposure of password.
-
Disposable Code - one-time user code is available for temporary access.
-
Touch screen panel - this feature helps ease of operating in the dark. It is useful in making sure that every key pressed is successfully entered by an accompanying beep / tone.
-
Auto-Locking Function - when the door is unlocked, it automatically locks within just a few seconds for security and convenience.
-
Low Battery Warning - when voltage is lower than safety power, the low battery indicator will turn on until the low battery alarm goes off, then you have to change the batteries.
-
User Friendly Design - simplifies your access management.
-
Z-Wave Technology - it has a built-in 500 Series Z-WAVE module to connect with compatible controller / hub with gateway frequency of 908.4 MHz. By using an existing controller, you could use app and / or mobile phone to manage all compatible devices such as control lights, security systems, and home automation in one tap.
-
High-Strength Deadbolt - 1" throw high-strength deadbolt with anti-saw pin.
-
Deadbolt Detection - touchpad deadbolt with auto latch bolt locking detection prevents any incomplete door locking.
-
Non-Handed - ZWDB-10 Series can be installed for both left and right door opening.
| Applications | For Residential and Standard Duty Commercial Applications |
|---|---|
| Door Ranges | 1 ⅜” (35mm) to 1 ¾” (45mm) Thickness |
| Material | Zinc Alloy and Steel |
| Backset | 2 ⅜” (60mm) or 2 ¾” (70mm) 2-Way Adjustable Backset |
| Latch Faceplate | 1” (25.4mm) × 2 ¼” (57mm) Square Corner |
| Strike | 1” (25.4mm) × 2 ¼” (57mm) Square Corner Strike |
| Deadbolt | 1” Throw High-Strength Deadbolt with Anti-Saw Pin |
| Power Supply | 4 AA 1.5V Alkaline Batteries (comes standard in packing) |
| Door Preparation | 1” (25.4mm) Diameter for Edge Bore 2 ⅛” (54mm) Cross Bore |
| Dimensions |

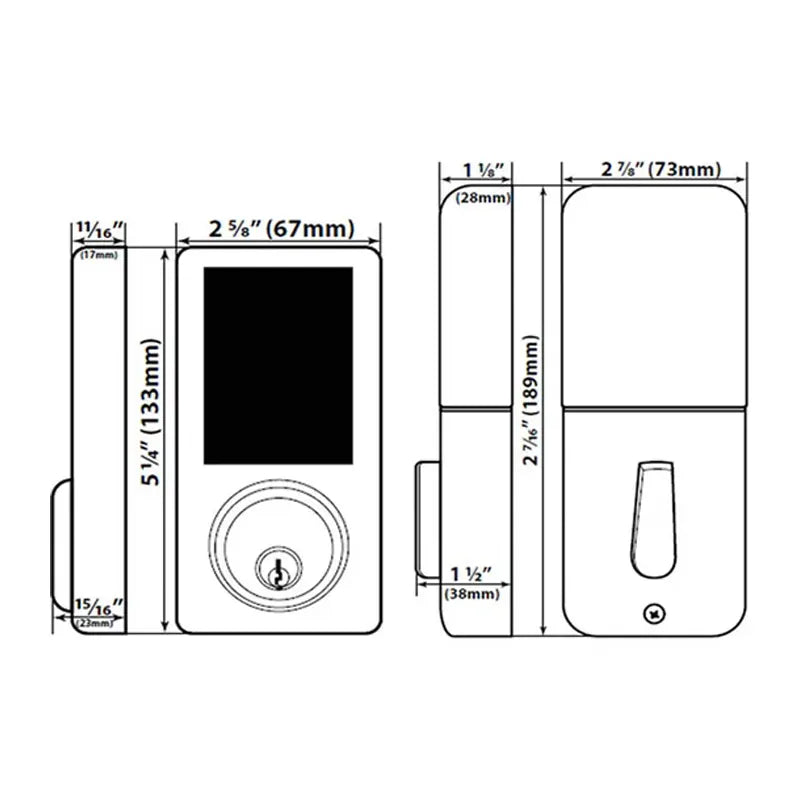

Exterior Trim: 5 ¼” (133mm) × 2 ⅝” (67mm) × 11/16” (23mm) Interior Trim: 7 7/16” (189mm) × 2 ⅞” (73mm) × 1 ⅛” (28mm) |
| Cylinder & Keyways | 5-Pin, Kwikset KW1 Keyway |
| Finishes | US3 - Bright Brass US15 - Satin Nickel US26 - Bright Chrome US26D - Satin Chrome US12P - Tuscany |
- US26 — Polished Chrome
- US26D — Satin Chrome
- US12P — Satin Bronze (Clear Coated)
- US15 — Satin Nickel
- US3 — Bright Brass
Installation Difficulty
Level 2 — Skilled DIY: Standard deadbolt prep; keypad setup; Z-Wave pairing.

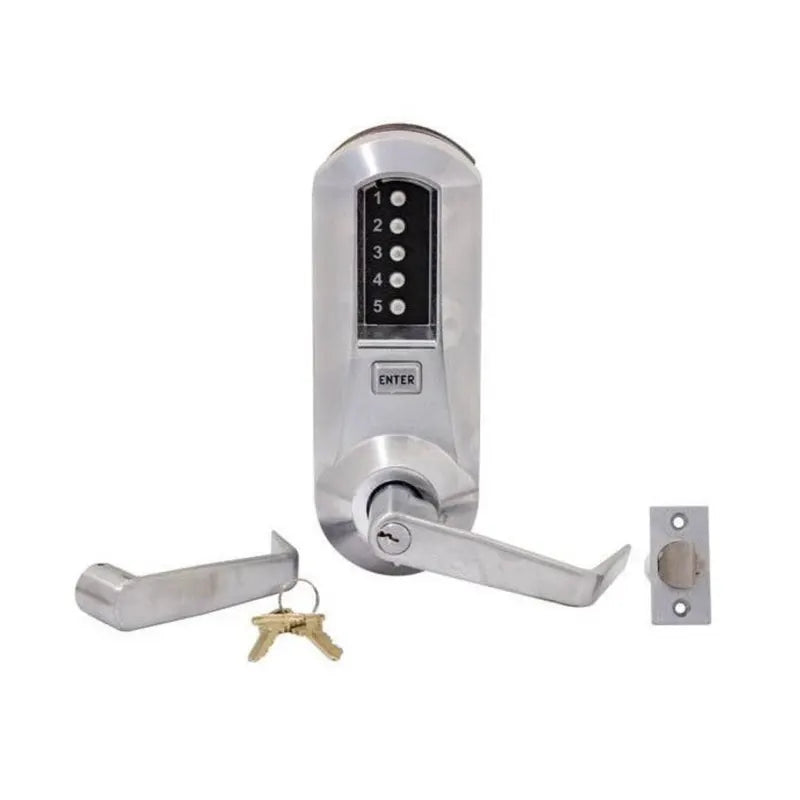

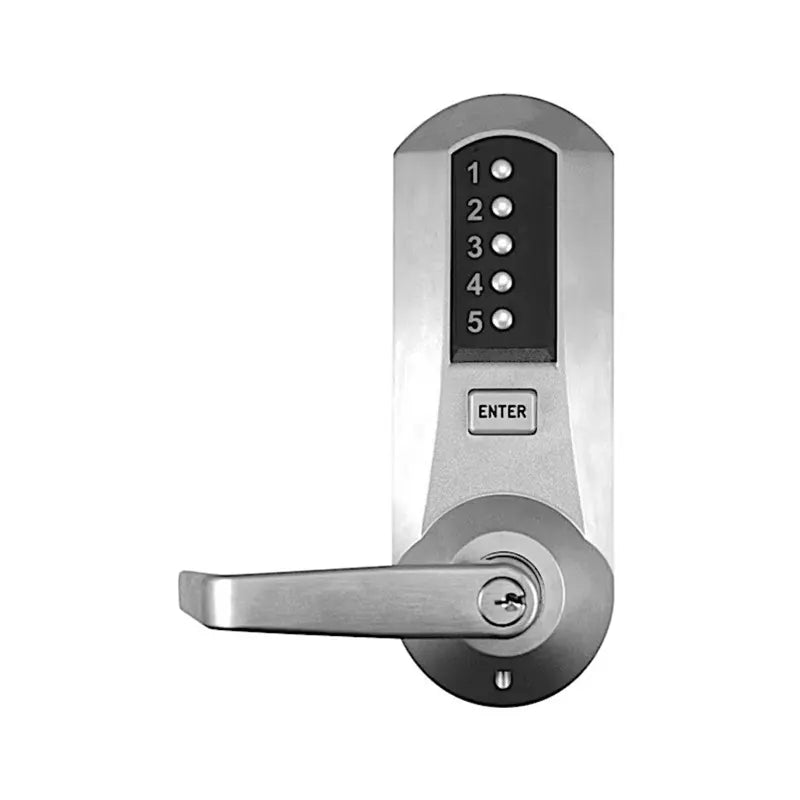

DORMAKABA Simplex 5021 Mechanical Pushbutton Lever Lock, 26D Satin Chrome, Entry w/ Key Override
$554.00
Grade 1 Mechanical Pushbutton Cylindrical Lever Lock, Single Code w/ Key Override, Non-Handed, 2-3/4" (std) or 2-3/8" Backset, 1/2" Latch (3/4" opt.), Satin Chrome (26D)
-
Vendordormakaba
-
Manufacturerdormakaba
-
SKU5021XSWL-26D-41
-
UIDDKB5021XSWL26D41
-
GradeANSI/BHMA Grade 1 (A156.2)
-
UL ListingUL 10C (up to 3-hour A-label doors)
-
Unit of MeasureEach
-
InstallationANSI 161 cylindrical + thru-bolts
-
ADA ComplianceYes
-
PowerNone (fully mechanical)
-
Limited Warranty3 Years
- 26D / 626 — Satin Chrome
- 026 / 625 — Bright Chrome
- 03 / 605 — Bright Brass
- 04 / 606 — Satin Brass
- 744 / 10B — Dark Bronze
- 676 — Black Housing w/ 626 Accents
-
HandingNon-handed; field reversible
-
TypeMechanical pushbutton lever lock
-
Backset2-3/4" (-41 std) or 2-3/8" (-40 opt)
-
Latch / Strike1/2" throw (3/4" opt); ASA 4-7/8" × 1-1/4"
-
Door Thickness1-3/8" to 2-1/4" (pre-set 1-5/8"–2")
-
Users / CodesSingle access code (1–5 digits); keypad programmable
-
Key OverrideKIL (Schlage C), SFIC/LFRC options
-
EnvironmentIndoor/Outdoor; weather-resistant
The Simplex 5021 delivers heavy-duty, battery-free access control with a vandal-resistant metal keypad and quick code changes from the exterior.
- Fully mechanical — no wiring or batteries
- Universal, ADA-compliant levers
- Direct-drive mechanism with stainless internal parts
- ANSI/BHMA Grade 1; UL 10C up to 3-hour fire doors
| Template | Full-Scale Drilling Template (PKG2845E) |
| Spec / Ops | E-Plex / Simplex 2000/5000 Specifications (KAA1297) |
| Install Guide | Installation Guide (KD10113-E) |
Installation Difficulty
Level 3 — Pro Starter: Template drilling & thru-bolts; basic door prep skills required; no wiring.

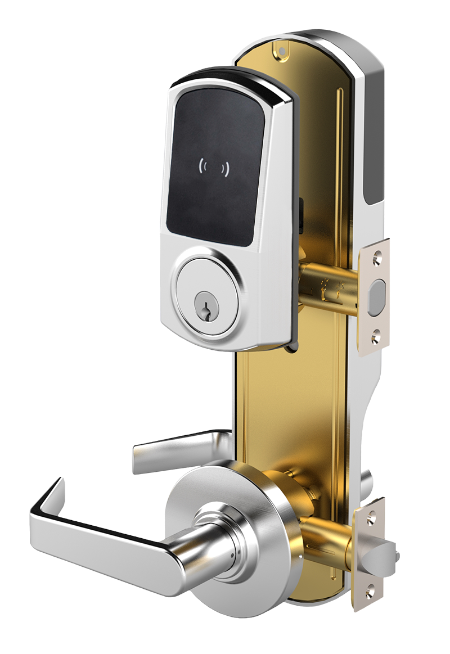

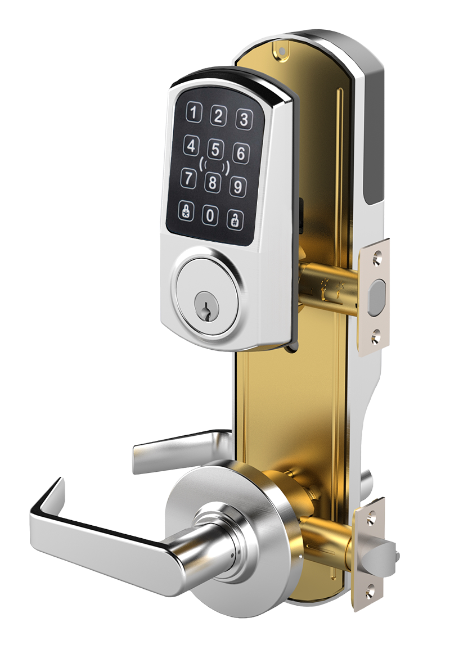

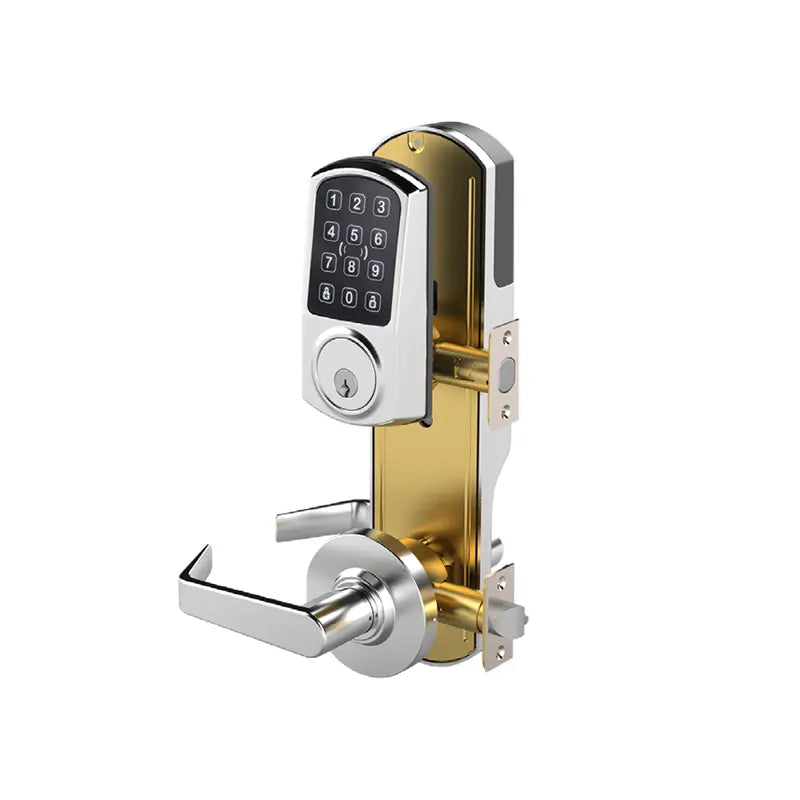

PDQ CLS Electronic Interconnected Lock – Spirit Series
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Electronic Interconnected Lock — Mobile/RFID/PIN Credentials, BLE 4.2/5.2 w/ AES-256, Quick Retrofit on Standard Preps, Spirit Series (CLS)
PDQ’s CLS is a wireless, app-managed interconnected lock for multifamily and light commercial entries. It drops into standard interconnected preps, supports smartphone mobile keys, RFID cards/fobs, and optional PIN keypad, and is managed with the PDQ Spirit app—no control panels or door wiring required.
- VendorPDQ
- ManufacturerPDQ Industries
- Series / ModelSpirit — CLS
- Unit of MeasureEach
- CredentialsSmartphone (BLE), RFID, PIN, Mechanical Key Override
- Comm / EncryptionBLE 4.2 / 5.2 • AES-256
- Cylinder OptionsConventional, SFIC, High-Security, UL437
- Door Thickness1-3/8″ to 1-3/4″
- Backset2-3/8″–2-3/4″ (adjustable)
- Power4 × AA alkaline (≈2 years typical)
- ModesStandalone or Online (app-managed)
- ListingsUL/cUL 10C 20-minute; ADA; FCC Part 15
- OriginAssembled in USA
- Warranty2-year Mechanical / 2-year Electronics
-
626 — Satin Chrome (US26D)
-
622 — Flat Black (US19)
-
613E — Dark Oxidized Satin Bronze (Equivalent)
*606 Satin Brass (US4) available on request.
- HandingField reversible
- PrepRetrofit on standard interconnected prep; see template OE-9710
- Reader TechMIFARE DESFire EV1/EV2/EV3/Light; Ultralight EV1/AES; Classic; Prox (opt.)
- SecurityAES-256 over BLE 4.2/5.2
- Environment-20 °C to 65 °C; 0–95% RH (non-condensing)
- CylindersConventional, SFIC, High-Security, UL437
Use case: Unit entries and light commercial openings needing mobile/RFID/PIN access without running wires. Manage schedules, passage/privacy modes, credentials, and audit history in the Spirit app.
- Quick retrofit—no panel wiring, no door power transfer
- App-configurable schedules, auto-lock, alerts, & audit logs
- Door obstruction alerts and local lockdown
- Works with common cylinders (Conventional, SFIC, UL437)
| Official Product Page | PDQ CLS — Interconnected Electronic Lock |
| Installation Instructions | OE-9704 (PDF) |
| Full-Scale Template | OE-9710 (PDF) |
| Spirit Series Brochure | Specs • Finishes • How-to-Order (PDF) |
Installation Difficulty
Level 3 — Pro Starter: Trade basics recommended; precise templating and alignment; door/frame adjustments likely; no building wiring.

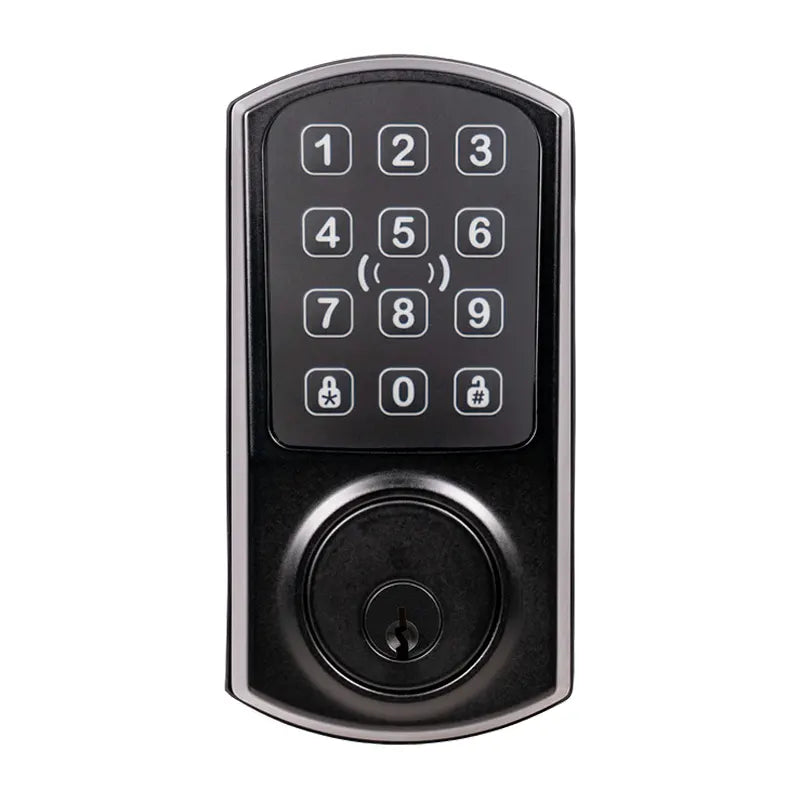

PDQ KMS Wireless Electronic Deadbolt (Spirit)
$441.00
Wireless Electronic Deadbolt with Smartphone/RFID/Keypad Access, BLE Mesh, Trimmed Options, Top Finishes
PDQ’s KMS is a wireless, app-managed deadbolt for multifamily and light commercial doors. It drops into a standard deadbolt prep with an adjustable tubular latch, supports mobile credentials (BLE), RFID cards/fobs, and (on keypad variants) PIN entry—managed via the PDQ Spirit app with optional cloud connectivity.
- VendorPDQ
- ModelKMS (Spirit)
- UnitEach
- CredentialsMobile (BLE), RFID, PIN (keypad models), Mechanical key
- KeyingConventional (SC1), SFIC, UL437 High Security
- Door Thickness1-3/8″ to 1-3/4″
- BacksetAdjustable 2-3/8″–2-3/4″
- Power4 × AA alkaline (≈2 years typical)
- CommsBLE 4.2/5.x; Spirit mobile & cloud; AES-256
- ListingsADA; UL/cUL 10C (20-min); FCC Part 15
- Operating Range-20 °C to 65 °C; 0–95% RH (non-condensing)
- Warranty2 yrs mechanical / 2 yrs electronics
-
606 — Satin Brass (US4)
-
626 — Satin Chrome (US26D)
-
622 — Flat Black (US19)
-
613E — Dark Oxidized Satin Bronze
- ModesStandalone or Online via Spirit cloud
- EncryptionAES-256
- RFID TypesMIFARE DESFire EV1/EV2/EV3/Light; Ultralight EV1/AES; Classic
- Credential MgmtSchedules, event logs, door/obstruction & battery alerts
- Cylinder OptionsConventional, SFIC, UL437 High Security
- Backset2-3/8″ or 2-3/4″ (adjustable)
Why it matters: KMS is built on PDQ’s heavy-duty KM deadbolt with a sealed exterior escutcheon and BLE connectivity. It’s purpose-built for multifamily & light commercial—fast retrofit, mobile credentials, and OTA updates to reduce truck rolls and key management costs.
- Mobile, RFID, and PIN access (model dependent)
- Spirit App + Cloud for provisioning and audit trails
- Trimmed buying options to simplify spec and stock
- Assembled in USA; ADA compliant
| Product page | PDQ KMS (specs & finishes) |
| Install guide (illustrated) | OE-9700 — KMS Installation (PDF) |
| Spirit brochure | Spirit Series Brochure (PDF) |
| Spirit app — add device | YouTube (embed-ready) |
| Spirit app — users & credentials | YouTube (embed-ready) |
| Spirit app — sign up | YouTube (embed-ready) |
Installation Difficulty
Level 2 — Skilled DIY: Standard cylindrical prep; basic carpentry, alignment, and latch/backset adjustments; no building wiring.
PDQ SDE Tubular Pushbutton Lock – PIN + Key Override (Spirit Series)
$350.00
Electronic Interconnected Lock — Mobile/RFID/PIN Credentials, BLE 4.2/5.2 w/ AES-256, Quick Retrofit on Standard Preps, Spirit Series (CLS)
PDQ’s CLS is a wireless, app-managed interconnected lock for multifamily and light commercial entries. It drops into standard interconnected preps, supports smartphone mobile keys, RFID cards/fobs, and optional PIN keypad, and is managed with the PDQ Spirit app—no control panels or door wiring required.
Installation Difficulty
Level 3 — Pro Starter: Trade basics recommended; precise templating and alignment; door/frame adjustments likely; no building wiring.

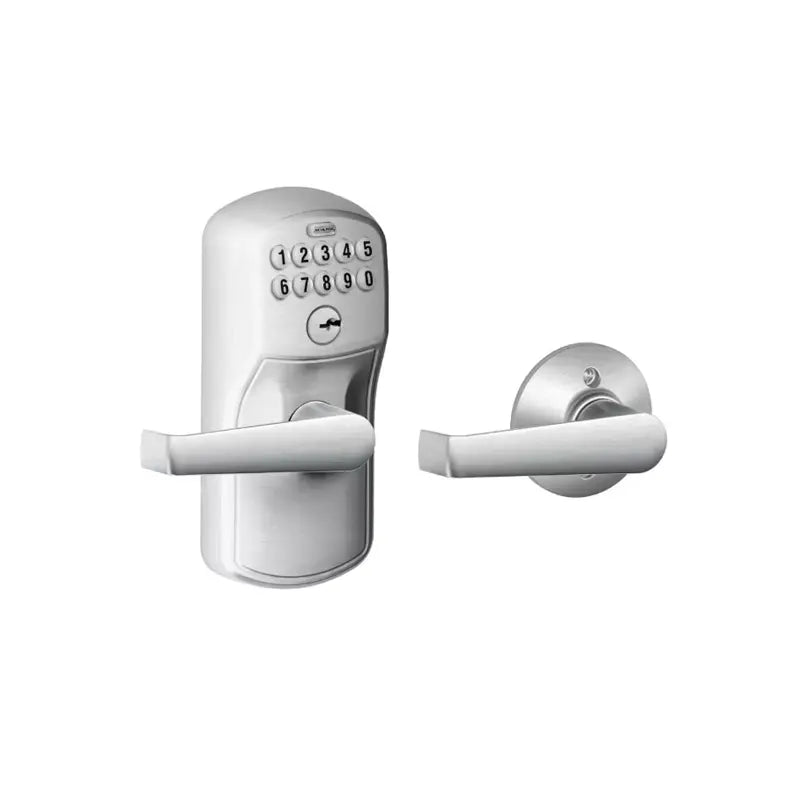

Schlage FE575 PLY ELA Keypad Entry Lever w/ Auto-Lock, Plymouth Trim, Elan Lever – Satin Chrome (626)
$228.00
Grade 2 Electronic Keypad Entry Lever — Auto-Lock (~5-second relock), Plymouth Trim with Elan Lever, Non-Handed, 2-3/8″ or 2-3/4″ Adjustable Backset, 1-3/8″–1-3/4″ Door
Schlage’s FE575 is a battery-powered, auto-locking keypad lever that fits standard 161 preps. It stores up to 19 user codes, relocks automatically after entry, and includes a conventional key override in Schlage C keyway. Installs with a screwdriver—no wiring.
- VendorSchlage (Allegion)
- ManufacturerSchlage
- ModelFE575 — Plymouth / Elan (PLY/ELA)
- GradeANSI/BHMA Grade 2
- Power9V battery (≈ up to 3 years typical)
- User CodesUp to 19; 2 pre-set codes included
- Auto-LockYes — relocks automatically (~5 seconds)
- Key OverrideSchlage C keyway, 5-pin
- BacksetAdjustable 2-3/8″ or 2-3/4″
- Door Thickness1-3/8″ to 1-3/4″
- WarrantyLimited Lifetime (mechanical/finish); 3-year electronics
- 505 — Lifetime Polished Brass
- 609 — Antique Brass
- 619 — Satin Nickel
- 620 — Antique Pewter (US15A)
- 626 — Satin Chrome
- 716 — Aged Bronze
Default shown: 626 Satin Chrome (PLY/ELA).
- FunctionFE575 Auto-Lock — always locked from exterior; relocks automatically
- HandingNon-handed; field reversible
- Trim / LeverPlymouth trim / Elan lever (PLY/ELA)

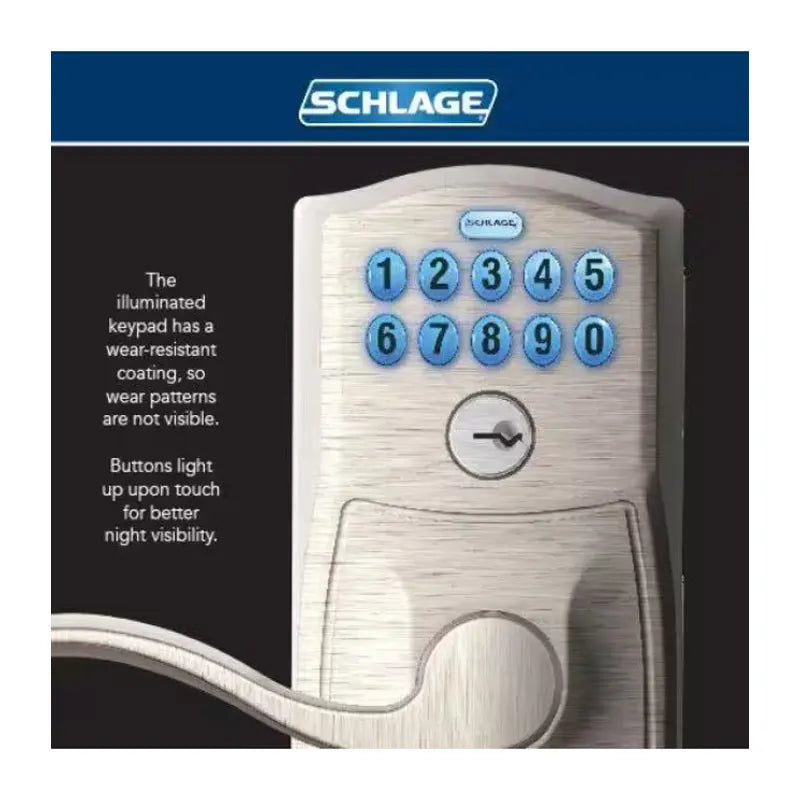

- KeypadBacklit silicone buttons; wear-resistant
- Door PrepStandard 2-1/8″ cross-bore; ANSI 161 with through-bolts
- Strike / LatchFull-lip strike; adjustable tubular latch (2-3/8″ or 2-3/4″)
Use case: Residential and light commercial entries needing reliable keypad access with auto-relock and panic-free inside egress—no wiring required.
- Stores up to 19 user codes; easy programming at the door
- Auto-Lock relocks after entry (~5 seconds)
- Screwdriver install on standard 161 preps
- Conventional key override (Schlage C keyway)
| Installation Instructions | FE575 Install Guide (PDF) |
| User / Programming Guide | BE365/FE575/FE595 User Guide (PDF) |
| Finish Reference | Schlage Finish Quick Reference (PDF) |
Installation Difficulty
Level 2 — Confident DIYer: Basic tools and door-prep familiarity required; keypad setup at the door; no building wiring.
Trilogy ETDL-27 Exit Trim + Von Duprin 99 Rim Exit Device, Satin Chrome (626/US26D)
CALL FOR PRICING
Trilogy ETDL-27 Exit Trim + Von Duprin 99 Rim Exit Device, Satin Chrome (626/US26D)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Grade 1 Electronic Exit Trim + Rim Panic Device Bundle — Trilogy ETDL-27 (Keypad) with Von Duprin 99 Rim Exit Device, Non-Handed, Weather-Resistant Keypad, Includes Rim Cylinder Adapter, Satin Chrome (US26D/626)
This bundle pairs Alarm Lock’s Trilogy ETDL-27 keypad exit trim with the industry-standard Von Duprin 99 rim exit device. You get Grade-1 durability, all-metal weather-resistant keypad access, and simple at-door programming, matched with a heavy-duty panic bar for high-traffic egress doors in schools, healthcare, and commercial facilities.
- VendorAlarm Lock (NAPCO) + Von Duprin (Allegion)
- Bundle SKU (example)ETDL27S1G-26D-V99-36
- Unit of MeasureEach (bundle)
- Grade / ListingsANSI/BHMA Grade 1; UL 305 / UL 10C panic (per VD 99)
- Users / Codes (ETDL-27)Up to 100 (Master/Manager/User hierarchy)
- Keypad (ETDL-27)All-metal, weather-resistant; 12-button T2 platform
- Power (ETDL-27)5 × AA alkaline; long service life; low-battery warning
- Exit Device (included)Von Duprin 99EO Rim, 36″ (field-sizeable), 299 strike
- HandingNon-handed; field reversible
- US26D (626) — Satin Chrome
- US10B (613) — Oil-Rubbed / Dark Bronze
- US3 (605) — Bright Brass
*Finishes apply to both ETDL-27 trim & Von Duprin 99 device when ordered to match.
ETDL-27 Exit Trim
- PlatformTrilogy T2 (keypad) for exit devices
- ProgrammingAt keypad; optional DL-Windows/AL-DTM III
- ConstructionClutch mechanism; vandal-resistant lever
- OverrideRim cylinder, Schlage C (adapter included)
- EnvironmentInterior / exterior; weather-resistant keypad
- Audit & ToolsHierarchy, event logs; PC sync via optional hardware
Von Duprin 99 Rim Exit Device
- Type99EO Rim, grooved case, 36″ bar (48″ available)
- RatingANSI/BHMA A156.3 Grade 1; UL 305; UL 10C panic
- Latch / Strike3/4″ deadlocking latch; includes 299 strike
- Door Width2′4″–3′ (36″ device); 4′ with 48″ bar
- HandingNon-handed (most configurations)
Compatibility (ETDL-27 trim): Kits available for Von Duprin 98/99, Corbin ED5000, Yale 7100, Dorma 9300, Arrow 3800, Sargent 8800/8888, Precision 1100/2100, Cal-Royal 9800, and more. Use the ETDL exit-device template matrix to select the correct kit code.
| Alarm Lock — ETDL Series One-Sheet | ALA469 (PDF) |
| Alarm Lock — Trilogy T2 Platform (ETDL) | ALA532 (PDF) |
| Rim Cylinder / IC Prep Note (ETDL) | IC Rim Cylinders with ETDL (Tech Note) |
| Von Duprin — 98/99 Series Overview | Product Page |
| Von Duprin — Install & Adjustments (Video hub) | Installation Videos Index |
For the full 98/99 installation series, see Von Duprin’s installation playlist linked in Docs & Templates.
Installation Difficulty
Level 4 — Advanced Tech: Pro install recommended. Requires precise device templating, push-bar alignment, exterior trim integration, and functional egress testing. Battery-powered (no building wiring).
Company Info
Resources
Why Buy From Us?
Huge Inventory
Huge Inventory
No Hassle Returns
Satisfaction
Guaranteed
Guaranteed
News & Updates
Sign up to get the latest on sales, new releases and more …
