Products
7100 Series Adams Rite Electric Strikes
$213.00
Electric Strike, Electrically Unlocked (Fail Secure), For Hollow Metal or Wood Applications, 4-7/8" x 1-1/4" Flat Faceplate with Square Corners, 12VAC, Satin Aluminum Clear Anodized
Product Specs
Vendor Assa Abloy
Manufacturer Adams Rite
SKU 7170-340-628-00
UID ADA1007170340628
Installation Commercial
Unit of Measure Each
Application Aluminum, Metal or Wood Applications
Finish
628/US28
Finish Description Satin Aluminum Clear Anodized
Finish Family Matte Silver
Technical Specs
Function Fail Secure
Operating Voltage 12 VAC
Amp Draw 1.42 Amps
Faceplate Size 4-7/8" x 1-1/4"
Faceplate Shape Flat Face, Square Corners
Product Type Electric Strikes
7100 Electric Strikes
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection.
For use in aluminum, hollow metal, or wood applications — remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.
- Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.
- Case: Approximately 1” x 3-3/8” x 1-5/8” deep.
- Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.
- Strike Opening: 5/8” x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
- Faceplate: Measures 1-1/4” x 4-7/8”. 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.
- Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.
INSTALLATION CHALLENGE LEVEL
Easy
Anyone who can read instructions and use basic tools can install this product.

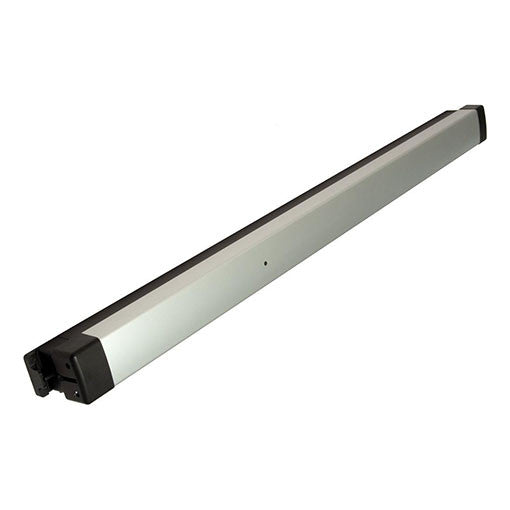

Adams Rite 8800 Rim Exit Device for 36" Glass Doors
$574.00
Adams Rite Rim Exit Device for narrow stile glass doors.
Features
- Patented “Starwheel” bolt interlocks door to frame
- Strong, durable construction for a high level of security
- Easy to install
- Unobtrusive design for clean sight lines
- Pushbar clad or anodized, not plated
Specs
- UL 305 Panic Hardware
- ANSI/BHMA A156.3 Grade 1
- Standard width bars can be field cut to the next smallest opening width
- Door thickness: Suits 1-3/4-inches standard, up to 2-1/4-inches
- Stile Width: Minimum 2-inches Stile. Fits Narrow, Medium and Wide Stile aluminum doors
- Projection: 2-5/8-inches when fully projected, 1-5/8-inches when dogged
- Materials: Pushbar made of extruded aluminum
- Dogging: Standard dogging with hex key
- Fasteners: Standard self-tapping screws
- California State Fire Marshall
- New York City MEA
Finishes
Satin Aluminum 628/US28
Bronze 695/SP313
Installation Challenge Level
Easy
Anyone who can read instructions and use basic tools can install this product.
Instructions & Templates
Adams Rite 8800 Rim Exit Device for 48" Glass Doors
$574.00
Adams Rite Rim Exit Device for narrow stile glass doors.
Features
- Patented “Starwheel” bolt interlocks door to frame
- Strong, durable construction for a high level of security
- Easy to install
- Unobtrusive design for clean sight lines
- Pushbar clad or anodized, not plated
Specs
- UL 305 Panic Hardware
- ANSI/BHMA A156.3 Grade 1
- Standard width bars can be field cut to the next smallest opening width
- Door thickness: Suits 1-3/4-inches standard, up to 2-1/4-inches
- Stile Width: Minimum 2-inch Stile. Fits Narrow, Medium and Wide Stile aluminum doors
- Projection: 2-5/8-inches when fully projected, 1-5/8-inches when dogged
- Materials: Pushbar made of extruded aluminum
- Dogging: Standard dogging with hex key
- Fasteners: Standard self-tapping screws
- California State Fire Marshall
- New York City MEA
Finishes
Satin Aluminum 628/US28
Bronze 695/SP313
Installation Challenge Level
Easy
Anyone who can read instructions and use basic tools can install this product.
Instructions & Templates
Adams Rite 8800 Rim Exit Device for Glass Doors
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Adams Rite Rim Exit Device for narrow stile glass doors.
Features
- Patented “Starwheel” bolt interlocks door to frame
- Strong, durable construction for a high level of security
- Easy to install
- Unobtrusive design for clean sight lines
- Pushbar clad or anodized, not plated
Specs
- UL 305 Panic Hardware
- ANSI/BHMA A156.3 Grade 1
- Standard width bars can be field cut to the next smallest opening width
- Door thickness: Suits 1-3/4-inches standard, up to 2-1/4-inches
- Stile Width: Minimum 2-inches Stile. Fits Narrow, Medium and Wide Stile aluminum doors
- Projection: 2-5/8-inches when fully projected, 1-5/8-inches when dogged
- Materials: Pushbar made of extruded aluminum
- Dogging: Standard dogging with hex key
- Fasteners: Standard self-tapping screws
- California State Fire Marshall
- New York City MEA
Finishes
Satin Aluminum 628/US28
Bronze 695/SP313
Installation Challenge Level
Easy
Anyone who can read instructions and use basic tools can install this product.
Instructions & Templates

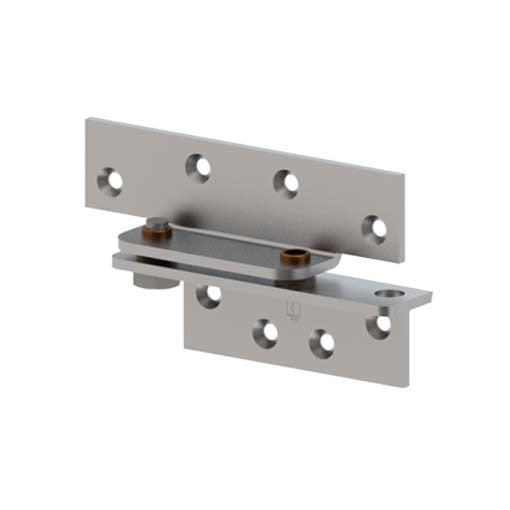

Adams Rite Reinforcing Pivot
$68.00
Reinforcing Pivots provide an economical way to transfer load from hinges of sagging doors. This full-surface reinforcing pivot adds years of life to openings where the hinges or hinge reinforcements have failed. Reinforcing pivots take the load off the top hinge and transfer it to screws that are in shear so they will not pull off. The economical way to solve door sag problems.
Specs
- Door Type: Full surface reinforcing pivots for flush doors
- Finish: Zinc plating over steel
- Material: Heavy-duty 3/16” cold-rolled steel
- Cycle Testing: 1,500,000 repetitions
- Capacity: Supports weights up to 300 lbs.
- Hole Pattern: Symmetrically located. Non-handed

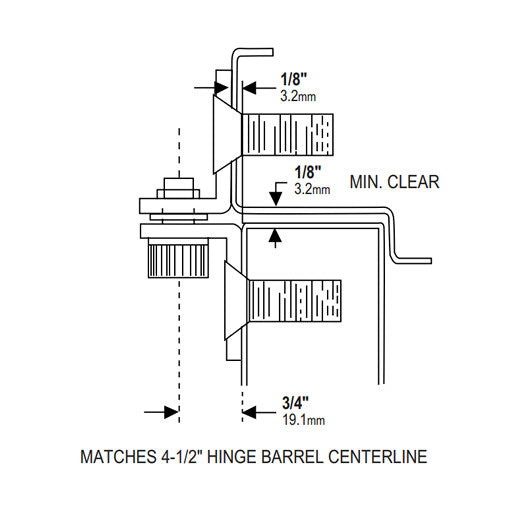

- Hinge Size: The B1923 pivot is designed with a 3/4” offset to match the pivot point of a 4-1/2” wide butt hinge
Installation Challenge Level
Easy
Anyone who can read instructions and use basic tools can install this product.
Instructions & Templates
Adams-Rite 8400 Mortise Exit Device for Glass Doors
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Adams-rite mortise exit device. ANSI/BHMA Grade I. Pushbar length 36-inches standard width bars can be field cut to the next smallest opening width. Materials pushbar made of extruded aluminum, clad or anodized in a variety of finishes. Clear anodized finish.
Features
- Minimum stile 2". Fits narrow, medium and wide stile aluminum doors.
- Exit only function, no entry from outside. Trim available separately
- Handed.
- For 1-3/4" thick doors standard.
- Hex key dogging standard.
- Push bar length can be cut to size in the field.
- Backs available in 31/32", 1-1/8" or 1-1/2".
- Adams Rite exit devices fully meet building codes and ADA guidelines for accessibility.
Specs
- ANSI/BHMA grade 1-UL Listed Life Safety, ANSI/BHMA 156.3
- Projection-2-5/8", 1-5/8" when dogged.
- Pushbar made of extruded aluminum.
- The 8400 was designed to fit standard cutout used for the Adams Rite MS® Deadlock on aluminum stile glass doors.
Finishes
- Aluminum
- Bronze
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Instructions & Templates
