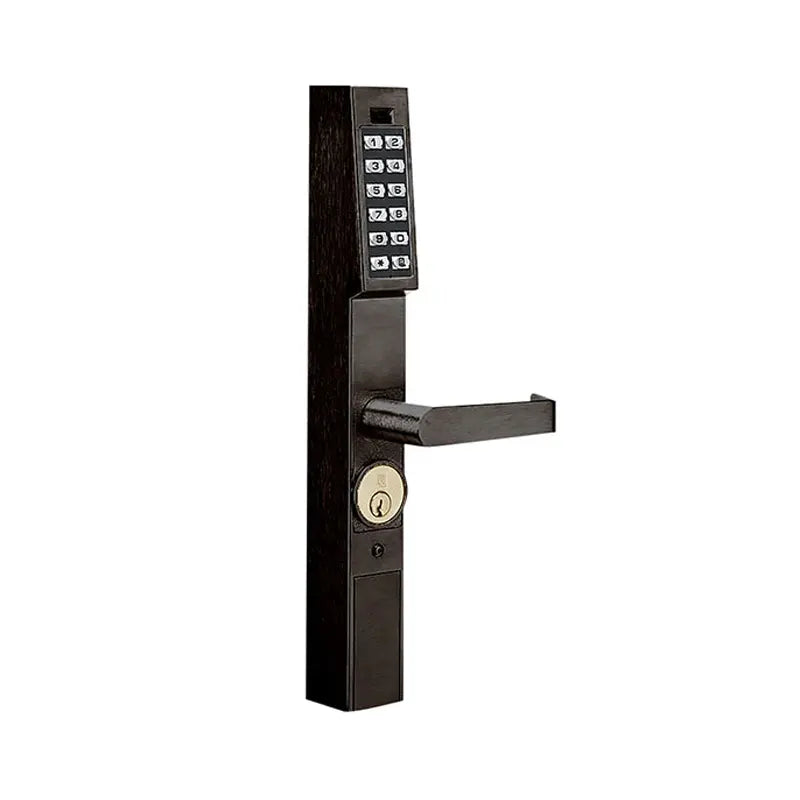

Alarm Lock Trilogy DL1200 — Narrow Stile Keypad Lever Trim (PIN, 100 Users)
$578.00

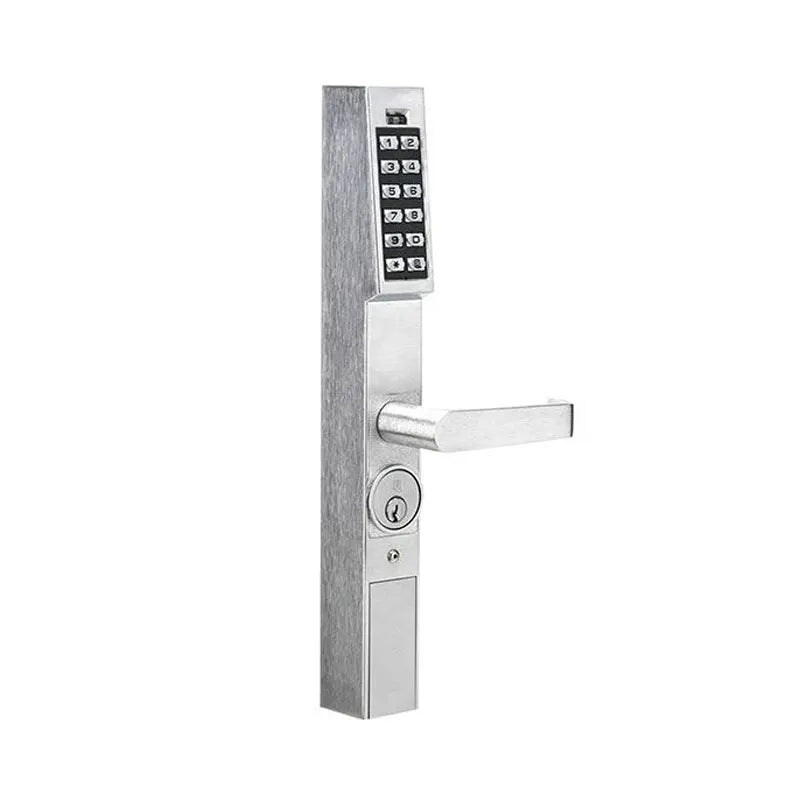

Alarm Lock Trilogy DL1200 — Narrow Stile Keypad Lever Trim (PIN, 100 Users)
Alarm Lock Trilogy DL1200 is a narrow-stile, keypad-only outside trim for aluminum storefront doors (Adams Rite® style latches). Supports 100 PIN users, keypad programming, and mechanical key override. Non-handed; works with AR 4500/4700/4900 deadlatches. Powered by two 3V lithium batteries.
-
VendorAlarm Lock / Napco
-
SeriesTrilogy Narrow Stile — T2
-
ModelDL1200 — PIN only, 100 users
-
Door TypeAluminum/glass storefront (narrow stile)
-
Backsets31/32″ • 1-1/8″ • 1-1/2″ (AR latch)
-
Users100 PIN codes (Master/Manager/User/Service)
-
HandingNon-handed (field reversible)
-
Power2 × 3V lithium (CR123A); low-battery alert
-
IncludesOutside keypad trim, straight lever, 1-1/4″ mortise cylinder & 2 keys
Refs: Alarm Lock narrow-stile overview & DL1200 programming/installation sheets. :contentReference[oaicite:0]{index=0}
- US26D — Satin Chrome (DL1200/26D1)

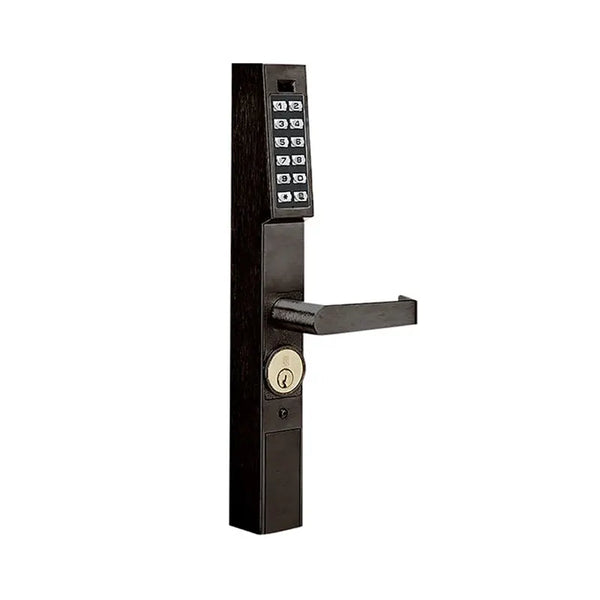

- US10B — Duronodic / Oil-Rubbed Bronze (DL1200/10B1)
Additional finishes sometimes cataloged: Metallic Silver (MS), Metallic Bronze (MB). :contentReference[oaicite:1]{index=1}
| Dimensions | 14-3/8″ H × 1-3/4″ W × 1-5/8″ D |
| Min. stile width | ≈ 2″ |
| Door thickness | Typical alum. storefront (≈1-3/4″) |
| Weight (ship) | ~8 lb |
| Audit / Scheduling | No audit (T2). Scheduling via T3/Networx models only |
| Key override | Schlage C 1-1/4″ mortise cylinder supplied |
| Compatibility | Adams Rite 4500/4700/4900 deadlatch families |
Dims/weight & compatibility: UHS Hardware, SecurityBase, Builders Supply. :contentReference[oaicite:2]{index=2}
Installation Difficulty
Alarm Lock Trilogy DL1300 — Narrow Stile Keypad Lever Trim (Audit Trail)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Trilogy DL1300 — Narrow Stile Keypad Lever (Audit Trail)
Alarm Lock Trilogy DL1300 is a narrow-stile, keypad-only access control trim for aluminum/glass doors (Adams Rite® deadlatches), supporting 2,000 users, 40,000-event audit trail, and up to 500 scheduled events. Non-handed, battery powered (2 × CR123A), vandal-resistant 12-button metal keypad.
- VendorAlarm Lock (Napco)
- Series / ModelTrilogy Narrow Stile / DL1300
- Users / Audit2,000 users • 40,000-event audit trail
- Schedules500 timed events; real-time clock
- Power2 × 3V CR123A lithium; ~80k cycles
- Environment−31°F to +151°F (−35°C to +66°C)
- CompatibilityAdams Rite® 1850, 1950, 4710, 4730, 4900, 4070*
- Backsets31/32″ • 1-1/8″ • 1-1/2″ (of latch)
- HandingNon-handed; field reversible
- US26D — Satin Chrome (DL1300/26D1)
- US10B — Duronodic / Oil-Rubbed Bronze (DL1300/10B1)
| Code Length | 3–6 digits |
| Dimensions | 14-3/8″ H × 1-3/4″ W × 1-5/8″ D (trim) |
| Door / Stile | 1-3/4″ door • ≥2″ stile |
| Cylinder | Std. 1-1/4″ mortise cylinder included; IC core options supported |
| Materials | All-metal, vandal-resistant keypad • clutch lever |
| Weight (ship) | ~7 lb |
Installation Difficulty
Alarm Lock Trilogy DL1300 — Narrow Stile Keypad Trim, 26D/10B, 2,000 Users, Audit Trail
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Trilogy DL1300 — Narrow Stile Keypad Retrofit Trim
Alarm Lock Trilogy DL1300 is a stand-alone, battery-powered narrow-stile keypad trim for aluminum storefront doors using Adams Rite® style latches/bolts. Supports up to 2,000 users, 40,000-event audit trail, and 500-event schedules; keypad or DL-Windows PC programmable. Weather-resistant with all-metal 12-button keypad and key override. Works with AR 4710/4730/4900 deadlatches and 1850/1950/MS1850S/MS1950 deadbolts (with compatible inside hardware).
Lead time: Commonly stocked in 26D Satin Chrome and 10B Duronodic Bronze.
-
VendorAlarm Lock (Napco Security Technologies)
-
Series / ModelTrilogy Narrow Stile — DL1300 (PIN only)
-
Users / Features2,000 users • 40k event audit • 500-event schedules
-
ProgrammingKeypad or DL-Windows PC (AL-PCI2-U / AL-DTM III)
-
Power2 × CR123 3V lithium (included), low-battery alert
-
Use / RangeWeather-resistant; approx. −31°F to +151°F (−35°C to +66°C)
-
Door / PrepNarrow stile aluminum; retrofit outside trim (non-handed)
-
Compatible Inside LocksAdams Rite® 4710/4730/4900 deadlatches; 1850/1950/MS1850S/MS1950 deadbolts
- 26D / 626 — Satin Chrome (DL1300/26D1)
- 10B / 613 — Duronodic Bronze (DL1300/10B1)
| Users | 2,000 PIN users |
| Audit / Schedules | 40,000-event audit trail; 500-event schedules; real-time clock |
| Keypad | All-metal, 12-button; vandal-resistant |
| Cylinder | Mortise cylinder key override (Alarm Lock cam) |
| Power | 2 × CR123 lithium; ~100k typical cycles |
| Operating Range | ≈ −31°F to +151°F (−35°C to +66°C) |
| Trim Size | Approx. 14-3/8″ H × 1-3/4″ W × 1-5/8″ D |
| Compatibility | Adams Rite® 4710/4730/4900, 1850/1950/MS1850S/MS1950 |
Programming & maintenance references for Trilogy Narrow Stile.
Installation Difficulty
Level 3 — Intermediate: Narrow-stile prep, cylinder cam selection, DL-Windows setup recommended.

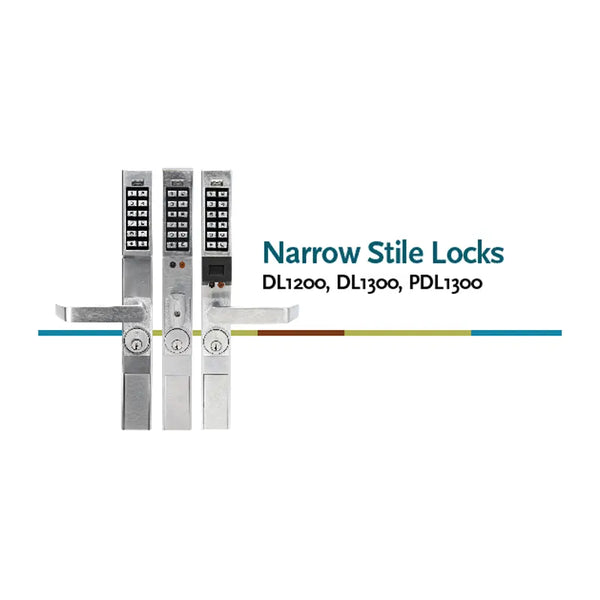

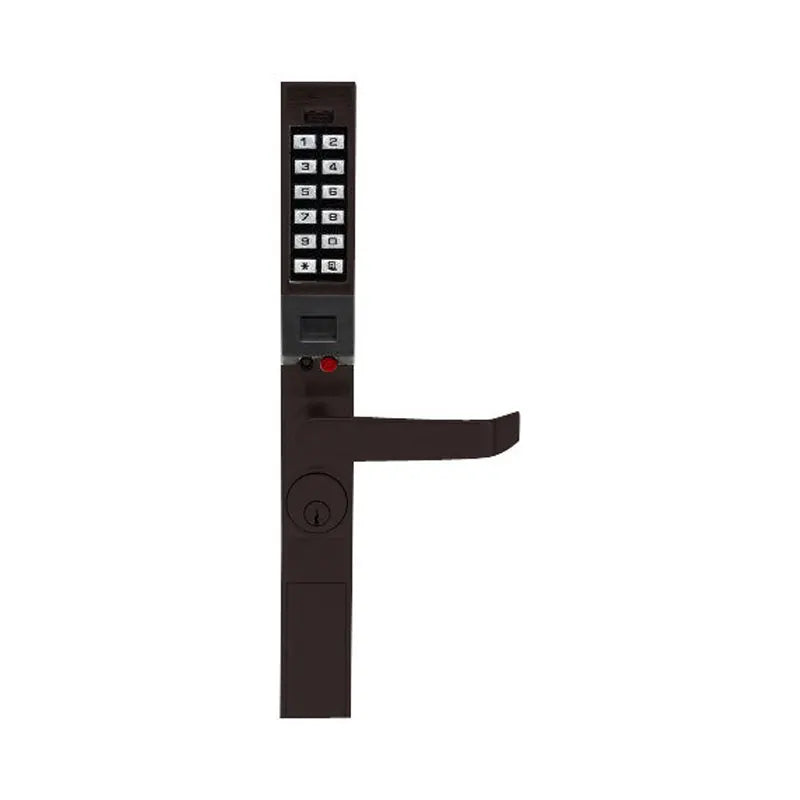

Alarm Lock Trilogy PDL1300 — Narrow Stile PIN/Prox Keypad Lever (Audit Trail)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.

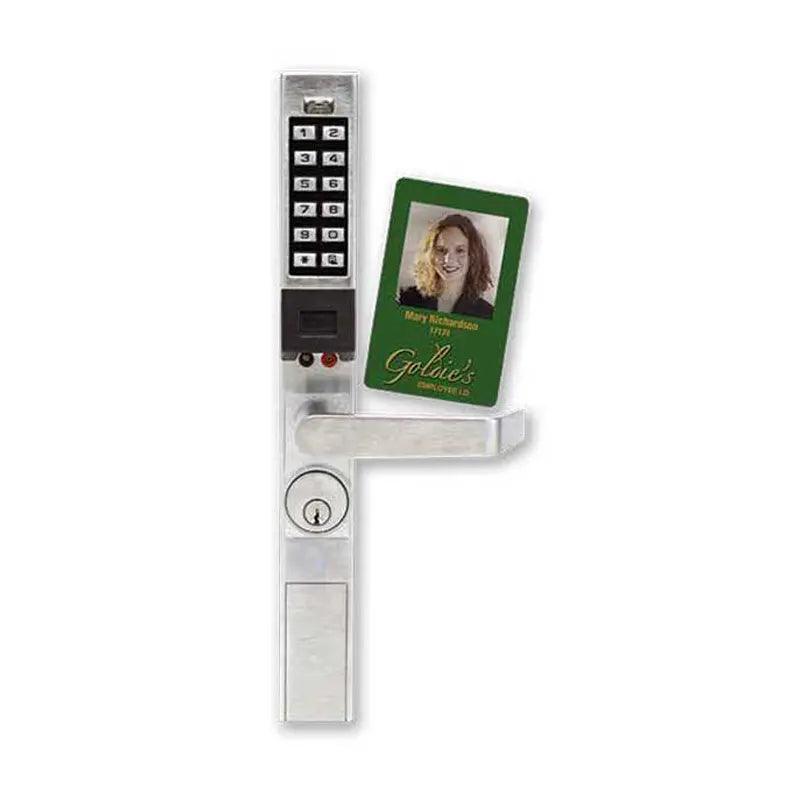

Trilogy PDL1300 — Narrow Stile PIN/Prox Keypad Lever
Alarm Lock Trilogy PDL1300 is a narrow-stile access trim for aluminum/glass doors (Adams Rite® deadlatches), with a built-in HID prox reader + keypad for PIN or card entry. Supports 2,000 users, 40,000-event audit trail, and up to 500 scheduled events. Battery powered (2 × CR123A), non-handed, vandal-resistant 12-button metal keypad.
- VendorAlarm Lock (Napco)
- Series / ModelTrilogy Narrow Stile / PDL1300
- Users / Audit2,000 users • 40,000-event audit trail
- SchedulesUp to 500 timed events; real-time clock
- EntryPIN (3–6 digits), Prox card/fob, or combo
- Power2 × 3V CR123A lithium (incl.)
- Compat.Adams Rite® 1850, 1950, 4710, 4730, 4900, 4070
- Door/Stile1-3/4″ door • ≥2″ stile
- HandingNon-handed; field reversible
- US26D — Satin Chrome (PDL1300/26D1)
- US10B — Duronodic / Oil-Rubbed Bronze (PDL1300/10B1)
| Code Length | 3–6 digits |
| Dimensions (trim) | ≈14-3/8″ H × 1-3/4″ W × 1-5/8″ D |
| Cylinder | Std. 1-1/4″ mortise cylinder (SC1) |
| Construction | All-metal, vandal-resistant keypad • clutch lever |
| Ship Weight | ~7 lb |
Installation Difficulty

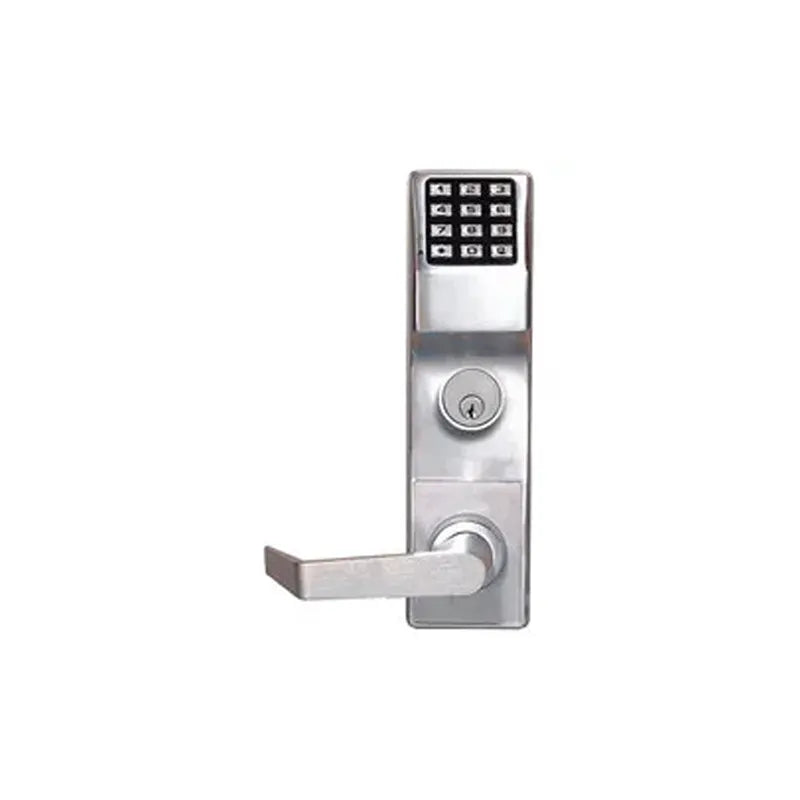

Trilogy ETDL-27 Exit Trim + Von Duprin 99 Rim Exit Device, Satin Chrome (626/US26D)
CALL FOR PRICING
Trilogy ETDL-27 Exit Trim + Von Duprin 99 Rim Exit Device, Satin Chrome (626/US26D)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Grade 1 Electronic Exit Trim + Rim Panic Device Bundle — Trilogy ETDL-27 (Keypad) with Von Duprin 99 Rim Exit Device, Non-Handed, Weather-Resistant Keypad, Includes Rim Cylinder Adapter, Satin Chrome (US26D/626)
This bundle pairs Alarm Lock’s Trilogy ETDL-27 keypad exit trim with the industry-standard Von Duprin 99 rim exit device. You get Grade-1 durability, all-metal weather-resistant keypad access, and simple at-door programming, matched with a heavy-duty panic bar for high-traffic egress doors in schools, healthcare, and commercial facilities.
- VendorAlarm Lock (NAPCO) + Von Duprin (Allegion)
- Bundle SKU (example)ETDL27S1G-26D-V99-36
- Unit of MeasureEach (bundle)
- Grade / ListingsANSI/BHMA Grade 1; UL 305 / UL 10C panic (per VD 99)
- Users / Codes (ETDL-27)Up to 100 (Master/Manager/User hierarchy)
- Keypad (ETDL-27)All-metal, weather-resistant; 12-button T2 platform
- Power (ETDL-27)5 × AA alkaline; long service life; low-battery warning
- Exit Device (included)Von Duprin 99EO Rim, 36″ (field-sizeable), 299 strike
- HandingNon-handed; field reversible
- US26D (626) — Satin Chrome
- US10B (613) — Oil-Rubbed / Dark Bronze
- US3 (605) — Bright Brass
*Finishes apply to both ETDL-27 trim & Von Duprin 99 device when ordered to match.

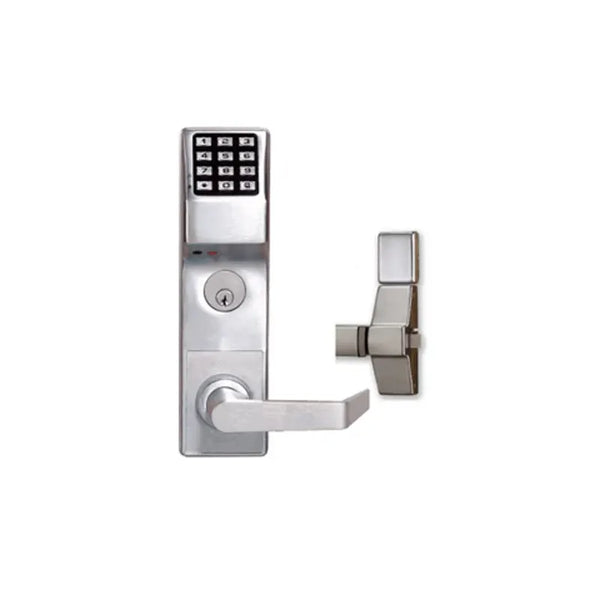

ETDL-27 Exit Trim
- PlatformTrilogy T2 (keypad) for exit devices
- ProgrammingAt keypad; optional DL-Windows/AL-DTM III
- ConstructionClutch mechanism; vandal-resistant lever
- OverrideRim cylinder, Schlage C (adapter included)
- EnvironmentInterior / exterior; weather-resistant keypad
- Audit & ToolsHierarchy, event logs; PC sync via optional hardware

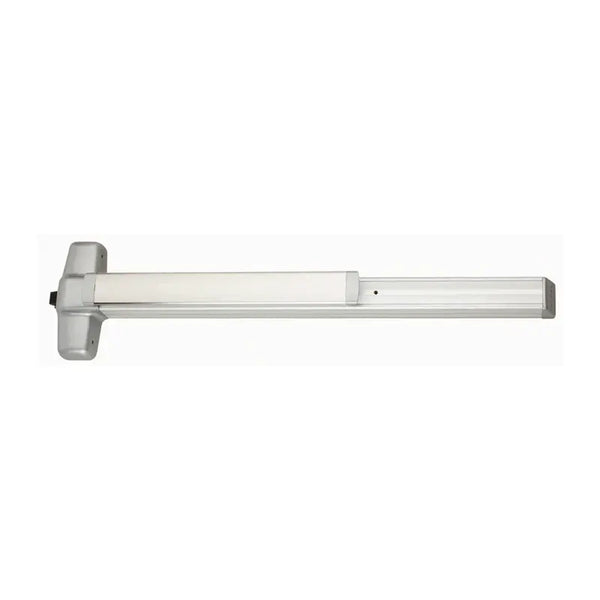

Von Duprin 99 Rim Exit Device
- Type99EO Rim, grooved case, 36″ bar (48″ available)
- RatingANSI/BHMA A156.3 Grade 1; UL 305; UL 10C panic
- Latch / Strike3/4″ deadlocking latch; includes 299 strike
- Door Width2′4″–3′ (36″ device); 4′ with 48″ bar
- HandingNon-handed (most configurations)
Compatibility (ETDL-27 trim): Kits available for Von Duprin 98/99, Corbin ED5000, Yale 7100, Dorma 9300, Arrow 3800, Sargent 8800/8888, Precision 1100/2100, Cal-Royal 9800, and more. Use the ETDL exit-device template matrix to select the correct kit code.
| Alarm Lock — ETDL Series One-Sheet | ALA469 (PDF) |
| Alarm Lock — Trilogy T2 Platform (ETDL) | ALA532 (PDF) |
| Rim Cylinder / IC Prep Note (ETDL) | IC Rim Cylinders with ETDL (Tech Note) |
| Von Duprin — 98/99 Series Overview | Product Page |
| Von Duprin — Install & Adjustments (Video hub) | Installation Videos Index |
For the full 98/99 installation series, see Von Duprin’s installation playlist linked in Docs & Templates.
Installation Difficulty
Level 4 — Advanced Tech: Pro install recommended. Requires precise device templating, push-bar alignment, exterior trim integration, and functional egress testing. Battery-powered (no building wiring).
