Alarm Lock Trilogy DL1300 — Narrow Stile Keypad Trim, 26D/10B, 2,000 Users, Audit Trail
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Alarm Lock Trilogy DL1300 is a stand-alone, battery-powered narrow-stile keypad trim for aluminum storefront doors using Adams Rite® style latches/bolts. Supports up to 2,000 users, 40,000-event audit trail, and 500-event schedules; keypad or DL-Windows PC programmable. Weather-resistant with all-metal 12-button keypad and key override. Works with AR 4710/4730/4900 deadlatches and 1850/1950/MS1850S/MS1950 deadbolts (with compatible inside hardware).
Lead time: Commonly stocked in 26D Satin Chrome and 10B Duronodic Bronze.
Trilogy DL1300 — Narrow Stile Keypad Retrofit Trim
-
VendorAlarm Lock (Napco Security Technologies)
-
Series / ModelTrilogy Narrow Stile — DL1300 (PIN only)
-
Users / Features2,000 users • 40k event audit • 500-event schedules
-
ProgrammingKeypad or DL-Windows PC (AL-PCI2-U / AL-DTM III)
-
Power2 × CR123 3V lithium (included), low-battery alert
-
Use / RangeWeather-resistant; approx. −31°F to +151°F (−35°C to +66°C)
-
Door / PrepNarrow stile aluminum; retrofit outside trim (non-handed)
-
Compatible Inside LocksAdams Rite® 4710/4730/4900 deadlatches; 1850/1950/MS1850S/MS1950 deadbolts
- 26D / 626 — Satin Chrome (DL1300/26D1)
- 10B / 613 — Duronodic Bronze (DL1300/10B1)
| Users | 2,000 PIN users |
| Audit / Schedules | 40,000-event audit trail; 500-event schedules; real-time clock |
| Keypad | All-metal, 12-button; vandal-resistant |
| Cylinder | Mortise cylinder key override (Alarm Lock cam) |
| Power | 2 × CR123 lithium; ~100k typical cycles |
| Operating Range | ≈ −31°F to +151°F (−35°C to +66°C) |
| Trim Size | Approx. 14-3/8″ H × 1-3/4″ W × 1-5/8″ D |
| Compatibility | Adams Rite® 4710/4730/4900, 1850/1950/MS1850S/MS1950 |
Programming & maintenance references for Trilogy Narrow Stile.
Installation Difficulty
Level 3 — Intermediate: Narrow-stile prep, cylinder cam selection, DL-Windows setup recommended.

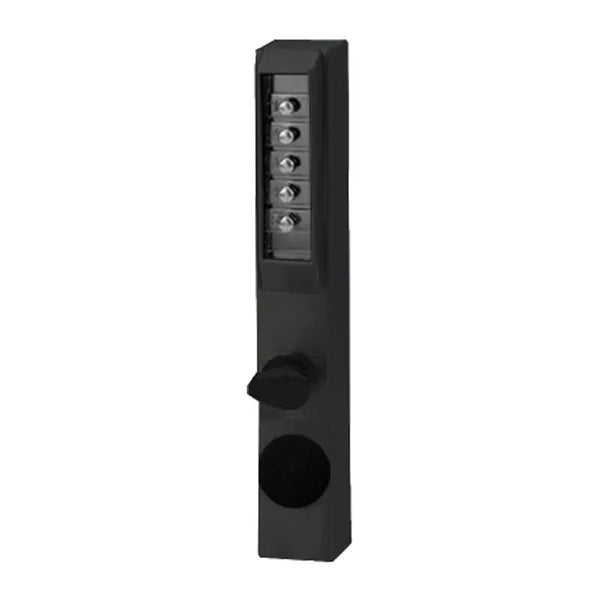

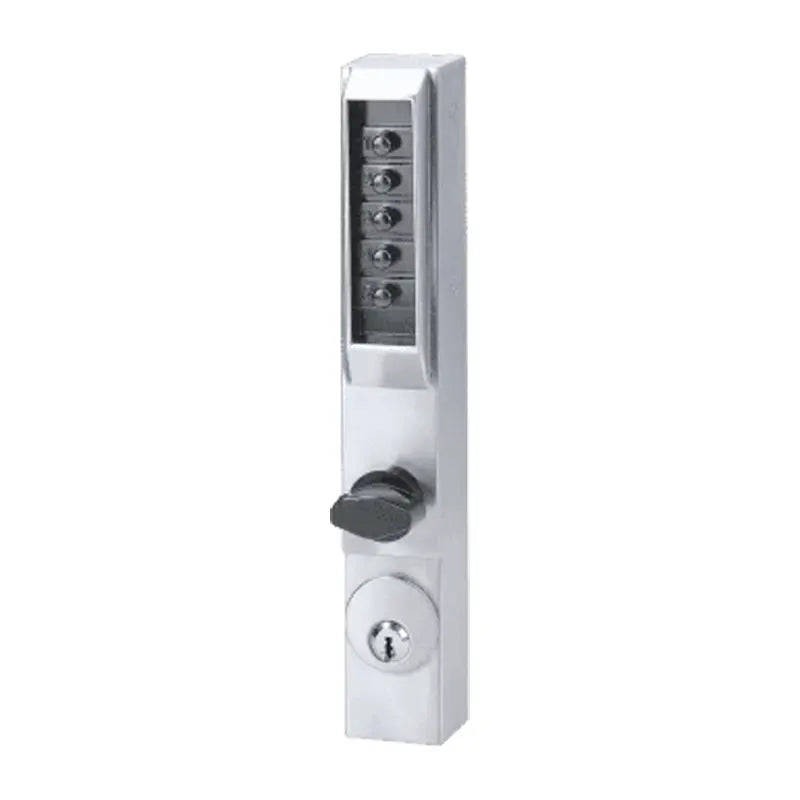

dormakaba Simplex 3000 Narrow Stile Mechanical Pushbutton Lock — 26D/55, Thumbturn + Key Override
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
The dormakaba Simplex 3000 is a mechanical pushbutton lock for narrow stile aluminum/glass doors (storefront). Single-code keypad (no batteries), key override, passage & lockout modes. Works with Adams Rite-style mortise deadlatches (purchased separately). Order the exterior trim plus the handed drive assembly to match handing and backset.
Lead time: 26D Satin Chrome and 55 Duranodic are commonly stocked; verify drive-assembly backset/hand before ordering.
Simplex 3000 — Narrow Stile Pushbutton Lock (Thumbturn, No Power)
-
Vendordormakaba
-
Series / ModelSimplex 3000 — Narrow Stile, Thumbturn + Key Override
-
PowerMechanical (no batteries or wiring)
-
EntrySingle code via pushbuttons + key override
-
ModesPassage (by key) • Lockout (by key)
-
Locking DeviceAdams Rite 4510/4710/4910 mortise latch (not included)
-
Stile / DoorNarrow stile; min stile ≈ 1-7/8″; door thickness up to ≈ 1-3/4″
-
HandingTrim is non-handed; drive assembly is handed (order LH or RH)
-
Backsets31/32″ • 1-1/8″ (also supports 1-1/2″ with 3030/3040)
- 26D / 626 — Satin Chrome
- 55 / 695 — Duranodic (Dark Bronze)
Other architectural finishes considered special order; call to confirm.
| Operation | Single-code pushbutton entry; key override; free egress |
| Modes | Passage (by key) • Lockout (by key) |
| Drive Assemblies | 3010/3020 = 31/32″ (RH / LH) • 3030/3040 = 1-1/8″ or 1-1/2″ (RH / LH) |
| Key Cylinder | MS-type mortise cylinder (override) — not included |
| Supplied | Install manual, template, combination change key, screwdriver |
| Weather | Weather-resistant exterior housing |
| Warranty | 1 year (manufacturer) |
Note: Order the trim + the correct drive assembly + an Adams Rite-style latch to complete a working set.
Reference videos; follow dormakaba documentation for exact steps.
Installation Difficulty
Level 3 — Intermediate: Narrow-stile layout, correct drive assembly (hand/backset), code setup.

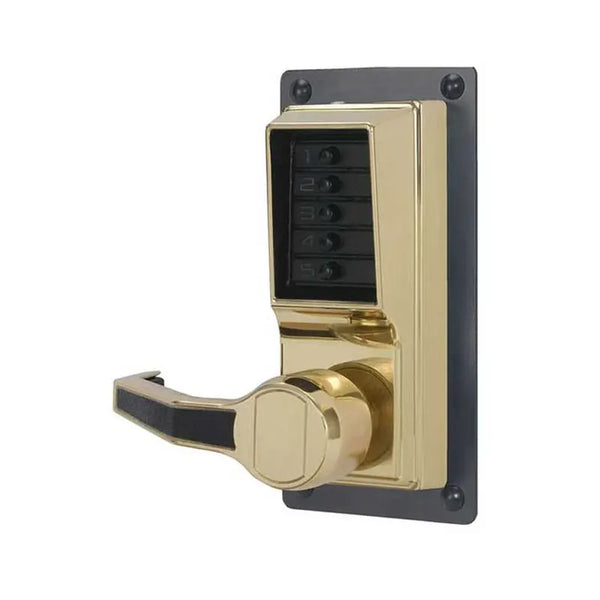

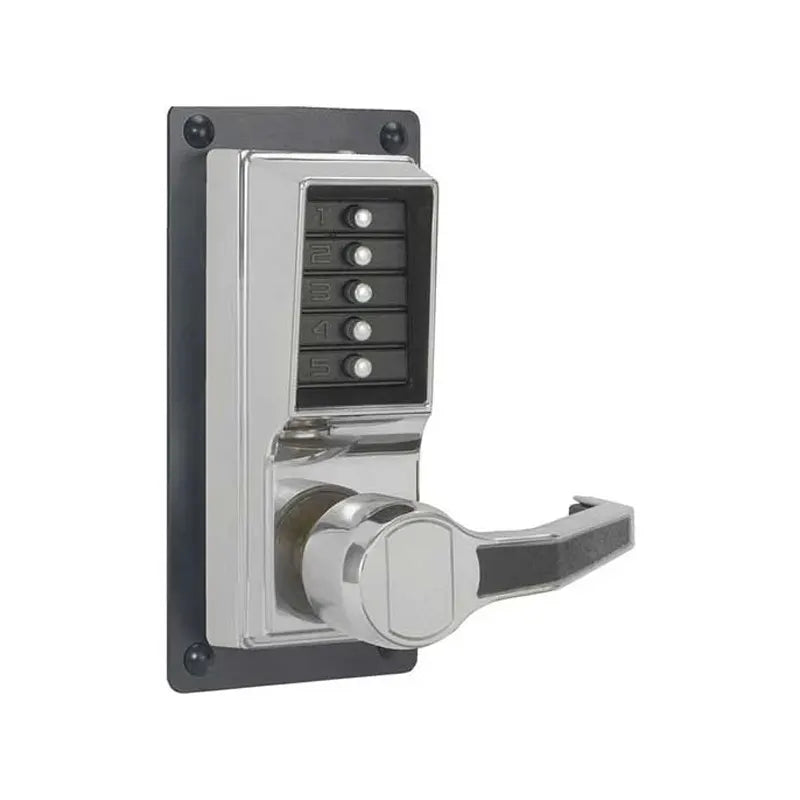

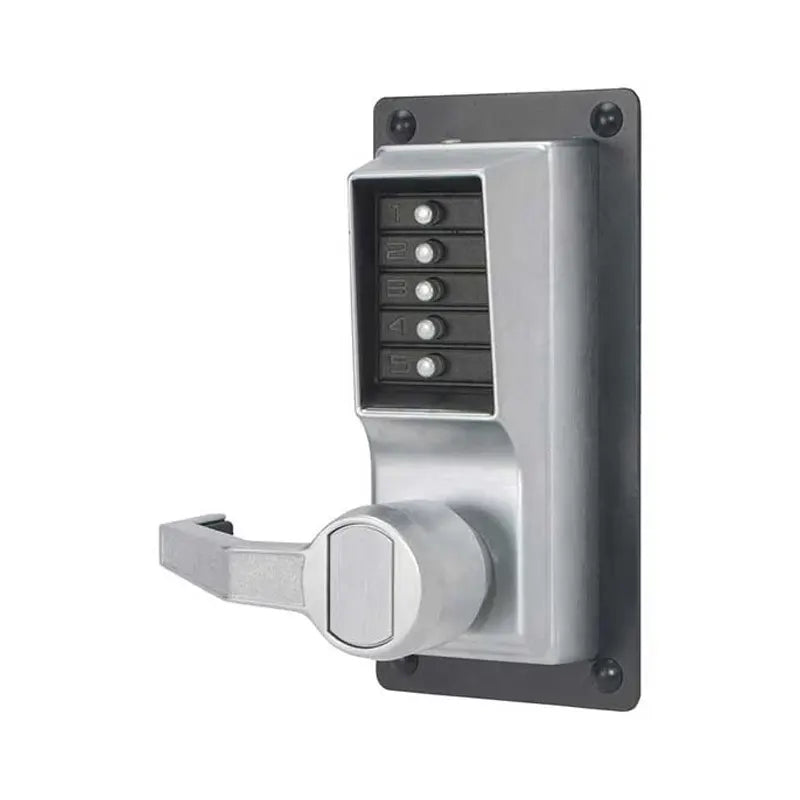

dormakaba Simplex LP1010 Mechanical Pushbutton Lever Lock — 26D/10B, Key Override
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
The dormakaba Simplex LP1010 is a heavy-duty mechanical pushbutton lever lock—no batteries or wiring. Single code entry (thousands of combinations), key override, free egress, and optional passage mode. Cylindrical latch with 2-3/4″ or 2-3/8″ backset; field-reversible handing.
Lead time: Usually stocked in 26D Satin Chrome; 10B (Oil-Rubbed Bronze) varies by distributor.
Simplex LP1010 — Mechanical Lever Keypad Lock (with Key Override)
-
Vendordormakaba
-
Series / ModelSimplex LP1000 Series — LP1010 (lever)
-
PowerMechanical (no batteries or wiring)
-
EntrySingle access code (pushbuttons) + key override
-
Latch / BacksetsCylindrical latch; 2-3/4″ or 2-3/8″ backset
-
Door Thickness≈1-3/8″ to 2″ (kit-dependent)
-
HandingField-reversible (non-handed)
-
Code ChangeFrom exterior with key in place
-
FeaturesVandal-resistant keypad • Optional passage • Free egress
- 26D / 626 — Satin Chrome (typical stock)
- 10B / 613 — Oil-Rubbed Bronze (varies by distributor)
Other architectural finishes are special-order — call for availability.
| Model | LP1010 — Lever, mechanical keypad, key override |
| Backsets | 2-3/4″ (std) • 2-3/8″ (alt.) |
| Latch | Deadlocking cylindrical latch |
| Door Thickness | ≈1-3/8″ to 2″ (kit-dependent) |
| Code Capacity | Single code, thousands of combinations |
| Passage | Optional passage (toggle) where permitted |
| Keys/Cylinders | Accepts mortise cylinder for key override (by keyway) |
Official installation & combo-change references from dormakaba Americas.
Installation Difficulty
Level 3 — Intermediate: Cylindrical prep, handing check, and combo setup.
