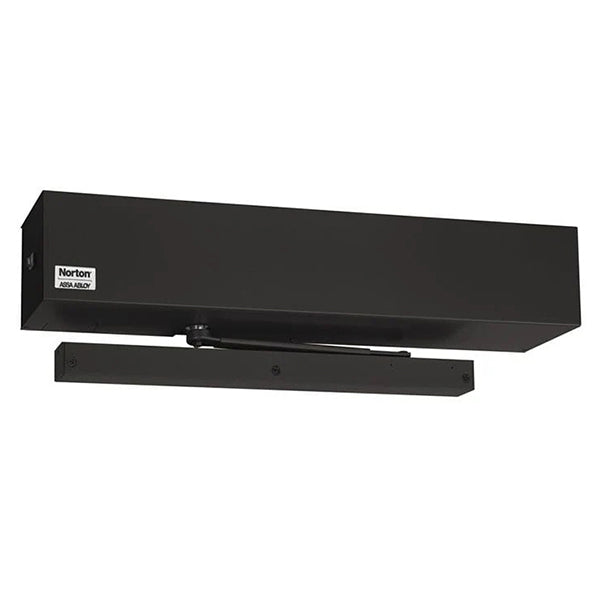

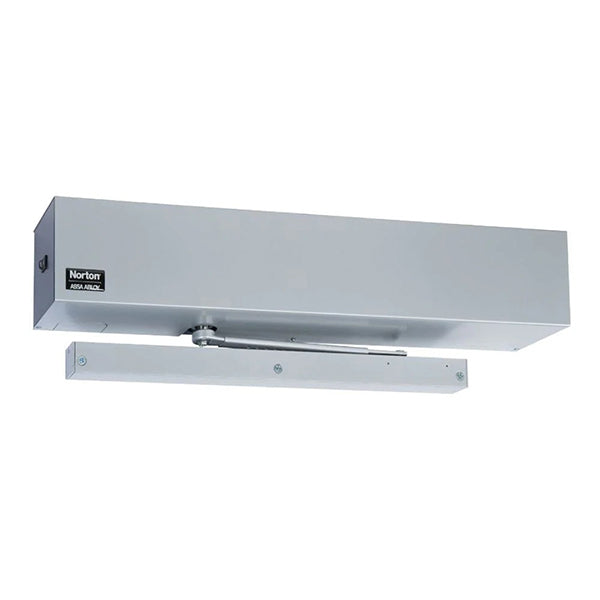

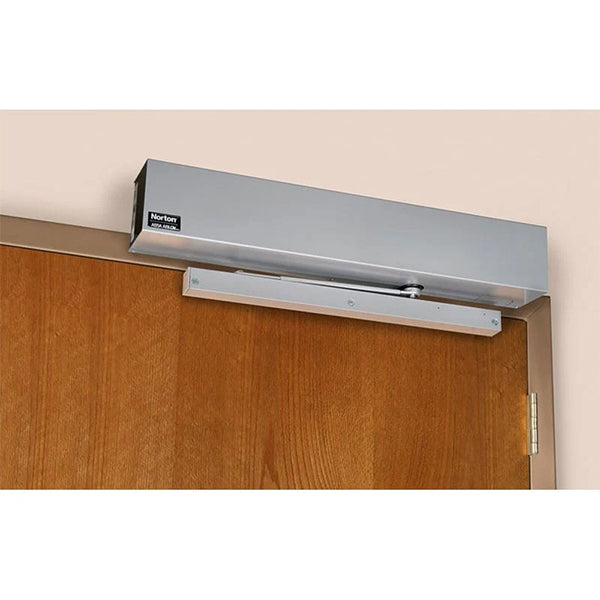

Norton 5740 Universal Low Energy Door Operator - Push Or Pull Side Mount
$3,100.00
A simple ADA solution for moderate traffic applications
A reliable ADA solution for moderate traffic applications, the 5700 Low Energy Operator comprises Norton’s heavy-duty 1601 door closer. The use of a hydraulic closer ensures quiet and consistently smooth operation, even when used manually if power is lost. The 5700 offers basic automated door functions and is designed to set up quickly, making it easy to specify and install.
Features
- Universal Unit - includes push and pull arms
- Designed for quick installation, setup and adjustments
- Hydraulic closer offers quiet and smooth operationOperates as mechanical surface close during close cycles, when door is opened manually or if power is off
- Spring force provides the feel of a normal manual door closer; door can be opened manually if desired
- Onboard power supply for accessories: 24VDC (1.1A)
Specifications
Brand
Norton
Usage
Standard Duty
Mounting
Surface Mount
Handing
Non-Handed
Spring Size
Adjustable Spring Size 1-6
Certifications
ANSI/BHMA A156.19, UL / cUL listed for use on fire rated doors
ADA Compliance
Meets ADA requirements - A117.1 Accessibility Code
UL Listing
C-UL US listed for use on fire and smoke barrier doors
Finishes
- BSP - Black Suede Powder Coat
- 689 Aluminum (Powder Coated)
- 690 Statuary Bronze (Powder Coated)
Installation Instructions
Specification Sheets
