Products
Cal-Royal 5000 & F5000 Fire Rated Series Rim Exit Device
$149.00
RIM TYPE EXIT DEVICES. Uncompromising security and safety in single and double fire exit doors.
-
5000 & F5000 SERIES
- ANSI A156.3, GRADE 1 Heavy Duty Rim Exit Device
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
- UL Listed for Fire Exit Hardware. 3 hours.
- (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
- Chassis mounted unit construction.
- Available in standard functions. Lever and knob trims have an optional clutch freewheeling mechanism. Rose covers 161 cut out.
- For Doors - 1 ¾" thick standard. 3 ¾" minimum stile width for single or double door application using standard 938 strike and pull or lever trims.
- Chassis - Steel (Panic & Fire Grade)
- Cover - Covers stock hollow metal doors with 161 cut out
- Mounting - Furnished standard with wood and machine screws. Available with thru-bolts on request. Thru bolts are standard packaging on fire-rated devices.
- End Cap - Steel construction
- Hand - Non-Handed, center hub.
- Latch Bolt - Stainless steel ¾" throw
- Spring - Steel throughout
- ANSI Standard - A156.3, Grade 1
- Rail Assembly - Heavy gauge steel, painted.
- Strike - 938 packed standard.
- Dogging Feature - Allen-type key furnished standard on non-fire labeled devices.
- Mullion - Available.
- UL and ULC Listed - 5000 Series for panic. F5000 Series for fire exit hardware for all types of 3' x 7' single doors and 6' x 7' double doors for up to 3-hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
- Finish - Aluminum (ALUM), Stainless Steel (US32D)
- Anti-Microbial Coating - Available on US32D only. Use part # ANTB-EXIT
Suggested Architect’s Specifications
- All exit devices shall be of touch bar design with smooth operation and be operative over ⅔ of the door’s clear opening width
- All exit devices must be listed under “Panic Hardware” in the Accident Equipment List of Underwriters’ Laboratories, Inc. where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC 7-2-1997 codes
- All exit devices shall be of chassis mounted unit construction
Dimensions
Minimum Stile Requirements
Template and Installation Instructions
- Template - 5000NL, Pull and Rim Cylinder
- Template - Strike 254 Overlapping Strike (5000)
- Template - 5000 Series Head Assembly
- TEMPLATE FOR 5000 SERIES RIM & SVR EXIT DEVICE
- Installation Instructions - F5000EO RIM EXIT DEVICE
- Installation Instructions - 5000EO Rim Exit Device
- Installation Intructions & Template - CLU6000L
- Installation Instructions - 8000L Lever Design
- Installation Instructions - 8000K Knob Design
INSTALLATION CHALLENGE LEVEL
Challenging
Recommended for Experienced Installers, but not rocket science.
Cal-Royal 700 Series Door Closer — 720/730/740/750 (Sized 2/3/4/5)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal 700 Series — Sizes 2/3/4/5 (720/730/740/750)
Cal-Royal 700 Series is a sized, Grade 1 surface door closer with universal application (regular, top-jamb, parallel). Models: 720 (Size 2), 730 (Size 3), 740 (Size 4), 750 (Size 5). Optional Back-Check and slim cover. UL10C fire-rated.
- Series700 — Sized hydraulic closer
- Models720 (Sz 2) • 730 (Sz 3) • 740 (Sz 4) • 750 (Sz 5)
- Grade / ListingsANSI/BHMA A156.4 Grade 1 • UL10C
- MountingRegular • Top Jamb • Parallel
- HandingNon-handed
- AdjustmentsClosing & Latch speeds • Optional Back-Check
- Arms / AccessoriesStandard arm; 901/902 hold-open arm; 905 PA bracket; 703/704 drop plates; slim cover
- ALUM — Aluminum (painted)
- DURO — Duranodic Bronze
- GOLD — Gold
*Some variants/finish combinations may be limited or special-order.
| Sizing | Fixed spring sizes: 720=Sz 2, 730=Sz 3, 740=Sz 4, 750=Sz 5 |
| Operation | Rack & pinion, hydraulic; dual valves (close/latch) |
| Open Range | Up to 180° (standard); 120° with hold-open arm |
| Applications | Interior/exterior commercial doors |
| Options | Back-Check; slim cover; PA bracket; hold-open arm |
| Hole Pattern | Universal template |
| Certs | ANSI/BHMA A156.4 Grade 1; UL10C |
Installation Difficulty
Cal-Royal 7700 Panic Device Accessories - RIGID LEVER ESCUTCHEON
$150.00
CONSTRUCTION
• Rigid, non-clutch mechanism
• Double heavy duty spring support to prevent
sagging and enhance operation
• Grade 1, thru-bolted design. Non-handed design.
Easily field reversible
• Hardened steel heavy duty tailpiece. Available
for fire and non-fire rated rim and vertical rod exit
devices
• Standard 6-Pin Schlage “C” Mortise Cylinder
included
DOOR THICKNESS
Standard 1 ¾”. For 2 ¼” thick door use additional
Part # TAIL3
ESCUTCHEON DIMENSIONS
2 ¾” width X 10 ¼” length. Lever length: 4 ¾”.
Fits and covers 2 ⅛” 161 cutout
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
CAL-ROYAL 8600 SERIES Low Energy SMART SWING — Automatic Swing Door Operator
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal 8600 — Features & Specs
Cal-Royal 8600 Series is a low-energy automatic swing door operator for ADA access, retrofit-friendly on wood, metal, or glass doors. Features a programmable controller with Push-&-Go, obstacle detection with reversal, optional Power Close (5 levels), exterior wind-dampening, and stack-pressure compensation. Provides onboard 12/24 VDC auxiliary power for accessories. Single-door headers commonly supplied in 39″, 45″, and 51″; pair headers in 75″, 87″, and 99″.
Lead time: Typically distributor-stocked; confirm availability.
Installation Difficulty
Level 4 — Pro install recommended: Electrical, sensor placement, code/ADA setup & programming.
Cal-Royal 900 Series Multi-Size 1–6 Door Closer (N900PBF)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal 900 Series — Multi-Size 1–6 Full-Feature Closer (Barrier-Free)
Cal-Royal 900 Series (N900PBF) is a Grade-1, barrier-free hydraulic door closer with adjustable spring sizes 1–6, standard back-check, and universal mounting (regular, top-jamb, parallel arm). Factory preset size 3. Door range approx. 30–260 lb.
- ModelN900PBF — Full cover, barrier-free
- Grade / ListingsANSI/BHMA A156.4 Grade 1 • UL10C (3-hr)
- Spring PowerAdjustable 1–6 (preset #3)
- MountingRegular • Top-Jamb • Parallel Arm (non-handed)
- Control ValvesSweep • Latch • Back-Check (std) • Delayed Action (opt)
- Door Weight≈ 30–260 lb
- 689 — Aluminum (ALUM)
- 695 — Dark Bronze (DURO)
- 693 — Black
- US26D — Satin Chrome
| Series / Model | 900 / N900PBF (full cover) |
| Power | Adjustable sizes 1–6 (preset 3) |
| Valves | Sweep • Latch • Back-Check (standard) • Delayed Action (optional) |
| Mounting | Regular • Top-Jamb • Parallel Arm (non-handed) |
| Body Size | Body length ≈ 11-3/4″ • Holes ≈ 11-1/8″ × 9/16″ |
| Applications | Commercial interior/exterior doors |
Installation Difficulty
Level 3 — Installer: Template layout; select correct arm (regular/top-jamb/PA); drill pattern & mounting; adjust sweep/latch/back-check; optional delayed-action setup.
Cal-Royal A7700 Accessories -Outside Trim CLUTCH CYLINDRICAL LEVER
$121.00
COMPATIBLE WITH: Cal-Royal 7700 Series Exit Device, Cal-Royal 5000 Series Exit Device
Non-Handed Grade 1 (Clutch Style)
Cylindrical body hardened steel heavy duty tailpiece. For 1 ¾” and 2 ¼” doors.
Prefix “THI” before Part # for 2 ¼” door thickness.
Available for fire and non-fire rated rim and vertical rod exit devices.
Rose diameter 3 ½”, lever length 4 ¾”. Fits and covers 161 cutout.
Finishes: US32D, US26D
INCLUDES GRADE 304SS LEVER AND ROSE
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Cal-Royal A7700 RIM TYPE EXIT DEVICES for 36" Doors.
$354.00
A7700 & AF7700 ADA SERIES
For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.
-
- ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
- Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim
- Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.
- Trims are thru bolted for additional security.
- Conforms & Meets ADA Regulations.
- Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
- UL Listed for Fire Exit Hardware. 3 hours.
- (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
- Uncompromising security and safety in single and double fire exit doors.
- Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
- Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch on rose trims. Escutcheon trims are rigid and cover 161 cut out.
- For Doors - 1 ¾" thick standard optional 2 ¼” thick. 4 ½" minimum stile width for single or double door application using standard 938 strike and pull or lever, thumbpiece, and escutcheon trim. 2-3/4" backset.
- Chassis - Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade).
- Cover - Non-Ferrous plated material. Covers stock hollow metal doors with 161 cut out.
- Mounting - Furnished with wood and machine screws. Available thru-bolts on request. Thru bolts are included and standard packaging on fire-rated devices.
- End Cap - Brass, Bronze, or Stainless Steel construction.
- Alarm - Available. Prefix NALRM before PART#.
- Hand - Non-handed, center hub for 2 3/4" backset.
- Latch Bolt - Stainless steel ¾" throw with an anti-pick feature.
- Spring - Stainless steel throughout.
- ANSI Standard - A156.3, Grade 1.
- Rail Assembly - Heavy gauge extruded aluminum body with stainless steel push pad.
- Dogging Feature - Allen-type key furnished standard on non-fire labeled devices.
- Mullion - Available.
- UL and ULC Listed - A7700 Series for panic. AF7700 Series for fire exit hardware for all types of 4' x 8' single doors and 8' x 8' double doors for up to 3 hours fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
- Strike - 938 packed standard.
- Finish - Architectural plated finishes.
- Electronic Functions - (ELR) Electrical Latch Retraction and RX & LX Signal Switch available
- Anti-Microbial Coating - Available on US32D only. Use part # ANTB-EXIT
Options
- Alarm
- Electrified
- Delayed Egress
Suggested Architect's Specifications
- All exit devices shall be of touch bar design with smooth operation and be operative over 2/3 of the door's clear opening width.
- All exit devices must be listed under "Panic Hardware" in the Accident Equipment List of Underwriters' Laboratories, Inc. Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC-7-2-1997 codes.
- All springs shall be of stainless steel throughout.
- All exit devices shall be of chassis mounted unit construction.
- All exit devices shall be ANSI A156.3, Grade 1.
Dimension
Minimum Stile Requirements
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
- Template - 7700 Panic Rim Type Exit Device
- Template - F7700 Panic Rim Type Exit Device
- Template - ESC7700 Trim
INSTALLATION INSTRUCTIONS
Cal-Royal A7700F RIM TYPE EXIT DEVICES - FIRE RATED
$446.00
For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.
-
A7700 & AF7700 ADA SERIES
- ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
- Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim
- Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.
- Trims are thru bolted for additional security.
- Conforms & Meets ADA Regulations.
- Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
- UL Listed for Fire Exit Hardware. 3 hours.
- (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
- Uncompromising security and safety in single and double fire exit doors.
- Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
- Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch on rose trims. Escutcheon trims are rigid and cover 161 cut out.
- For Doors - 1 ¾" thick standard optional 2 ¼” thick. 4 ½" minimum stile width for single or double door application using standard 938 strike and pull or lever, thumbpiece, and escutcheon trim. 2-3/4" backset.
- Chassis - Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade).
- Cover - Non-Ferrous plated material. Covers stock hollow metal doors with 161 cut out.
- Mounting - Furnished with wood and machine screws. Available thru-bolts on request. Thru bolts are included and standard packaging on fire-rated devices.
- End Cap - Brass, Bronze, or Stainless Steel construction.
- Alarm - Available. Prefix NALRM before PART#.
- Hand - Non-handed, center hub for 2 3/4" backset.
- Latch Bolt - Stainless steel ¾" throw with an anti-pick feature.
- Spring - Stainless steel throughout.
- ANSI Standard - A156.3, Grade 1.
- Rail Assembly - Heavy gauge extruded aluminum body with stainless steel push pad.
- Dogging Feature - Allen-type key furnished standard on non-fire labeled devices.
- Mullion - Available.
- UL and ULC Listed - A7700 Series for panic. AF7700 Series for fire exit hardware for all types of 4' x 8' single doors and 8' x 8' double doors for up to 3 hours fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
- Strike - 938 packed standard.
- Finish - Architectural plated finishes.
- Electronic Functions - (ELR) Electrical Latch Retraction and RX & LX Signal Switch available
- Anti-Microbial Coating - Available on US32D only. Use part # ANTB-EXIT
Options
- Alarm
- Electrified
- Delayed Egress
Suggested Architect's Specifications
- All exit devices shall be of touch bar design with smooth operation and be operative over 2/3 of the door's clear opening width.
- All exit devices must be listed under "Panic Hardware" in the Accident Equipment List of Underwriters' Laboratories, Inc. Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC-7-2-1997 codes.
- All springs shall be of stainless steel throughout.
- All exit devices shall be of chassis mounted unit construction.
- All exit devices shall be ANSI A156.3, Grade 1.
Dimension
Minimum Stile Requirements
- Template - 7700 Panic Rim Type Exit Device
- Template - F7700 Panic Rim Type Exit Device
- Template - ESC7700 Trim
INSTALLATION INSTRUCTIONS
Cal-Royal BDH30 — Surface Strap-Wheel Barn Door Hardware (Wood), 6′6″ or 8′0″
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal BDH30 — Surface Strap-Wheel Barn Door Hardware (Wood)
Cal-Royal BDH30 is a barn door hardware kit for wood doors with a surface-mount strap wheel design. Order by rail length: 6′ 6″ (BDH3066) or 8′ 0″ (BDH3080). Optional Soft-Close variants use prefix SCSBDH (e.g., SCSBDH3066). Standard finish: BLACK; some distributors also offer US15 Satin Nickel.
Lead time: Typically distributor-stocked; confirm current availability.
- VendorCal-Royal Products, Inc.
- SeriesBDH — Barn Door Hardware (Wood)
- ModelBDH30 — Surface mount, Strap Wheel
- Rail Lengths6′ 6″ (BDH3066) • 8′ 0″ (BDH3080)
- Soft-Close VariantsSCSBDH3066 • SCSBDH3080
- Less-Track SetBDH30LT (no track, hardware only)
- FinishBLACK (std) • US15 Satin Nickel (selected distributors)
- Max Door WeightUp to 132 lb with Soft-Close; higher without soft-close (per distributor data)
- Set IncludesTrack, 2 rollers, 2 stops, floor guide, anti-jump discs, screws (kit); LT = hardware less track
- BLACK (powder-coated matte)
- US15 — Satin Nickel (availability varies)
If US15 is not stocked by your distributor, treat as special order.
| Mount / Design | Surface mount • Strap Wheel |
| Door Type | Wood interior doors |
| Lengths | 6′ 6″ • 8′ 0″ |
| Max Door Weight | 132 lb with Soft-Close (SCS) per spec; distributors list up to ~220–265 lb without SCS |
| Set Contents | 1 track (except LT), 2 rollers, 2 stops, 1 floor guide, 2 anti-jump discs, mounting screws |
Use case: Decorative barn/sliding wood doors where a strap-wheel aesthetic and stainless/black look are desired.
Reference videos; follow Cal-Royal PDFs for exact steps.
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & plumb/level; anchors required.
Cal-Royal BDH31 — Top-Mount Single-Wheel Barn Door Hardware (Wood), 6′6″ or 8′0″
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal BDH31 — Top-Mount Single-Wheel Barn Door Hardware (Wood)
Cal-Royal BDH31 is a barn door hardware kit for wood doors with a top-mount single wheel design. Order by rail length: 6′ 6″ (BDH3166) or 8′ 0″ (BDH3180). Optional Soft-Close variants: SCSBDH3166 / SCSBDH3180. Standard finish: BLACK; some distributors also stock US15 Satin Nickel.
Lead time: Typically distributor-stocked; confirm current availability.
- VendorCal-Royal Products, Inc.
- SeriesBDH — Barn Door Hardware (Wood)
- ModelBDH31 — Top-mount, Single Wheel
- Rail Lengths6′ 6″ (BDH3166) • 8′ 0″ (BDH3180)
- Soft-Close VariantsSCSBDH3166 • SCSBDH3180
- FinishBLACK (std) • US15 Satin Nickel (some distributors)
- Max Door Weight220 lb kit (no SCS) • 132 lb with Soft-Close (SCS)
- Set IncludesTrack, 2 rollers, 2 stops, floor guide, anti-jump discs, mounting screws
- BLACK (powder-coated matte)
- US15 — Satin Nickel (availability varies)
If US15 isn’t stocked by your source, treat as special order.
| Mount / Design | Top-mount • Single Wheel |
| Door Type | Wood interior doors |
| Lengths | 6′ 6″ • 8′ 0″ |
| Max Door Weight | Up to 220 lb (no SCS); 132 lb with SCS |
| Set Contents | 1 track, 2 rollers, 2 stops, 1 floor guide, 2 anti-jump discs, screws |
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & plumb/level; anchors required.
Cal-Royal BDH32 — Surface-Mount Arrowhead Barn Door Hardware (Wood), 6′6″ or 8′0″
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal BDH32 — Surface-Mount Arrowhead Barn Door Hardware (Wood)
Cal-Royal BDH32 is a barn door hardware kit for wood doors with a surface-mount Arrowhead roller. Order by rail length: 6′ 6″ (BDH3266) or 8′ 0″ (BDH3280). Optional Soft-Close variants: SCSBDH3266 / SCSBDH3280. Standard finish: BLACK.
Lead time: Typically distributor-stocked; confirm current availability.
-
VendorCal-Royal Products, Inc.
-
SeriesBDH — Barn Door Hardware (Wood)
-
ModelBDH32 — Surface mount, Arrowhead
-
Rail Lengths6′ 6″ (BDH3266) • 8′ 0″ (BDH3280)
-
Soft-Close VariantsSCSBDH3266 • SCSBDH3280 (132 lb max door w/ SCS)
-
FinishBLACK (standard)
-
Max Door WeightUp to 220 lb (no SCS); 132 lb with SCS
-
Set IncludesTrack, 2 rollers, 2 stops, floor guide, anti-jump discs, mounting screws
| Mount / Design | Surface mount • Arrowhead roller |
| Door Type | Wood interior doors |
| Lengths | 6′ 6″ • 8′ 0″ |
| Max Door Weight | Up to 220 lb (no SCS); 132 lb with SCS |
| Set Contents | 1 track, 2 rollers, 2 stops, 1 floor guide, 2 anti-jump discs, screws |
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & plumb/level; anchors required.
Cal-Royal BDH33 — Surface-Mount “Diamond” Barn Door Hardware (Wood), 6′6″ or 8′0″
Sold Out
Please contact us by email or phone for pricing on this item.
Cal-Royal BDH33 — Surface-Mount “Diamond” Barn Door Hardware (Wood)
Cal-Royal BDH33 is a barn door hardware kit for wood doors with a surface-mount “Diamond” roller design. Order by rail length: 6′ 6″ (BDH3366) or 8′ 0″ (BDH3380). Optional Soft-Close variants: SCSBDH3366 / SCSBDH3380. Standard finish: BLACK. :contentReference[oaicite:0]{index=0}
Lead time: Typically distributor-stocked; confirm current availability.
-
VendorCal-Royal Products, Inc.
-
SeriesBDH — Barn Door Hardware (Wood)
-
ModelBDH33 — Surface mount, Diamond design
-
Rail Lengths6′ 6″ (BDH3366) • 8′ 0″ (BDH3380)
-
Soft-Close VariantsSCSBDH3366 • SCSBDH3380
-
FinishBLACK (standard)
-
Max Door WeightUp to 220 lb (no SCS); 132 lb with SCS
-
Set IncludesTrack, 2 rollers, 2 stops, floor guide, 2 anti-jump discs, mounting screws
Model/part numbers per Cal-Royal BDH part-number sheet (Oct 2024). Specs per BDH catalog. :contentReference[oaicite:1]{index=1}
| Mount / Design | Surface mount • “Diamond” roller |
| Door Type | Wood interior doors |
| Lengths | 6′ 6″ • 8′ 0″ |
| Max Door Weight | Up to 220 lb (no SCS); 132 lb with SCS (per catalog) |
| Set Contents | 1 track, 2 rollers, 2 stops, 1 floor guide, 2 anti-jump discs, screws |
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & plumb/level; proper anchors required.
Cal-Royal BDH34 — Surface-Mount Horseshoe Barn Door Hardware (Wood), 6′6″ or 8′0″
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal BDH34 — Surface-Mount Horseshoe Barn Door Hardware (Wood)
Cal-Royal BDH34 is a barn door hardware kit for wood doors with a surface-mount Horseshoe roller design. Order by rail length: 6′ 6″ (BDH3466) or 8′ 0″ (BDH3480). Optional Soft-Close variants: SCSBDH3466 / SCSBDH3480. A Less-Track kit is available as BDH34LT. Standard finish: BLACK.
Lead time: Typically distributor-stocked; confirm current availability.
-
VendorCal-Royal Products, Inc.
-
SeriesBDH — Barn Door Hardware (Wood)
-
ModelBDH34 — Surface mount, Horseshoe design
-
Rail Lengths6′ 6″ (BDH3466) • 8′ 0″ (BDH3480)
-
Soft-Close VariantsSCSBDH3466 • SCSBDH3480
-
Less-Track SetBDH34LT (hardware kit less sliding track)
-
FinishBLACK (standard)
-
Max Door WeightUp to 220 lb (no SCS); 132 lb with SCS
-
Set IncludesTrack (except LT), 2 rollers, 2 stops, floor guide, 2 anti-jump discs, mounting screws
| Mount / Design | Surface mount • Horseshoe roller |
| Door Type | Wood interior doors |
| Lengths | 6′ 6″ • 8′ 0″ |
| Max Door Weight | Up to 220 lb (no SCS); 132 lb with SCS |
| Set Contents | 1 track (except LT), 2 rollers, 2 stops, 1 floor guide, 2 anti-jump discs, screws |
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & plumb/level; proper anchors required.
Cal-Royal CR441 — Grade 1 Adjustable Door Closer (Sizes 1–6)
$225.00
Cal-Royal CR441 — Heavy-Duty Grade 1 Door Closer
Cal-Royal CR441 is a heavy-duty Grade 1 surface door closer with adjustable spring sizes 1–6. Non-handed for regular, top-jamb, or parallel-arm mounting. Cast-iron body, standard back-check, full cover included.
-
BrandCal-Royal
-
Series / ModelCR441 — Adjustable 1–6
-
MountingRegular • Top-Jamb • Parallel-Arm (non-handed)
-
BodyCast iron • Full cover included
-
PatternLCN 4040/4041 hole pattern (2-1/4″ × 5″)
-
CertsANSI/BHMA A156.4 Grade 1 • UL10C
- 689 Aluminum (ALUM)
- 695 Dark Bronze (Duranodic)
- 693 Black
- US26D Satin Chrome
| Spring Power | Adjustable sizes 1–6 |
| Door Weight Range | ≈30–260 lb |
| Back-Check | Standard |
| Delayed Action | Optional |
| Hole Pattern | 2-1/4″ × 5″ (LCN 4040 pattern) |
| Handing | Non-handed |
| Applications | Hollow metal • Wood • Aluminum doors |
Installation Difficulty
Cal-Royal CR6100 SERIES Digital Lock /RFID Card/KeyFob
$534.50
Digital Touch Screen Door Lock with Clutch Technology
PACKAGING: Includes 2 ¾” × 1 ⅛” backset, 6-pin “C” keyway, 2 RFID cards, 4 batteries, and ASA strike.
Optional Interchangeable Core for Best, Falcon and Arrow
- Master Code
- 500 User Codes
- 500 RFID Card/KeyFob per Lock
- 2 One-Time User Codes
- 4–6 Digit Code Combination
- Passage Mode
- Weather Resistant
- 9V Battery Emergency Port
- Anti-Tamper Lockout
- Lock-Out Mode
- Clutch Technology
- Non-Handed Reversible
- Proximity Card (13.56 MHz)
- RFID Keyfob (Optional)
- Mobile App for Android & Apple
- Bluetooth Receiver (Optional)
- Touch Screen to Wake Up Lock
Features
- Access Log (Audit Trail) — The ExperienSmart app features a 24/7 activity log. A timestamped access log can be exported by email.
- Anti-Tamper Lock-Out — Locks out for 60 seconds after 5 invalid tries.
- Beep & LED Indicators — Status indicators for feedback and programming.
- Bluetooth Receiver (CR6000-BLE) — Optional device for app management; 8–10 m detection range.
- Lock-Out Mode — Master PIN restricts all user PIN/RFID access (padlock icon shows on screen).
- Low Battery Warning — On-screen icon blinks when batteries are low.
- Master PIN Code — For programming, admin actions, and factory reset.
- NFC Interface — NFC compatible on supported Android phones.
- One-Time User PIN Codes — Store up to 2 simultaneous single-use codes.
- Passage Mode — Continuous unlock until disabled (unlocked padlock icon shows).
- Re-Lock Time — Auto-relock adjustable (1–10 s; default 5 s).
- RFID Credentials — MIFARE (ISO14443A), inductive distance up to 1-3/16".
- Touch Screen Wake — Touch to illuminate keypad for entry/programming.
- User PIN Codes — Up to 500 user PINs (4–6 digits) plus 500 RFID.
- Weather Resistant — −30°F ~ 150°F (−35°C ~ +66°C).
Specifications
- Applications — Offices, schools, hospitals, apartments, condos, hotel/motel, residential, commercial & public buildings.
- Door Ranges — 1-3/8" to 1-3/4".
- Backset — 2-3/4" standard or 2-3/8" optional.
- Latch Faceplate — Std 1-1/8" × 2-1/4" (2-3/4" backset). Optional 1" × 2-1/4" (2-3/8" backset).
- Strikes — ASA strike standard; T and full-lip available.
- ANSI Standards — ANSI/BHMA A156.2 Series 4000 Grade 1 requirements.
- Clutch — Free-wheeling lever protects internal parts from force.
- Cylinder — 6-pin Schlage “C” keyway with two brass keys.
- IC Core — Accepts Best/Falcon 6 or 7-pin SFIC (prefix “IC”).
- Power — 4 × AA 1.5V alkaline (included).
- Optional Bluetooth — Manage/sync via ExperienSmart app (receiver required).
- Weather — −30°F ~ 150°F (−35°C ~ +66°C).
Videos
Installation Challenge Level
Challenging (4/5)
Recommended for Experienced Installers
Cal-Royal CR8000 Series - Commercial Grade 1 Digital Keypad Door Lock ( Formerly CR3000)
$439.25
Grade 1 Heavy Duty Digital Keypad Door Lock
For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial, and Public Buildings
- Available in 2 3/8" backset just put in note on your order.
- Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, GRADE 1
- Easy Installation & Programming
- Long-Life Battery Operation
- 2 Remote Switch Terminals
- Interchangeable Core
- Master Code
- 10 Manager Codes
- 1 Sub-Master Code
- 90 User Codes
- 5 Service Codes
- Passage Mode
- Weather Resistant
- Buzzer & Led Indicators
- Anti-Tamper Lockout
- Clutch Technology
- Non-Handed, Reversible
- Enable & Disable Users Mode
- Tactile Metal Keypad
- User Friendly
- Master Code – performs all programming functions.
- Sub-Master Code – performs all programming functions except delete or change Master Code.
- Manager Codes – CR3000 can accommodate 10 Managers each having different codes and under each Manager has 9 Users (1 Manager + 9 Users = 1 Bank). Managers are capable of programming / adding and deleting User codes under his Bank. Managers are also capable of accessing the next higher bank until another Manager Code appears.
- Service Codes (5) – are one-time codes only. It cannot be used again. Once a Service Code is entered, the unit will unlock but will automatically delete the code.
- Passage Mode – once enabled, the unit is unlocked continuously until “Disable Passage Mode” is initiated.
- Tones and LED Indicators – can be programmed for different settings. Making sure that every key pressed is confirmed by an accompanying LED and/or tone.
- Next Free Code Location Finder – no need of guessing what free location is available in entering a new code. CR3000 can pinpoint and tell you where the next available location is.
- Code Locator Function – CR3000 can tell you the exact location of a certain code. Making it easy to determine what manager a user code is under.
- Keypad Anti-Tamper Lockout – if an invalid code is entered 3 times in succession, the unit will turn off for 30 seconds to prevent tampering.
- Remote Switch Terminal / Release – CR3000 provides 2 Remote Switch Terminal. Either can be used for an emergency push button switch, or connected to alarm systems such as fire alarms.
- Weather Resistant – CR3000 are manufactured making sure that internal electronic parts are protected from moisture, dust, water, and corrosion. All models are weather-resistant for temperature ranges of +158°F to -22°F (+70°C to -30°C).
- Clutch Technology – the outside lever of the CR3000 is a free-wheeling lever. If no valid code is entered, the lever will just turn freely without moving any parts inside, thus preventing breaking or tampering.
- Non-Handed – CR3000 can be installed for both left and right door opening.
- APPLICATIONS For offices, schools, hospitals, apartments, hotel/motel, residential, commercial, and public buildings.
- DOOR RANGES 1 ⅜” to 2” thickness.
- BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾”, 5” and 2 ¾” anti-friction latch with ¾” throw for pair of fire doors optional.
- LATCH FACEPLATE Standard 2 ¼” x 1 ⅛” for 2 ¾” backset. Optional 2 ¼” x 1 ⅛” for 2 ⅜” backset.
- STRIKES ASA strike standard, “T” and full lip strike available on request.
- ANSI STANDARDS Meets or exceeds BHMA/ANSI A156.2 Series 4000 Grade 1 requirements.
- POWER SUPPLY 4 AA Batteries (comes standard in packing)
- CLUTCH Clutch technology allows turning of lever without retracting the latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.
- CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High-Security Cylinders.
- INTERCHANGEABLE CORE (IC) Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON, and ARROW. Prefix “IC” before part number.
- WEATHER RESISTANT All models are weather-resistant for temperature ranges of +158○F to -22○F (+70○C to -30○C).
- KEYPAD 12 programmable buttons for multi-level access functions including group or individual user codes, master and management codes, passage, and emergency or service codes.
-
(IC) Indicates function available with BEST, FALCON & ARROW Interchangeable Core.
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Cal-Royal CRCODE200-Push Button Lock
$305.00
Mechanical Stand Alone Push Button Lock and Exit Device Trim with Breakaway Lever Feature
- Meets ADA requirements specially designed for Barrier Free Application. Conforms with ANSI A156.2, Series 4000 GRADE 2
- Easy installation covers 161 prep (2-1/8" hole)
- 1 - 12 Digit Code
- Single Code User
- Key Override
- Easy on-the-door code change without removing the lock
- Code-Free Option (Passage)
- Breakaway Lever Design
- Clutch-Free mechanism
- Weather-Resistant
- Non-Handed
- More than 8000 non-sequential possible code combinations
- For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings.
-
- SINGLE CODE USER - Only one code combination chosen from thousands of combinations can be set at a time to deter code breakers. Code length is from 1 to 12 digits and can be permutated with a non-repeating digit up to over 5000 combinations.
- EASY ON-DOOR CODE CHANGE - Code can be changed without removing the lock from the door and using only a “code change” key.
- 1-12 DIGIT CODE - An entry code can be a combination of 1 to 12 digits long. The digits can be entered in any order. For example, if the chosen 6-digit code is “5283XZ” it can be entered as “ZX3825” or “3X8Z25” or in any other combination of the 6-digit code.
- BREAKAWAY LEVER DESIGN - Lever will stay at the 5 o’clock position when forced down without retracting the latch, to prevent breaking of the handle and giving the impression of the handle being broken to discourage or scare off vandals.
- CODE-FREE OPTION (PASSAGE MODE) - Once enabled, the lock remains unlocked until disabling PASSAGE MODE is initiated. (For CRCODE203, inside and outside locks must be set)
- WEATHER RESISTANT - Can resist above or below normal weather conditions without compromising security.
- NON-HANDED - Easily field reversible handing.
Profile
-
SPECIFICATIONS:
-
GENERAL - Full length 5 ½” lever handle with ⅞” return. Escutcheon dimension 3 ½” x 8 ⅛”. Key removable outside lever for all models for fast re-keying. Non-handed levers. 2 ⅛” diameter bore.
-
BREAKAWAY LEVER DESIGN - Lever will stay at the 5 o’clock position when forced down without retracting the latch, to prevent breaking of handle.
-
DOOR RANGES - 1 ⅜” - 2 ¼” for CRCODE202 (Storeroom function), 1 ⅜” - 1 ¾” for CRCODE203(Institutional Function), 1 ¾” - 2” for CRCODE204 (Panic Device Trim)
-
ANSI STANDARDS - Meets or exceeds ANSI A 156.2, Series 4000 Grade 2 requirements.
-
LATCH FACEPLATE - Standard 2 ¼” x 1 ⅛” for 2 ¾” backset for CRCODE202 and CRCODE203 only.
-
STRIKES - ASA 1 ¼” x 4 ⅞” standard for CRCODE202 and CRCODE203 only. Other strikes are available upon request. Strikes for CRCODE204 comes standard with exit device ordered.
-
CYLINDER & KEYWAYS - 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba, and Cal-Royal (HSK) High-Security Cylinders.
-
TRIM - Thru-bolted assembly through door with separate spring cage for each lever.
-
LATCH OPTIONS - 2 ¾” standard, brass with ½” throw (with optional 2 ⅜” backset, 2 ¼” x 1” faceplate) for CRCODE202 and CRCODE203.
Cal-Royal Explorer XP/XPRL Series - XP-T360-05
$128.00
Grade 2 Locksets
For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.
- BHMA Certified Lifetime Warranty, GRADE 2
- Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free
- UL listed 3-hour rating, conforms to standards UL10C and UBC7-2-1997
- Solid brass 6 pin “C” keyway cylinder, optional other keyways
- Optional Interchangeable Core
- Non-Clutch Mechanism
- Optional thru-bolted installation
- Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
- Optional Tactile and Lead Lining
- Meets the Buy American Act
Features
- APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
- DOOR RANGES 1 ⅜” to 2” thickness doors.
- BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾” and 5” optional.
- LATCH BOLT ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
- LATCH FACEPLATE 2 ¼” x 1”, square corner packed with ⅛” plastic filler for 1 ⅛” width.
- ANSI STANDARDS Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
- EXPOSED TRIM Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
- KEYING 6-pin “C” keyway cylinder, 2 keys per lock. Keying as per individual job requirement.
- CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
- INTERCHANGEABLE CORE (IC) Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available.
- STRIKES ASA strike standard, “T” and full lip strike available on request.
- TACTILE & LEAD LINING available upon request.
Finishes
-
US26D Satin Chrome Plated -
US10B Dark Bronze
Templates
Installation Instructions
Part Numbers
Catalog Page
INSTALLATION CHALLENGE LEVEL
Challenging
Recommended for Experienced or Professional Installers.
Cal-Royal Explorer XP/XPRL Series - XPRL00
$85.00
Grade 2 Locksets
For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.
- BHMA Certified Lifetime Warranty, GRADE 2
- Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free
- UL listed 3-hour rating, conforms to standards UL10C and UBC7-2-1997
- Solid brass 6 pin “C” keyway cylinder, optional other keyways
- Optional Interchangeable Core
- Non-Clutch Mechanism
- Optional thru-bolted installation
- Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
- Optional Tactile and Lead Lining
- Meets the Buy American Act
Features
- APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
- DOOR RANGES 1 ⅜” to 2” thickness doors.
- BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾” and 5” optional.
- LATCH BOLT ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
- LATCH FACEPLATE 2 ¼” x 1”, square corner packed with ⅛” plastic filler for 1 ⅛” width.
- ANSI STANDARDS Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
- EXPOSED TRIM Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
- KEYING 6-pin “C” keyway cylinder, 2 keys per lock. Keying as per individual job requirement.
- CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
- INTERCHANGEABLE CORE (IC) Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available.
- STRIKES ASA strike standard, “T” and full lip strike available on request.
- TACTILE & LEAD LINING available upon request.
Finishes
-
US26D Satin Chrome Plated
-
US10B Dark Bronze
Templates
Installation Instructions
Part Numbers
Catalog Page
Challenging
Recommended for Experienced or Professional Installers
Cal-Royal GLS7700 & FGLS7700 Series
$398.00
GLS7700 & FGLS7700 SERIES
RIM TYPE, NARROW STILE EXIT DEVICES
For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.
-
- ANSI A156.3, GRADE 1 heavy duty exit device
- Conforms to ANSI/UL10C, ANSI/UL305 Standards
- For Doors: Wood, Metal, or Aluminum Glass doors with 1 ¾” minimum stile width, 1 ¾” thickness for single or double door application.
- Chassis: Non-Ferrous Alloy (Panic Grade)
- Cover: Non-ferrous plated material
- Mounting: Furnished with wood and machine screws. Thru bolts available upon request.
- End Cap: Brass, Bronze, or Stainless Steel construction.
- Alarm: Available for 36" bar only. Prefix NALRM before PART#
- Hand: Non-handed
- Latch Bolt: Stainless Steel 3/4" throw
- Spring: Stainless Steel throughout
- ANSI Standard: A156.3, Grade 1
- Rail Assembly: Heavy gauge extruded aluminum body with Stainless Steel push pad
- Strikes: 246 packed standard. Optional 247 strike. (See strike page)
- Dogging Feature: Available for 36" bar only. Allen-type key furnished standard
- Mullion: Available
- UL and ULC Listed: GLS7700 Series for Panic & Safety, FGLS7700 Series for all types 4' x 8' single doors and 8' x 8' double doors for up to 3-hour fire labeled installations. Conforms to ANIS/UL10C, ANSI/UL305 Standards
- Finish: Architectural plated finishes.
- Electronic Functions: (ELR) Electrical Latch Retraction and RX & LX Signal Switch available
- Anti-Microbial Coating - Available on US32D only. Use part # ANTB-EXIT
Dimensions
INSTALLATION INSTRUCTIONS
Challenging
Recommended for Experienced Installers but not rocket science
Cal-Royal JE-40C Digital Deadbolt Lock with Pin Code / RFID
$524.00
This product includes MASTER CODE and supports 500 USER CODES PER LOCK, 500 RFID CARD/KEYFOB PER LOCK, 2 ONE TIME USER CODES, and 4-6 DIGIT CODE COMBINATION. It also includes PASSAGE MODE, WEATHER RESISTANT, 9V BATTERY EMERGENCY PORT, ANTI-TAMPER LOCK-OUT, LOCK-OUT MODE, CLUTCH LOCKING MECHANISM, and NON-HANDED, REVERSIBLE design. Additional features include PROXIMITY RFID CARD (13.56 MHz), RFID KEYFOB (Optional), TOUCH SCREEN TO WAKE UP OR LOCK DOOR, and 2 YEAR WARRANTY.
Features
RFID Card (item#: CRPRFID)
Compatible with existing MIFARE infrastructures. Operates at 13.56 MHz in accordance with ISO14443A. Inductive distance up to 1 ³⁄₁₆ ”. Included in standard packaging.
RFID Keyfob (item#: RFID-DFE)
Dual frequency enamel fobs, operates at 125 KHz + 13.56 MHz.
Touch Screen (Lock Activation)
Touch the screen to activate lock. Enter the PIN code when while the number pad is illuminated. Also same as using the RFID card/keyfob.
User PIN Code
This feature only opens the lock by entering the code on the touch pad. It won’t be able to program or change settings. This lock can accommodate up to 500 RFID Card /Keyfob and 500 User PIN codes each, 4 to 6 digit code combination.
Smart Connect Module (item#: CR6000-BLE)
Optional device used for managing locks via the ExperienSmart app, 8m-10m detection range.
Access Log (Audit Trail)
The ExperienSmart app features a 24/7 activity log, so you can keep track of who accessed the lock. A timestamped access log can be saved as an excel file via email. 1000 audit trail entries.
Anti-Tamper Lock-Out
The lock will shut down for 60 seconds and not allow operation, if invalid code is entered 5 times in succession to prevent tampering.
Beep & LED Indicators
These indicators can either be programmed for different settings. This feature is useful in making sure that every keypress was successfully entered.
Lock-Out Mode
This feature is enabled by the Master PIN Code. When enabled, it restricts all User PIN codes and RFID CARD / KEYFOB access except Master PIN code. The padlock icon will appear on the screen when the unit is in lock-out mode.
Low Battery Warning
The low battery icon on the screen will blink when battery power is low.
Master PIN Code
Use for programming the lock and entering User PIN codes. Can also be use to open the lock and reset to factory settings.
NFC (Near Field Communication) Interface
NFC compatible for android phones.
One-Time User PIN Code
Can only be used once. This lock can store up to 2 one-time User PIN code simultaneously.
Passage Mode
Enabling passage mode allows continuous entry for non-restricted traffic. Passage mode can either be enabled or disabled by the Master Pin code. When in passage mode, the unlocked padlock icon will appear on the screen.
Re-Lock Time
When the code is successfully entered and the device unlocks, it will automatically relock after 5 seconds by default. Through feature settings, the re-lock time may be changed from 10 to 90 seconds.
Weather Resistant
JE-80M is weather resistant for temperature ranges of -30○F ~ 150○F (-35○C ~ +66○C).
Specifications
APPLICATIONS
For offices, schools, hospitals, apartments, condo units, hotel / motel, residential, commercial, and public buildings
DOOR RANGES
1 ⅜” (35mm) ~ 1 ¾” (45mm) standard.
DEADBOLT
UL-Listed, 2 ¾” or 2 ⅜” Adjustable Motorized Latch, 1” Throw. Brass with hardened steel pin insert.
LATCH FACEPLATE
Standard 2 ¼” x 1” face plate, packed with ⅛” plastic filler for 1 ⅛” door preparations.
STRIKES
2 ¾” x 1 ⅛” square corner deadbolt strike. Packed with (2pcs) 3” screws and wood frame reinforcer.
ANSI STANDARDS
Meets ANSI / BHMA A156.5, Grade 2 requirements.
CLUTCH
Clutch technology allows turning of thumb turn without retracting latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.
PROXIMITY RFID CARD (STANDARD)
2 pcs. included. Compatible with existing MIFARE infrastructures. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 ³⁄₁₆".
RFID KEYFOB (OPTIONAL)
Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 ³⁄₁₆".
POWER SUPPLY
4 AA 1.5V Alkaline Batteries (comes standard in packaging)
SMART PHONE CONNECTIVITY (OPTIONAL)
Lock can be managed / synced using the ExperienSmart app for both Apple & Android phones. (Smart Connect Module installation required)
WEATHER RESISTANT
All models are weather resistant for temperature ranges of -30○F ~ 150○F (-35○C ~ 66○C) at 85% relative humidity.
TOUCH SCREEN
Responds to human touch enabling convenient entrance or access to programming menu. After operation has been completed, the lock reverts to sleep mode.
Cal-Royal Mechanical Easy Code Change Trim only
$267.00
Cal-Royal Mechanical Easy Code Change EXIT DEVICE TRIM ONLY for Rim and Surface Vertical Rods (Panic Device sold Separately)
Outside Trim for CAL-ROYAL 2200, 6600, 7700 and 9800 Series Rim and Surface Vertical Rods
Operated by lever from outside and when push pad is depressed, except outside has to enter a pre-programmed code on the keypad in order to retract the latch upon turning the lever. For use with 2200, 6600, 7700 and 9800 Series Rim and Surface Vertical Rods.
Default Function: Storeroom
Optional Function: Passage Mode
Finish: Satin Chrome (US26D)
Door Thickness: 1 3⁄4” - 2”
Catalogue page-crcode200-series
Installation Challenge Level
Challenging
Recommended for Experienced Installers.
Cal-Royal Pioneer SL/CSL Series - AG00-Office/Entry Lock
$93.00
Grade 2 Locksets
For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.
- BHMA Certified Lifetime Warranty, GRADE 2
- Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free
- UL listed 3-hour rating, conforms to standards UL10C and UBC7-2-1997
- Solid brass 6 pin “C” keyway cylinder, optional other keyways
- Optional Interchangeable Core
- Optional Clutch System (CSL Series), free turning handle to deter breaking of the handle
- Optional thru bolt installation
- Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
- Optional Tactile and Lead Lining
- Hurricane Approved Hardware. Florida Building Code FL13922
- Meets the Buy American Act
Features
- APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
- DOOR RANGES 1 ⅜” to 1 ¾” thickness doors.
- BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾” and 5” optional.
- LATCH BOLT ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
- LATCH FACEPLATE 2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset. Optional 2 ¼” x 1” for 2 ⅜” backset.
- ANSI STANDARDS Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
- EXPOSED TRIM Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
- KEYING 6-pin “C” keyway cylinder, 2 keys per lock. Keying as per individual job requirement.
- CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
- CLUTCH Clutch available on all keyed locks and privacy functions. Prefix“C” before part number.
- INTERCHANGEABLE CORE Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available.
- STRIKES ASA strike standard, “T” and full lip strike available on request.
- TACTILE & LEAD LINING available upon request.
Finishes
-
Satin Chrome
-
Polished Brass -
Satin Stainless Steel
Templates
Installation Instructions
Catalog Page
INSTALLATION CHALLENGE LEVEL
Challenging
Recommended for Experienced or Professional Installers.
Cal-Royal Pioneer SL/CSL Series - RL00 Office / Entry Lock
$93.00
Grade 2 Locksets
For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.
- BHMA Certified Lifetime Warranty, GRADE 2
- Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free
- UL listed 3-hour rating, conforms to standards UL10C and UBC7-2-1997
- Solid brass 6 pin “C” keyway cylinder, optional other keyways
- Optional Interchangeable Core
- Optional Clutch System (CSL Series), free turning handle to deter breaking of the handle
- Optional thru bolt installation
- Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
- Optional Tactile and Lead Lining
- Hurricane Approved Hardware. Florida Building Code FL13922
- Meets the Buy American Act
Features
- APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
- DOOR RANGES 1 ⅜” to 1 ¾” thickness doors.
- BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾” and 5” optional.
- LATCH BOLT ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
- LATCH FACEPLATE 2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset. Optional 2 ¼” x 1” for 2 ⅜” backset.
- ANSI STANDARDS Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
- EXPOSED TRIM Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
- KEYING 6-pin “C” keyway cylinder, 2 keys per lock. Keying as per individual job requirement.
- CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
- CLUTCH Clutch available on all keyed locks and privacy functions. Prefix“C” before part number.
- INTERCHANGEABLE CORE Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available.
- STRIKES ASA strike standard, “T” and full lip strike available on request.
- TACTILE & LEAD LINING available upon request.
Finishes
-
Satin Chrome
-
Polished Brass
-
Satin Stainless Steel
Templates
Installation Instructions
Catalog Page
INSTALLATION CHALLENGE LEVEL
Challenging
Recommended for Experienced or Professional Installers.
Cal-Royal Pioneer SL/CSL Series - SL00-Office / Entry Lock
$93.00
Grade 2 Locksets
For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.
- BHMA Certified Lifetime Warranty, GRADE 2
- Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free
- UL listed 3-hour rating, conforms to standards UL10C and UBC7-2-1997
- Solid brass 6 pin “C” keyway cylinder, optional other keyways
- Optional Interchangeable Core
- Optional Clutch System (CSL Series), free turning handle to deter breaking of the handle
- Optional thru bolt installation
- Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
- Optional Tactile and Lead Lining
- Hurricane Approved Hardware. Florida Building Code FL13922
- Meets the Buy American Act
Features
- APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
- DOOR RANGES 1 ⅜” to 1 ¾” thickness doors.
- BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾” and 5” optional.
- LATCH BOLT ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
- LATCH FACEPLATE 2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset. Optional 2 ¼” x 1” for 2 ⅜” backset.
- ANSI STANDARDS Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
- EXPOSED TRIM Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
- KEYING 6-pin “C” keyway cylinder, 2 keys per lock. Keying as per individual job requirement.
- CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
- CLUTCH Clutch available on all keyed locks and privacy functions. Prefix“C” before part number.
- INTERCHANGEABLE CORE Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available.
- STRIKES ASA strike standard, “T” and full lip strike available on request.
- TACTILE & LEAD LINING available upon request.
Finishes
-
Satin Chrome
-
Polished Brass
Templates
Installation Instructions
Catalog Page
CAL-ROYAL SC Series — Grade 1 Mortise Lock (SS / SE Trim)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal SC Series extra-heavy-duty Grade 1 mortise locks with free-wheeling clutch. Two trim styles: SS (Sectional) and SE (Escutcheon). Common functions include SC8050 Office/Entrance, SC8070 Classroom, SC8080 Storeroom, and SC8453 Entrance w/ deadbolt. Standard 2-3/4″ backset; field-reversible handing; 1″ stainless deadbolt on DB functions.
Cal-Royal SC Series — Grade 1 Mortise Lock
-
VendorCal-Royal Products, Inc.
-
SeriesSC — Grade 1 Mortise Locks
-
Trim StylesSS (Sectional) • SE (Escutcheon)
-
Backset2-3/4″ (70 mm)
-
HandingField-reversible (non-handed body)
-
Door Thickness1-3/4″ std (kits for 2″–2-1/4″ available)
-
LockcaseHeavy-gauge steel, zinc dichromate plated
-
Latch / Deadbolt3/4″ anti-friction latch • 1″ stainless deadbolt (DB functions)
-
StrikeANSI A115.1 curved lip strike w/ dust box
-
ComplianceANSI/BHMA A156.13 Grade 1 • UL (fire-rated models)
-
Common FunctionsSC8010 Passage • SC8050 Office • SC8070 Classroom • SC8080 Storeroom • SC8440/SC8445 Privacy • SC8453 Entrance+DB • SC8456 Corridor • SC8473 Dorm/Bedroom
- US26D — Satin Chrome
- US32D — Satin Stainless
- US10B — Oil-Rubbed Bronze
- US3 — Bright Brass
Other finishes by special order.
| Grade | ANSI/BHMA A156.13 Grade 1 |
| Clutch | Free-wheeling outside lever design |
| Backset | 2-3/4″ |
| Door | 1-3/4″ standard (kits for 2″–2-1/4″) |
| Latch / DB | 3/4″ latch • 1″ stainless deadbolt (DB functions) |
| Strike | ANSI A115.1 curved lip w/ dust box |
| Handing | Field-reversible |
Installation Difficulty
Level 3 — Skilled Install: Mortise prep, templating, handing.

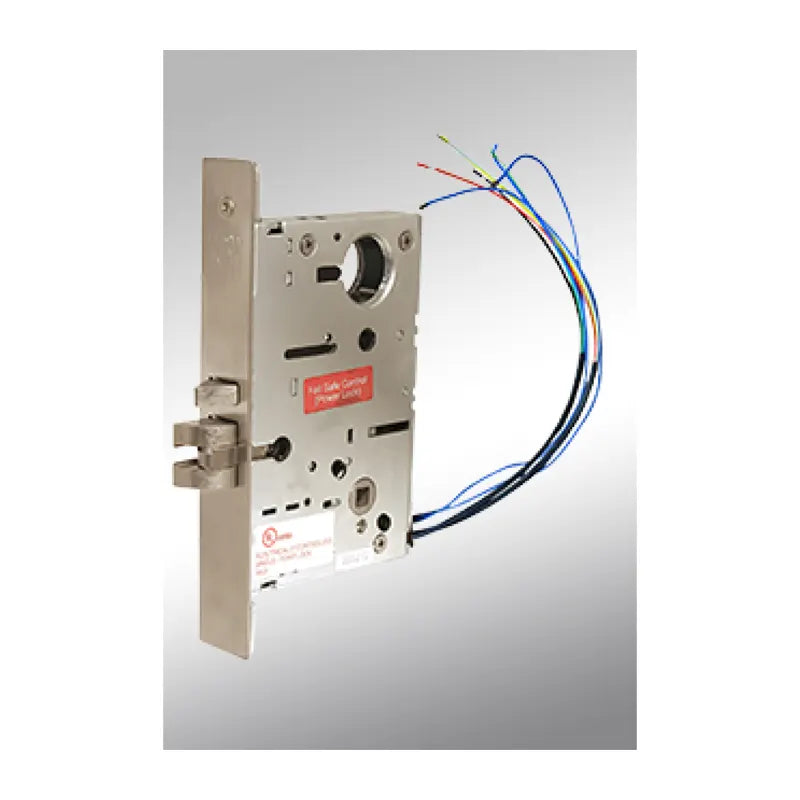

Cal-Royal SC400 Series Electrified Mortise Lock (SC / ESC)-Retrofits Schlage L9000
$273.00
Cal-Royal SC400 Series Electrified Mortise Lock (SC / ESC)
The ALREX PRO Hydraulic Door-Closer Hinge redefines door control, blending hydraulic precision with spring-hinge reliability. Built for demanding environments, its stainless-steel design ensures smooth, code-compliant performance while preventing disruptive slams—now with UL 10C 3-hour fire-rated certification for commercial use. Hold Open available for non-fire rated openings.
Applications
- Medical
- Arch Doors
- Custom Applications / OEM
- Transom Doors
- Hospitality
- Multi-Family
- Gates
-
Intelligent Speed Control: Adjustable hydraulic tension ensures smooth closing, preventing abrupt closures even in high-traffic areas.
-
5-Year Warranty: Confidence in quality and performance
-
UL 10C Fire Compliance: 3-hour fire-rated protection meets strict commercial building codes (NFPA 80/ADA).
-
Heavy-Duty Construction: 304 stainless steel body withstands 1,000,000+ test cycles.
-
Patent #10633905: Innovative engineering backed by patented technology.
-
Positive Latching Mechanism: Secures doors firmly into frames.
-
Architectural-Grade Aesthetics: Slim profile integrates seamlessly with modern door designs.
-
Satin Brass
-
Black
-
Dark Bronze
-
Satin Stainless
| Gauge Of Material (4.0") | .130" |
| Max Door Weight | See Documents Tab for Details |
| Material | Stainless Steel |
| Non-Hold Open | Standard |
| Gauge Of Material (4.5" & 5.0") | .134" |
| Operating Temp. Range | -40°F to 212°F |
| Hole Pattern | ANSI |
Installation Difficulty
Level 1 — Skilled DIY: Anyone who can read instructions and use basic tools can install this product.
CAL-ROYAL SDH10 (Track w/ Regular Stop for Wood Doors, Top Mount Single Wheel)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal SDH10 — Top-Mount Single-Wheel Sliding Door Hardware (Regular Stop)
Cal-Royal SDH10 is a stainless steel sliding door hardware set for wood doors with a top-mounted single-wheel roller and regular stop. Sets include sliding rod (track), two rollers, floor guide, and complete mounting screws. Rail length options: 6′ 6″ or 8′ 2″.
Lead time: Stocked by distributors; contact us for current availability.
-
VendorCal-Royal Products, Inc.
-
SeriesSDH — Stainless Sliding Door Hardware
-
ModelSDH10 — Top-mount, single-wheel, regular stop
-
FinishUS32D Satin Stainless Steel
-
Door TypeWood doors (1-3/8″ to 1-3/4″)
-
Max Door Weight200 lb (90 kg)
-
Rail Lengths6′ 6″ (suffix 66) • 8′ 2″ (suffix 82)
-
Set IncludesSliding rod (track), 2 rollers, floor guide, mounting screws
- US32D — Satin Stainless (standard)
Other options via accessories: soft-close kits and soft-action stops (see Downloads/Accessories).
| Series / Model | SDH / SDH10 — Top-mount single-wheel, regular stop |
| Finish | US32D Satin Stainless Steel |
| Door Type | Wood doors (1-3/8″–1-3/4″) |
| Max Door Weight | 200 lb (90 kg) |
| Rail Lengths | 6′ 6″ or 8′ 2″ (order by suffix 66 or 82) |
| Included in Set | Sliding rod (track), 2 rollers, 1 floor guide, mounting screws |
Installation Difficulty
Level 2 — Easy: Straightforward rail/roller mounting; accurate layout & level required.
Cal-Royal SDH11 — Top-Mount Spoke-Wheel Sliding Hardware (Regular Stop)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal SDH11 — Top-Mount Spoke-Wheel Sliding Hardware (Regular Stop) for Wood Doors
Cal-Royal SDH11 is a stainless steel sliding door hardware kit for wood doors featuring a top-mounted spoke-wheel roller with regular stop. The set includes a sliding rod (track), spoke-wheel rollers, floor guide, and mounting screws. Available rail lengths: 6′ 6″ (suffix 66) and 8′ 2″ (suffix 82).
Lead time: Typically stocked; confirm current availability.
-
VendorCal-Royal Products, Inc.
-
SeriesSDH — Sliding Door Hardware
-
ModelSDH11 (Top-mount, Spoke-Wheel, Regular Stop)
-
Door TypeWood
-
Door Thickness1-3/8″ to 1-3/4″ (35–45 mm)
-
Max Door Weight200 lb (90 kg)
-
FinishUS32D — Satin Stainless Steel
-
Rail Lengths6′ 6″ (66) • 8′ 2″ (82)
-
Max Door Opening36″ (with 6′ 6″ rail) • 48″ (with 8′ 2″ rail)
-
IncludesSliding rod, 2 spoke-wheel rollers, floor guide, mounting screws
-
Optional StopsSoft Action Stops DS-2200 / DS-2300 (accessory)
-
Optional Soft-CloseSCS40 / SCS80 kits (Top-Mount for wood)
- US32D — Satin Stainless Steel (standard for SDH kits)
*Soft-Close (SCS) kits note additional stock finishes on some configurations; verify per order.
Configuration
-
Rail Length / Variant (with SKU): 6′ 6″ —
SDH1166• 8′ 2″ —SDH1182• Roller set less rail —SDH11LR -
Stops: Standard bumpers included; optional
DS-2200/DS-2300soft action stops -
Soft-Close upgrade:
SCS8016(SCS80) orSCS4016(SCS40) Top-mount kits for wood doors -
Floor guides (accessories):
SDH-FG-ADJ1adjustable guide;SDH-FG-ADJ8roller guide, etc.
| Material | 304 stainless steel |
| Finish | US32D Satin Stainless |
| Mount / Design | Top-mount, spoke-wheel roller |
| Door Type | Wood (interior) |
| Door Thickness | 1-3/8″ to 1-3/4″ |
| Max Door Weight | 200 lb (90 kg) |
| Sliding Rod Lengths | 6′ 6″ • 8′ 2″ |
| Max Door Opening | 36″ (6′ 6″ rail) • 48″ (8′ 2″ rail) |
| Set Contents | Rail, 2 rollers, floor guide, mounting screws |
| Options | Soft action stops DS-2200/2300; Soft-Close SCS kits |
Use case: Decorative/architectural interior wood doors requiring exposed top-mount spoke-wheel aesthetic with smooth travel and no floor track.
- Quiet ball-bearing rollers; clean stainless aesthetic
- Suffix “66” or “82” selects rail length
- Upgrade to soft-action stop or soft-close as needed
Note: Cal-Royal does not publish an SDH11-specific video; the above covers common accessories/soft-close concepts.
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & anchoring; standard carpentry tools.
Cal-Royal SDH12 — Top-Mount Dual-Wheel Sliding Hardware (Regular Stop)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal SDH12 — Top-Mount Dual-Wheel Sliding Hardware (Regular Stop)
Cal-Royal SDH12 is a stainless steel sliding door hardware kit for wood doors featuring a top-mount dual-wheel roller system with a regular stop. Each set includes the sliding rod (track), two dual-wheel rollers, a floor guide, and complete mounting screws. Order by rail length suffix: 66 = 6′ 6″, 82 = 8′ 2″.
Lead time: Common stocking item; contact us for current availability.
-
VendorCal-Royal Products
-
SeriesSDH — Stainless Sliding Door Hardware
-
ModelSDH12 (Top-mount Dual-Wheel, Regular Stop)
-
FinishUS32D Satin Stainless Steel
-
Door TypeWood doors (approx. 1-3/8″–1-3/4″)
-
Max Door Weight200 lb (90 kg)
-
Rail Lengths6′ 6″ (suffix 66) • 8′ 2″ (suffix 82)
-
Set IncludesSliding rod, 2 rollers, floor guide, screws
-
DocsSDH series catalog • SDH part numbers
- US32D — Satin Stainless Steel (standard)
Accessory finishes (handles/guides) may include Black and US10B in the SDH accessories line.
Configuration (select variants / accessories)
- Rail length (variant): 6′ 6″ (66) • 8′ 2″ (82)
- Less-rail roller set: SDH12LR (rollers, stops, guide & screws only)
- Stops (accessories): DS-2100 (for SDH12/SDH30) • DS-2200/DS-2300 soft-action stops (SDH series)
- Soft-Close: SCS kits (SCS80/SCS40) per door weight
- Floor guides / spacers: Adjustable guides (SDH-FG series), spacers, pulls
| Series / Model | SDH / SDH12 — Top-mount dual-wheel, regular stop |
| Finish | US32D (304 stainless) |
| Door Type | Wood (approx. 1-3/8″ to 1-3/4″) |
| Max Door Weight | 200 lb (90 kg) |
| Rail Lengths | 6′ 6″ or 8′ 2″ (order by suffix 66/82) |
| Included | Sliding rod, 2 rollers, floor guide, mounting screws |
Use case: Interior wood sliding/barn doors needing smooth, quiet travel and higher stability from dual wheels.
Reference videos; follow Cal-Royal PDFs for exact steps.
Installation Difficulty
Level 2 — Skilled DIY: Accurate layout, plumb/level required.
Cal-Royal SDH20/SDH30 — Surface Strap Single-Wheel Sliding Door Hardware (Glass/Wood)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal SDH20 / SDH30 — Surface Strap Single-Wheel Sliding Hardware (Regular Stop)
Cal-Royal SDH20 / SDH30 is stainless sliding door hardware with a surface-mount strap single-wheel design. Order by Door Type (Glass = SDH20, Wood = SDH30) and Rail Length (66 = 6′ 6″, 82 = 8′ 2″). Sets include sliding rod (track), two rollers, floor guide, and mounting screws in US32D Satin Stainless Steel.
Lead time: Typically stocked by distributors; contact us for current availability.
-
VendorCal-Royal Products
-
SeriesSDH — Stainless Sliding Door Hardware
-
ModelsSDH20 (Glass) • SDH30 (Wood)
-
Mount / DesignSurface-Mount • Strap Single-Wheel • Regular Stop
-
FinishUS32D Satin Stainless Steel
-
Max Door Weight200 lb (90 kg)
-
Door Thickness (Wood)1-3/8″ to 1-3/4″
-
Door Thickness (Glass)5/16″ to 1/2″
-
Rail Lengths6′ 6″ (suffix 66) • 8′ 2″ (suffix 82)
-
Set IncludesSliding rod (track), 2 rollers, 1 floor guide, mounting screws
- Door Type (variant): Glass (SDH20) • Wood (SDH30)
- Rail Length (variant): 6′ 6″ (66) • 8′ 2″ (82)
- Soft-Stop (accessory variants): SDH23 (Glass) • SDH33 (Wood)
- Soft-Close (kits): SCS prefixed sets (see SCS tables)
- Accessories: SDH floor guides, spacers, pulls/handles
| Models | SDH20 (Glass) • SDH30 (Wood) |
| Mount / Design | Surface mount • Strap single-wheel • Regular stop |
| Finish | US32D Satin Stainless Steel (304) |
| Door Thickness | Wood: 1-3/8″–1-3/4″ • Glass: 5/16″–1/2″ |
| Max Weight | 200 lb (90 kg) |
| Rails | 6′ 6″ or 8′ 2″ (order by suffix 66 / 82) |
| Included | Track, 2 rollers, floor guide, mounting screws |
Use case: Interior sliding doors where a clean strap aesthetic is desired in stainless finish; supports both wood and tempered glass panels.
Reference videos; follow Cal-Royal PDFs for exact steps.
Installation Difficulty
Level 2 — Skilled DIY: Careful layout; ensure plumb/level track and correct standoff for wood/glass.
Cal-Royal TBH-30 — 4.5″ × 4.5″ Plain-Bearing Butt Hinge (Standard Weight)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal TBH-30 — 4.5″×4.5″ Standard-Weight Plain Bearing Hinge
The Cal-Royal TBH-30 (also cataloged as DBH30) is a 4-1/2″ × 4-1/2″ full-mortise, standard-weight plain-bearing butt hinge designed for standard-weight, low-frequency doors. Features a five-knuckle design, ANSI template screw pattern, and includes wood & machine screws. Optional NRP (non-removable pin) variants available for security applications.
Lead time: Most finishes stock quickly; contact us for large quantities or special finishes.
-
VendorCal-Royal Products
-
SeriesTBH / DBH — Plain Bearing Hinges
-
Size4.5″ × 4.5″ (square corner, 5-knuckle)
-
Leaf Thickness0.134″ (standard weight)
-
MaterialSteel (std) • Stainless (US32D)
-
BearingPlain bearing (no ball bearings)
-
Pin OptionsRemovable pin • NRP (Non-Removable Pin)
-
Fasteners#12 wood & 12-24 machine screws
-
ComplianceANSI/BHMA A156.1 • UL fire-rated
-
WarrantyLifetime mechanical • 3-yr finish
- US26D — Satin Chrome
- US10B — Oil-Rubbed Bronze
- US32D — Satin Stainless
Other finishes: USP, US3, US4, US10, US10A, US15, US15A, US26, DURO/Flat Black + NRP variants.
| Leaf Thickness | 0.134″ |
| Knuckles | 5 |
| Screw Holes | 8 — ANSI template |
| Use | Standard-weight doors • not for heavy closers |
Installation Difficulty
Level 2 — Easy: Basic tools; mortise if new install.
Cal-Royal ZWDB-10 Z-Wave Touch Screen Electronic Deadbolt
$313.00
Cal-Royal ZWDB-10 — Electronic Z-Wave Deadbolt (Keyed Override)
Cal-Royal ZWDB-10 is a Z-Wave enabled touchscreen electronic deadbolt with keyed override. Supports standard 2-1/8″ cross-bore and 1″ edge-bore, adjustable backset 2-3/8″ or 2-3/4″. 30 user codes (4–10 digits), random pre-entry, auto-lock, service code, low-battery alert. Powered by 4× AA.
Main Features
-
Administrator Code - 1 group administrator password, 4-10 digits. It is used for managing all codes. Add / delete user's code individually.
-
User Codes - this feature only opens the lock by entering the code on the touchpad. It can accommodate up to 30 sets of passcode, 4-10 digits.
-
Pre-Entry Codes - random pre-entry code prevents deciphering of user code. It is also useful to remove remaining fingerprint smudges and prevent exposure of password.
-
Disposable Code - one-time user code is available for temporary access.
-
Touch screen panel - this feature helps ease of operating in the dark. It is useful in making sure that every key pressed is successfully entered by an accompanying beep / tone.
-
Auto-Locking Function - when the door is unlocked, it automatically locks within just a few seconds for security and convenience.
-
Low Battery Warning - when voltage is lower than safety power, the low battery indicator will turn on until the low battery alarm goes off, then you have to change the batteries.
-
User Friendly Design - simplifies your access management.
-
Z-Wave Technology - it has a built-in 500 Series Z-WAVE module to connect with compatible controller / hub with gateway frequency of 908.4 MHz. By using an existing controller, you could use app and / or mobile phone to manage all compatible devices such as control lights, security systems, and home automation in one tap.
-
High-Strength Deadbolt - 1" throw high-strength deadbolt with anti-saw pin.
-
Deadbolt Detection - touchpad deadbolt with auto latch bolt locking detection prevents any incomplete door locking.
-
Non-Handed - ZWDB-10 Series can be installed for both left and right door opening.
| Applications | For Residential and Standard Duty Commercial Applications |
|---|---|
| Door Ranges | 1 ⅜” (35mm) to 1 ¾” (45mm) Thickness |
| Material | Zinc Alloy and Steel |
| Backset | 2 ⅜” (60mm) or 2 ¾” (70mm) 2-Way Adjustable Backset |
| Latch Faceplate | 1” (25.4mm) × 2 ¼” (57mm) Square Corner |
| Strike | 1” (25.4mm) × 2 ¼” (57mm) Square Corner Strike |
| Deadbolt | 1” Throw High-Strength Deadbolt with Anti-Saw Pin |
| Power Supply | 4 AA 1.5V Alkaline Batteries (comes standard in packing) |
| Door Preparation | 1” (25.4mm) Diameter for Edge Bore 2 ⅛” (54mm) Cross Bore |
| Dimensions |
Exterior Trim: 5 ¼” (133mm) × 2 ⅝” (67mm) × 11/16” (23mm) Interior Trim: 7 7/16” (189mm) × 2 ⅞” (73mm) × 1 ⅛” (28mm) |
| Cylinder & Keyways | 5-Pin, Kwikset KW1 Keyway |
| Finishes | US3 - Bright Brass US15 - Satin Nickel US26 - Bright Chrome US26D - Satin Chrome US12P - Tuscany |
- US26 — Polished Chrome
- US26D — Satin Chrome
- US12P — Satin Bronze (Clear Coated)
- US15 — Satin Nickel
- US3 — Bright Brass
Installation Difficulty
Level 2 — Skilled DIY: Standard deadbolt prep; keypad setup; Z-Wave pairing.
Norton 5740 Universal Low Energy Door Operator - Push Or Pull Side Mount
$3,100.00
A simple ADA solution for moderate traffic applications
A reliable ADA solution for moderate traffic applications, the 5700 Low Energy Operator comprises Norton’s heavy-duty 1601 door closer. The use of a hydraulic closer ensures quiet and consistently smooth operation, even when used manually if power is lost. The 5700 offers basic automated door functions and is designed to set up quickly, making it easy to specify and install.
Features
- Universal Unit - includes push and pull arms
- Designed for quick installation, setup and adjustments
- Hydraulic closer offers quiet and smooth operationOperates as mechanical surface close during close cycles, when door is opened manually or if power is off
- Spring force provides the feel of a normal manual door closer; door can be opened manually if desired
- Onboard power supply for accessories: 24VDC (1.1A)
Specifications
Brand
Norton
Usage
Standard Duty
Mounting
Surface Mount
Handing
Non-Handed
Spring Size
Adjustable Spring Size 1-6
Certifications
ANSI/BHMA A156.19, UL / cUL listed for use on fire rated doors
ADA Compliance
Meets ADA requirements - A117.1 Accessibility Code
UL Listing
C-UL US listed for use on fire and smoke barrier doors
Finishes
- BSP - Black Suede Powder Coat
- 689 Aluminum (Powder Coated)
- 690 Statuary Bronze (Powder Coated)
Installation Instructions
Specification Sheets
Company Info
Resources
Why Buy From Us?
Huge Inventory
Huge Inventory
No Hassle Returns
Satisfaction
Guaranteed
Guaranteed
News & Updates
Sign up to get the latest on sales, new releases and more …
