Cal-Royal CR6100 SERIES Digital Lock /RFID Card/KeyFob
$534.50
Digital Touch Screen Door Lock with Clutch Technology
PACKAGING: Includes 2 ¾” × 1 ⅛” backset, 6-pin “C” keyway, 2 RFID cards, 4 batteries, and ASA strike.
Optional Interchangeable Core for Best, Falcon and Arrow
- Master Code
- 500 User Codes
- 500 RFID Card/KeyFob per Lock
- 2 One-Time User Codes
- 4–6 Digit Code Combination
- Passage Mode
- Weather Resistant
- 9V Battery Emergency Port
- Anti-Tamper Lockout
- Lock-Out Mode
- Clutch Technology
- Non-Handed Reversible
- Proximity Card (13.56 MHz)
- RFID Keyfob (Optional)
- Mobile App for Android & Apple
- Bluetooth Receiver (Optional)
- Touch Screen to Wake Up Lock
Features
- Access Log (Audit Trail) — The ExperienSmart app features a 24/7 activity log. A timestamped access log can be exported by email.
- Anti-Tamper Lock-Out — Locks out for 60 seconds after 5 invalid tries.
- Beep & LED Indicators — Status indicators for feedback and programming.
- Bluetooth Receiver (CR6000-BLE) — Optional device for app management; 8–10 m detection range.
- Lock-Out Mode — Master PIN restricts all user PIN/RFID access (padlock icon shows on screen).
- Low Battery Warning — On-screen icon blinks when batteries are low.
- Master PIN Code — For programming, admin actions, and factory reset.
- NFC Interface — NFC compatible on supported Android phones.
- One-Time User PIN Codes — Store up to 2 simultaneous single-use codes.
- Passage Mode — Continuous unlock until disabled (unlocked padlock icon shows).
- Re-Lock Time — Auto-relock adjustable (1–10 s; default 5 s).
- RFID Credentials — MIFARE (ISO14443A), inductive distance up to 1-3/16".
- Touch Screen Wake — Touch to illuminate keypad for entry/programming.
- User PIN Codes — Up to 500 user PINs (4–6 digits) plus 500 RFID.
- Weather Resistant — −30°F ~ 150°F (−35°C ~ +66°C).
Specifications
- Applications — Offices, schools, hospitals, apartments, condos, hotel/motel, residential, commercial & public buildings.
- Door Ranges — 1-3/8" to 1-3/4".
- Backset — 2-3/4" standard or 2-3/8" optional.
- Latch Faceplate — Std 1-1/8" × 2-1/4" (2-3/4" backset). Optional 1" × 2-1/4" (2-3/8" backset).
- Strikes — ASA strike standard; T and full-lip available.
- ANSI Standards — ANSI/BHMA A156.2 Series 4000 Grade 1 requirements.
- Clutch — Free-wheeling lever protects internal parts from force.
- Cylinder — 6-pin Schlage “C” keyway with two brass keys.
- IC Core — Accepts Best/Falcon 6 or 7-pin SFIC (prefix “IC”).
- Power — 4 × AA 1.5V alkaline (included).
- Optional Bluetooth — Manage/sync via ExperienSmart app (receiver required).
- Weather — −30°F ~ 150°F (−35°C ~ +66°C).
Videos
Installation Challenge Level
Challenging (4/5)
Recommended for Experienced Installers
Related Items
Alarm Lock DL2700 Access Control Digital Lock
$417.70
The DL2700 electronic digital lock leverset is programmable through the keypad for 100 user entry codes for secure keyless entry. Cylindrical lock mechanism has a fixed 6-pin key cylinder with SC1 keyway for key override. For installation on exterior and interior doors, and rated for temperatures from -31 to +151 degrees F (-35 to +66 degrees C). Lever handle is reversible for right- or left-hand operation. Stainless steel trim with satin chrome finish resists corrosion.
Features
Available in 2 3/8" backset make a note on your order.
- In an hour, add a dependable wireless access control keyless door lock, one door at a time—easily retrofit standard knobsets
- Support 100 PIN codes (3-5 or 6 digits)
- Multi-level user codes & one-time service codes. Free passage, group- or total lock-out modes, too on Trilogy security locks
- All keyless entry door locks are fingertip programmable at vandalproof all-metal keypad
- Long-life battery operation, low battery alert
- Key override on all Trilogy electronic locks, standard core (supplied) or interchangeable core prep
- Non-handed cylindrical models
- Programmable relay functions
- Durable BHMA Grade 1 Lockset
- Weatherproof models -31˚ to +151˚F (-35˚ to +66˚C). Rugged electronic door lock
Specs
- More codes: up to 100 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
- 5AA battery operated; 175,000 cycles, typ.
- For outdoors, specify WP weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Instructions & Templates
Cal-Royal CR3000 Series
$439.25
Grade 1 Heavy Duty Digital Keypad Door Lock
For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial, and Public Buildings
- Available in 2 3/8" backset just put in note on your order.
- Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, GRADE 1
- Easy Installation & Programming
- Long-Life Battery Operation
- 2 Remote Switch Terminals
- Interchangeable Core
- Master Code
- 10 Manager Codes
- 1 Sub-Master Code
- 90 User Codes
- 5 Service Codes
- Passage Mode
- Weather Resistant
- Buzzer & Led Indicators
- Anti-Tamper Lockout
- Clutch Technology
- Non-Handed, Reversible
- Enable & Disable Users Mode
- Tactile Metal Keypad
- User Friendly
- Master Code – performs all programming functions.
- Sub-Master Code – performs all programming functions except delete or change Master Code.
- Manager Codes – CR3000 can accommodate 10 Managers each having different codes and under each Manager has 9 Users (1 Manager + 9 Users = 1 Bank). Managers are capable of programming / adding and deleting User codes under his Bank. Managers are also capable of accessing the next higher bank until another Manager Code appears.
- Service Codes (5) – are one-time codes only. It cannot be used again. Once a Service Code is entered, the unit will unlock but will automatically delete the code.
- Passage Mode – once enabled, the unit is unlocked continuously until “Disable Passage Mode” is initiated.
- Tones and LED Indicators – can be programmed for different settings. Making sure that every key pressed is confirmed by an accompanying LED and/or tone.
- Next Free Code Location Finder – no need of guessing what free location is available in entering a new code. CR3000 can pinpoint and tell you where the next available location is.
- Code Locator Function – CR3000 can tell you the exact location of a certain code. Making it easy to determine what manager a user code is under.
- Keypad Anti-Tamper Lockout – if an invalid code is entered 3 times in succession, the unit will turn off for 30 seconds to prevent tampering.
- Remote Switch Terminal / Release – CR3000 provides 2 Remote Switch Terminal. Either can be used for an emergency push button switch, or connected to alarm systems such as fire alarms.
- Weather Resistant – CR3000 are manufactured making sure that internal electronic parts are protected from moisture, dust, water, and corrosion. All models are weather-resistant for temperature ranges of +158°F to -22°F (+70°C to -30°C).
- Clutch Technology – the outside lever of the CR3000 is a free-wheeling lever. If no valid code is entered, the lever will just turn freely without moving any parts inside, thus preventing breaking or tampering.
- Non-Handed – CR3000 can be installed for both left and right door opening.
- APPLICATIONS For offices, schools, hospitals, apartments, hotel/motel, residential, commercial, and public buildings.
- DOOR RANGES 1 ⅜” to 2” thickness.
- BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾”, 5” and 2 ¾” anti-friction latch with ¾” throw for pair of fire doors optional.
- LATCH FACEPLATE Standard 2 ¼” x 1 ⅛” for 2 ¾” backset. Optional 2 ¼” x 1 ⅛” for 2 ⅜” backset.
- STRIKES ASA strike standard, “T” and full lip strike available on request.
- ANSI STANDARDS Meets or exceeds BHMA/ANSI A156.2 Series 4000 Grade 1 requirements.
- POWER SUPPLY 4 AA Batteries (comes standard in packing)
- CLUTCH Clutch technology allows turning of lever without retracting the latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.
- CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High-Security Cylinders.
- INTERCHANGEABLE CORE (IC) Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON, and ARROW. Prefix “IC” before part number.
- WEATHER RESISTANT All models are weather-resistant for temperature ranges of +158○F to -22○F (+70○C to -30○C).
- KEYPAD 12 programmable buttons for multi-level access functions including group or individual user codes, master and management codes, passage, and emergency or service codes.
-
(IC) Indicates function available with BEST, FALCON & ARROW Interchangeable Core.
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.

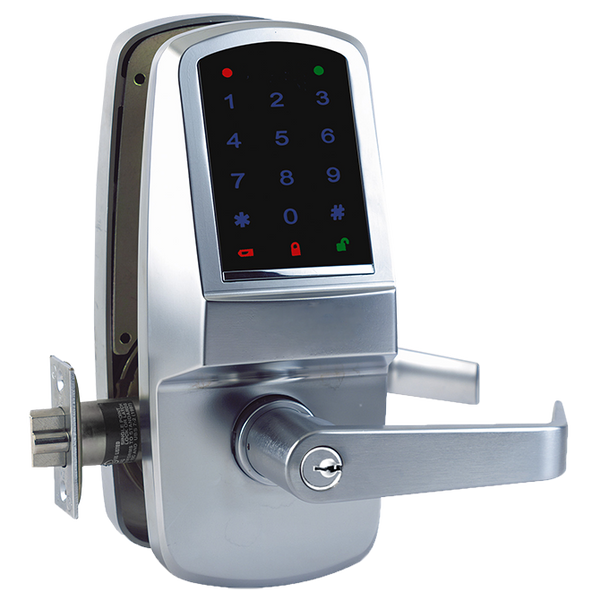

Cal-Royal CR6000 Digital Lock with RFID Proximity Card Capability
