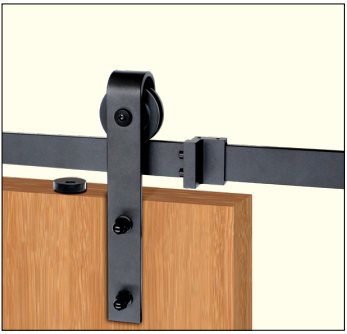

Cal-Royal BDH30 — Surface Strap-Wheel Barn Door Hardware (Wood), 6′6″ or 8′0″
CALL FOR PRICING
Cal-Royal BDH30 is a barn door hardware kit for wood doors with a surface-mount strap wheel design. Order by rail length: 6′ 6″ (BDH3066) or 8′ 0″ (BDH3080). Optional Soft-Close variants use prefix SCSBDH (e.g., SCSBDH3066). Standard finish: BLACK; some distributors also offer US15 Satin Nickel.
Lead time: Typically distributor-stocked; confirm current availability.
Cal-Royal BDH30 — Surface Strap-Wheel Barn Door Hardware (Wood)
- VendorCal-Royal Products, Inc.
- SeriesBDH — Barn Door Hardware (Wood)
- ModelBDH30 — Surface mount, Strap Wheel
- Rail Lengths6′ 6″ (BDH3066) • 8′ 0″ (BDH3080)
- Soft-Close VariantsSCSBDH3066 • SCSBDH3080
- Less-Track SetBDH30LT (no track, hardware only)
- FinishBLACK (std) • US15 Satin Nickel (selected distributors)
- Max Door WeightUp to 132 lb with Soft-Close; higher without soft-close (per distributor data)
- Set IncludesTrack, 2 rollers, 2 stops, floor guide, anti-jump discs, screws (kit); LT = hardware less track
- BLACK (powder-coated matte)
- US15 — Satin Nickel (availability varies)
If US15 is not stocked by your distributor, treat as special order.
| Mount / Design | Surface mount • Strap Wheel |
| Door Type | Wood interior doors |
| Lengths | 6′ 6″ • 8′ 0″ |
| Max Door Weight | 132 lb with Soft-Close (SCS) per spec; distributors list up to ~220–265 lb without SCS |
| Set Contents | 1 track (except LT), 2 rollers, 2 stops, 1 floor guide, 2 anti-jump discs, mounting screws |
Use case: Decorative barn/sliding wood doors where a strap-wheel aesthetic and stainless/black look are desired.
Reference videos; follow Cal-Royal PDFs for exact steps.
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & plumb/level; anchors required.
