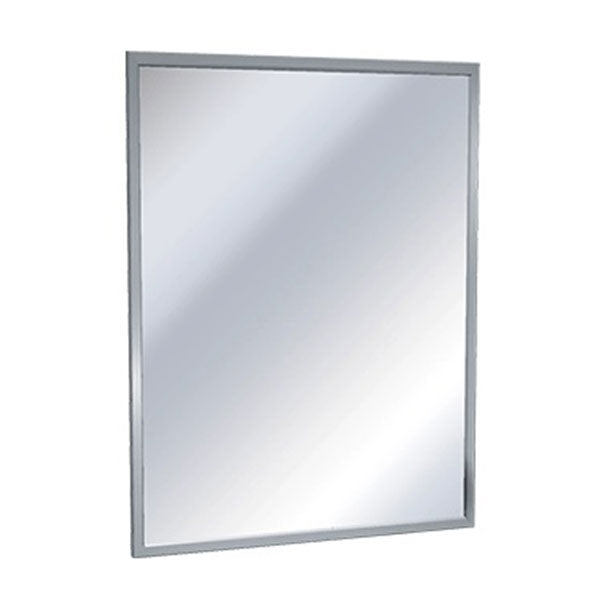

0620 Series Stainless Steel Chan-Lok Frame Mirrors
CALL FOR PRICING
0620 Series Stainless Steel Chan-Lok Frame Mirrors
½” x ½” (13 x 13 mm) 20 gauge type 304 satin finish stainless steel channel is a one-piece roll formed member that encases mirror and backing revealing a tight mitered corner. Mirror is installed on two wall brackets and held secure by theft-resistant screws.
Features
- One-piece stainless steel channel encases mirror and backing
- Tight mitered corners add sophistication
- Type 304, alloy 18-8 stainless steel - Satin Finish Frame
- Plate Glass Mirror
- Surface Mounted
- Various sizes and glazing options
- Mirror is held secure by theft-resistant screws
Specifications
Series
0620 Series
Type
Stainless Steel Chan-Lok Frame Mirror
Dimensions
Various sizes and glazing options
Mounting
Surface Mounted
Frame
18-8, type 304, 20 gauge stainless steel. Exposed surfaces have satin finish. Edges and corners are burr free.
Glass
Standard glazing is #1 quality, 1/4" [6.4] thick plate/float, silver coated and hermetically sealed with a uniform coating of electrolytic copper plating, warranted against silver spoilage for 15 years. Mirrors meet Federal Spec. DD-M-411C, ASTM C-1503, and ASTM C-1036-91.
Filler
Expanded polyethylene microcell foam sheet material, abrasion resistant and shock absorbing, water resistant, 1/8" [3.2] total layer thickness.
Glazing Options
Plate Glass
#1 quality polished, silver coated and hermetically sealed with an electrolytic copper plating. Image quality: BEST
Tempered Glass
1/4" [6.4] thick polished tempered glass with two coats of silver. Image quality: BETTER
Important
The reflective quality of tempered glass is not as true as plate glass. As the reflective surface size increases, regardless of glazing type, the likelihood of distortion also increases.
Finishes
- Type 304, alloy 18-8 stainless steel - Satin Finish Frame
Installation
Install “H” wall brackets level and plumb per diagram location using ONLY #8 or #10 Pan Head screws (by others).
Hang mirror on brackets and tighten locking screw (#6-32Fx3/4" Philips Pan Head, supplied separately taped to mirror back) at bottom (note: this screw should be started prior to hanging mirror on wall bracket).
For compliance with 2010 ADA Accessibility Standards and ABA Standards 2015, bottom edge of reflecting surface should be no higher than 40" [1016] Above Finished Floor.
Mirrors larger than 32 sq. ft. (2.97 m²) are fabricated in two (2) or more sections to provide installation and handling ease.
Related Items

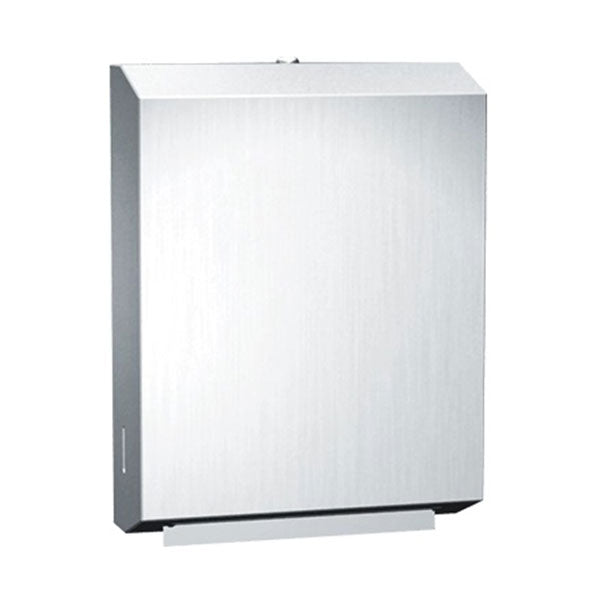

0210 Traditional™ Paper Towel Dispenser (Multi, C-Fold) – Surface Mounted, Stainless Steel
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.

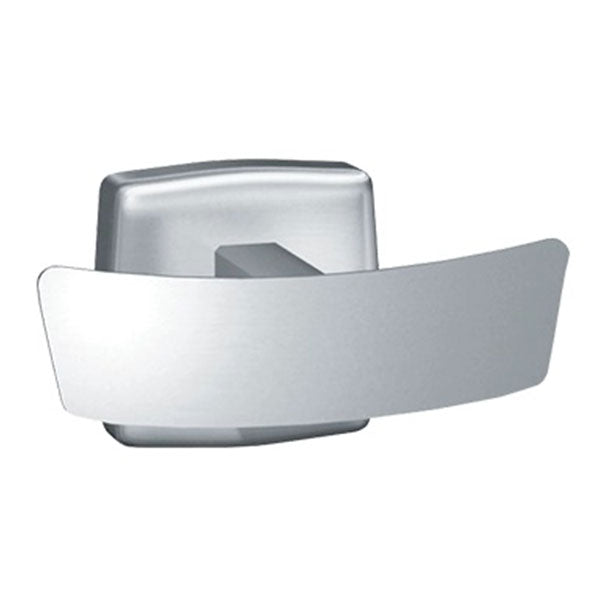

7345-S Robe Hook (Double) – Surface Mounted, Satin Finish
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
7345-S Robe Hook (Double) – Surface Mounted, Satin Finish
4″ (102 mm) wide stainless steel bar forms hook at each end. Unit extends 2″ (51 mm) from wall. Hook is suitable for robes or clothing and small carry bags. Satin finish.
Features
- Double Hook
- Type 304 Stainless Steel - Satin Finish
- Surface Mounted
- 4″ (102 mm) wide stainless steel bar forms hook at each end
- Hook is suitable for robes or clothing and small carry bags
Specifications
Model
7345-S
Type
Robe Hook (Double)
Dimensions
4″ x 2″ x 2″ (102 x 51 x 51 mm)
Construction
Type 304 Stainless Steel - Satin Finish
Mounting
Surface Mounted
Finishes

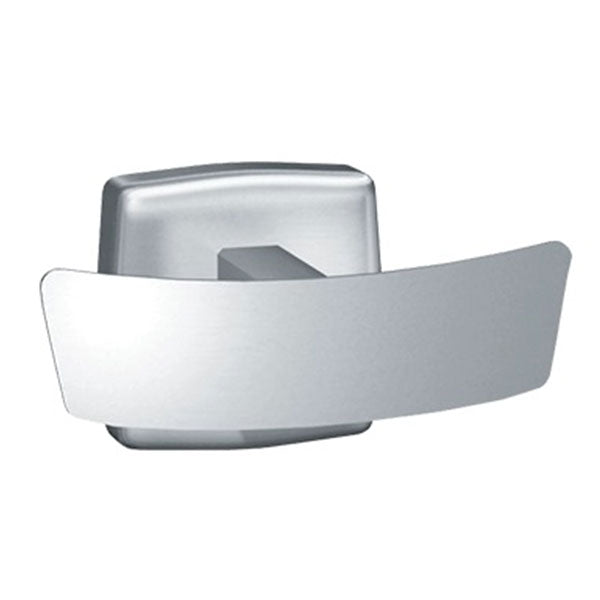

- 7345-B – Bright Finish
- 7345-S – Satin Finish
Operation & Maintenance
Hook is suitable for a robe or clothing and small carry bags.
Installation
Surface mount unit on door back or wall using two (2) #10 self-threading screws (by others) through holes provided in mounting plate into suitable prepared mountings (by others) or other suitable mounting hardware (by others) to suit door or wall conditions. Hang post and flange assembly on mounting plate and tighten set screw to lock unit to plate.
For compliance with ICC/ANSI A-117.1-2003 and 2010 ADA Accessibility Standards, install unit with top of hook 48″ [1219] maximum Above Finished Floor (AFF) or 46″ [1168] max AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10″ [254] and less than 25″ [635] is only provided or 44″ [1118] max AFF if forward reach over an obstruction with reach depth greater than 20″ [508] and less than 25″ [635] is only provided.
For general utility, install hook with centerline of mounting plate 68″ [1727] AFF.

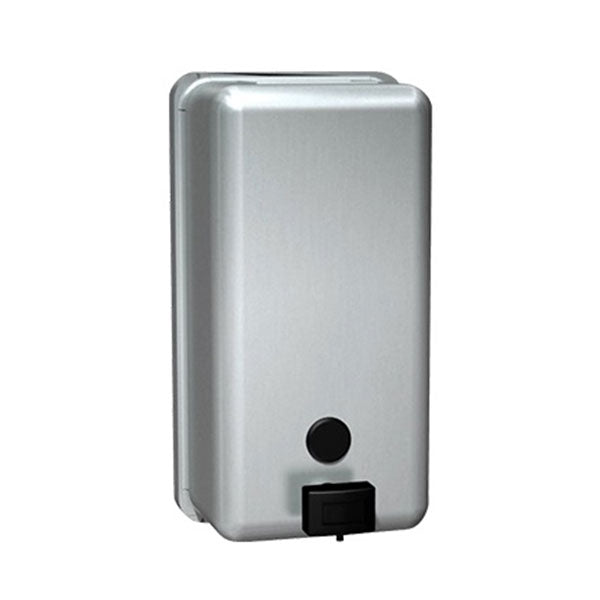

0347 Liquid Soap Dispenser – Vertical – Surface Mounted
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
0347 Liquid Soap Dispenser – Vertical – Surface Mounted
40 fl. oz. (1.2 L) capacity liquid soap dispenser in stainless steel with satin finish comes with an all purpose valve and a tamper-resistant refill indicator.
Push button to dispense soap. Unit is refilled through hinged door at top requiring special key (supplied) to open. Soap tank will continue to feed properly until soap level is below valve intake port. Tank supply is replenished manually.
Stainless Steel Construction
Our heavy-duty items are made of high-quality 304 stainless steel, which is tough, durable, stain-resistant and easy to clean.
Features
- Vertical space saving footprint
- All purpose valve and a tamper-resistant refill indicator
- Type 304 Stainless Steel - Satin Finish
- Surface Mounted
- Manual Push Button Operation
- Liquid Soap - 40 oz. (1.2 L) Capacity
Specifications
Model
0347
Type
Liquid Soap Dispenser – Vertical – Surface Mounted
Dimensions
4-13/16” x 8-3/16” x 3-15/16” (122 x 208 x 100 mm)
Spout Projection
3⁄4″ (19 mm)
Construction
Type 304 Stainless Steel - Satin Finish
Mounting
Surface Mounted
Capacity
40 fl. oz. (1.2 L)
Operation
Manual Push Button Operation
Soap Requirements
Soap Requirements
Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
Viscosity Range (mPa·s or cP)
100 – 3.5k
pH Range
5.5 ~ 8.5
Soaps containing reportable salts, chlorides and alcohols should be avoided.
Finishes
- Satin Stainless Steel
Operation and Maintenance
Push button to dispense soap. Unit is refilled through hinged door at top requiring special key (supplied) to open.
Soap tank will continue to feed properly until soap level is below valve intake port. Tank supply is replenished manually.
Installation
Unit is surface mounted to wall or partition with a wall mounting plate (supplied) and screws (by others). Unit is secured to interlocking wedge bracket and locked in place by a locking screw (supplied) installed through hinged refill door.
Recommended installation for general utility is 42" [1066] Above Finished Floor (AFF) or 6" [152] min above washbasin.
For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards, install unit with centerline of valve button no higher than 48" [1219] AFF.

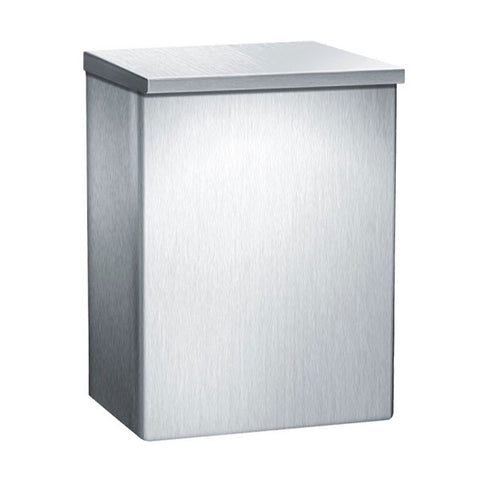

0852 Sanitary Napkin Disposal – Surface Mounted
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
0852 Sanitary Napkin Disposal – Surface Mounted
Unit equipped with top cover door and cabinet. Waste capacity of 1.2 gal (4.5 L). User lifts lid to deposit waste material. Door, flanges, waste receptacle and cabinet shall be 22 gauge type 304 stainless steel alloy 18-8. Shall have top cover door and cabinet of 22 gage type 304 stainless steel alloy 18-8.
Stainless Steel Construction
Our heavy-duty items are made of high-quality 304 stainless steel, which is tough, durable, stain-resistant and easy to clean.
Features
- Type 304 Stainless Steel - Satin Finish
- Surface Mounted
- Concealed, Multi-Staked Piano Hinge
- 1.2 gal (4.5 L) of dry/solids Waste Capacity
Specifications
Model
0852
Type
Sanitary Napkin Disposal – Surface Mounted
Dimensions
7-7/8" [200] W x 4" [102] D x 9-11/16" [246] H
Construction
Type 304 Stainless Steel - Satin Finish - Concealed, Multi-Staked Piano Hinge
Mounting
Surface Mounted
Capacity
1.2 gal (4.5 L) of dry/solids Waste Capacity
Finishes
- Satin Stainless Steel
- Matte Black
Operation and Maintenance
User lifts lid to deposit waste material. Maintenance schedule determines trash removal cycle.
Unit is emptied by opening top door and removing wax paper collection bag. Waxed paper liner bags are furnished by others.
Installation
Surface mount unit on wall or partition using #10 self-threading screws (by others). Two (2) mounting holes through back are keyhole slots for ease in hanging unit on pre-installed screws.
For compliance with 2010 ADA Accessibility Standards, install unit so that top cover is 44" [1118] maximum above finished floor.
