0347 Liquid Soap Dispenser – Vertical – Surface Mounted

• "Hide-A-Roll" dispenser holds two rolls
• Holds two rolls up to 5 1/4″ (133 mm) diameter
• 1800 sheet capacity
• Top roll automatically drops in place when bottom roll is used up
• Theft resistant spindles
• Tumbler lock
• Type 304 Stainless Steel - Satin Finish
• Surface Mounted

Model
0030

Type

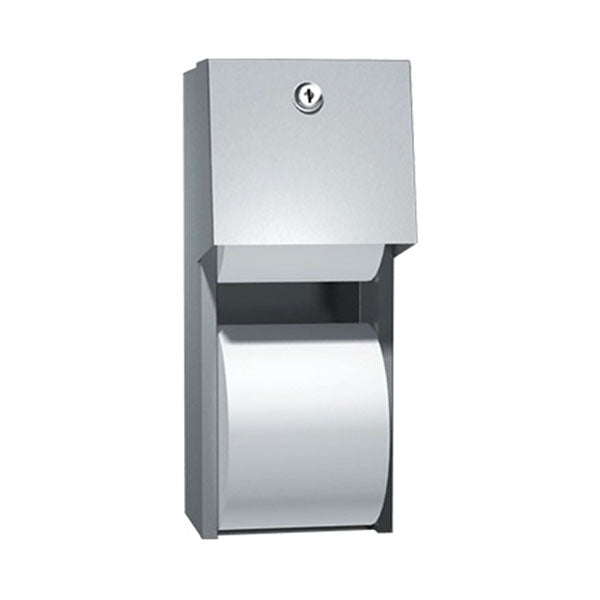

Toilet Tissue Dispenser, Twin Hide-A-Roll

Dimensions
6″ x 12″ x 6 1/2″ (152 x 305 x 165 mm)

Construction
Type 304 Stainless Steel - Satin Finish

Door
18 gauge Type 304 stainless steel

Cabinet Body & Dispensing Mechanism
22 gauge Type 304 stainless steel

Mounting
Surface Mounted

Capacity
Holds two rolls up to 5 1/4″ (133 mm) diameter (1800 sheets)

• Type 304 Stainless Steel - Satin Finish

Reloading instructions are printed on graphic label inside door.

Bottom roll is depleted prior to top roll automatically dropping into lower position for use.

Empty rollers cannot be removed without key unlocking door.

Unit is surface mounted on wall or partition using four (4) 1/4″ x 1″ [M6 x 25] Philips pan-head self-threading screws (by others) through slots on rear wall into suitable wall preparation (by others).

Top two (2) mounting holes through back are "keyhole" slots for ease in hanging unit on pre-installed screws. Bottom two (2) mounting holes are horizontal slots for ease of adjustment.

For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards install unit with axis of bottom roller 15″ [381] min AFF (Above Finished Floor) to 48″ [1219] max AFF and centerline of dispenser shall be 7″ [178] min to 9″ [229] max. in front of toilet.

• Product Care & Maintenance
• Technical Data Sheet – 0030

• Fabricated of 22 gauge stainless steel with satin finish
• Dispenses 400 C-fold or 525 multi-fold paper towels without adjustment or adapters
• Heavy-duty stainless steel piano hinge
• Tumbler lock for security
• Hemmed opening for safe, easy dispensing
• Type 304 Stainless Steel - Satin Finish
• Surface Mounted
• Pull Type

Model
0210

Type
Traditional™ Paper Towel Dispenser (Multi, C-Fold)

Dimensions
11-1⁄8″ x 14-5⁄8″ x 4″ (282 x 371 x 101 mm)

Construction
Type 304 Stainless Steel - Satin Finish

Material Gauge
22 Gauge Stainless Steel

Mounting
Surface Mounted

Operation
Pull Type

Capacity
400 C-Fold or 525 Multi-Fold Paper Towels

Towels are self-feeding as withdrawn by hand until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly.

Low level of towel supply is indicated from 25% capacity to empty. Locking door prevents unauthorized access or removal.

Surface mount unit on wall or partition using five #10 self-threading screws (by others) through concealed mounting holes provided.

Four mounting holes through back are keyhole slots for ease in hanging unit on pre-installed screws. Center top mounting hole is horizontal slot for ease of adjustment and vandal resistant locking.

For compliance with 2010 ADA Accessibility Standards install unit so that centerline of towel dispenser slot is 48″ [1219] maximum above finished floor (AFF).

• Product Care & Maintenance
• Technical Data Sheet – 0210

• Double Hook
• Type 304 Stainless Steel - Satin Finish
• Surface Mounted
• 4″ (102 mm) wide stainless steel bar forms hook at each end
• Hook is suitable for robes or clothing and small carry bags

Model
7345-S

Type
Robe Hook (Double)

Dimensions
4″ x 2″ x 2″ (102 x 51 x 51 mm)

Construction
Type 304 Stainless Steel - Satin Finish

Mounting
Surface Mounted

• 7345-B – Bright Finish
• 7345-S – Satin Finish

Hook is suitable for a robe or clothing and small carry bags.

Surface mount unit on door back or wall using two (2) #10 self-threading screws (by others) through holes provided in mounting plate into suitable prepared mountings (by others) or other suitable mounting hardware (by others) to suit door or wall conditions. Hang post and flange assembly on mounting plate and tighten set screw to lock unit to plate.

For compliance with ICC/ANSI A-117.1-2003 and 2010 ADA Accessibility Standards, install unit with top of hook 48″ [1219] maximum Above Finished Floor (AFF) or 46″ [1168] max AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10″ [254] and less than 25″ [635] is only provided or 44″ [1118] max AFF if forward reach over an obstruction with reach depth greater than 20″ [508] and less than 25″ [635] is only provided.

For general utility, install hook with centerline of mounting plate 68″ [1727] AFF.

• Product Care & Maintenance
• Technical Data Sheet – 7345-S
• Technical Data Sheet – 7345-B

• One-piece stainless steel channel encases mirror and backing
• Tight mitered corners add sophistication
• Type 304, alloy 18-8 stainless steel - Satin Finish Frame
• Plate Glass Mirror
• Surface Mounted
• Various sizes and glazing options
• Mirror is held secure by theft-resistant screws

Series
0620 Series

Type
Stainless Steel Chan-Lok Frame Mirror

Dimensions
Various sizes and glazing options

Mounting
Surface Mounted

Frame
18-8, type 304, 20 gauge stainless steel. Exposed surfaces have satin finish. Edges and corners are burr free.

Glass
Standard glazing is #1 quality, 1/4" [6.4] thick plate/float, silver coated and hermetically sealed with a uniform coating of electrolytic copper plating, warranted against silver spoilage for 15 years. Mirrors meet Federal Spec. DD-M-411C, ASTM C-1503, and ASTM C-1036-91.

Filler
Expanded polyethylene microcell foam sheet material, abrasion resistant and shock absorbing, water resistant, 1/8" [3.2] total layer thickness.

Plate Glass
#1 quality polished, silver coated and hermetically sealed with an electrolytic copper plating. Image quality: BEST

Tempered Glass
1/4" [6.4] thick polished tempered glass with two coats of silver. Image quality: BETTER

Important
The reflective quality of tempered glass is not as true as plate glass. As the reflective surface size increases, regardless of glazing type, the likelihood of distortion also increases.

• Type 304, alloy 18-8 stainless steel - Satin Finish Frame

Install “H” wall brackets level and plumb per diagram location using ONLY #8 or #10 Pan Head screws (by others).

Hang mirror on brackets and tighten locking screw (#6-32Fx3/4" Philips Pan Head, supplied separately taped to mirror back) at bottom (note: this screw should be started prior to hanging mirror on wall bracket).

For compliance with 2010 ADA Accessibility Standards and ABA Standards 2015, bottom edge of reflecting surface should be no higher than 40" [1016] Above Finished Floor.

Mirrors larger than 32 sq. ft. (2.97 m²) are fabricated in two (2) or more sections to provide installation and handling ease.

• Product Care & Maintenance
• Technical Data Sheet – 0620 Series
• Mirror Chart
