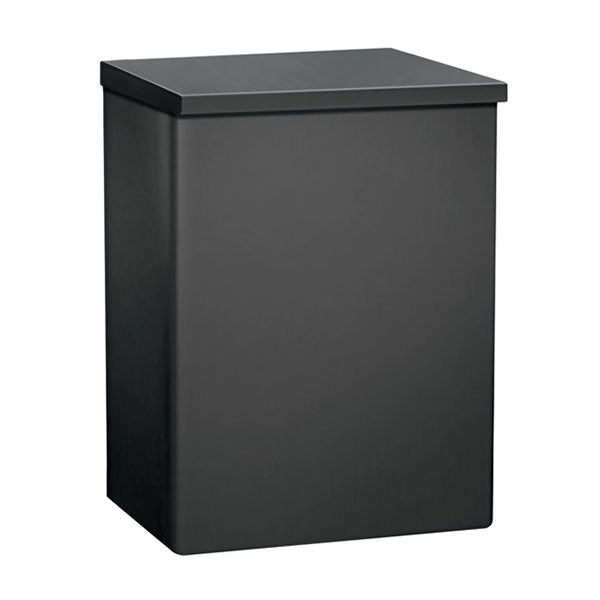

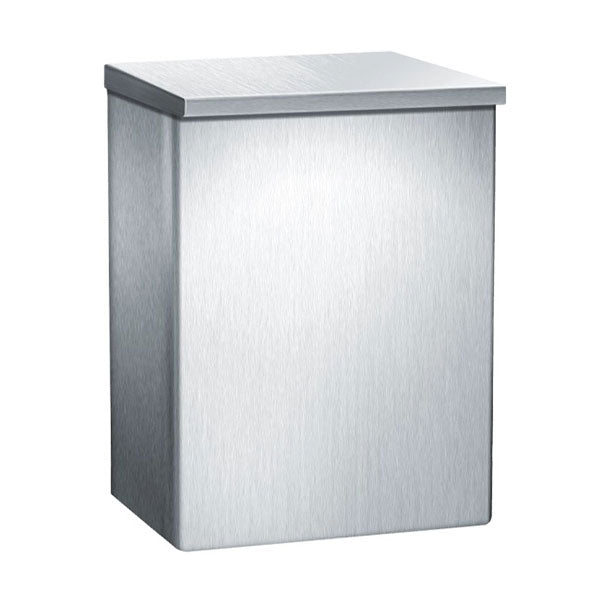

0852 Sanitary Napkin Disposal – Surface Mounted
CALL FOR PRICING
0852 Sanitary Napkin Disposal – Surface Mounted
Unit equipped with top cover door and cabinet. Waste capacity of 1.2 gal (4.5 L). User lifts lid to deposit waste material. Door, flanges, waste receptacle and cabinet shall be 22 gauge type 304 stainless steel alloy 18-8. Shall have top cover door and cabinet of 22 gage type 304 stainless steel alloy 18-8.
Stainless Steel Construction
Our heavy-duty items are made of high-quality 304 stainless steel, which is tough, durable, stain-resistant and easy to clean.
Features
- Type 304 Stainless Steel - Satin Finish
- Surface Mounted
- Concealed, Multi-Staked Piano Hinge
- 1.2 gal (4.5 L) of dry/solids Waste Capacity
Specifications
Model
0852
Type
Sanitary Napkin Disposal – Surface Mounted
Dimensions
7-7/8" [200] W x 4" [102] D x 9-11/16" [246] H
Construction
Type 304 Stainless Steel - Satin Finish - Concealed, Multi-Staked Piano Hinge
Mounting
Surface Mounted
Capacity
1.2 gal (4.5 L) of dry/solids Waste Capacity
Finishes
- Satin Stainless Steel
- Matte Black
Operation and Maintenance
User lifts lid to deposit waste material. Maintenance schedule determines trash removal cycle.
Unit is emptied by opening top door and removing wax paper collection bag. Waxed paper liner bags are furnished by others.
Installation
Surface mount unit on wall or partition using #10 self-threading screws (by others). Two (2) mounting holes through back are keyhole slots for ease in hanging unit on pre-installed screws.
For compliance with 2010 ADA Accessibility Standards, install unit so that top cover is 44" [1118] maximum above finished floor.
Related Items
1200-SHU Shower Curtain Hook – Stainless Steel
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
1200-SHU Shower Curtain Hook – Stainless Steel
Solid formed wire is .098″ diameter (Ø2.5) with a bright finish. Hook has a formed retainer to hold free end closed and accommodates 1″ to 1-1/4″ diameter (Ø25 to Ø32) curtain rods.
Grasping hook in both hands, use the thumb of one hand to push the hanger hook in and to one side. Release thumb pressure allowing top hook to bypass and extend over the bottom hook. Slip the hook over the shower curtain rod (specified separately). After hanging shower curtain (specified separately) use thumb pressure to replace the free leg of the hook onto the bottom hook leg-retainer.
Features
- Solid formed wire is .098″ diameter (Ø2.5)
- Bright finish
- Formed retainer holds free end closed
- Accommodates 1″ to 1-1/4″ diameter (Ø25 to Ø32) curtain rods
- Open hook design allows easy installation over shower curtain rods
- Free end securely closes into the bottom hook leg-retainer
Specifications
Product
1200-SHU Shower Curtain Hook – Stainless Steel
Material
Type 304 Stainless Steel
Finish
Bright Finish
Wire Diameter
.098″ [2.5 mm]
Size
1-9/16″ x 2-5/8″ [40 x 67 mm]
Rod Diameter
1″ to 1-1/4″ [25 to 32 mm]
Mounting
Surface Mounted
Mounting Materials
R2
Warranty
One (1) Year from date of Invoice
Dimensions
Size
1-9/16″ x 2-5/8″ (40 x 67 mm)
Operation and Maintenance
Grasping hook in both hands, use the thumb of one hand to push the hanger hook in and to one side. Release thumb pressure allowing top hook to bypass and extend over the bottom hook.
Slip the hook over the shower curtain rod (specified separately).
After hanging shower curtain (specified separately) use thumb pressure to replace the free leg of the hook onto the bottom hook leg-retainer.
Installation
Open hook and slip over shower curtain rod (specified separately). Hang shower curtain (specified separately) on small hook. Close hook free end into retainer on hook end.
