Products

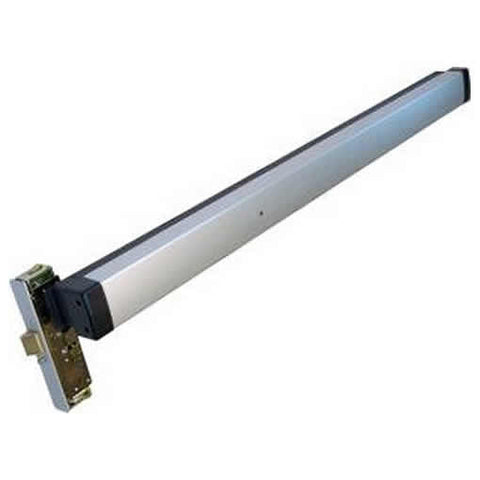

Adams-Rite 8400 Mortise Exit Device for Glass Doors
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Adams-rite mortise exit device. ANSI/BHMA Grade I. Pushbar length 36-inches standard width bars can be field cut to the next smallest opening width. Materials pushbar made of extruded aluminum, clad or anodized in a variety of finishes. Clear anodized finish.
Features
- Minimum stile 2". Fits narrow, medium and wide stile aluminum doors.
- Exit only function, no entry from outside. Trim available separately
- Handed.
- For 1-3/4" thick doors standard.
- Hex key dogging standard.
- Push bar length can be cut to size in the field.
- Backs available in 31/32", 1-1/8" or 1-1/2".
- Adams Rite exit devices fully meet building codes and ADA guidelines for accessibility.
Specs
- ANSI/BHMA grade 1-UL Listed Life Safety, ANSI/BHMA 156.3
- Projection-2-5/8", 1-5/8" when dogged.
- Pushbar made of extruded aluminum.
- The 8400 was designed to fit standard cutout used for the Adams Rite MS® Deadlock on aluminum stile glass doors.
Finishes
- Aluminum
- Bronze
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Instructions & Templates
PDQ MRS Electronic Mortise Lock — Spirit Series (PIN/RFID/Mobile)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Grade 1 Electronic Mortise Lock with Mobile, RFID & PIN Credentials, Battery-Powered, Field Reversible, 2-3/4" Backset, Standalone (Spirit Series — MRS)
PDQ’s MRS brings wireless, app-managed access control to a heavy-duty mortise chassis. Support for smartphone mobile keys, RFID cards/fobs, and optional keypad PINs means fewer keys to manage. Installs into a standard mortise prep—no panel wiring required—then configure users, schedules, and audit history in the Spirit app.
- VendorPDQ Locks
- ManufacturerPDQ Industries
- Series / ModelSpirit — MRS Electronic Mortise
- Example SKUMRS-SP-116-PHL-SJ-626-KIL
- GradeANSI/BHMA Grade 1 mortise chassis
- ListingsUL 10C (per MR chassis); ADA; FCC Part 15
- Unit of MeasureEach
- OriginAssembled in USA
- InstallationStandard mortise prep; no door wiring
- Power4 × AA alkaline (interior battery pack)
- Backset2-3/4"
- Door Thickness1-3/4" std (2", 2-1/4" optional)
- HandingNon-handed; field reversible
-
626 — Satin Chrome (US26D)
-
622 — Flat Black (US19)
-
613E — Dark Oxidized Satin Bronze (equivalent to US10B)
*606 Satin Brass (US4) available on request.
- CredentialsPIN keypad, RFID, Mobile (Bluetooth/NFC)
- ProgrammingPDQ Spirit App (device-based management)
- Audit / UsersEvent logging; local users via app
- Cylinder OptionsKIL (std), SFIC 6/7-pin, UL437 high-security
- EnvironmentInterior/Exterior; low-battery alerts
- ChassisBuilt on MR Grade 1 mortise platform
Use case: Unit entries and commercial openings needing mobile/RFID/PIN access without pulling wire. Configure schedules, passage/privacy, and audit history in the Spirit app.
- No panel wiring or power transfer
- Mobile, RFID, and PIN support
- Field-reversible handing; serviceable battery pack
- Heavy-duty MR mortise hardware
| Mortise Hardware (MR) — Product Page | PDQ MR Mortise Lock (platform details) |
| MR Series — Handing & Setup Video | YouTube |
| Spirit App — Add a Device | YouTube |
| Spirit App — Users & Credentials | YouTube |
| Spirit App — Sign Up | YouTube |
| Spirit Series — Brochure | PDQ Product Literature (Spirit brochure) |
Installation Difficulty
Level 4 — Advanced Pro: Precise mortise templating/handing; alignment & adjustments likely; no building wiring but trade experience strongly recommended.
