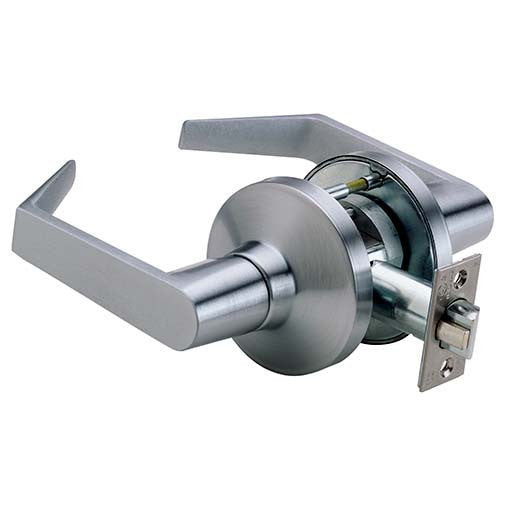

PDQ Extremely Heavy Duty Cylindrical Lock - XGT176 Privacy

PDQ XGT Series Heavy Duty Cylindrical Lock

US made, this line of grade 1 door locks gives you the best in security, durability, and cost. The XGT is able to withstand over 3,000 in. lbs. of torque resistance on its lever trim.

The XGT176 is a Privacy function lock which features push-button locking. The lock can be opened from the outside with an emergency release. The inside push button can be released by turning the inside lever.

  • Non keyed
  • Latchbolt operated by lever from either side or emergency release in outside lever
  • Outside lever locked by push button on inside
  • Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door

We also offer the XGT Series Cylindrical Lock in several other functions - Entrance/Office, Storeroom, Classroom and Passage. Compare Functions.

Features

  • ANSI Grade 1 Extremely Heavy Duty cylindrical door lock
  • Exceeds 3,000 in lbs. of torque resistance
  • High Strength stainless steel investment cast spindle.  Heavy gauge steel mounting plates.
  • Door Situation:  Fits left, right wood/metal swing doors
  • Architectural Finish
  • Assembled in USA, meeting the requirements of the Buy American Act
  • Lifetime Manufacturer's Limited Warranty

Specs

  • FOR DOORS: 1-3/4" to 2-1/4" thick. Factory adjusted for 1-3/4"
  • DOOR PREP: Fits standard 161 door prep. Through-door thru-bolting.
  • BACKSET: 2-3/4" only. Guarded
  • FRONT: 2-1/4" x 1-1/8". Beveled 1/8" on 2"
  • STRIKE: 4-7/8" x 1-1/4"(ASA).
  • LATCHBOLT: 9/16" Throw. Adjustable front for flat or beveled doors.
  • HAND: Non-handed.
  • TRIM: Zinc diecast levers/wrought brass rose.

Finishes

 Satin Chrome 626/US26D

Installation Challenge Level

  Challenging
Recommended for Experienced or Professional Installers.
