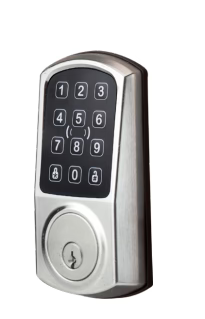

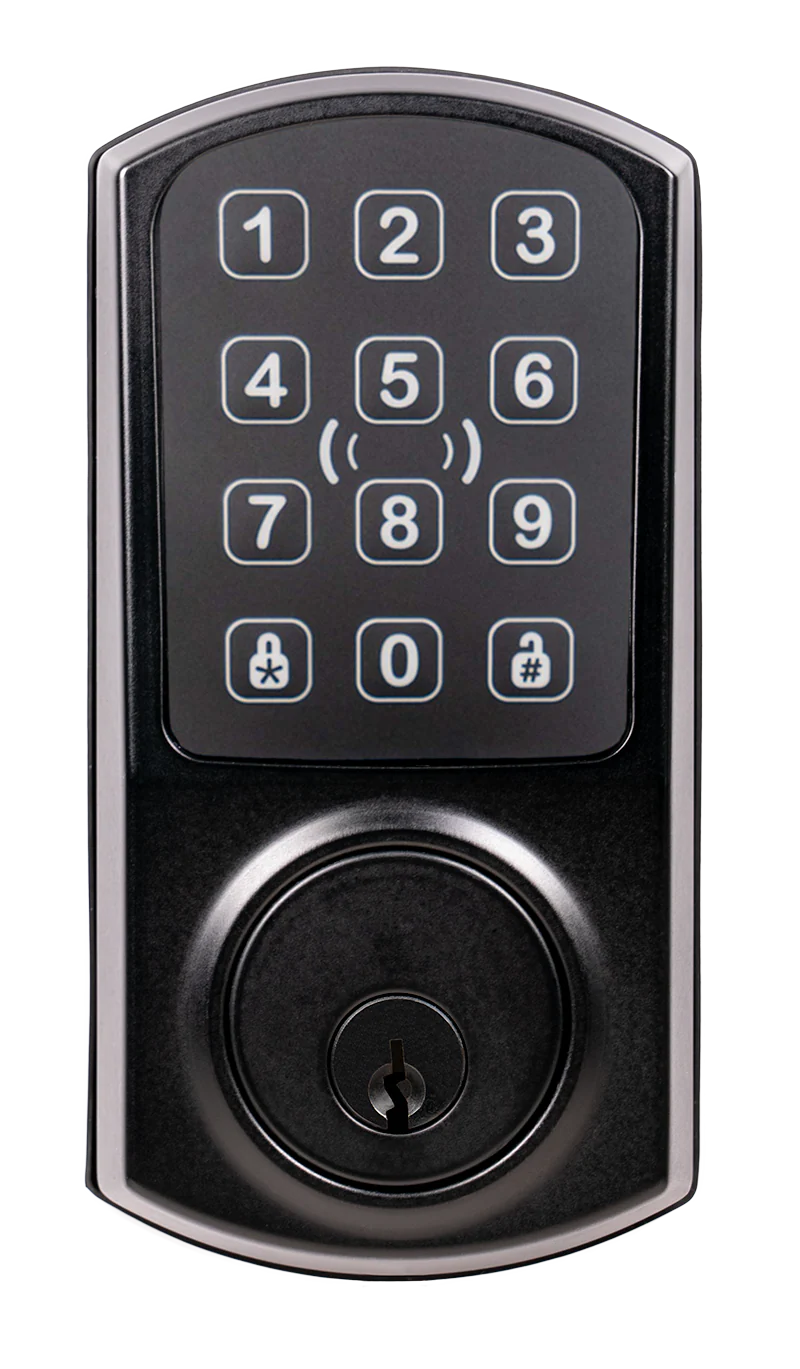

PDQ KMS Wireless Electronic Deadbolt (Spirit)
CALL FOR PRICING
Wireless Electronic Deadbolt with Smartphone/RFID/Keypad Access, BLE Mesh, Trimmed Options, Top Finishes
PDQ’s KMS is a wireless, app-managed deadbolt for multifamily and light commercial doors. It drops into a standard deadbolt prep with an adjustable tubular latch, supports mobile credentials (BLE), RFID cards/fobs, and (on keypad variants) PIN entry—managed via the PDQ Spirit app with optional cloud connectivity.
- VendorPDQ
- ModelKMS (Spirit)
- UnitEach
- CredentialsMobile (BLE), RFID, PIN (keypad models), Mechanical key
- KeyingConventional (SC1), SFIC, UL437 High Security
- Door Thickness1-3/8″ to 1-3/4″
- BacksetAdjustable 2-3/8″–2-3/4″
- Power4 × AA alkaline (≈2 years typical)
- CommsBLE 4.2/5.x; Spirit mobile & cloud; AES-256
- ListingsADA; UL/cUL 10C (20-min); FCC Part 15
- Operating Range-20 °C to 65 °C; 0–95% RH (non-condensing)
- Warranty2 yrs mechanical / 2 yrs electronics
-
606 — Satin Brass (US4)
-
626 — Satin Chrome (US26D)
-
622 — Flat Black (US19)
-
613E — Dark Oxidized Satin Bronze
- ModesStandalone or Online via Spirit cloud
- EncryptionAES-256
- RFID TypesMIFARE DESFire EV1/EV2/EV3/Light; Ultralight EV1/AES; Classic
- Credential MgmtSchedules, event logs, door/obstruction & battery alerts
- Cylinder OptionsConventional, SFIC, UL437 High Security
- Backset2-3/8″ or 2-3/4″ (adjustable)
Why it matters: KMS is built on PDQ’s heavy-duty KM deadbolt with a sealed exterior escutcheon and BLE connectivity. It’s purpose-built for multifamily & light commercial—fast retrofit, mobile credentials, and OTA updates to reduce truck rolls and key management costs.
- Mobile, RFID, and PIN access (model dependent)
- Spirit App + Cloud for provisioning and audit trails
- Trimmed buying options to simplify spec and stock
- Assembled in USA; ADA compliant
| Product page | PDQ KMS (specs & finishes) |
| Install guide (illustrated) | OE-9700 — KMS Installation (PDF) |
| Spirit brochure | Spirit Series Brochure (PDF) |
| Spirit app — add device | YouTube (embed-ready) |
| Spirit app — users & credentials | YouTube (embed-ready) |
| Spirit app — sign up | YouTube (embed-ready) |
Installation Difficulty
Level 2 — Skilled DIY: Standard cylindrical prep; basic carpentry, alignment, and latch/backset adjustments; no building wiring.
Related Items
PDQ Cylindrical Lock - SD126 Passage
$70.00
PDQ SD series grade 2 lever set for commercial doors features unique through bolt installation for added security and durability and is UL listed A label for single swing doors.
The SD126 is a Passage function lock, where the latch bolt is operated by the lever from either side at all times. There is no locking function.
- Non keyed
- Latch bolt operated by lever from either side at all times
We also offer the SD Series Cylindrical Lock in several other functions - Entrance/Office, Privacy, and Storeroom. Compare Functions.
Features
- Listed by UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”.
- Certified to ANSI/BHMA A156.2–1996, Series 4000, Grade 2.
- Assembled in USA, meeting the requirements of the Buy American Act
- Lifetime Manufacturer's Limited Warranty
Specs
- FOR DOORS: 1-3/8" to 1-3/4" thick.
- DOOR PREP: Fits standard 161 door prep (2 1/8" hole x 2 3/4" backset). Through-door through-bolting. Through-bolts removable if desired.
- BACKSET: 2-3/4" is standard.
- FRONT: 2-1/4" x 1-1/8" for 2-3/4" backset. Stainless steel or wrought brass.
- STRIKE: 4-7/8" x 1-1/4" (ASA).
- LATCHBOLT: 1/2" throw. Adjustable front for flat or beveled doors.
- HAND: Non-handed.
- TRIM: Zinc diecast levers/wrought brass rose.
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging
Recommended for Experienced or Professional Installers.
PDQ Cylindrical Lock - SD176 Privacy
$80.00
PDQ SD series grade 2 lever set for commercial doors features unique through bolt installation for added security and durability and is UL listed A label for single swing doors.
The SD176 is a Privacy function lock which features push-button locking. The lock can be opened from the outside with an emergency release. The inside push button can be released by turning the inside lever.
- Non keyed
- Latch bolt operated by lever from either side or emergency release in outside lever
- Outside lever locked by push button on inside
- Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door
We also offer the SD Series Cylindrical Lock in several other functions - Entrance/Office, Storeroom and Passage. Compare Functions.
Features
- Listed by UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”.
- Certified to ANSI/BHMA A156.2–1996, Series 4000, Grade 2.
- Assembled in USA, meeting the requirements of the Buy American Act
- Lifetime Manufacturer's Limited Warranty
- Cylinder(s) included
Specs
- FOR DOORS: 1-3/8" to 1-3/4" thick.
- DOOR PREP: Fits standard 161 door prep (2 1/8" hole x 2 3/4" backset). Through-door through-bolting. Through-bolts removable if desired.
- BACKSET: 2-3/4" is standard.
- FRONT: 2-1/4" x 1-1/8" for 2-3/4" backset. Stainless steel or wrought brass.
- STRIKE: 4-7/8" x 1-1/4" (ASA).
- LATCHBOLT: 1/2" throw. Adjustable front for flat or beveled doors.
- HAND: Non-handed.
- TRIM: Zinc diecast levers/wrought brass rose.
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging
Recommended for Experienced or Professional Installers.
PDQ Cylindrical Lock - SD115 Storeroom
$85.00
PDQ SD series grade 2 lever set for commercial doors features unique through bolt installation for added security and durability and is UL listed A label for single swing doors.
The SD115 is a Storeroom function lock, where the latch bolt is operated by a key outside and the lever from the inside. The outside lever is rigid.
- Latch bolt operated from outside by key, inside by lever
- Outside lever always fixed
- Inside lever always free
- Deadlocking (guarded) latch bolt all times
We also offer the SD Series Cylindrical Lock in several other functions - Entrance/Office, Privacy, and Passage. Compare Functions.
Features
- Listed by UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”.
- Certified to ANSI/BHMA A156.2–1996, Series 4000, Grade 2.
- Assembled in USA, meeting the requirements of the Buy American Act
- Lifetime Manufacturer's Limited Warranty
- Cylinder(s) included
Specs
- FOR DOORS: 1-3/8" to 1-3/4" thick.
- DOOR PREP: Fits standard 161 door prep (2 1/8" hole x 2 3/4" backset). Through-door through-bolting. Through-bolts removable if desired.
- BACKSET: 2-3/4" is standard.
- FRONT: 2-1/4" x 1-1/8" for 2-3/4" backset. Stainless steel or wrought brass.
- STRIKE: 4-7/8" x 1-1/4" (ASA).
- LATCHBOLT: 1/2" throw. Adjustable front for flat or beveled doors.
- HAND: Non-handed.
- TRIM: Zinc diecast levers/wrought brass rose.
- KEYS: Two change keys per lock.
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging
Recommended for Experienced or Professional Installers.
PDQ Cylindrical Lock - SD116 Entrance/Office
$85.00
PDQ SD series grade 2 lever set for commercial doors features unique through bolt installation for added security and durability and is UL listed A label for single swing doors.
The SD116 is an Entrance/Office function lock, where the door is unlocked by a key from the outside when the outer lever is locked by a turn-button on the inside lever. The inside lever is always unlocked.
- Latch bolt operated by lever from either side or key in outside lever
- Outside lever locked by push/turn button on inside
- When outside lever is locked by push button on inside – key from outside,
or rotating inside lever unlocks outside lever - When outside lever is locked by pushing and turning the button on the inside,
key from outside or rotating inside lever retracts latch but does not unlock outside lever - Deadlocking (guarded) latch bolt
We also offer the SD Series Cylindrical Lock in several other functions - Privacy, Storeroom,and Passage. Compare Functions.
Features
- Listed by UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”.
- Certified to ANSI/BHMA A156.2–1996, Series 4000, Grade 2.
- Assembled in USA, meeting the requirements of the Buy American Act
- Lifetime Manufacturer's Limited Warranty
- Cylinder included
Specs
- FOR DOORS: 1-3/8" to 1-3/4" thick.
- DOOR PREP: Fits standard 161 door prep (2 1/8" hole x 2 3/4" backset). Through-door through-bolting. Through-bolts removable if desired.
- BACKSET: 2-3/4" is standard.
- FRONT: 2-1/4" x 1-1/8" for 2-3/4" backset. Stainless steel or wrought brass.
- STRIKE: 4-7/8" x 1-1/4" (ASA).
- LATCHBOLT: 1/2" throw. Adjustable front for flat or beveled doors.
- HAND: Non-handed.
- TRIM: Zinc diecast levers/wrought brass rose.
- KEYS: Two change keys per lock.
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging
Recommended for Experienced or Professional Installers.
