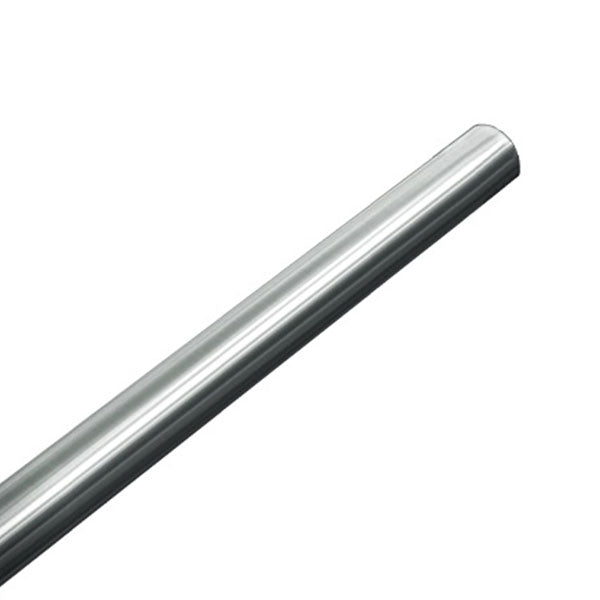

ASI - 1214-2 Shower Curtain Rod – 1” dia. Bar, Stainless Steel

• Roll formed, interlocking frame with heliarc welded corners
• Corners are ground and polished smooth to a uniform satin finish
• Type 304 stainless steel frame
• Concealed hanging bracket
• Tamper-proof set screws lock onto top and bottom of frame
• One-piece back plate with theft-resistant locking device
• Surface Mounted
• Various sizes and reflective surfaces available

Plate Glass

• 0600-1620 – 16” wide x 20” high (406 x 508 mm)
• 0600-1624 – 16” wide x 24” high (406 x 610 mm)
• 0600-1630 – 16” wide x 30” high (406 x 762 mm)
• 0600-1824 – 18” wide x 24” high (457 x 610 mm)
• 0600-1830 – 18” wide x 30” high (457 x 762 mm)
• 0600-1836 – 18” wide x 36” high (457 x 914 mm)
• 0600-2060 – 20” wide x 60” high (508 x 1524 mm)
• 0600-2430 – 24” wide x 30” high (610 x 762 mm)
• 0600-2436 – 24” wide x 36” high (610 x 914 mm)
• 0600-2442 – 24” wide x 42” high (610 x 1067 mm)
• 0600-2448 – 24” wide x 48” high (610 x 1219 mm)
• 0600-2460 – 24” wide x 60” high (610 x 1524 mm)
• 0600-2472 – 24” wide x 72” high (610 x 1829 mm)
• 0600-3036 – 30” wide x 36” high (610 x 914 mm)
• 0600-3636 – 36” wide x 36” high (914 x 914 mm)
• 0600-3648 – 36” wide x 48” high (914 x 1219 mm)
• 0600-4830 – 48” wide x 30” high (1219 x 762 mm)
• 0600-4836 – 48” wide x 36” high (1219 x 914 mm)
• 0600-6036 – 60” wide x 36” high (1524 x 914 mm)
• 0600-7236 – 72” wide x 36” high (1829 x 914 mm)

Tempered Glass

• 0600-B1824 – 18” wide x 24” high (457 x 610 mm)
• 0600-B1830 – 18” wide x 30” high (457 x 762 mm)
• 0600-B1836 – 18” wide x 36” high (457 x 914 mm)
• 0600-B2430 – 24” wide x 30” high (610 x 762 mm)
• 0600-B2436 – 24” wide x 36” high (610 x 914 mm)
• 0600-B2448 – 24” wide x 48” high (610 x 1219 mm)
• 0600-B2460 – 24” wide x 60” high (610 x 1524 mm)
• 0600-B2472 – 24” wide x 72” high (610 x 1829 mm)

Stainless Steel, Type 304 with #8 Finish

• 0600-C1418 – 14” wide x 18” high (356 x 457 mm)
• 0600-C1824 – 18” wide x 24” high (457 x 610 mm)
• 0600-C1830 – 18” wide x 30” high (457 x 762 mm)
• 0600-C2430 – 24” wide x 30” high (610 x 762 mm)
• 0600-C2436 – 24” wide x 36” high (610 x 914 mm)
• 0600-C2460 – 24” wide x 60” high (610 x 1524 mm)

Series
0600 Series

Type
Stainless Steel Inter-Lok Angle Frame Mirror

Frame
3⁄4″ x 5⁄8″ (19 x 16 mm) roll formed 18 gauge type 304 stainless steel angle

Frame Finish
Uniform satin finish

Construction
Type 304 stainless steel

Mounting
Surface Mounted

Reflective Surface Options
Plate Glass, Tempered Glass, and Stainless Steel Type 304 with #8 Finish

Back Plate
One piece, attached to frame with theft-resistant locking device

Plate Glass
#1 quality polished plate glass with silver coating and protective copper plating. Image quality: BEST.

Tempered Glass
1/4″ (6.4 mm) polished tempered glass with silver coating. Image quality: BETTER.

Stainless Steel with #8 Finish
Type 304 stainless steel polished to a #8 mirror finish. Image quality: FAIR.

Reflective quality may vary by surface type, and the likelihood of distortion increases as reflective surface size increases.

• Frame: Type 304 Stainless Steel - Satin Finish
• Reflective Surface: Plate Glass
• Reflective Surface: Tempered Glass
• Reflective Surface: Type 304 Stainless Steel with #8 Finish

Install bracket level and plumb as per diagram location using #10 self-threading screws (by others).

Hang mirror on bracket and tighten locking screws at top and bottom.

For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards, bottom edge of reflecting surface should be no higher than 40″ [1016] Above Finished Floor.

• Product Care & Maintenance
• Mirror Size Options Chart
• Technical Data Sheet – 0600 Series

• Anti-bacterial, 10 gauge white vinyl fabric
• Standard height of 72″ (1829 mm)
• Multiple widths available
• White Vinyl
• Aluminum or Stainless Steel Grommets
• Self-Extinguishing and NFPA 701 compliant
• Curtain hooks Model № 1200-SHU are recommended

• 1200-V36 – 36″ (762 mm) wide, 6 hooks recommended
• 1200-V42 – 42″ (1067 mm) wide, 7 hooks recommended
• 1200-V48 – 48″ (1219 mm) wide, 8 hooks recommended
• 1200-V60 – 60″ (1524 mm) wide, 10 hooks recommended
• 1200-V72 – 72″ (1829 mm) wide, 12 hooks recommended
• 1200-V84 – 84″ (2134 mm) wide, 14 hooks recommended

Model
1200-V Series

Type
Shower Curtain – 10 ga. White Vinyl, Various Widths

Height
72″ (1829 mm) standard height

Material
10 gauge white vinyl fabric

Grommets
Aluminum or Stainless Steel

Compliance
Self-Extinguishing and NFPA 701 compliant

Curtain should be 6″ (152 mm) wider than opening up to 42″ (1067 mm) and 12″ (305 mm) wider than opening exceeding 42″ (1067 mm).

• 30″ opening – 36″ curtain
• 36″ opening – 42″ curtain
• 42″ opening – 48″ curtain
• 48″ opening – 60″ curtain
• 60″ opening – 72″ curtain
• 72″ opening – 84″ curtain

For openings up to 42″ (1067 mm) wide curtains should be specified an additional 6″ (152 mm) wider than opening and 12″ (305 mm) wider for openings exceeding 42″ (1067 mm).

Shower curtain should be attached with hooks (not provided, order separately) to rod (not provided, order separately). Curtain hooks Model № 1200-SHU are recommended.

• Product Care & Maintenance
• Technical Data Sheet – 1200-V

• Fabricated of 22 gauge stainless steel with satin finish
• Dispenses 400 C-fold or 525 multi-fold paper towels without adjustment or adapters
• Heavy-duty stainless steel piano hinge
• Tumbler lock for security
• Hemmed opening for safe, easy dispensing
• Type 304 Stainless Steel - Satin Finish
• Surface Mounted
• Pull Type

Model
0210

Type
Traditional™ Paper Towel Dispenser (Multi, C-Fold)

Dimensions
11-1⁄8″ x 14-5⁄8″ x 4″ (282 x 371 x 101 mm)

Construction
Type 304 Stainless Steel - Satin Finish

Material Gauge
22 Gauge Stainless Steel

Mounting
Surface Mounted

Operation
Pull Type

Capacity
400 C-Fold or 525 Multi-Fold Paper Towels

• Satin Finish

Towels are self-feeding as withdrawn by hand until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly.

Low level of towel supply is indicated from 25% capacity to empty. Locking door prevents unauthorized access or removal.

Surface mount unit on wall or partition using five #10 self-threading screws (by others) through concealed mounting holes provided.

Four mounting holes through back are keyhole slots for ease in hanging unit on pre-installed screws. Center top mounting hole is horizontal slot for ease of adjustment and vandal resistant locking.

For compliance with 2010 ADA Accessibility Standards install unit so that centerline of towel dispenser slot is 48″ [1219] maximum above finished floor (AFF).

• Product Care & Maintenance
• Technical Data Sheet – 0210

• Vertical space saving footprint
• All purpose valve and a tamper-resistant refill indicator
• Type 304 Stainless Steel - Satin Finish
• Surface Mounted
• Manual Push Button Operation
• Liquid Soap - 40 oz. (1.2 L) Capacity

Model
0347

Type
Liquid Soap Dispenser – Vertical – Surface Mounted

Dimensions
4-13/16” x 8-3/16” x 3-15/16” (122 x 208 x 100 mm)

Spout Projection
3⁄4″ (19 mm)

Construction
Type 304 Stainless Steel - Satin Finish

Mounting
Surface Mounted

Capacity
40 fl. oz. (1.2 L)

Operation
Manual Push Button Operation

Soap Requirements
Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.

Viscosity Range (mPa·s or cP)
100 – 3.5k

pH Range
5.5 ~ 8.5

Soaps containing reportable salts, chlorides and alcohols should be avoided.

• Satin Stainless Steel

Push button to dispense soap. Unit is refilled through hinged door at top requiring special key (supplied) to open.

Soap tank will continue to feed properly until soap level is below valve intake port. Tank supply is replenished manually.

Unit is surface mounted to wall or partition with a wall mounting plate (supplied) and screws (by others). Unit is secured to interlocking wedge bracket and locked in place by a locking screw (supplied) installed through hinged refill door.

Recommended installation for general utility is 42" [1066] Above Finished Floor (AFF) or 6" [152] min above washbasin.

For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards, install unit with centerline of valve button no higher than 48" [1219] AFF.
