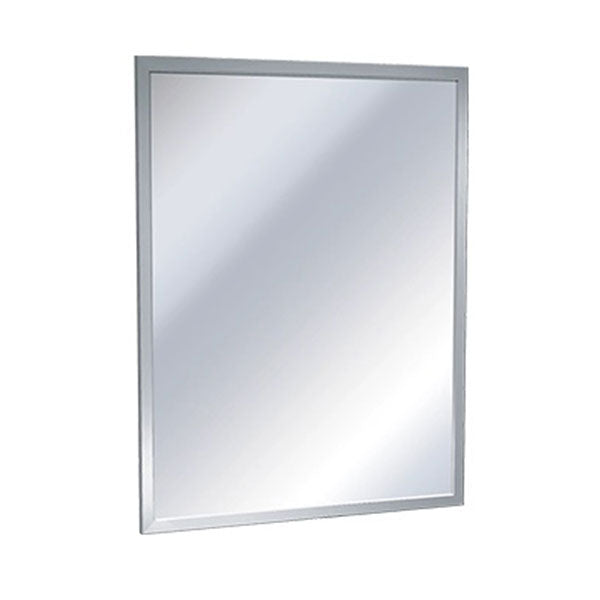

ASI - 0600 Series Stainless Steel Inter-Lok Angle Frame Mirror – Variable Reflective Surfaces and Sizes
CALL FOR PRICING
ASI - 0600 Series Stainless Steel Inter-Lok Angle Frame Mirror – Variable Reflective Surfaces and Sizes
3⁄4″ x 5⁄8″ (19 x 16 mm) roll formed 18 gauge type 304 stainless steel angle has corners heliarc welded, ground and polished smooth to a uniform satin finish. Mirror is installed on a concealed hanging bracket that locks onto top and bottom of frame by tamper-proof set screws. Back plate is one piece, attached to frame with theft-resistant locking device.
Stainless Steel Construction
Our heavy-duty items are made of high-quality 304 stainless steel, which is tough, durable, stain-resistant and easy to clean.
Features
- Roll formed, interlocking frame with heliarc welded corners
- Corners are ground and polished smooth to a uniform satin finish
- Type 304 stainless steel frame
- Concealed hanging bracket
- Tamper-proof set screws lock onto top and bottom of frame
- One-piece back plate with theft-resistant locking device
- Surface Mounted
- Various sizes and reflective surfaces available
Available Sizes & Reflective Surfaces
Plate Glass
- 0600-1620 – 16” wide x 20” high (406 x 508 mm)
- 0600-1624 – 16” wide x 24” high (406 x 610 mm)
- 0600-1630 – 16” wide x 30” high (406 x 762 mm)
- 0600-1824 – 18” wide x 24” high (457 x 610 mm)
- 0600-1830 – 18” wide x 30” high (457 x 762 mm)
- 0600-1836 – 18” wide x 36” high (457 x 914 mm)
- 0600-2060 – 20” wide x 60” high (508 x 1524 mm)
- 0600-2430 – 24” wide x 30” high (610 x 762 mm)
- 0600-2436 – 24” wide x 36” high (610 x 914 mm)
- 0600-2442 – 24” wide x 42” high (610 x 1067 mm)
- 0600-2448 – 24” wide x 48” high (610 x 1219 mm)
- 0600-2460 – 24” wide x 60” high (610 x 1524 mm)
- 0600-2472 – 24” wide x 72” high (610 x 1829 mm)
- 0600-3036 – 30” wide x 36” high (610 x 914 mm)
- 0600-3636 – 36” wide x 36” high (914 x 914 mm)
- 0600-3648 – 36” wide x 48” high (914 x 1219 mm)
- 0600-4830 – 48” wide x 30” high (1219 x 762 mm)
- 0600-4836 – 48” wide x 36” high (1219 x 914 mm)
- 0600-6036 – 60” wide x 36” high (1524 x 914 mm)
- 0600-7236 – 72” wide x 36” high (1829 x 914 mm)
Tempered Glass
- 0600-B1824 – 18” wide x 24” high (457 x 610 mm)
- 0600-B1830 – 18” wide x 30” high (457 x 762 mm)
- 0600-B1836 – 18” wide x 36” high (457 x 914 mm)
- 0600-B2430 – 24” wide x 30” high (610 x 762 mm)
- 0600-B2436 – 24” wide x 36” high (610 x 914 mm)
- 0600-B2448 – 24” wide x 48” high (610 x 1219 mm)
- 0600-B2460 – 24” wide x 60” high (610 x 1524 mm)
- 0600-B2472 – 24” wide x 72” high (610 x 1829 mm)
Stainless Steel, Type 304 with #8 Finish
- 0600-C1418 – 14” wide x 18” high (356 x 457 mm)
- 0600-C1824 – 18” wide x 24” high (457 x 610 mm)
- 0600-C1830 – 18” wide x 30” high (457 x 762 mm)
- 0600-C2430 – 24” wide x 30” high (610 x 762 mm)
- 0600-C2436 – 24” wide x 36” high (610 x 914 mm)
- 0600-C2460 – 24” wide x 60” high (610 x 1524 mm)
Specifications
Series
0600 Series
Type
Stainless Steel Inter-Lok Angle Frame Mirror
Frame
3⁄4″ x 5⁄8″ (19 x 16 mm) roll formed 18 gauge type 304 stainless steel angle
Frame Finish
Uniform satin finish
Construction
Type 304 stainless steel
Mounting
Surface Mounted
Reflective Surface Options
Plate Glass, Tempered Glass, and Stainless Steel Type 304 with #8 Finish
Back Plate
One piece, attached to frame with theft-resistant locking device
Reflective Surface Options
Plate Glass
#1 quality polished plate glass with silver coating and protective copper plating. Image quality: BEST.
Tempered Glass
1/4″ (6.4 mm) polished tempered glass with silver coating. Image quality: BETTER.
Stainless Steel with #8 Finish
Type 304 stainless steel polished to a #8 mirror finish. Image quality: FAIR.
Reflective quality may vary by surface type, and the likelihood of distortion increases as reflective surface size increases.
Finishes
- Frame: Type 304 Stainless Steel - Satin Finish
- Reflective Surface: Plate Glass
- Reflective Surface: Tempered Glass
- Reflective Surface: Type 304 Stainless Steel with #8 Finish
Installation
Install bracket level and plumb as per diagram location using #10 self-threading screws (by others).
Hang mirror on bracket and tighten locking screws at top and bottom.
For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards, bottom edge of reflecting surface should be no higher than 40″ [1016] Above Finished Floor.
Related Items

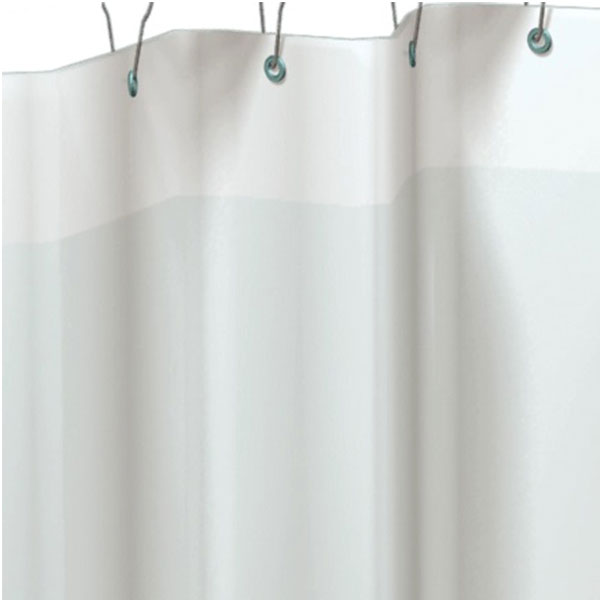

ASI - 1200-V Shower Curtain – 10 ga. White Vinyl, Various Widths
