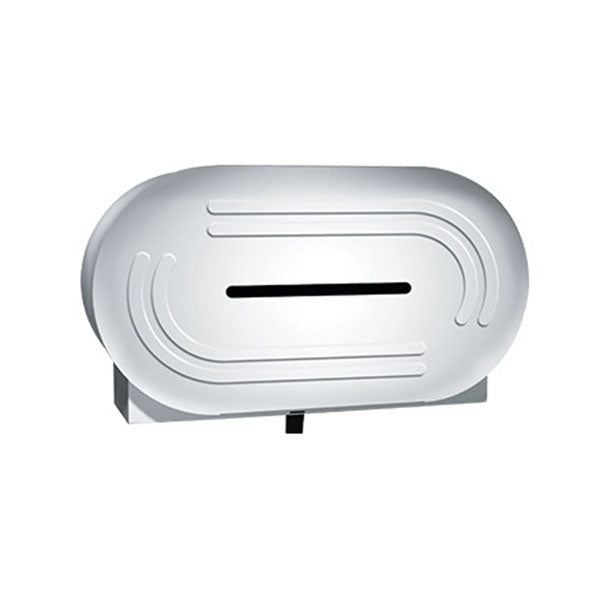

ASI - 0039 Low Profile 9″ Jumbo Roll Toilet Tissue Dispenser – Surface Mounted

• Dispenses 250 single or half-fold seat covers
• Fabricated of 22 gauge type 304 stainless steel with satin finish
• Heavy-duty 3/16″ Dia. [Ø4.8] stainless steel multi-staked piano hinged door
• Door includes tumbler lock
• Type 304 Stainless Steel - Satin Finish
• Surface Mounted

Model
0477-SM

Type
Toilet Seat Cover Dispenser – Surface Mounted

Dimensions
15-3/4” x 11” x 1-7/8” (400 x 279 x 48 mm)

Construction
Type 304 Stainless Steel - Satin Finish

Cabinet
22 gauge

Mounting
Surface Mounted

Capacity
Dispenses 250 standard single or half-fold paper toilet seat covers

• Type 304 Stainless Steel - Satin Finish

Covers are self-feeding until supply is depleted. Unit is manually reloaded with a full box through concealed opening in bottom on schedule determined by maintenance requirements.

Unit is surface mounted on wall or partition using two (2) #10 x 1-1/2″ [Ø5 x 40] self-threading screws (by others).

Mounting holes are hidden behind dispenser box for vandal resistant locking but clearly accessible through dispenser slot for installation hanging.

For compliance with 2010 ADA Accessibility Standards, unit should be installed so that dispenser slot is 54″ [1372] maximum above finished floor (AFF) if clear floor side reach access is provided or 48″ [1219] maximum AFF if clear floor forward reach access only is provided or 46″ [1168] maximum AFF if side reach over an obstruction only is provided (ie: vanity).

• Product Care & Maintenance
• Technical Data Sheet – 0477-SM

• Straight Grab Bar
• Snap Flange – cover snaps over mounting flange to conceal screws
• Type 304 Stainless Steel - Satin Finish
• Peened for better gripping
• Surface Mounted
• Concealed mounting flange of 3-1/8″ (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples
• Mounting flange is 1/8″ (3 mm) thick, type 304 stainless steel
• Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3/16″ (81 mm) diameter

• 18″ (457 mm) – 10-3801-18P
• 36″ (914 mm) – 10-3801-36P
• 42″ (1067 mm) – 3801-42P

Series
3801 Series

Type
Straight Grab Bar – Peened

Dimensions
1-1⁄4″ (32 mm) O.D.

Construction
Type 304 Stainless Steel - Satin Finish

Surface
Peened

Mounting
Surface Mounted

Mounting Flange
Concealed mounting flange of 3-1/8″ (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ (3 mm) thick, type 304 stainless steel.

Cover
Type 304 stainless steel with a satin finish and 22 gauge, 3-3/16″ (81 mm) diameter.

ASI grab bars are designed to meet and exceed 2010 ADA Accessibility Standards and ANSI A117.1. The fabricated product is designed to support a load in excess of 250 pounds (113.4 kg). Proper wall mounting, anchoring and an adequately sized fastener system are required to meet the specified loading requirements.

• Peened

Use the grab bar as a template to locate and pre-drill the mounting holes. Install each flange with two appropriate #10 self-threading flat or oval head screws or another fastener system suitable for the wall conditions.

Appropriate anchoring and backing must be provided in accordance with applicable building requirements or the architect's plans before the wall is finished.

For 2010 ADA Accessibility Standards, the top of the grab bar should be installed between 33″ [840] minimum and 36″ [915] maximum Above Finished Floor (AFF).

ASI anchors are available separately and should be specified according to the grab bar and mounting conditions.

• Product Care & Maintenance
• Grab Bar Configurations
• Technical Data Sheet – 10-3801-18P
• Technical Data Sheet – 10-3801-36P
• Technical Data Sheet – 10-3801-42P

• "Hide-A-Roll" dispenser holds two rolls
• Holds two rolls up to 5 1/4″ (133 mm) diameter
• 1800 sheet capacity
• Top roll automatically drops in place when bottom roll is used up
• Theft resistant spindles
• Tumbler lock
• Type 304 Stainless Steel - Satin Finish
• Surface Mounted

Model
0030

Type
Toilet Tissue Dispenser, Twin Hide-A-Roll

Dimensions
6″ x 12″ x 6 1/2″ (152 x 305 x 165 mm)

Construction
Type 304 Stainless Steel - Satin Finish

Door
18 gauge Type 304 stainless steel

Cabinet Body & Dispensing Mechanism
22 gauge Type 304 stainless steel

Mounting
Surface Mounted

Capacity
Holds two rolls up to 5 1/4″ (133 mm) diameter (1800 sheets)

• Type 304 Stainless Steel - Satin Finish

Reloading instructions are printed on graphic label inside door.

Bottom roll is depleted prior to top roll automatically dropping into lower position for use.

Empty rollers cannot be removed without key unlocking door.

Unit is surface mounted on wall or partition using four (4) 1/4″ x 1″ [M6 x 25] Philips pan-head self-threading screws (by others) through slots on rear wall into suitable wall preparation (by others).

Top two (2) mounting holes through back are "keyhole" slots for ease in hanging unit on pre-installed screws. Bottom two (2) mounting holes are horizontal slots for ease of adjustment.

For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards install unit with axis of bottom roller 15″ [381] min AFF (Above Finished Floor) to 48″ [1219] max AFF and centerline of dispenser shall be 7″ [178] min to 9″ [229] max. in front of toilet.

• Product Care & Maintenance
• Technical Data Sheet – 0030

• Double Hook
• Type 304 Stainless Steel - Satin Finish
• Surface Mounted
• 4″ (102 mm) wide stainless steel bar forms hook at each end
• Hook is suitable for robes or clothing and small carry bags

Model
7345-S

Type
Robe Hook (Double)

Dimensions
4″ x 2″ x 2″ (102 x 51 x 51 mm)

Construction
Type 304 Stainless Steel - Satin Finish

Mounting
Surface Mounted

• 7345-B – Bright Finish
• 7345-S – Satin Finish

Hook is suitable for a robe or clothing and small carry bags.

Surface mount unit on door back or wall using two (2) #10 self-threading screws (by others) through holes provided in mounting plate into suitable prepared mountings (by others) or other suitable mounting hardware (by others) to suit door or wall conditions. Hang post and flange assembly on mounting plate and tighten set screw to lock unit to plate.

For compliance with ICC/ANSI A-117.1-2003 and 2010 ADA Accessibility Standards, install unit with top of hook 48″ [1219] maximum Above Finished Floor (AFF) or 46″ [1168] max AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10″ [254] and less than 25″ [635] is only provided or 44″ [1118] max AFF if forward reach over an obstruction with reach depth greater than 20″ [508] and less than 25″ [635] is only provided.

For general utility, install hook with centerline of mounting plate 68″ [1727] AFF.

• Product Care & Maintenance
• Technical Data Sheet – 7345-S
• Technical Data Sheet – 7345-B
