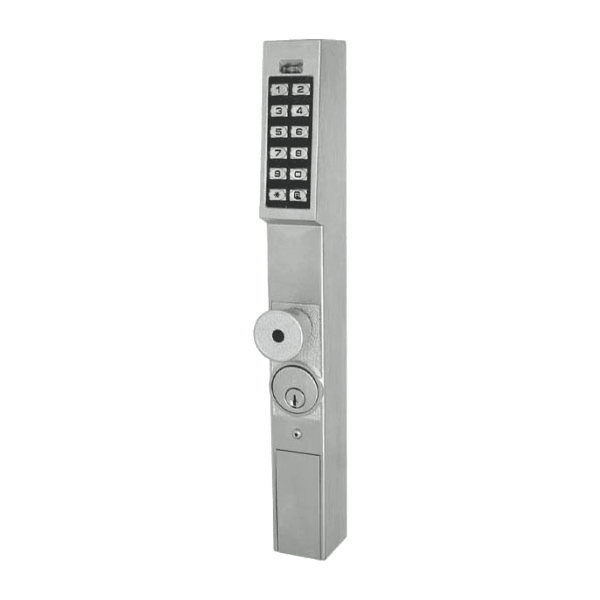

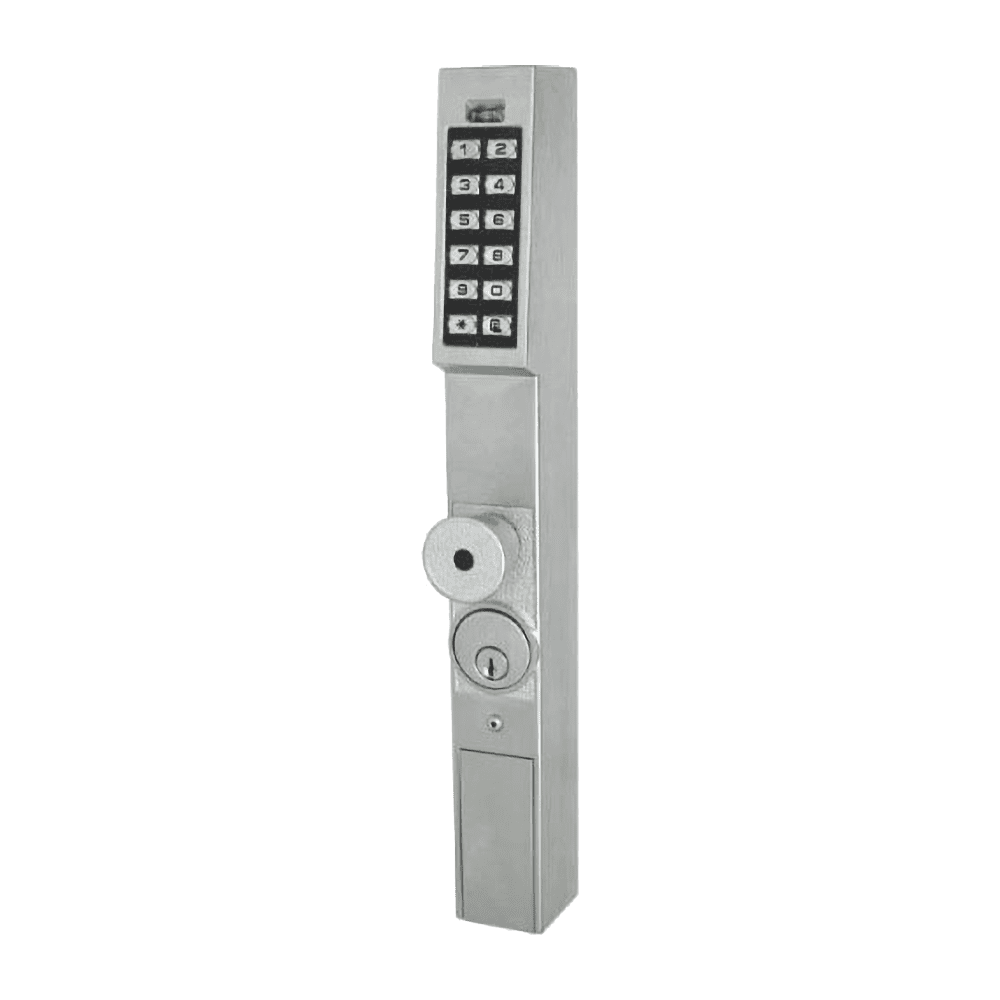

Alarm Lock / DL1200 Narrow Stile Pin Locks /Pushbutton Aluminum Door Trim, 100 Users, Knob, Satin Chrome
$641.00
Product Specs
-
Vendor–
-
ManufacturerAlarm Lock
-
SKUDL1250/26D2
-
UIDALA100DL125026D2
-
System ID104834894
-
GradeGrade 1
-
Unit of MeasureEach
-
InstallationCommercial
-
Base MaterialBrass or Bronze
-
Limited Warranty2 Years
Finish
-
Finish
-
Finish DescriptionSatin Chrome
-
Finish FamilyMatte Silver
Technical Specs
-
Door Thickness1-3/4"
-
Cylinder TypeMortise Cylinder
-
Series NameTrilogy
-
Reader TechnologyKeypad Only
-
Keypad TypeElectronic
-
ProgrammerOptional
-
SoftwareOptional
-
# Users100
-
Lock PlatformNarrow Stile Mortise Keypad Trim
Dimensions
-
Pack Qty1
-
Pack Height2.25"
-
Ship Weight6.5 lbs.
-
Pack Length17.5"
-
Pack Width9.875"
-
Pack Volume388.828125 in³
DL1200 Narrow Stile Pin Locks
Pushbutton aluminum door trim retrofit glass doors with latch locks.
Trilogy Narrow Stile lever models designed to work with Adams Rite® latch series; Thumbturn models support swing & hook bolt products. Plus, PC-programmable 1300 Series models provide audit trail log of keyless entry door users.
- Add keyless convenience to mechanical latch locks from Trilogy’s allmetal, vandal-resistant 12-button keypad and/or automatic timedscheduled locking/unlocking and audit trail with 1300 Series •
- Aluminum door retrofit outside trim for Adams Rite® 1850, 1950, 4710, 4070*, 4730, 4900 Series and MS1850S* and MS1950S* Series latch locks
- DL1200 supports 100 3-5 digit PIN user codes, fingertip programmable
- DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
- Weatherproof -31˚ to +151˚F (-35˚ to +66˚C) • Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert
- Compact styling 14-3/8”H x 1-5/8”D x 1-3/4”W
- Key override mortise cylinder, 1-1/4” supplied. (Supports 1-1/8”, 1-1/4” and 1-3/8”). Also interchangeable cores supported (Corbin/ Russwin, Yale, Schlage, Medeco.)
- Backsets 31/32”,1-1/8” and 1-1/2”; Stile thickness 1-3/4”
- Non-handed; fully field-reversible
- Two finishes US26D satin & 10B Durondic
-
Related Items
PDQ Cylindrical Lock - SD126 Passage
$70.00
PDQ SD series grade 2 lever set for commercial doors features unique through bolt installation for added security and durability and is UL listed A label for single swing doors.
The SD126 is a Passage function lock, where the latch bolt is operated by the lever from either side at all times. There is no locking function.
- Non keyed
- Latch bolt operated by lever from either side at all times
We also offer the SD Series Cylindrical Lock in several other functions - Entrance/Office, Privacy, and Storeroom. Compare Functions.
Features
- Listed by UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”.
- Certified to ANSI/BHMA A156.2–1996, Series 4000, Grade 2.
- Assembled in USA, meeting the requirements of the Buy American Act
- Lifetime Manufacturer's Limited Warranty
Specs
- FOR DOORS: 1-3/8" to 1-3/4" thick.
- DOOR PREP: Fits standard 161 door prep (2 1/8" hole x 2 3/4" backset). Through-door through-bolting. Through-bolts removable if desired.
- BACKSET: 2-3/4" is standard.
- FRONT: 2-1/4" x 1-1/8" for 2-3/4" backset. Stainless steel or wrought brass.
- STRIKE: 4-7/8" x 1-1/4" (ASA).
- LATCHBOLT: 1/2" throw. Adjustable front for flat or beveled doors.
- HAND: Non-handed.
- TRIM: Zinc diecast levers/wrought brass rose.
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging
Recommended for Experienced or Professional Installers.
PDQ Cylindrical Lock - SD176 Privacy
$80.00
PDQ SD series grade 2 lever set for commercial doors features unique through bolt installation for added security and durability and is UL listed A label for single swing doors.
The SD176 is a Privacy function lock which features push-button locking. The lock can be opened from the outside with an emergency release. The inside push button can be released by turning the inside lever.
- Non keyed
- Latch bolt operated by lever from either side or emergency release in outside lever
- Outside lever locked by push button on inside
- Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door
We also offer the SD Series Cylindrical Lock in several other functions - Entrance/Office, Storeroom and Passage. Compare Functions.
Features
- Listed by UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”.
- Certified to ANSI/BHMA A156.2–1996, Series 4000, Grade 2.
- Assembled in USA, meeting the requirements of the Buy American Act
- Lifetime Manufacturer's Limited Warranty
- Cylinder(s) included
Specs
- FOR DOORS: 1-3/8" to 1-3/4" thick.
- DOOR PREP: Fits standard 161 door prep (2 1/8" hole x 2 3/4" backset). Through-door through-bolting. Through-bolts removable if desired.
- BACKSET: 2-3/4" is standard.
- FRONT: 2-1/4" x 1-1/8" for 2-3/4" backset. Stainless steel or wrought brass.
- STRIKE: 4-7/8" x 1-1/4" (ASA).
- LATCHBOLT: 1/2" throw. Adjustable front for flat or beveled doors.
- HAND: Non-handed.
- TRIM: Zinc diecast levers/wrought brass rose.
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging
Recommended for Experienced or Professional Installers.
PDQ Cylindrical Lock - SD115 Storeroom
$85.00
PDQ SD series grade 2 lever set for commercial doors features unique through bolt installation for added security and durability and is UL listed A label for single swing doors.
The SD115 is a Storeroom function lock, where the latch bolt is operated by a key outside and the lever from the inside. The outside lever is rigid.
- Latch bolt operated from outside by key, inside by lever
- Outside lever always fixed
- Inside lever always free
- Deadlocking (guarded) latch bolt all times
We also offer the SD Series Cylindrical Lock in several other functions - Entrance/Office, Privacy, and Passage. Compare Functions.
Features
- Listed by UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”.
- Certified to ANSI/BHMA A156.2–1996, Series 4000, Grade 2.
- Assembled in USA, meeting the requirements of the Buy American Act
- Lifetime Manufacturer's Limited Warranty
- Cylinder(s) included
Specs
- FOR DOORS: 1-3/8" to 1-3/4" thick.
- DOOR PREP: Fits standard 161 door prep (2 1/8" hole x 2 3/4" backset). Through-door through-bolting. Through-bolts removable if desired.
- BACKSET: 2-3/4" is standard.
- FRONT: 2-1/4" x 1-1/8" for 2-3/4" backset. Stainless steel or wrought brass.
- STRIKE: 4-7/8" x 1-1/4" (ASA).
- LATCHBOLT: 1/2" throw. Adjustable front for flat or beveled doors.
- HAND: Non-handed.
- TRIM: Zinc diecast levers/wrought brass rose.
- KEYS: Two change keys per lock.
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging
Recommended for Experienced or Professional Installers.
PDQ Cylindrical Lock - SD116 Entrance/Office
$85.00
PDQ SD series grade 2 lever set for commercial doors features unique through bolt installation for added security and durability and is UL listed A label for single swing doors.
The SD116 is an Entrance/Office function lock, where the door is unlocked by a key from the outside when the outer lever is locked by a turn-button on the inside lever. The inside lever is always unlocked.
- Latch bolt operated by lever from either side or key in outside lever
- Outside lever locked by push/turn button on inside
- When outside lever is locked by push button on inside – key from outside,
or rotating inside lever unlocks outside lever - When outside lever is locked by pushing and turning the button on the inside,
key from outside or rotating inside lever retracts latch but does not unlock outside lever - Deadlocking (guarded) latch bolt
We also offer the SD Series Cylindrical Lock in several other functions - Privacy, Storeroom,and Passage. Compare Functions.
Features
- Listed by UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”.
- Certified to ANSI/BHMA A156.2–1996, Series 4000, Grade 2.
- Assembled in USA, meeting the requirements of the Buy American Act
- Lifetime Manufacturer's Limited Warranty
- Cylinder included
Specs
- FOR DOORS: 1-3/8" to 1-3/4" thick.
- DOOR PREP: Fits standard 161 door prep (2 1/8" hole x 2 3/4" backset). Through-door through-bolting. Through-bolts removable if desired.
- BACKSET: 2-3/4" is standard.
- FRONT: 2-1/4" x 1-1/8" for 2-3/4" backset. Stainless steel or wrought brass.
- STRIKE: 4-7/8" x 1-1/4" (ASA).
- LATCHBOLT: 1/2" throw. Adjustable front for flat or beveled doors.
- HAND: Non-handed.
- TRIM: Zinc diecast levers/wrought brass rose.
- KEYS: Two change keys per lock.
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging
Recommended for Experienced or Professional Installers.
