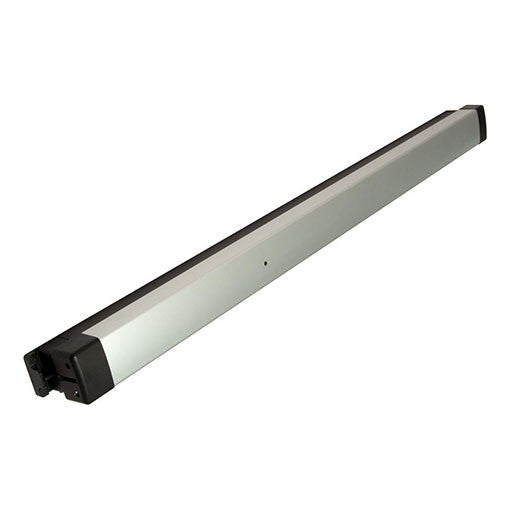

Adams Rite 8800 Rim Exit Device for 48" Glass Doors

Adams Rite Rim Exit Device for narrow stile glass doors.

Features

  • Patented “Starwheel” bolt interlocks door to frame
  • Strong, durable construction for a high level of security
  • Easy to install
  • Unobtrusive design for clean sight lines
  • Pushbar clad or anodized, not plated

Specs

  • UL 305 Panic Hardware
  • ANSI/BHMA A156.3 Grade 1
  • Standard width bars can be field cut to the next smallest opening width
  • Door thickness: Suits 1-3/4-inches standard, up to 2-1/4-inches
  • Stile Width: Minimum 2-inch Stile. Fits Narrow, Medium and Wide Stile aluminum doors
  • Projection: 2-5/8-inches when fully projected, 1-5/8-inches when dogged
  • Materials: Pushbar made of extruded aluminum
  • Dogging: Standard dogging with hex key
  • Fasteners: Standard self-tapping screws
  • California State Fire Marshall
  • New York City MEA

Finishes

 Satin Aluminum 628/US28

 Bronze 695/SP313

Installation Challenge Level

 Easy
Anyone who can read instructions and use basic tools can install this product.
