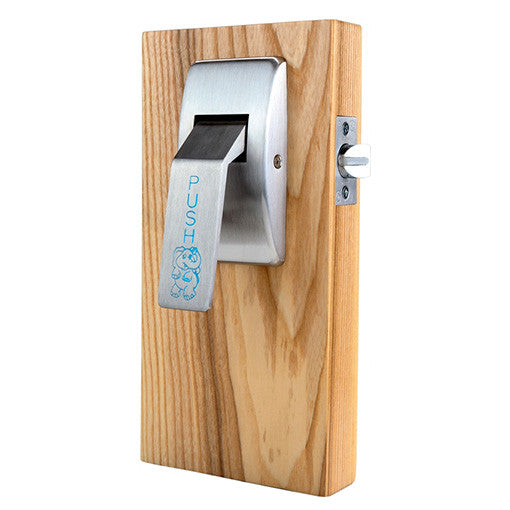

ABH LR6000Q Ligature Resistant Quiet Hospital Push Pull Latch

The ABH LR6000Q Ligature Resistant Hospital Push Pull Latch is a new ligature-resistant design which provides a quiet latch for increased patient satisfaction, and a sleek look as well as functionality not commonly found in push/pull trim.

This ABH Mfg. product is similar to products from Sargent and Corbin Russwin. See the Cross Reference Chart in the ABH Catalog (under Downloads, below) for more information.

This item normally ships out within 2 weeks.

  • New ligature-resistant design provides a sleek look as well as functionality not commonly found in push/pull trim
  • Quiet Latch for increased patient satisfaction!
  • Cylindrical latch application - passage function
  • 1-3/4" standard door thickness
  • Meets ADA requirements
  • Trim is mounted using four thru-bolts for maximum stability
  • One continuous spring provides a smoother operation and an extended life for the unit

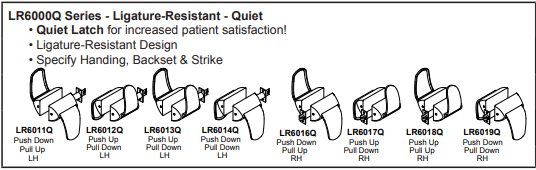

  • Non-handed
  • Trim can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
  • Handles can be mounted up or down by simply rotating trim 180°
  • UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
  • 1/2" Latch Bolt Throw
  • Patent# 7,258,374 & Additional Patents Pending

US32D Satin Stainless Steel

US10 Satin Bronze

US10B Dark Bronze

US26D Satin Chrome Plated

US4 Satin Brass

US26 Bright Chrome Plated

US3 Bright Brass

US32 Bright Stainless Steel

CALL FOR PRICING

  • All Stainless Steel Components
  • Security fasteners for all exposed screws
  • Lead provided to cover cut-outs made in lead-lined doors
  • Anti-microbial clear coating applied to handles and covers
  • Special Door Thickness
  • Exit Only
  • Engraved Handles "PUSH" or "PULL"

Installation Challenge Level

  Challenging
Recommended for Experienced Installers.
