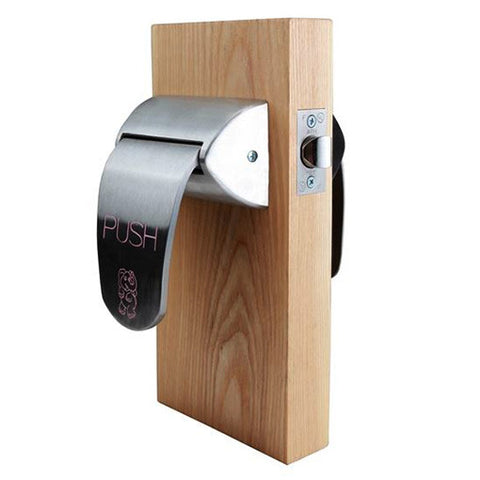

The ABH LR6000 Ligature Resistant Hospital Push Pull Latch is a new ligature-resistant design which provides a sleek look as well as functionality not commonly found in push/pull trim.
This ABH Mfg. product is similar to products from Sargent and Corbin Russwin. See the Cross Reference Chart in the ABH Catalog (under Downloads, below) for more information.
This item normally ships out within 2 weeks.
New ligature-resistant design provides a sleek look as well as functionality not commonly found in push/pull trim
Cylindrical latch application - passage function
1-3/4" standard door thickness
Meets ADA requirements
Trim is mounted using four thru-bolts for maximum stability
One continuous spring provides a smoother operation and an extended life for the unit
Non-handed
Trim can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
Handles can be mounted up or down by simply rotating trim 180°
UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
1/2" Latch Bolt Throw
Patent# 7,258,374 & Additional Patents Pending
US32D Satin Stainless Steel
US10 Satin Bronze
US10B Dark Bronze
US26D Satin Chrome Plated
US4 Satin Brass
US26 Bright Chrome Plated
US3 Bright Brass
US32 Bright Stainless Steel
CALL FOR PRICING
All Stainless Steel Components
Security fasteners for all exposed screws
Lead provided to cover cut-outs made in lead-lined doors
Anti-microbial clear coating applied to handles and covers
The ABH LR6000Q Ligature Resistant Hospital Push Pull Latch is a new ligature-resistant design which provides a quiet latch for increased patient satisfaction, and a sleek look as well as functionality not commonly found in push/pull trim.
This ABH Mfg. product is similar to products from Sargent and Corbin Russwin. See the Cross Reference Chart in the ABH Catalog (under Downloads, below) for more information.
This item normally ships out within 2 weeks.
New ligature-resistant design provides a sleek look as well as functionality not commonly found in push/pull trim
Quiet Latch for increased patient satisfaction!
Cylindrical latch application - passage function
1-3/4" standard door thickness
Meets ADA requirements
Trim is mounted using four thru-bolts for maximum stability
One continuous spring provides a smoother operation and an extended life for the unit
Non-handed
Trim can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
Handles can be mounted up or down by simply rotating trim 180°
UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
1/2" Latch Bolt Throw
Patent# 7,258,374 & Additional Patents Pending
US32D Satin Stainless Steel
US10 Satin Bronze
US10B Dark Bronze
US26D Satin Chrome Plated
US4 Satin Brass
US26 Bright Chrome Plated
US3 Bright Brass
US32 Bright Stainless Steel
CALL FOR PRICING
All Stainless Steel Components
Security fasteners for all exposed screws
Lead provided to cover cut-outs made in lead-lined doors
Anti-microbial clear coating applied to handles and covers
