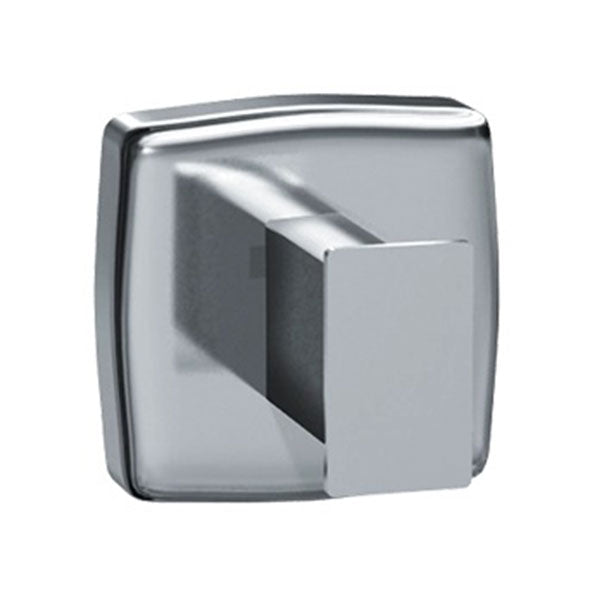

7340-S Robe Hook (Single) – Surface Mounted, Satin Finish
CALL FOR PRICING
7340-S Robe Hook (Single) – Surface Mounted, Satin Finish
Hook extends 2″ (51 mm) from wall and is suitable for a robe or clothing and small carry bags. Fabricated from stainless steel, satin finish.
Features
- Single Hook
- Type 304 Stainless Steel - Satin Finish
- Surface Mounted
- Hook extends 2" [51] from wall
- Hook is suitable for a robe or clothing and small carry bags
Specifications
Model
7340-S
Type
Robe Hook (Single)
Dimensions
2" [51] W x 2" [51] H x 2" [51] D
Construction
Type 304 Stainless Steel - Satin Finish
Mounting
Surface Mounted
Finishes

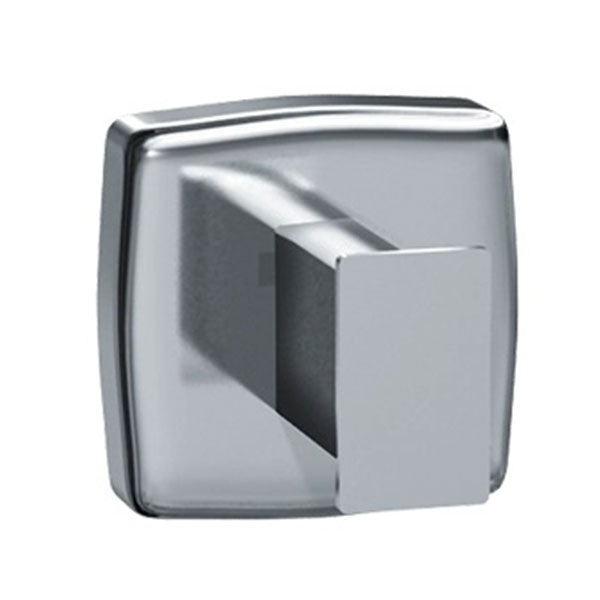

- 7340-B – Bright Finish
- 7340-S – Satin Finish
Operation and Maintenance
Hook is suitable for a robe or clothing and small carry bags.
Installation
Surface mount unit on door back or wall using two (2) #10 self-threading screws (by others) through holes provided in mounting plate into suitable prepared mountings (by others) or other suitable mounting hardware (by others) to suit door or wall conditions.
Hang post and flange assembly on mounting plate and tighten set screw to lock unit to plate.
For compliance with ICC/ANSI A-117.1-2003 and 2010 ADA Accessibility Standards, install unit with top of hook 48" [1219] maximum Above Finished Floor (AFF) or 46" [1168] max AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10" [254] and less than 25" [635] is only provided or 44" [1118] max AFF if forward reach over an obstruction with reach depth greater than 20" [508] and less than 25" [635] is only provided.
For general utility, install hook with centerline of mounting plate 68" [1727] AFF.
Related Items
3801 Series Straight Grab Bar
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
3801 Series Straight Grab Bar
Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1/8″ (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ (3 mm) thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3/16″ (81 mm) diameter.
Snap Flange (1-1/2″ O.D) Smooth – Straight Grab Bar
Features
- Straight Grab Bar
- Snap Flange - cover snaps over mounting flange to conceal screws
- Type 304 Stainless Steel - Satin Finish
- Surface Mounted
- 18 gauge tubing with 1-1/2" Outside Diameter [Ø38]
- Concealed mounting flange of 3-1/8" [79] O.D. with 2 screw holes and 3 locking dimples
- Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3/16" [81] diameter
Specifications
Type
Straight Grab Bar
Material
Type 304 Stainless Steel
Construction
18 gauge tubing with 1-1/2" Outside Diameter [Ø38]
Mounting
Surface Mounted
Mounting Flange
3-1/8" [79] O.D. with 2 screw holes and 3 locking dimples
Mounting Capacity
ASI grab bars are designed to meet and exceed 2010 ADA Accessibility Standards and ANSI A117.1 that fabricated product shall be of adequate strength to support a load in excess of 250 pounds (113.4 kg). Mounting to the wall is a critical part of the system to meet this requirement. The fastener system must be adequately sized to withstand the shear, tension or pullout, and torsion loads generated by the maximum loading.
Available Sizes
- 42" / 10-3801-42
- 36" / 10-3801-36
- 18" / 10-3801-18
Finishes
Stainless Steel
Satin finish, unless otherwise noted.
Operation and Maintenance
Stainless Steel washroom accessory products require regular surface cleaning, much the same as stainless steel sinks, pots and pans and eating utensils.
As long as a regular cleaning schedule is followed, the best method is cleaning with a soft clean rag moistened with a mild detergent, followed by a water-moistened clean rag and then a dry rag.
For a “new" look, surfaces can be wiped with lemon oil applied by a soft polishing cloth to maintain sheen.
Stainless Steel should be protected against muriatic acid and caustic or abrasive materials, and harsh cleaning detergents [with pH outside the range 7 ± 1.5].
In the event such agents cause discoloration, polishing with a stainless steel cleaner such as 3M™ Stainless Steel Cleaner & Polish® and a soft cloth on bright or mirror finishes, or for satin finish surfaces the Stainless Steel cleaner and 3M™ Scotch Brite® pad either blue (less aggressive) or green (more aggressive) is recommended.
Installation
Use grab bar as template to mark mounting holes locations and pre-drill holes. Install bar using two (2) #10 selfthreading flat head or oval head screws (by others) or other fastener system (by others) to suit conditions for each flange.
Appropriate anchoring and backing must be provided in accordance with local building codes or as specified on Architects Plans prior to wall finishing.
For compliance with 2010 ADA Accessibility Standards install unit so that the top of the grab bar is 33" [840] minimum Above Finished Floor (AFF) to 36" [915] maximum AFF.
Anchors are available from ASI and must be specified separately for each grab bar style scheduled (see 3900 series).
