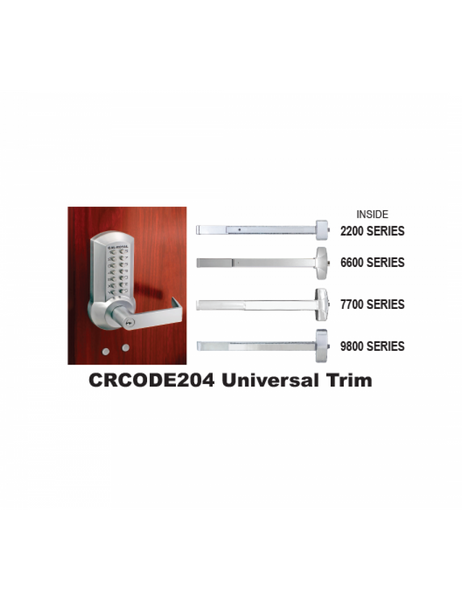

Cal-Royal Mechanical Easy Code Change Trim only

Alarm Lock DL2700 Access Control Digital Lock

$392.70

The DL2700 electronic digital lock leverset is programmable through the keypad for 100 user entry codes for secure keyless entry. Cylindrical lock mechanism has a fixed 6-pin key cylinder with SC1 keyway for key override. For installation on exterior and interior doors, and rated for temperatures from -31 to +151 degrees F (-35 to +66 degrees C). Lever handle is reversible for right- or left-hand operation. Stainless steel trim with satin chrome finish resists corrosion.

Features

• In an hour, add a dependable wireless access control keyless door lock, one door at a time—easily retrofit standard knobsets
• Support 100 PIN codes (3-5 or 6 digits)
• Multi-level user codes & one-time service codes. Free passage, group- or total lock-out modes, too on Trilogy security locks
• All keyless entry door locks are fingertip programmable at vandalproof all-metal keypad
• Long-life battery operation,  low battery alert
• Key override on all Trilogy electronic locks, standard core (supplied) or interchangeable core prep
• Non-handed cylindrical models
• Programmable relay functions
• Durable BHMA Grade 1 Lockset
• Weatherproof models -31˚ to +151˚F (-35˚ to +66˚C). Rugged electronic door lock

Specs

• More codes: up to 100 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
• 5AA battery operated; 175,000 cycles, typ.
• For outdoors, specify WP weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)

Finishes

 Satin Chrome 626/US26D

Installation Challenge Level

  Challenging
Recommended for Experienced Installers, but not rocket science.

Instructions & Templates

• Installation Instructions (PDF)
• Programming Instructions (PDF)

View full product details »

Simplex Mechanical Pushbutton Lock 1000 Series - Knob

$550.00

The Simplex 1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with knob option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Features

• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door

Specs

• Construction: Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed for left-hand doors; easily field reversible
• Backset: 2¾" (70 mm), 2⅜" (60 mm)
• Latch: ½" (13 mm) throw latch, ¾"
• Minimum Stile Recommended: 5" (127 mm)
• Strike: Standard strike plate; ASA strike plate
• Schlage core
• Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through bore holes required.
• Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm)
• Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty

Finishes

 Satin Chrome 626/US26D

Installation Challenge Level

  Challenging
Recommended for Experienced Installers, but not rocket science.

Instructions & Templates

• Installation Instructions (PDF)
• Manufacturer's Website Content

View full product details »

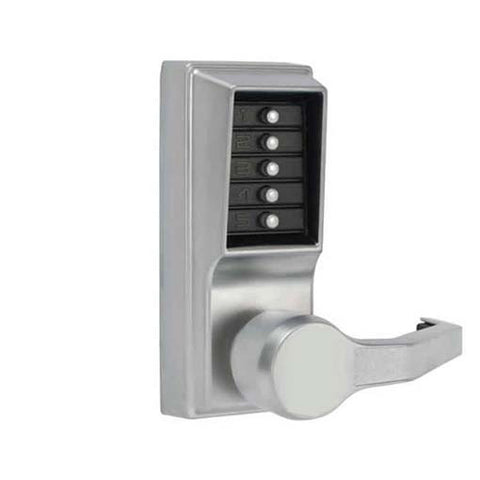

Simplex Mechanical Pushbutton Lock L1000 Series - Lever

$462.00

The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Features

• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed , handing required when ordering.

Specs

• Construction: Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed for left-hand doors; not field reversible.
• Backset: 2¾" (70 mm), 2⅜" (60 mm)
• Latch: ½" (13 mm) throw latch, ¾"
• Minimum Stile Recommended: 5" (127 mm)
• Strike: Standard strike plate; ASA strike plate
• Key Override: Schlage core
• Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through bore holes required.
• Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm)
• Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty

Finishes

 Satin Chrome 626/US26D

Installation Challenge Level

  Challenging
Recommended for Experienced Installers, but not rocket science.

Instructions & Templates

• Installation Instructions (PDF)
• Manufacturer's Website Content

View full product details »

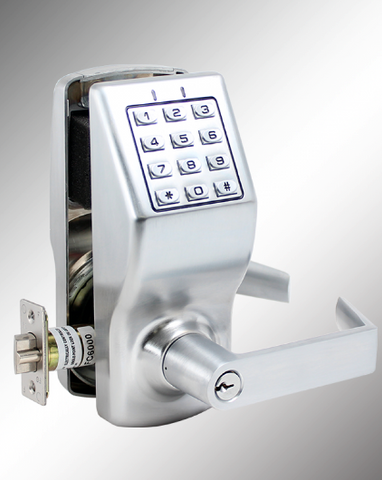

Cal-Royal CR3000 Series

$396.37

Grade 1 Heavy Duty Digital Keypad Door Lock

For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial, and Public Buildings

• Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, GRADE 1
• Easy Installation & Programming
• Long-Life Battery Operation
• 2 Remote Switch Terminals
• Interchangeable Core
• Master Code
• 10 Manager Codes
• 1 Sub-Master Code
• 90 User Codes
• 5 Service Codes
• Passage Mode
• Weather Resistant
• Buzzer & Led Indicators
• Anti-Tamper Lockout
• Clutch Technology
• Non-Handed, Reversible
• Enable & Disable Users Mode
• Tactile Metal Keypad
• User Friendly

• Master Code – performs all programming functions.
• Sub-Master Code – performs all programming functions except delete or change Master Code.
• Manager Codes – CR3000 can accommodate 10 Managers each having different codes and under each Manager has 9 Users (1 Manager + 9 Users = 1 Bank). Managers are capable of programming / adding and deleting User codes under his Bank. Managers are also capable of accessing the next higher bank until another Manager Code appears.
• Service Codes (5) – are one-time codes only. It cannot be used again. Once a Service Code is entered, the unit will unlock but will automatically delete the code.
• Passage Mode – once enabled, the unit is unlocked continuously until “Disable Passage Mode” is initiated.
• Tones and LED Indicators – can be programmed for different settings. Making sure that every key pressed is confirmed by an accompanying LED and/or tone.
• Next Free Code Location Finder – no need of guessing what free location is available in entering a new code. CR3000 can pinpoint and tell you where the next available location is.
• Code Locator Function – CR3000 can tell you the exact location of a certain code. Making it easy to determine what manager a user code is under.
• Keypad Anti-Tamper Lockout – if an invalid code is entered 3 times in succession, the unit will turn off for 30 seconds to prevent tampering.
• Remote Switch Terminal / Release – CR3000 provides 2 Remote Switch Terminal. Either can be used for an emergency push button switch, or connected to alarm systems such as fire alarms.
• Weather Resistant – CR3000 are manufactured making sure that internal electronic parts are protected from moisture, dust, water, and corrosion. All models are weather-resistant for temperature ranges of +158°F to -22°F (+70°C to -30°C).
• Clutch Technology – the outside lever of the CR3000 is a free-wheeling lever. If no valid code is entered, the lever will just turn freely without moving any parts inside, thus preventing breaking or tampering.
• Non-Handed – CR3000 can be installed for both left and right door opening.

• APPLICATIONS For offices, schools, hospitals, apartments, hotel/motel, residential, commercial, and public buildings.
• DOOR RANGES 1 ⅜” to 2” thickness.
• BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾”, 5” and 2 ¾” anti-friction latch with ¾” throw for pair of fire doors optional.
• LATCH FACEPLATE Standard 2 ¼” x 1 ⅛” for 2 ¾” backset. Optional 2 ¼” x 1 ⅛” for 2 ⅜” backset.
• STRIKES ASA strike standard, “T” and full lip strike available on request.
• ANSI STANDARDS Meets or exceeds BHMA/ANSI A156.2 Series 4000 Grade 1 requirements.
• POWER SUPPLY 4 AA Batteries (comes standard in packing)
• CLUTCH Clutch technology allows turning of lever without retracting the latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.
• CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High-Security Cylinders.
• INTERCHANGEABLE CORE (IC) Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON, and ARROW. Prefix “IC” before part number.
• WEATHER RESISTANT All models are weather-resistant for temperature ranges of +158○F to -22○F (+70○C to -30○C).
• KEYPAD 12 programmable buttons for multi-level access functions including group or individual user codes, master and management codes, passage, and emergency or service codes.
• (IC) Indicates function available with BEST, FALCON & ARROW Interchangeable Core.

Installation Challenge Level

  Challenging
Recommended for Experienced Installers, but not rocket science.

View Catalog Page

View full product details »
