Products
Cal-Royal NM Series — Grade 1 Mortise Lock (SS / SE / WI Trim)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal NM Series — Grade 1 Mortise Lock
Cal-Royal NM Series Grade 1 mortise locks for commercial doors. Trim styles: SS (Sectional), SE (Escutcheon), WI (Wide Escutcheon). Common functions include NM8050 Office/Entrance, NM8453 Entrance w/ deadbolt, and NM8080 Storeroom. Standard 2-3/4″ backset; field-reversible handing.
-
VendorCal-Royal Products, Inc.
-
SeriesNM — Mortise Locks (Grade 1)
-
Trim StylesSS • SE • WI
-
Backset2-3/4″
-
HandingLH / RH (field-reversible)
-
Door Thickness1-3/4″ std (kits for 2″–2-1/4″ available)
-
Functions (examples)NM8050 • NM8453 • NM8080
-
ComplianceANSI/BHMA A156.13 Grade 1 • UL 3-hour
-
Strike4-7/8″ curved strike (non-handed)
- US26D — Satin Chrome
- US32D — Satin Stainless
- US10B — Oil-Rubbed Bronze
- US3 — Polished Brass
| Grade | A156.13 Grade 1 |
| Case | Heavy-gauge steel; armored front |
| Latch / DB | 3/4″ anti-friction latch; 1″ deadbolt (DB functions) |
| Keyways | Std 6-pin “C”; IC core options |
| Handing | Field-reversible |
| Common Functions | NM8050 Office • NM8453 Entrance+DB • NM8080 Storeroom |
Installation Difficulty

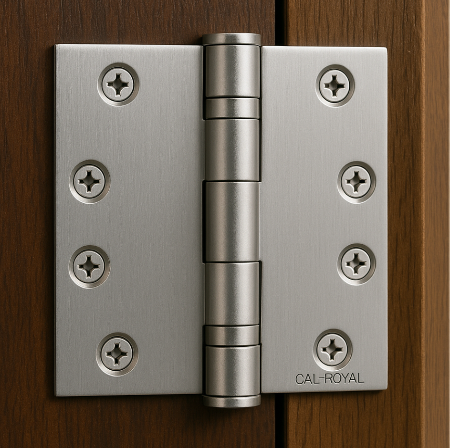

Cal-Royal TBH-30 — 4.5″ × 4.5″ Plain-Bearing Butt Hinge (Standard Weight)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal TBH-30 — 4.5″×4.5″ Standard-Weight Plain Bearing Hinge
The Cal-Royal TBH-30 (also cataloged as DBH30) is a 4-1/2″ × 4-1/2″ full-mortise, standard-weight plain-bearing butt hinge designed for standard-weight, low-frequency doors. Features a five-knuckle design, ANSI template screw pattern, and includes wood & machine screws. Optional NRP (non-removable pin) variants available for security applications.
Lead time: Most finishes stock quickly; contact us for large quantities or special finishes.
-
VendorCal-Royal Products
-
SeriesTBH / DBH — Plain Bearing Hinges
-
Size4.5″ × 4.5″ (square corner, 5-knuckle)
-
Leaf Thickness0.134″ (standard weight)
-
MaterialSteel (std) • Stainless (US32D)
-
BearingPlain bearing (no ball bearings)
-
Pin OptionsRemovable pin • NRP (Non-Removable Pin)
-
Fasteners#12 wood & 12-24 machine screws
-
ComplianceANSI/BHMA A156.1 • UL fire-rated
-
WarrantyLifetime mechanical • 3-yr finish
- US26D — Satin Chrome
- US10B — Oil-Rubbed Bronze
- US32D — Satin Stainless
Other finishes: USP, US3, US4, US10, US10A, US15, US15A, US26, DURO/Flat Black + NRP variants.
| Leaf Thickness | 0.134″ |
| Knuckles | 5 |
| Screw Holes | 8 — ANSI template |
| Use | Standard-weight doors • not for heavy closers |
Installation Difficulty
Level 2 — Easy: Basic tools; mortise if new install.
Don-Jo 87 — Protection Bar, 3-1/4″ × 8-3/4″, 7-ga Stainless, 630
$98.00
Don-Jo 87 — Protection Bar (Lever / Exit Device Guard)
Don-Jo 87 is a stainless-steel hardware protection bar that shields levers/exit devices from carts and gurneys. Made from 7-ga (.188) stainless, screw-mounted, finish 630 / US32D Satin Stainless. Typical size: 3-1/4″ × 8-3/4″.
Lead time: Generally stocked in 630 Satin Stainless.
Product Specs
Vendor
Don-Jo Manufacturing
Model
87 — Protection Bar
Material / Gauge
Stainless steel, 7-ga (.188)
Mounting
Screw mount (surface)
Use
Deflects carts away from levers/exit devices; wall or door mount
Nominal Size
3-1/4″ W × 8-3/4″ H
Finishes
- 630 / US32D — Satin Stainless
Manufacturer lists 630 as the finish for 87.
Technical Specs
Model
87 — Protection Bar
Material
Stainless steel
Gauge / Thickness
7-ga (.188)
Finish
630 / US32D Satin Stainless
Mounting
Screw mount (surface)
Nominal Size
3-1/4″ × 8-3/4″
Projection (ref.)
≈2″–3-1/4″ noted across reseller listings (verify for your application)
Videos
Manufacturer does not publish an 87-specific video; this clip shows comparable guard/protector use-cases.
Don-Jo CLP106 — Commercial Latch Protector (Outswing), 2-1/8″ × 6″, 12-ga Stainless, 630
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Don-Jo CLP106 — Commercial Latch Protector (Outswing)
Don-Jo CLP106 is a commercial latch protector for outswing doors, sized 2-1/8″ × 6″, made from 12-ga (.104) stainless steel with concealed welded studs and fasteners. Works with levers and exit devices; ideal for key-in-knob/lever preps. Standard finish: 630 / US32D Satin Stainless. :contentReference[oaicite:0]{index=0}
Lead time: Generally stocked in 630; verify before quoting.
- VendorDon-Jo Manufacturing
- ModelCLP106 (Commercial latch protector)
- Door SwingOutswing
- Size2-1/8″ W × 6″ H
- Material / GaugeStainless steel, 12-ga (.104)
- IncludesConcealed welded studs with fasteners
Specs per Don-Jo product page & spec sheet. :contentReference[oaicite:1]{index=1}
- 630 / US32D — Satin Stainless (CLP-106-630)
CLP106 is a stainless model; 630 is the published finish. Treat other colors as special-order only if factory confirms. :contentReference[oaicite:2]{index=2}
| Application | Works with levers & exit devices; covers strike area |
| Door Swing | Outswing |
| Dimensions | 2-1/8″ × 6″ |
| Gauge | 12-ga (.104) |
| Mounting | Concealed welded studs; supplied fasteners |
Installation Difficulty
Level 1 — Simple: Drill/bolt-through install.
Don-Jo LP-107 — Latch Protector (Outswing), 2-3/4″ × 7″, 12-ga Stainless, 630
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Don-Jo LP-107 — Latch Protector (Outswing)
Don-Jo LP-107 is a latch protector for outswing doors, sized 2-3/4″ × 7″, made from 12-ga (.104) stainless steel. Furnished with carriage bolts, washers & acorn cap nuts. Also offered with EBF fasteners as model LP-107-EBF. Works with key-in-knob/lever preps and exit devices.
Lead time: Generally stocked in 630 Satin Stainless; confirm before quoting.
Installation Difficulty
Level 1 — Simple: Drill/bolt-through install.
