Products

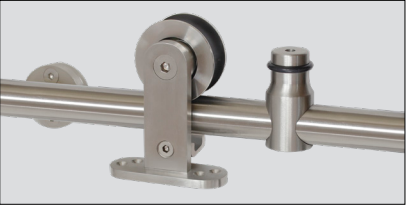

CAL-ROYAL SDH10 (Track w/ Regular Stop for Wood Doors, Top Mount Single Wheel)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal SDH10 is a stainless steel sliding door hardware set for wood doors with a top-mounted single-wheel roller and regular stop. Sets include sliding rod (track), two rollers, floor guide, and complete mounting screws. Rail length options: 6′ 6″ or 8′ 2″.
Lead time: Stocked by distributors; contact us for current availability.
Cal-Royal SDH10 — Top-Mount Single-Wheel Sliding Door Hardware (Regular Stop)
-
VendorCal-Royal Products, Inc.
-
SeriesSDH — Stainless Sliding Door Hardware
-
ModelSDH10 — Top-mount, single-wheel, regular stop
-
FinishUS32D Satin Stainless Steel
-
Door TypeWood doors (1-3/8″ to 1-3/4″)
-
Max Door Weight200 lb (90 kg)
-
Rail Lengths6′ 6″ (suffix 66) • 8′ 2″ (suffix 82)
-
Set IncludesSliding rod (track), 2 rollers, floor guide, mounting screws
- US32D — Satin Stainless (standard)
Other options via accessories: soft-close kits and soft-action stops (see Downloads/Accessories).
| Series / Model | SDH / SDH10 — Top-mount single-wheel, regular stop |
| Finish | US32D Satin Stainless Steel |
| Door Type | Wood doors (1-3/8″–1-3/4″) |
| Max Door Weight | 200 lb (90 kg) |
| Rail Lengths | 6′ 6″ or 8′ 2″ (order by suffix 66 or 82) |
| Included in Set | Sliding rod (track), 2 rollers, 1 floor guide, mounting screws |
Installation Difficulty
Level 2 — Easy: Straightforward rail/roller mounting; accurate layout & level required.

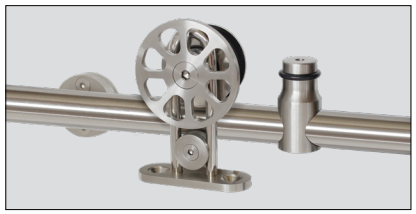

Cal-Royal SDH11 — Top-Mount Spoke-Wheel Sliding Hardware (Regular Stop)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal SDH11 is a stainless steel sliding door hardware kit for wood doors featuring a top-mounted spoke-wheel roller with regular stop. The set includes a sliding rod (track), spoke-wheel rollers, floor guide, and mounting screws. Available rail lengths: 6′ 6″ (suffix 66) and 8′ 2″ (suffix 82).
Lead time: Typically stocked; confirm current availability.
Cal-Royal SDH11 — Top-Mount Spoke-Wheel Sliding Hardware (Regular Stop) for Wood Doors
-
VendorCal-Royal Products, Inc.
-
SeriesSDH — Sliding Door Hardware
-
ModelSDH11 (Top-mount, Spoke-Wheel, Regular Stop)
-
Door TypeWood
-
Door Thickness1-3/8″ to 1-3/4″ (35–45 mm)
-
Max Door Weight200 lb (90 kg)
-
FinishUS32D — Satin Stainless Steel
-
Rail Lengths6′ 6″ (66) • 8′ 2″ (82)
-
Max Door Opening36″ (with 6′ 6″ rail) • 48″ (with 8′ 2″ rail)
-
IncludesSliding rod, 2 spoke-wheel rollers, floor guide, mounting screws
-
Optional StopsSoft Action Stops DS-2200 / DS-2300 (accessory)
-
Optional Soft-CloseSCS40 / SCS80 kits (Top-Mount for wood)
- US32D — Satin Stainless Steel (standard for SDH kits)
*Soft-Close (SCS) kits note additional stock finishes on some configurations; verify per order.
Configuration
-
Rail Length / Variant (with SKU): 6′ 6″ —
SDH1166• 8′ 2″ —SDH1182• Roller set less rail —SDH11LR -
Stops: Standard bumpers included; optional
DS-2200/DS-2300soft action stops -
Soft-Close upgrade:
SCS8016(SCS80) orSCS4016(SCS40) Top-mount kits for wood doors -
Floor guides (accessories):
SDH-FG-ADJ1adjustable guide;SDH-FG-ADJ8roller guide, etc.
| Material | 304 stainless steel |
| Finish | US32D Satin Stainless |
| Mount / Design | Top-mount, spoke-wheel roller |
| Door Type | Wood (interior) |
| Door Thickness | 1-3/8″ to 1-3/4″ |
| Max Door Weight | 200 lb (90 kg) |
| Sliding Rod Lengths | 6′ 6″ • 8′ 2″ |
| Max Door Opening | 36″ (6′ 6″ rail) • 48″ (8′ 2″ rail) |
| Set Contents | Rail, 2 rollers, floor guide, mounting screws |
| Options | Soft action stops DS-2200/2300; Soft-Close SCS kits |
Use case: Decorative/architectural interior wood doors requiring exposed top-mount spoke-wheel aesthetic with smooth travel and no floor track.
- Quiet ball-bearing rollers; clean stainless aesthetic
- Suffix “66” or “82” selects rail length
- Upgrade to soft-action stop or soft-close as needed
Note: Cal-Royal does not publish an SDH11-specific video; the above covers common accessories/soft-close concepts.
Installation Difficulty
Level 2 — Skilled DIY: Accurate rail layout & anchoring; standard carpentry tools.

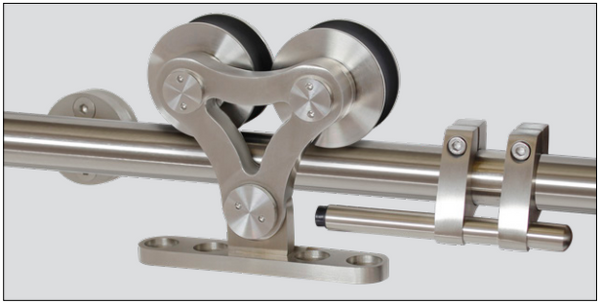

Cal-Royal SDH12 — Top-Mount Dual-Wheel Sliding Hardware (Regular Stop)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal SDH12 is a stainless steel sliding door hardware kit for wood doors featuring a top-mount dual-wheel roller system with a regular stop. Each set includes the sliding rod (track), two dual-wheel rollers, a floor guide, and complete mounting screws. Order by rail length suffix: 66 = 6′ 6″, 82 = 8′ 2″.
Lead time: Common stocking item; contact us for current availability.
Cal-Royal SDH12 — Top-Mount Dual-Wheel Sliding Hardware (Regular Stop)
-
VendorCal-Royal Products
-
SeriesSDH — Stainless Sliding Door Hardware
-
ModelSDH12 (Top-mount Dual-Wheel, Regular Stop)
-
FinishUS32D Satin Stainless Steel
-
Door TypeWood doors (approx. 1-3/8″–1-3/4″)
-
Max Door Weight200 lb (90 kg)
-
Rail Lengths6′ 6″ (suffix 66) • 8′ 2″ (suffix 82)
-
Set IncludesSliding rod, 2 rollers, floor guide, screws
-
DocsSDH series catalog • SDH part numbers
- US32D — Satin Stainless Steel (standard)
Accessory finishes (handles/guides) may include Black and US10B in the SDH accessories line.
Configuration (select variants / accessories)
- Rail length (variant): 6′ 6″ (66) • 8′ 2″ (82)
- Less-rail roller set: SDH12LR (rollers, stops, guide & screws only)
- Stops (accessories): DS-2100 (for SDH12/SDH30) • DS-2200/DS-2300 soft-action stops (SDH series)
- Soft-Close: SCS kits (SCS80/SCS40) per door weight
- Floor guides / spacers: Adjustable guides (SDH-FG series), spacers, pulls
| Series / Model | SDH / SDH12 — Top-mount dual-wheel, regular stop |
| Finish | US32D (304 stainless) |
| Door Type | Wood (approx. 1-3/8″ to 1-3/4″) |
| Max Door Weight | 200 lb (90 kg) |
| Rail Lengths | 6′ 6″ or 8′ 2″ (order by suffix 66/82) |
| Included | Sliding rod, 2 rollers, floor guide, mounting screws |
Use case: Interior wood sliding/barn doors needing smooth, quiet travel and higher stability from dual wheels.
Reference videos; follow Cal-Royal PDFs for exact steps.
Installation Difficulty
Level 2 — Skilled DIY: Accurate layout, plumb/level required.

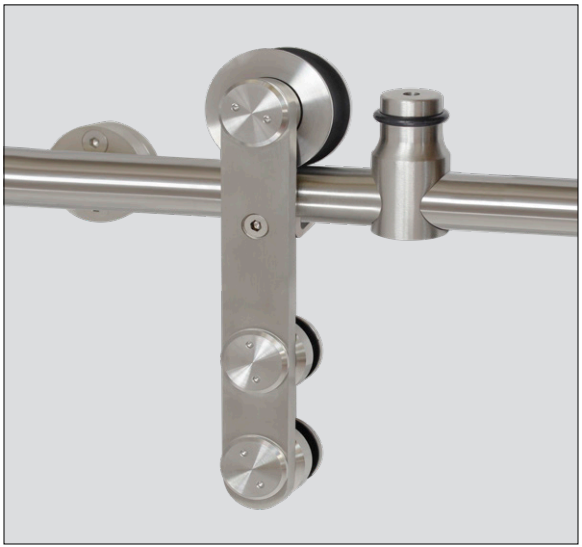

Cal-Royal SDH20/SDH30 — Surface Strap Single-Wheel Sliding Door Hardware (Glass/Wood)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal SDH20 / SDH30 is stainless sliding door hardware with a surface-mount strap single-wheel design. Order by Door Type (Glass = SDH20, Wood = SDH30) and Rail Length (66 = 6′ 6″, 82 = 8′ 2″). Sets include sliding rod (track), two rollers, floor guide, and mounting screws in US32D Satin Stainless Steel.
Lead time: Typically stocked by distributors; contact us for current availability.
Cal-Royal SDH20 / SDH30 — Surface Strap Single-Wheel Sliding Hardware (Regular Stop)
-
VendorCal-Royal Products
-
SeriesSDH — Stainless Sliding Door Hardware
-
ModelsSDH20 (Glass) • SDH30 (Wood)
-
Mount / DesignSurface-Mount • Strap Single-Wheel • Regular Stop
-
FinishUS32D Satin Stainless Steel
-
Max Door Weight200 lb (90 kg)
-
Door Thickness (Wood)1-3/8″ to 1-3/4″
-
Door Thickness (Glass)5/16″ to 1/2″
-
Rail Lengths6′ 6″ (suffix 66) • 8′ 2″ (suffix 82)
-
Set IncludesSliding rod (track), 2 rollers, 1 floor guide, mounting screws
- Door Type (variant): Glass (SDH20) • Wood (SDH30)
- Rail Length (variant): 6′ 6″ (66) • 8′ 2″ (82)
- Soft-Stop (accessory variants): SDH23 (Glass) • SDH33 (Wood)
- Soft-Close (kits): SCS prefixed sets (see SCS tables)
- Accessories: SDH floor guides, spacers, pulls/handles
| Models | SDH20 (Glass) • SDH30 (Wood) |
| Mount / Design | Surface mount • Strap single-wheel • Regular stop |
| Finish | US32D Satin Stainless Steel (304) |
| Door Thickness | Wood: 1-3/8″–1-3/4″ • Glass: 5/16″–1/2″ |
| Max Weight | 200 lb (90 kg) |
| Rails | 6′ 6″ or 8′ 2″ (order by suffix 66 / 82) |
| Included | Track, 2 rollers, floor guide, mounting screws |
Use case: Interior sliding doors where a clean strap aesthetic is desired in stainless finish; supports both wood and tempered glass panels.
Reference videos; follow Cal-Royal PDFs for exact steps.
Installation Difficulty
Level 2 — Skilled DIY: Careful layout; ensure plumb/level track and correct standoff for wood/glass.
