• Automatic touchless operation
• Dispenses liquid soap or gel hand sanitizer
• Seamless drawn construction
• 22 gauge type 304 stainless steel
• Satin Finish
• Translucent removable tank for easy-to-view content level
• LED indicates function and operational condition
• Powered by 6 AA-size batteries (not included)
• Surface or stand mounted
• 33.8 oz. (1000 ml) capacity

Model
20364

Series
Roval™

Type
Automatic Liquid Soap and Gel Hand Sanitizer Dispenser

Dimensions
5-1/2″ x 10-7/8″ x 4″ (140 x 276 x 102 mm)

Construction
22 gauge Type 304 Stainless Steel

Capacity
33.8 oz. (1000 ml) of liquid soaps and gel hand sanitizer

Power
6 AA-size batteries (not included)

Operation
Automatic – Battery Operated – Touchless

Mounting
Surface or Stand Mounted

Sensor Detection Range
3-1/8″ [80 mm] ± 3/8″ [10 mm]

Dispense Volume
Approximately 0.03 oz. [0.8 ml] per activation

Soap Requirements
Proper usage of this dispenser requires, that only soap/lotion/gel hand sanitizer within the following range for viscosity and pH may be used.

Liquid Soap Viscosity Range (mPa·s or cP)
50 – 3.5k

Gel Hand Sanitizer Viscosity Range (mPa·s or cP)
3.5k – 23k

pH Range
5.5 ~ 8.5

• Satin Finish

Unit operates when an object is positioned within the sensing distance below the dispenser. A measured amount of product is pumped from the nozzle for each activation while battery charge is adequate and appropriate viscosity soap or sanitizer is present in the tank.

Locking door provides security and vandal resistance after soap refill and battery replacement.

Use clean product from a closed container when refilling the reservoir. Clean the soap reservoir of residue on a monthly basis before refilling with fresh product.

Clean the exterior housing regularly with a soft cleaning cloth. Do not soak or submerge the unit and do not clean under running water.

The sensor lens may be cleaned with a soft clean cloth lightly dampened with a suitable general-purpose surface cleaner. Avoid abrasive materials that may scratch the sensor lens.

Replace the batteries at intervals appropriate for the level of use and facility maintenance schedule.

Secure concealed base plate to wall using four suitable self-threading screws through the mounting holes provided and appropriate wall anchors or another suitable mounting system.

For compliance with 2010 ADA Accessibility Standards, install unit so that bottom of unit is 48″ [1219 mm] maximum Above Finished Floor (AFF).

Minimum distance to counter top is 12″ [305 mm].

Install six (6) AA-size 1.5V batteries according to the polarity indication in the concealed battery compartment. Fill tank with appropriate viscosity soap or sanitizer to the correct level and lock the door.

For wall installation, ensure the mounting surface is smooth, flat, vertical and clean, with sufficient clearance above the unit for servicing and lock access.

• Product Care & Maintenance
• Soap & Hand Sanitizer Dispensing Chart
• Owner's Manual – 20364
• Mounting Template – 20364
• Technical Data Sheet – 20364

• Dispenses 250 seat covers
• 20 gauge type 304 stainless steel construction
• Satin finish
• Surface mounted
• Curved front adds strength and elegance
• Concealed, multi-staked piano hinge
• Covers are self-feeding until supply is depleted
• Concealed bottom opening allows manual reloading

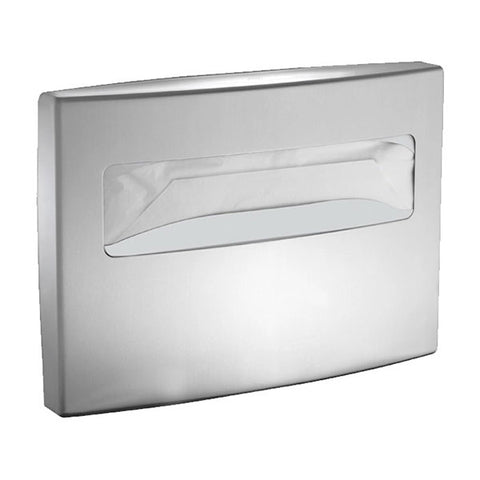

Model
20477-SM

Series
Roval™

Type
Surface Mounted Toilet Seat Cover Dispenser

Dimensions
15-3/4″ x 11″ x 2-3/8″ (400 x 280 x 60 mm)

Construction
20 gauge Type 304 Stainless Steel

Finish
Satin Finish

Mounting
Surface Mounted

Capacity
Dispenses 250 seat covers

Hinge
Concealed, Multi-Staked Piano Hinge

• Satin Finish

Covers are self-feeding until supply is depleted. Unit is manually reloaded with a full box through concealed opening in bottom on schedule determined by maintenance requirements.

Regularly inspect and replenish the supply of toilet seat covers according to facility maintenance requirements.

Clean stainless steel surfaces regularly with a soft clean rag moistened with a mild detergent, followed by a water-moistened clean rag and then a dry rag.

Mount unit on wall or partition surface using two (2) #10 x 1-1/4″ [32] self-threading flat head screws (by others).

Mounting holes are accessible through the dispenser slot during installation and are concealed behind the dispenser box after the dispensing product is loaded for vandal-resistant installation.

For compliance with 2010 ADA Accessibility Standards, install unit so that centerline of dispenser slot is 48″ [1219] maximum Above Finished Floor (AFF) if clear floor access is provided.

Where only side reach over an obstruction is provided, such as over a vanity, centerline of dispenser slot should be 46″ [1168] maximum AFF.
