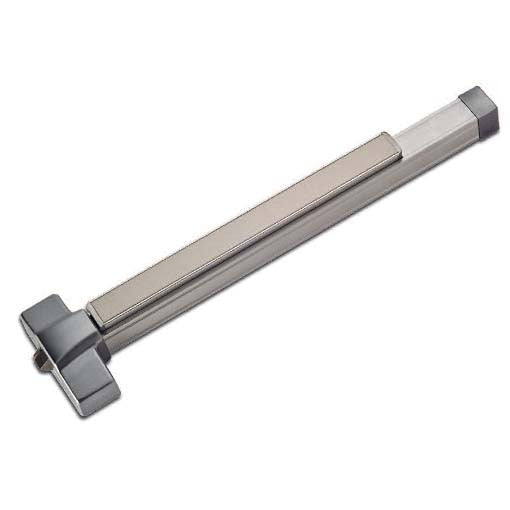

PDQ 6300 Rim Exit Device for 48" Door - Fire Rated
$498.60
The PDQ 6200 Series offers superior durability in commercial applications while providing compliance with life safety and fire code requirements.
Available with matching door trim - choose from a Grip Pull with Thumbpiece or Lever. Includes standard Schlage SC1 cylinder. See photo.
Features
- Units are non-handed to facilitate easy field installation
- Meets requirements of the Buy American Act
Specs
- RAIL: Extruded aluminum
- TOUCH PAD: Stainless steel
- LATCH BOLT: Stainless steel dead locking / 3/4” throw Rim / 5/8” throw SVR
- STRIKE: Roller strike standard for non-fire labeled devices
- PROJECTION: 3-1/8” projection / 1-5/8” projection when dogged
- HAND: Device and trim are non-handed
- DOGGING: No dogging on fire labeled devices
- APPLICATION: Rim / Covers 161 prep
- STILE WIDTH: 4-1/4” minimum
- DOOR THICKNESS: 1-3/4”
- DOOR WIDTH: For doors up to 4 foot in width
- FASTENERS: Sex nuts and bolts standard
- CERTIFICATION: U.L./U.L.C. listed for “Panic”, “Fire Exit hardware” labeled for up to 3 hour for 4’0” x 8’0” maximum single, 8’0” x 8’0” maximum pairs / Complies with U.L. 10C and UBC 7.2 (1997)
- WARRANTY: Ten (10) year limited factory warranty - mechanical, One Year limited warranty electrical components.
Finishes
Satin Stainless Steel 630/US32D
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Instructions & Templates
Related Items

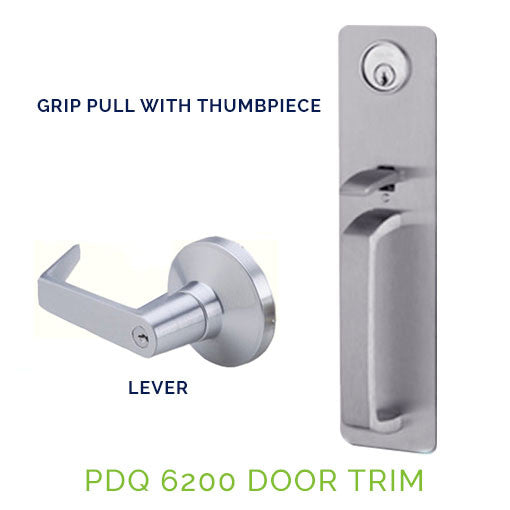

PDQ 6300 Exit Device Trim - Grip Pull with Thumbpiece
$254.00
This PDQ 6200 Series trim component provides grip pull with thumbpiece for PDQ 6200 Series Rim and Surface Vertical Rod Exit Devices.
Includes standard Schlage SC1 cylinder.
FUNCTION
- Entrance by thumb piece. Key locks or unlocks thumb piece (classroom thumb piece)
Finishes
Satin Stainless Steel 630/US32D
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
PDQ 6300 Exit Device Trim - Lever
$134.00
This 6300 series trim component provides an outside lever for PDQ 6200 Series Rim and Surface Vertical Rod Exit Devices.
Includes standard Schlage SC1 cylinder.
Finishes
Satin Chrome Plated 626/US32D
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
PDQ 6300 Rim Exit Device for 36" Door
$388.50
The PDQ 6300 Series offers superior durability in commercial applications while providing compliance with life safety code requirements.
Available with matching door trim - choose from a Grip Pull with Thumbpiece or Lever. Includes standard Schlage SC1 cylinder. See photo.
Features
- Units are non-handed to facilitate easy field installation
- Meets requirements of the Buy American Act
Specs
- RAIL: Extruded aluminum
- TOUCH PAD: Stainless steel
- LATCH BOLT: Stainless steel dead locking / 3/4” throw Rim / 5/8” throw SVR
- STRIKE: Roller strike standard for non-fire labeled devices
- PROJECTION: 3-1/8” projection / 1-5/8” projection when dogged
- HAND: Device and trim are non-handed
- DOGGING: Hex key dogging
- APPLICATION: Rim / Covers 161 prep
- STILE WIDTH: 4-1/4” minimum
- DOOR THICKNESS: 1-3/4”
-
DOOR WIDTH: Order 36" length for 2’10”- 3’0” door width maximum.
Order 48" length for over 3'-0" up to 4’0” door width maximum. - FASTENERS: Sex nuts and bolts standard
- CERTIFICATION: U.L./U.L.C. listed for “Panic”
- WARRANTY: Ten (10) year limited factory warranty
Finishes
Satin Stainless Steel 630/US32D
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Instructions & Templates
PDQ 6300 Rim Exit Device for 36" Door - Fire Rated
$405.00
The PDQ 6300 Series offers superior durability in commercial applications while providing compliance with life safety and fire code requirements.
Available with matching door trim - choose from a Grip Pull with Thumbpiece or Lever. Includes standard Schlage SC1 cylinder. See photo.
Features
- Units are non-handed to facilitate easy field installation
- Meets requirements of the Buy American Act
Specs
- RAIL: Extruded aluminum
- TOUCH PAD: Stainless steel
- LATCH BOLT: Stainless steel dead locking / 3/4” throw Rim / 5/8” throw SVR
- STRIKE: Roller strike standard for non-fire labeled devices
- PROJECTION: 3-1/8” projection / 1-5/8” projection when dogged
- HAND: Device and trim are non-handed
- DOGGING: No dogging on fire labeled devices
- APPLICATION: Rim / Covers 161 prep
- STILE WIDTH: 4-1/4” minimum
- DOOR THICKNESS: 1-3/4”
- DOOR WIDTH: For doors up to 3 foot in width
- FASTENERS: Sex nuts and bolts standard
- CERTIFICATION: U.L./U.L.C. listed for “Panic”, “Fire Exit hardware” labeled for up to 3 hour for 4’0” x 8’0” maximum single, 8’0” x 8’0” maximum pairs / Complies with U.L. 10C and UBC 7.2 (1997)
- WARRANTY: Ten (10) year limited factory warranty - mechanical, One Year limited warranty electrical components.
Finishes
Satin Stainless Steel 630/US32D
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Instructions & Templates
PDQ 6300 Rim Exit Device for 48" Door
$342.79
The PDQ 6200 Series offers superior durability in commercial applications while providing compliance with life safety code requirements.
Available with matching door trim - choose from a Grip Pull with Thumbpiece or Lever. Includes standard Schlage SC1 cylinder. See photo.
Features
- Units are non-handed to facilitate easy field installation
- Meets requirements of the Buy American Act
Specs
- RAIL: Extruded aluminum
- TOUCH PAD: Stainless steel
- LATCH BOLT: Stainless steel dead locking / 3/4” throw Rim / 5/8” throw SVR
- STRIKE: Roller strike standard for non-fire labeled devices
- PROJECTION: 3-1/8” projection / 1-5/8” projection when dogged
- HAND: Device and trim are non-handed
- DOGGING: Hex key dogging
- APPLICATION: Rim / Covers 161 prep
- STILE WIDTH: 4-1/4” minimum
- DOOR THICKNESS: 1-3/4”
- DOOR WIDTH: For up to 4 foot door width
- FASTENERS: Sex nuts and bolts standard
- CERTIFICATION: U.L./U.L.C. listed for “Panic”
- WARRANTY: Ten (10) year limited factory warranty
Finishes
Satin Stainless Steel 630/US32D
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Instructions & Templates
PDQ 6300 Surface Vertical Rod Exit Device
$403.50
The PDQ 6200 Series offers superior durability in commercial applications while providing compliance with life safety and fire code requirements. The PDQ 6200 Series vertical rod devices feature top and bottom pullman latch bolts that are dead locking where applicable.
Available with matching door trim - choose from a Grip Pull with Thumbpiece or Lever. Includes standard Schlage SC1 cylinder. See photo.
Features
- Units are non-handed to facilitate easy field installation
- Meets requirements of the Buy American Act
Specs
- RAIL: Extruded aluminum
- TOUCH PAD: Stainless steel
- LATCH BOLT: Stainless steel dead locking / 3/4” throw Rim / 5/8” throw SVR
- STRIKE: Roller strike standard for non-fire labeled devices
- PROJECTION: 3-1/8” projection / 1-5/8” projection when dogged
- HAND: Device and trim are non-handed
- DOGGING: Hex key dogging
- APPLICATION: Surface vertical rod (8’0” tall door standard) / Covers 161 prep
- STILE WIDTH: 4-1/4” minimum
- DOOR THICKNESS: 1-3/4”
- DOOR WIDTH: For 2’10”- 3’0” door width maximum
- FASTENERS: Sex nuts and bolts standard
- CERTIFICATION: U.L./U.L.C. listed for “Panic”
- WARRANTY: Ten (10) year limited factory warranty
Finishes
Satin Stainless Steel 630/US32D
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Instructions & Templates
PDQ 6300 Surface Vertical Rod Exit Device - Fire Rated
$797.00
The PDQ 6200 Series offers superior durability in commercial applications while providing compliance with life safety and fire code requirements. The PDQ 6200 Series vertical rod devices feature top and bottom pullman latch bolts that are dead locking where applicable.
Available with matching door trim - choose from a Grip Pull with Thumbpiece or Lever. Includes standard Schlage SC1 cylinder. See photo.
Features
- Units are non-handed to facilitate easy field installation
- Meets requirements of the Buy American Act
Specs
- RAIL: Extruded aluminum
- TOUCH PAD: Stainless steel
- LATCH BOLT: Stainless steel dead locking / 3/4” throw Rim / 5/8” throw SVR
- STRIKE: Roller strike standard for non-fire labeled devices
- PROJECTION: 3-1/8” projection / 1-5/8” projection when dogged
- HAND: Device and trim are non-handed
- DOGGING: No dogging on fire labeled devices
- APPLICATION: Surface vertical rod (8’0” tall door standard) / Covers 161 prep
- STILE WIDTH: 4-1/4” minimum
- DOOR THICKNESS: 1-3/4”
- DOOR WIDTH: For 2’10”- 3’0” door width maximum
- FASTENERS: Sex nuts and bolts standard
- CERTIFICATION: U.L./U.L.C. listed for “Panic”, “Fire Exit hardware” labeled for up to 3 hour for 4’0” x 8’0” maximum single, 8’0” x 8’0” maximum pairs / Complies with U.L. 10C and UBC 7.2 (1997)
- WARRANTY: Ten (10) year limited factory warranty
Finishes
Satin Stainless Steel 630/US32D
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Instructions & Templates
PDQ 6300 Surface Vertical Rod Exit Device Less Bottom Rod
$605.00
The PDQ 6300 Series offers superior durability in commercial applications while providing compliance with life safety and fire code requirements. The PDQ 6200 Series surface vertical rod devices feature top pullman latch bolts that are dead locking where applicable.
Available with matching door trim - choose from a Grip Pull with Thumbpiece or Lever. Includes standard Schlage SC1 cylinder. See photo.
Features
- Units are non-handed to facilitate easy field installation
- Meets requirements of the Buy American Act
Specs
- RAIL: Extruded aluminum
- TOUCH PAD: Stainless steel
- LATCH BOLT: Stainless steel dead locking / 3/4” throw Rim / 5/8” throw SVR
- STRIKE: Roller strike standard for non-fire labeled devices
- PROJECTION: 3-1/8” projection / 1-5/8” projection when dogged
- HAND: Device and trim are non-handed
- DOGGING: Hex key dogging
- APPLICATION: Surface vertical rod (8’0” tall door standard) / Covers 161 prep
- STILE WIDTH: 4-1/4” minimum
- DOOR THICKNESS: 1-3/4”
- DOOR WIDTH: For 2’10”- 3’0” door width maximum
- FASTENERS: Sex nuts and bolts standard
- CERTIFICATION: U.L./U.L.C. listed for “Panic”, “Fire Exit hardware” labeled for up to 3 hour for 4’0” x 8’0” maximum single, 8’0” x 8’0” maximum pairs / Complies with U.L. 10C and UBC 7.2 (1997)
- WARRANTY: Ten (10) year limited factory warranty
Finishes
Satin Stainless Steel 630/US32D
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Instructions & Templates
