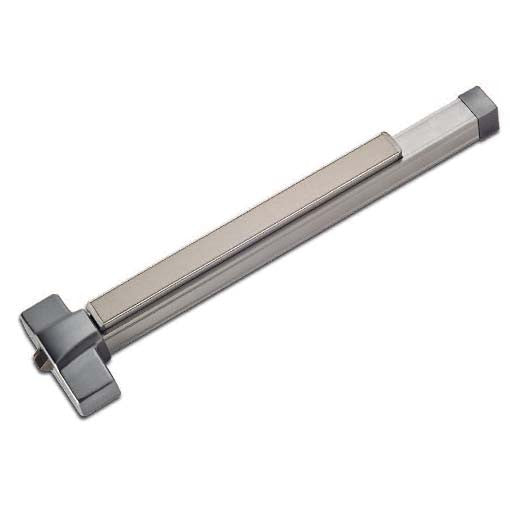

PDQ 6300 Rim Exit Device for 36" Door - Fire Rated

The PDQ 6300 Series offers superior durability in commercial applications while providing compliance with life safety and fire code requirements.

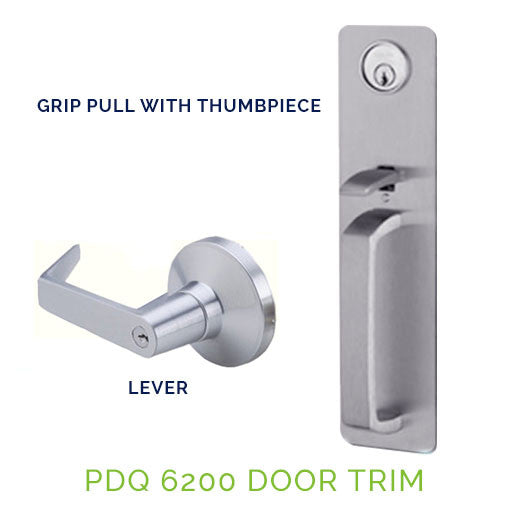

Available with matching door trim - choose from a Grip Pull with Thumbpiece or Lever. Includes standard Schlage SC1 cylinder. See photo.

Features

  • Units are non-handed to facilitate easy field installation
  • Meets requirements of the Buy American Act

Specs

  • RAIL: Extruded aluminum
  • TOUCH PAD: Stainless steel
  • LATCH BOLT: Stainless steel dead locking / 3/4” throw Rim / 5/8” throw SVR
  • STRIKE: Roller strike standard for non-fire labeled devices
  • PROJECTION: 3-1/8” projection / 1-5/8” projection when dogged
  • HAND: Device and trim are non-handed
  • DOGGING: No dogging on fire labeled devices
  • APPLICATION: Rim / Covers 161 prep
  • STILE WIDTH: 4-1/4” minimum
  • DOOR THICKNESS: 1-3/4”
  • DOOR WIDTH:  For doors up to 3 foot in width
  • FASTENERS: Sex nuts and bolts standard
  • CERTIFICATION: U.L./U.L.C. listed for “Panic”, “Fire Exit hardware” labeled for up to 3 hour for 4’0” x 8’0” maximum single, 8’0” x 8’0” maximum pairs / Complies with U.L. 10C and UBC 7.2 (1997)
  • WARRANTY: Ten (10) year limited factory warranty - mechanical, One Year limited warranty electrical components.

Finishes

 Satin Stainless Steel 630/US32D

Installation Challenge Level

wrench wrench Challenging
Recommended for Experienced Installers, but not rocket science.
