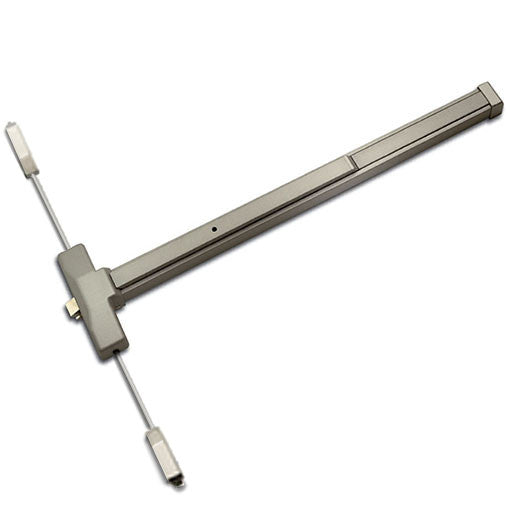

PDQ 4200 Surface Vertical Rod Exit Device

The PDQ 4200 Series offers a reliable and economical solution for compliance with life safety code requirements. The PDQ 4200 Series Surface vertical rod devices feature top and bottom Pullman latch bolts which are dead locking.

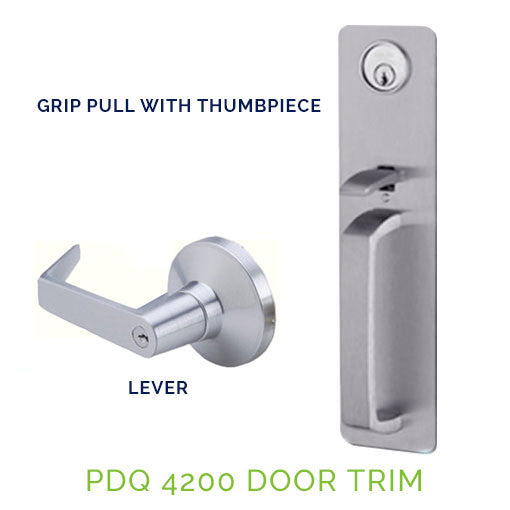

Available with matching door trim - choose from a Grip Pull with Thumbpiece or Lever. Includes standard Schlage SC1 cylinder. See photo.


  • Units are non-handed to facilitate easy field installation
  • Meets requirements of the Buy American Act


  • RAIL: Heavy gauge steel or stainless steel
  • TOUCH PAD: Heavy gauge steel or stainless steel
  • LATCHES: Top Latch — Pullman with dead latching 5/8” (16mm) throw, Bottom Latch — Pullman with 5/8” (16mm) throw, held retracted during door swing
  • BACKSET: 2-3/4" backset, Supplied standard for 161 prep with door gap of 1/8"
  • PROJECTION: 2-5/8” projection
  • HAND: Device is non-handed
  • DOGGING: Hex key dogging
  • DOOR THICKNESS: 1-3/4”
  • DOOR WIDTH:  For doors up to 3 foot in width
  • FASTENERS: Fasteners furnished for wood and metal door applications. Sex nuts standard with fire listed devices
  • CERTIFICATION: UL/ULC 305 listed for “Panic”


 Satin Stainless Steel 630/US32D

Installation Challenge Level

wrench wrench Challenging
Recommended for Experienced Installers, but not rocket science.
