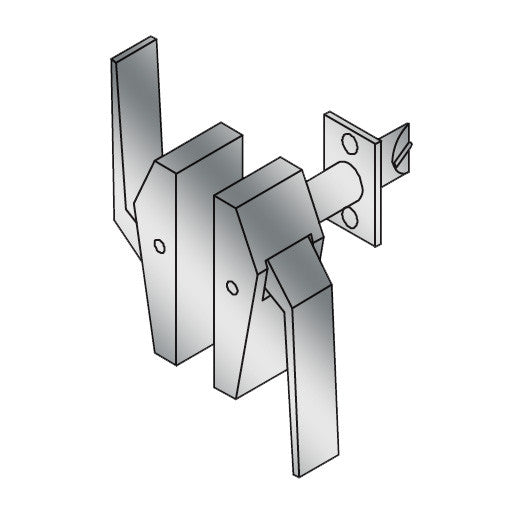

ABH 6811 Low Profile Hospital Push Down Pull Up Latch - Left Hand

• Ideal for time-out rooms, behavioral settings and other similar institutions
• Latch bolt is always retracted until handle is activated
• When handle is activated, the latch bolt projects until the handle is released
• Push or pull handle trim assembly on one side and flat plate on other side of door
• Cylindrical reverse latch application - passage function
• 1-3/4" standard door thickness (specify if different)
• Meets ADA requirements
• Trim is mounted using four thru-bolts for maximum stability
• Handing of unit is field-reversible by easily reversing the cam holder assembly on the backside of the unit
• Linear acting cam which provides for a smoother operating unit
• One continuous spring provides a smoother operation and an extended life for the unit
• UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
• 1/2" Latch Bolt Throw
• Patent# 7,258,374

US32D Satin Stainless Steel

US10 Satin Bronze

US10B Dark Bronze

US26D Satin Chrome Plated

US4 Satin Brass

US26 Bright Chrome Plated

US3 Bright Brass

US32 Bright Stainless Steel

CALL FOR PRICING

• All Stainless Steel Components
• Security fasteners for all exposed screws
• Lead provided to cover cut-outs made in lead-lined doors
• Anti-microbial clear coating applied to handles and covers
• Hip Paddle
• Extended Handle
• Aluminum Slip-On Handle Extension
• Special Door Thickness
• Entrance Only
• Exit Only

• ABH Hospital Push Pull Latches Catalog (PDF)
• ABH 6830 Series Template (PDF)

• Cylindrical latch application - passage function
• 1-3/4" standard door thickness
• Meets ADA requirements
• Trim is mounted using four thru-bolts for maximum stability
• One continuous spring provides a smoother operation and an extended life for the unit
• Non-handed for installation and stocking ease
• Trim can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
• Handles can be mounted up or down by simply rotating trim 180°
• UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
• 1/2" Latch Bolt Throw

US32D Satin Stainless Steel

US10 Satin Bronze

US10B Dark Bronze

US26D Satin Chrome Plated

US4 Satin Brass

US26 Bright Chrome Plated

US3 Bright Brass

US32 Bright Stainless Steel

CALL FOR PRICING

• All Stainless Steel Components
• Security fasteners for all exposed screws
• For 1-3/8" or 2-1/4" thick door
• Lead provided to cover cut-outs made in lead-lined doors
• Anti-microbial clear coating applied to handles and covers
• Copper/Nickel Natural Anti-microbial metal alloy provided for handles and covers
• Hip Paddle for Push Side Only
• 6" Solid Extended Handle (Specify Push or Pull)
• Aluminum Slip-On Handle Extension
• Exit Only plate on push side & standard Push/Pull trim on pull side
• Exit Only plate on pull side & standard Push/Pull trim on push side
• Security Plate for Exit Only to prevent latch tampering
• Push/Pull Trim on pull side and Asylum Knob on push side
• Push/Pull Trim on push side and Asylum Knob on pull side
• Flush Mount Asylum Trim
• Junior Cover 3-1/2" x 2-3/4"
• Round Covers

• ABH Hospital Push Pull Latches Catalog (PDF)
• ABH 6000 Series Template (PDF)

• Ideal for time-out rooms, behavioral settings and other similar institutions
• Latch bolt is always retracted until handle is activated
• When handle is activated, the latch bolt projects until the handle is released
• Push or pull handle trim assembly on one side and flat plate on other side of door
• Cylindrical reverse latch application - passage function
• 1-3/4" standard door thickness (specify if different)
• Meets ADA requirements
• Trim is mounted using four thru-bolts for maximum stability
• Handing of unit is field-reversible by easily reversing the cam holder assembly on the backside of the unit
• Linear acting cam which provides for a smoother operating unit
• One continuous spring provides a smoother operation and an extended life for the unit
• UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
• 1/2" Latch Bolt Throw
• Patent# 7,258,374

US32D Satin Stainless Steel

US10 Satin Bronze

US10B Dark Bronze

US26D Satin Chrome Plated

US4 Satin Brass

US26 Bright Chrome Plated

US3 Bright Brass

US32 Bright Stainless Steel

CALL FOR PRICING

• All Stainless Steel Components
• Security fasteners for all exposed screws
• Lead provided to cover cut-outs made in lead-lined doors
• Anti-microbial clear coating applied to handles and covers
• Hip Paddle
• Extended Handle
• Aluminum Slip-On Handle Extension
• Special Door Thickness
• Entrance Only
• Exit Only

• ABH Hospital Push Pull Latches Catalog (PDF)
• ABH 6830 Series Template (PDF)

• Ideal for time-out rooms, behavioral settings and other similar institutions
• Latch bolt is always retracted until handle is activated
• When handle is activated, the latch bolt projects until the handle is released
• Push or pull handle trim assembly on one side and flat plate on other side of door
• Cylindrical reverse latch application - passage function
• 1-3/4" standard door thickness (specify if different)
• Meets ADA requirements
• Trim is mounted using four thru-bolts for maximum stability
• Handing of unit is field-reversible by easily reversing the cam holder assembly on the backside of the unit
• Linear acting cam which provides for a smoother operating unit
• One continuous spring provides a smoother operation and an extended life for the unit
• UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
• 1/2" Latch Bolt Throw
• Patent# 7,258,374

US32D Satin Stainless Steel

US10 Satin Bronze

US10B Dark Bronze

US26D Satin Chrome Plated

US4 Satin Brass

US26 Bright Chrome Plated

US3 Bright Brass

US32 Bright Stainless Steel

CALL FOR PRICING

• All Stainless Steel Components
• Security fasteners for all exposed screws
• Lead provided to cover cut-outs made in lead-lined doors
• Anti-microbial clear coating applied to handles and covers
• Hip Paddle
• Extended Handle
• Aluminum Slip-On Handle Extension
• Special Door Thickness
• Entrance Only
• Exit Only

• ABH Hospital Push Pull Latches Catalog (PDF)
• ABH 6830 Series Template (PDF)
