Keyless Door Locks
Commercial Door Access Control Digital Locks and Mechanical Pushbutton Locks from Alarm Lock and Simplex. Our products meet the requirements of the Buy American Act.
Alarm Lock DL2700 Access Control Digital Lock
$417.70
The DL2700 electronic digital lock leverset is programmable through the keypad for 100 user entry codes for secure keyless entry. Cylindrical lock mechanism has a fixed 6-pin key cylinder with SC1 keyway for key override. For installation on exterior and interior doors, and rated for temperatures from -31 to +151 degrees F (-35 to +66 degrees C). Lever handle is reversible for right- or left-hand operation. Stainless steel trim with satin chrome finish resists corrosion.
Features
Available in 2 3/8" backset make a note on your order.
- In an hour, add a dependable wireless access control keyless door lock, one door at a time—easily retrofit standard knobsets
- Support 100 PIN codes (3-5 or 6 digits)
- Multi-level user codes & one-time service codes. Free passage, group- or total lock-out modes, too on Trilogy security locks
- All keyless entry door locks are fingertip programmable at vandalproof all-metal keypad
- Long-life battery operation, low battery alert
- Key override on all Trilogy electronic locks, standard core (supplied) or interchangeable core prep
- Non-handed cylindrical models
- Programmable relay functions
- Durable BHMA Grade 1 Lockset
- Weatherproof models -31˚ to +151˚F (-35˚ to +66˚C). Rugged electronic door lock
Specs
- More codes: up to 100 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
- 5AA battery operated; 175,000 cycles, typ.
- For outdoors, specify WP weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Instructions & Templates
Simplex Mechanical Pushbutton Lock 1000 Series - Knob
$550.00
The Simplex 1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with knob option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Features
- Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
- Number of Codes: Single access code—one easy-to-manage code for all users
- Programming: Lock is easily programmed via keypad without removing lock from the door
Specs
- Construction: Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Factory-handed for left-hand doors; easily field reversible
- Backset: 2¾" (70 mm), 2⅜" (60 mm)
- Latch: ½" (13 mm) throw latch, ¾"
- Minimum Stile Recommended: 5" (127 mm)
- Strike: Standard strike plate; ASA strike plate
- Schlage core
- Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through bore holes required.
- Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm)
- Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
- Warranty: 3-year warranty
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Instructions & Templates
Simplex Mechanical Pushbutton Lock L1000 Series - Lever
$487.00
The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Features
- Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
- Number of Codes: Single access code—one easy-to-manage code for all users
- Programming: Lock is easily programmed via keypad without removing lock from the door
- Handing: Factory-handed , handing required when ordering.
Specs
- Construction: Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Factory-handed for left-hand doors; not field reversible.
- Backset: 2¾" (70 mm), 2⅜" (60 mm)
- Latch: ½" (13 mm) throw latch, ¾"
- Minimum Stile Recommended: 5" (127 mm)
- Strike: Standard strike plate; ASA strike plate
- Key Override: Schlage core
- Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through bore holes required.
- Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm)
- Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
- Warranty: 3-year warranty
Finishes
Satin Chrome 626/US26D
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Instructions & Templates
Cal-Royal CR3000 Series
$439.25
Grade 1 Heavy Duty Digital Keypad Door Lock
For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial, and Public Buildings
- Available in 2 3/8" backset just put in note on your order.
- Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, GRADE 1
- Easy Installation & Programming
- Long-Life Battery Operation
- 2 Remote Switch Terminals
- Interchangeable Core
- Master Code
- 10 Manager Codes
- 1 Sub-Master Code
- 90 User Codes
- 5 Service Codes
- Passage Mode
- Weather Resistant
- Buzzer & Led Indicators
- Anti-Tamper Lockout
- Clutch Technology
- Non-Handed, Reversible
- Enable & Disable Users Mode
- Tactile Metal Keypad
- User Friendly
- Master Code – performs all programming functions.
- Sub-Master Code – performs all programming functions except delete or change Master Code.
- Manager Codes – CR3000 can accommodate 10 Managers each having different codes and under each Manager has 9 Users (1 Manager + 9 Users = 1 Bank). Managers are capable of programming / adding and deleting User codes under his Bank. Managers are also capable of accessing the next higher bank until another Manager Code appears.
- Service Codes (5) – are one-time codes only. It cannot be used again. Once a Service Code is entered, the unit will unlock but will automatically delete the code.
- Passage Mode – once enabled, the unit is unlocked continuously until “Disable Passage Mode” is initiated.
- Tones and LED Indicators – can be programmed for different settings. Making sure that every key pressed is confirmed by an accompanying LED and/or tone.
- Next Free Code Location Finder – no need of guessing what free location is available in entering a new code. CR3000 can pinpoint and tell you where the next available location is.
- Code Locator Function – CR3000 can tell you the exact location of a certain code. Making it easy to determine what manager a user code is under.
- Keypad Anti-Tamper Lockout – if an invalid code is entered 3 times in succession, the unit will turn off for 30 seconds to prevent tampering.
- Remote Switch Terminal / Release – CR3000 provides 2 Remote Switch Terminal. Either can be used for an emergency push button switch, or connected to alarm systems such as fire alarms.
- Weather Resistant – CR3000 are manufactured making sure that internal electronic parts are protected from moisture, dust, water, and corrosion. All models are weather-resistant for temperature ranges of +158°F to -22°F (+70°C to -30°C).
- Clutch Technology – the outside lever of the CR3000 is a free-wheeling lever. If no valid code is entered, the lever will just turn freely without moving any parts inside, thus preventing breaking or tampering.
- Non-Handed – CR3000 can be installed for both left and right door opening.
- APPLICATIONS For offices, schools, hospitals, apartments, hotel/motel, residential, commercial, and public buildings.
- DOOR RANGES 1 ⅜” to 2” thickness.
- BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾”, 5” and 2 ¾” anti-friction latch with ¾” throw for pair of fire doors optional.
- LATCH FACEPLATE Standard 2 ¼” x 1 ⅛” for 2 ¾” backset. Optional 2 ¼” x 1 ⅛” for 2 ⅜” backset.
- STRIKES ASA strike standard, “T” and full lip strike available on request.
- ANSI STANDARDS Meets or exceeds BHMA/ANSI A156.2 Series 4000 Grade 1 requirements.
- POWER SUPPLY 4 AA Batteries (comes standard in packing)
- CLUTCH Clutch technology allows turning of lever without retracting the latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.
- CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High-Security Cylinders.
- INTERCHANGEABLE CORE (IC) Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON, and ARROW. Prefix “IC” before part number.
- WEATHER RESISTANT All models are weather-resistant for temperature ranges of +158○F to -22○F (+70○C to -30○C).
- KEYPAD 12 programmable buttons for multi-level access functions including group or individual user codes, master and management codes, passage, and emergency or service codes.
-
(IC) Indicates function available with BEST, FALCON & ARROW Interchangeable Core.
Installation Challenge Level
Challenging
Recommended for Experienced Installers, but not rocket science.
Cal-Royal CR6000 Digital Lock with RFID Proximity Card Capability
$520.00
Grade 1 Heavy Duty Digital Touch Screen Door Lock
For Offices, Schools, Hospitals, Apartments, Condo Units, Hotel/Motel, Residential, Commercial, and Public Buildings
- Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, GRADE 1
- Easy Installation & Programming
- Master Code
- 3 Manager Codes
- 1,000 User Codes (Combined RFID & User Pin Code)
- 3 Service Codes
- Passage Mode
- 4-6 Digit Code Combination
- Weather Resistant
- 9V Battery
- Anti-Tamper Lockout
- Lock-Out Mode
- Clutch Technology
- Non-Handed Reversible
- Touch Screen
- Wake-Up Button
- Proximity Cart (13.56 MHz)
- RFID Keyfob
- User Friendly
- Master PIN Code - Use for programming the lock and entering Manager and User PIN codes. Can also be used to open the lock and reset to factory settings.
- Manager PIN Code - Use to open the door with lockout mode. Also functions like a User PIN code. This feature can also program 3 one-time user codes.
- User PIN Code - This feature only opens the lock by entering the code on the touchpad. It won’t be able to program or change settings. This lock can accommodate up to 1000, 3 to 6 digits combined RFID and User PIN codes.
- One-Time User PIN Code - Can only be used once. This lock can store up to 3 one-time User PIN code simultaneously.
- Passage Mode - Enabling passage mode allows continuous entry for non-restricted traffic. Passage mode can either be enabled or disabled by the Master Pin code. When in passage mode, the unlocked padlock icon will appear on the screen.
- Beep & LED Indicators - These indicators can either be programmed for different settings. This feature is useful in making sure that every keypress was successfully entered.
- Lock-Out Mode - This feature can either be enabled by the Master or Manager PIN Codes. When enabled, it restricts all User PIN codes access except Master and Manager PIN codes.
-
SMART Card
- Compatible with existing MIFARE infrastructures
- Operates at 13.56 MHz in accordance with ISO14443A
- Inductive distance up to 1 3/16”
- Touch Screen Anti-Tamper Lock Out - This function will auto shut off the lock if an invalid code is entered 5 times in succession to prevent tampering.
- Weather Resistant - CR6000 are manufactured making sure that internal electronic parts are protected from moisture, dust, water, and corrosion. All models are weather-resistant for temperature ranges of 30○F ~ 150○F (-35○C ~ +66○C).
- Wake-Up Button - Pressing this button activates the number pad. Enter the PIN code when while the number pad is illuminated. This button is also used to quit programming mode.
(IC) Indicates function available with BEST, FALCON & ARROW Interchangeable Core.
- APPLICATIONS For offices, schools, hospitals, apartments, condo units, hotel/motel, residential, commercial, and public buildings.
- DOOR RANGES 1 ⅜” to 2”.
- BACKSET 2 ¾” standard or 2 ⅜” optional backset.
- LATCH FACEPLATE Standard 1 ⅛” x 2 ¼” for 2 ¾” backset. Optional 1” x 2 ¼” for 2 ⅜” backset.
- STRIKES ASA Strike standard, T and full lip strike available on request.
- ANSI STANDARDS Certified ANSI / BHMA A156.2 Series 4000 Grade 1 requirements.
- CLUTCH Clutch technology allows turning of lever without retracting the latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.
- PROXIMITY CARD (STANDARD) Compatible with existing MIFARE infrastructures. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16”.
- CYLINDER 6-pin solid brass “Schlage C” keyway standard with two brass keys per lock.
- RFID KEYFOB (OPTIONAL) Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16”.
- INTERCHANGEABLE CORE (IC) Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST and FALCON. Prefix “IC” before part number.
- WEATHER RESISTANT All models are weather-resistant for temperature ranges of -30○F ~ 150○F (-35○C ~ 66○C).
- TOUCH SCREEN Responds to human touch enabling convenient entrance or access to the programming menu. After the operation has been completed, the lock reverts to sleep mode.
https://www.cal-royal.com/files/CR6000_Template.pdf
https://www.cal-royal.com/files/Installation-Programming-guide-for-CR6000-rev2.0.pdf
https://www.cal-royal.com/files/CR6000_Template__Quick_Installation__Program_Guide.pdf
https://www.cal-royal.com/component/opencart/p-237-cr6000-series
Challenging
Recommended for Experienced Installers
Cal-Royal Mechanical Easy Code Change Trim only
$267.00
Cal-Royal Mechanical Easy Code Change EXIT DEVICE TRIM ONLY for Rim and Surface Vertical Rods (Panic Device sold Separately)
Outside Trim for CAL-ROYAL 2200, 6600, 7700 and 9800 Series Rim and Surface Vertical Rods
Operated by lever from outside and when push pad is depressed, except outside has to enter a pre-programmed code on the keypad in order to retract the latch upon turning the lever. For use with 2200, 6600, 7700 and 9800 Series Rim and Surface Vertical Rods.
Default Function: Storeroom
Optional Function: Passage Mode
Finish: Satin Chrome (US26D)
Door Thickness: 1 3⁄4” - 2”
Catalogue page-crcode200-series
Installation Challenge Level
Challenging
Recommended for Experienced Installers.
Cal-Royal CRCODE200-Push Button Lock
$305.00
Mechanical Stand Alone Push Button Lock and Exit Device Trim with Breakaway Lever Feature
- Meets ADA requirements specially designed for Barrier Free Application. Conforms with ANSI A156.2, Series 4000 GRADE 2
- Easy installation covers 161 prep (2-1/8" hole)
- 1 - 12 Digit Code
- Single Code User
- Key Override
- Easy on-the-door code change without removing the lock
- Code-Free Option (Passage)
- Breakaway Lever Design
- Clutch-Free mechanism
- Weather-Resistant
- Non-Handed
- More than 8000 non-sequential possible code combinations
- For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings.
- SINGLE CODE USER - Only one code combination chosen from thousands of combinations can be set at a time to deter code breakers. Code length is from 1 to 12 digits and can be permutated with a non-repeating digit up to over 5000 combinations.
- EASY ON-DOOR CODE CHANGE - Code can be changed without removing the lock from the door and using only a “code change” key.
- 1-12 DIGIT CODE - An entry code can be a combination of 1 to 12 digits long. The digits can be entered in any order. For example, if the chosen 6-digit code is “5283XZ” it can be entered as “ZX3825” or “3X8Z25” or in any other combination of the 6-digit code.
- BREAKAWAY LEVER DESIGN - Lever will stay at the 5 o’clock position when forced down without retracting the latch, to prevent breaking of the handle and giving the impression of the handle being broken to discourage or scare off vandals.
- CODE-FREE OPTION (PASSAGE MODE) - Once enabled, the lock remains unlocked until disabling PASSAGE MODE is initiated. (For CRCODE203, inside and outside locks must be set)
- WEATHER RESISTANT - Can resist above or below normal weather conditions without compromising security.
- NON-HANDED - Easily field reversible handing.
Profile
-
SPECIFICATIONS:
-
GENERAL - Full length 5 ½” lever handle with ⅞” return. Escutcheon dimension 3 ½” x 8 ⅛”. Key removable outside lever for all models for fast re-keying. Non-handed levers. 2 ⅛” diameter bore.
-
BREAKAWAY LEVER DESIGN - Lever will stay at the 5 o’clock position when forced down without retracting the latch, to prevent breaking of handle.
-
DOOR RANGES - 1 ⅜” - 2 ¼” for CRCODE202, 1 ⅜” - 1 ¾” for CRCODE203, 1 ¾” - 2” for CRCODE204
-
ANSI STANDARDS - Meets or exceeds ANSI A 156.2, Series 4000 Grade 2 requirements.
-
LATCH FACEPLATE - Standard 2 ¼” x 1 ⅛” for 2 ¾” backset for CRCODE202 and CRCODE203 only.
-
STRIKES - ASA 1 ¼” x 4 ⅞” standard for CRCODE202 and CRCODE203 only. Other strikes are available upon request. Strikes for CRCODE204 comes standard with exit device ordered.
-
CYLINDER & KEYWAYS - 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba, and Cal-Royal (HSK) High-Security Cylinders.
-
TRIM - Thru-bolted assembly through door with separate spring cage for each lever.
-
LATCH OPTIONS - 2 ¾” standard, brass with ½” throw (with optional 2 ⅜” backset, 2 ¼” x 1” faceplate) for CRCODE202 and CRCODE203.
Cal-Royal CR6100 SERIES Digital Lock /RFID Card/KeyFob
$534.50
Digital Touch Screen Door Lock with Clutch Technology
PACKAGING: Includes 2 ¾” × 1 ⅛” backset, 6-pin “C” keyway, 2 RFID cards, 4 batteries, and ASA strike.
Optional Interchangeable Core for Best, Falcon and Arrow
- Master Code
- 500 User Codes
- 500 RFID Card/KeyFob per Lock
- 2 One-Time User Codes
- 4–6 Digit Code Combination
- Passage Mode
- Weather Resistant
- 9V Battery Emergency Port
- Anti-Tamper Lockout
- Lock-Out Mode
- Clutch Technology
- Non-Handed Reversible
- Proximity Card (13.56 MHz)
- RFID Keyfob (Optional)
- Mobile App for Android & Apple
- Bluetooth Receiver (Optional)
- Touch Screen to Wake Up Lock
Features
- Access Log (Audit Trail) — The ExperienSmart app features a 24/7 activity log. A timestamped access log can be exported by email.
- Anti-Tamper Lock-Out — Locks out for 60 seconds after 5 invalid tries.
- Beep & LED Indicators — Status indicators for feedback and programming.
- Bluetooth Receiver (CR6000-BLE) — Optional device for app management; 8–10 m detection range.
- Lock-Out Mode — Master PIN restricts all user PIN/RFID access (padlock icon shows on screen).
- Low Battery Warning — On-screen icon blinks when batteries are low.
- Master PIN Code — For programming, admin actions, and factory reset.
- NFC Interface — NFC compatible on supported Android phones.
- One-Time User PIN Codes — Store up to 2 simultaneous single-use codes.
- Passage Mode — Continuous unlock until disabled (unlocked padlock icon shows).
- Re-Lock Time — Auto-relock adjustable (1–10 s; default 5 s).
- RFID Credentials — MIFARE (ISO14443A), inductive distance up to 1-3/16".
- Touch Screen Wake — Touch to illuminate keypad for entry/programming.
- User PIN Codes — Up to 500 user PINs (4–6 digits) plus 500 RFID.
- Weather Resistant — −30°F ~ 150°F (−35°C ~ +66°C).
Specifications
- Applications — Offices, schools, hospitals, apartments, condos, hotel/motel, residential, commercial & public buildings.
- Door Ranges — 1-3/8" to 1-3/4".
- Backset — 2-3/4" standard or 2-3/8" optional.
- Latch Faceplate — Std 1-1/8" × 2-1/4" (2-3/4" backset). Optional 1" × 2-1/4" (2-3/8" backset).
- Strikes — ASA strike standard; T and full-lip available.
- ANSI Standards — ANSI/BHMA A156.2 Series 4000 Grade 1 requirements.
- Clutch — Free-wheeling lever protects internal parts from force.
- Cylinder — 6-pin Schlage “C” keyway with two brass keys.
- IC Core — Accepts Best/Falcon 6 or 7-pin SFIC (prefix “IC”).
- Power — 4 × AA 1.5V alkaline (included).
- Optional Bluetooth — Manage/sync via ExperienSmart app (receiver required).
- Weather — −30°F ~ 150°F (−35°C ~ +66°C).
Videos
Installation Challenge Level
Challenging (4/5)
Recommended for Experienced Installers
Dormakaba Simplex 7100 Deadbolt (7102/7108)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Mechanical Pushbutton Auxiliary Lock — Deadbolt (Manual Relock), Single Code, Exterior Thumbturn, Field-Reversible, 2-3/8" or 2-3/4" Backset
The Simplex 7100 Series is a fully mechanical pushbutton deadbolt: no batteries, no wiring, and a fast code-only entry with interior free egress. Choose model 7102 for 2-3/4" backset or 7108 for 2-3/8" backset. Ideal as an auxiliary or primary deadbolt on light commercial and residential doors.
- Vendordormakaba
- Manufacturerdormakaba (Simplex)
- Models7102 (2-3/4" BS) • 7108 (2-3/8" BS)
- FunctionDeadbolt — manual relock via thumbturn
- Users / CodesSingle access code (1–5 digits), keypad programmable
- HandingNon-handed; field reversible
- Door Thickness1-3/8" to 2-1/4"
- Minimum Stile4"
- Backset2-3/8" (7108) • 2-3/4" (7102)
- Bolt / Strike1" tubular deadbolt • flat strike
- WeatherWeather-resistant (exterior keypad)
- PowerNone (purely mechanical)
- Warranty1-year manufacturer
- 26D (626) — Satin Chrome
- 03 (605) — Bright Brass
- 05 (609) — Antique Brass
- 19 (676) — Black*
*Note: Model 7106 is the only variant with Black inside trim; other Black models ship with Satin Chrome inside trim per factory sheet.
- OperationEnter code + exterior thumbturn; interior free egress
- Code ChangeOutside via keypad (no removal); follow combo-change procedure
- Door PrepANSI 161-style bores w/ additional thru-bolts; see template
- MaterialsAll-metal cast front; metal buttons; clutch-protected thumbturn
- EnvironmentIndoor / Outdoor (weather-resistant)
Use case: Auxiliary or primary deadbolt where a single shared code is acceptable and you want no electronics. Ideal for back-of-house, storerooms, gates, utility rooms, or rentals with controlled access policies.
- No batteries or wiring — purely mechanical reliability
- Single, easy-to-manage 1–5 digit code
- Quick code changes from the exterior
- Weather-resistant keypad with metal buttons
| Product / Config Sheet | Simplex 7100 Series — Spec & Options (PDF) |
| Install + Full-Scale Template | Simplex 7102/7108 — Installation & Template (PDF) |
| Brand Overview | Simplex by dormakaba |
Installation Difficulty
Level 2 — Handy DIYer: Standard tools; template drilling & accurate layout required. No wiring.
PDQ GTS-SP Electronic Cylindrical Lock (Grade 1)
$789.00
PDQ GTS-SP Electronic Cylindrical Lock — Grade 1, Mobile/RFID/PIN, BLE 4.2/5.2, Non-Handed (field reversible)
The PDQ GTS-SP is a Grade-1, no-wires electronic cylindrical lock built on the GT chassis. It supports smartphone mobile credentials (BLE), RFID cards/fobs, and optional PIN keypad. Retrofit installs on standard ANSI 161 preps are fast and clean.
Lead time: Contact us for current availability.
- VendorPDQ Manufacturing
- SeriesSpirit — GTS Cylindrical
- GradeANSI/BHMA Grade 1 (GT platform)
- Door Thickness1-3/4″ to 2-1/4″
- Backset2-3/4″ (std), 5″ (opt)
- HandingLH/RH field reversible
- CredentialsRFID • Smartphone (BLE) • PIN • Mechanical key
- Comms / CryptoBLE 4.2 / 5.2 • AES-256
- Power4× AA alkaline (typ. up to 2 years)
- CertificationsFCC Part 15 • UL/cUL 10C 45-min • ADA compliant
- Warranty25-yr Mechanical / 2-yr Electronics
- Country of originAssembled in USA
-
626 — Satin Chrome (US26D)
-
622 — Flat Black (US19)
-
613E — Dark Oxidized Satin Bronze (Equivalent)
*606 Satin Brass (US4) available on request.
Configuration (select variants)
- Credential: N = Card/Mobile • NK = Card+Keypad
- Cylinder: D = Conventional • SFIC • UL437 High-Security
- Lever styles: PHL (default) • BSN • MIA
- Function: 116 Entrance/Office
- Backset: 2-3/4″ (std) • 5″ (opt)
- Strike: ASA 4-7/8″
- Handing: Non-handed, field reversible
| Platform | GT Series Grade-1 cylindrical |
| Door Thickness | 1-3/4″ to 2-1/4″ |
| Backset | 2-3/4″ standard; 5″ optional |
| Credentials | RFID • Smartphone (BLE) • PIN • Mechanical key |
| Power | 4 × AA alkaline (interior) |
| Environment | -20 °C to 65 °C; 0–95% RH, non-condensing |
| Certifications | FCC Part 15; UL/cUL 10C 45-min; ADA |
| Warranty | 25-yr mechanical / 2-yr electronics |
Use case: Unit entries and commercial openings needing mobile/RFID/PIN access without running wires. Manage schedules, passage/privacy modes, credentials, and audit history in the Spirit app.
- Quick retrofit—no panel wiring, no power transfer
- App-configurable schedules, auto-lock, alerts, & audit logs
- Door obstruction alerts and local lockdown
- Works with Conventional, SFIC, and UL437 cylinders
More official videos on PDQ’s site under Videos.
Installation Difficulty
Level 3 — Pro Starter: Trade basics recommended; precise templating & alignment; door/frame adjustments likely; no building wiring.
PDQ MRS Electronic Mortise Lock — Spirit Series (PIN/RFID/Mobile)
$1,650.00
Grade 1 Electronic Mortise Lock with Mobile, RFID & PIN Credentials, Battery-Powered, Field Reversible, 2-3/4" Backset, Standalone (Spirit Series — MRS)
PDQ’s MRS brings wireless, app-managed access control to a heavy-duty mortise chassis. Support for smartphone mobile keys, RFID cards/fobs, and optional keypad PINs means fewer keys to manage. Installs into a standard mortise prep—no panel wiring required—then configure users, schedules, and audit history in the Spirit app.
- VendorPDQ Locks
- ManufacturerPDQ Industries
- Series / ModelSpirit — MRS Electronic Mortise
- Example SKUMRS-SP-116-PHL-SJ-626-KIL
- GradeANSI/BHMA Grade 1 mortise chassis
- ListingsUL 10C (per MR chassis); ADA; FCC Part 15
- Unit of MeasureEach
- OriginAssembled in USA
- InstallationStandard mortise prep; no door wiring
- Power4 × AA alkaline (interior battery pack)
- Backset2-3/4"
- Door Thickness1-3/4" std (2", 2-1/4" optional)
- HandingNon-handed; field reversible
-
626 — Satin Chrome (US26D)
-
622 — Flat Black (US19)
-
613E — Dark Oxidized Satin Bronze (equivalent to US10B)
*606 Satin Brass (US4) available on request.
- CredentialsPIN keypad, RFID, Mobile (Bluetooth/NFC)
- ProgrammingPDQ Spirit App (device-based management)
- Audit / UsersEvent logging; local users via app
- Cylinder OptionsKIL (std), SFIC 6/7-pin, UL437 high-security
- EnvironmentInterior/Exterior; low-battery alerts
- ChassisBuilt on MR Grade 1 mortise platform
Use case: Unit entries and commercial openings needing mobile/RFID/PIN access without pulling wire. Configure schedules, passage/privacy, and audit history in the Spirit app.
- No panel wiring or power transfer
- Mobile, RFID, and PIN support
- Field-reversible handing; serviceable battery pack
- Heavy-duty MR mortise hardware
| Mortise Hardware (MR) — Product Page | PDQ MR Mortise Lock (platform details) |
| MR Series — Handing & Setup Video | YouTube |
| Spirit App — Add a Device | YouTube |
| Spirit App — Users & Credentials | YouTube |
| Spirit App — Sign Up | YouTube |
| Spirit Series — Brochure | PDQ Product Literature (Spirit brochure) |
Installation Difficulty
Level 4 — Advanced Pro: Precise mortise templating/handing; alignment & adjustments likely; no building wiring but trade experience strongly recommended.
PDQ SDE Tubular Pushbutton Lock – PIN + Key Override (Spirit Series)
$350.00
Electronic Interconnected Lock — Mobile/RFID/PIN Credentials, BLE 4.2/5.2 w/ AES-256, Quick Retrofit on Standard Preps, Spirit Series (CLS)
PDQ’s CLS is a wireless, app-managed interconnected lock for multifamily and light commercial entries. It drops into standard interconnected preps, supports smartphone mobile keys, RFID cards/fobs, and optional PIN keypad, and is managed with the PDQ Spirit app—no control panels or door wiring required.
Installation Difficulty
Level 3 — Pro Starter: Trade basics recommended; precise templating and alignment; door/frame adjustments likely; no building wiring.
DORMAKABA Simplex 5021 Mechanical Pushbutton Lever Lock, 26D Satin Chrome, Entry w/ Key Override
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Grade 1 Mechanical Pushbutton Cylindrical Lever Lock, Single Code w/ Key Override, Non-Handed, 2-3/4" (std) or 2-3/8" Backset, 1/2" Latch (3/4" opt.), Satin Chrome (26D)
-
Vendordormakaba
-
Manufacturerdormakaba
-
SKU5021XSWL-26D-41
-
UIDDKB5021XSWL26D41
-
GradeANSI/BHMA Grade 1 (A156.2)
-
UL ListingUL 10C (up to 3-hour A-label doors)
-
Unit of MeasureEach
-
InstallationANSI 161 cylindrical + thru-bolts
-
ADA ComplianceYes
-
PowerNone (fully mechanical)
-
Limited Warranty3 Years
- 26D / 626 — Satin Chrome
- 026 / 625 — Bright Chrome
- 03 / 605 — Bright Brass
- 04 / 606 — Satin Brass
- 744 / 10B — Dark Bronze
- 676 — Black Housing w/ 626 Accents
-
HandingNon-handed; field reversible
-
TypeMechanical pushbutton lever lock
-
Backset2-3/4" (-41 std) or 2-3/8" (-40 opt)
-
Latch / Strike1/2" throw (3/4" opt); ASA 4-7/8" × 1-1/4"
-
Door Thickness1-3/8" to 2-1/4" (pre-set 1-5/8"–2")
-
Users / CodesSingle access code (1–5 digits); keypad programmable
-
Key OverrideKIL (Schlage C), SFIC/LFRC options
-
EnvironmentIndoor/Outdoor; weather-resistant
The Simplex 5021 delivers heavy-duty, battery-free access control with a vandal-resistant metal keypad and quick code changes from the exterior.
- Fully mechanical — no wiring or batteries
- Universal, ADA-compliant levers
- Direct-drive mechanism with stainless internal parts
- ANSI/BHMA Grade 1; UL 10C up to 3-hour fire doors
| Template | Full-Scale Drilling Template (PKG2845E) |
| Spec / Ops | E-Plex / Simplex 2000/5000 Specifications (KAA1297) |
| Install Guide | Installation Guide (KD10113-E) |
Installation Difficulty
Level 3 — Pro Starter: Template drilling & thru-bolts; basic door prep skills required; no wiring.
Schlage FE575 PLY ELA Keypad Entry Lever w/ Auto-Lock, Plymouth Trim, Elan Lever – Satin Chrome (626)
$228.00
Grade 2 Electronic Keypad Entry Lever — Auto-Lock (~5-second relock), Plymouth Trim with Elan Lever, Non-Handed, 2-3/8″ or 2-3/4″ Adjustable Backset, 1-3/8″–1-3/4″ Door
Schlage’s FE575 is a battery-powered, auto-locking keypad lever that fits standard 161 preps. It stores up to 19 user codes, relocks automatically after entry, and includes a conventional key override in Schlage C keyway. Installs with a screwdriver—no wiring.
- VendorSchlage (Allegion)
- ManufacturerSchlage
- ModelFE575 — Plymouth / Elan (PLY/ELA)
- GradeANSI/BHMA Grade 2
- Power9V battery (≈ up to 3 years typical)
- User CodesUp to 19; 2 pre-set codes included
- Auto-LockYes — relocks automatically (~5 seconds)
- Key OverrideSchlage C keyway, 5-pin
- BacksetAdjustable 2-3/8″ or 2-3/4″
- Door Thickness1-3/8″ to 1-3/4″
- WarrantyLimited Lifetime (mechanical/finish); 3-year electronics
- 505 — Lifetime Polished Brass
- 609 — Antique Brass
- 619 — Satin Nickel
- 620 — Antique Pewter (US15A)
- 626 — Satin Chrome
- 716 — Aged Bronze
Default shown: 626 Satin Chrome (PLY/ELA).
- FunctionFE575 Auto-Lock — always locked from exterior; relocks automatically
- HandingNon-handed; field reversible
- Trim / LeverPlymouth trim / Elan lever (PLY/ELA)
- KeypadBacklit silicone buttons; wear-resistant
- Door PrepStandard 2-1/8″ cross-bore; ANSI 161 with through-bolts
- Strike / LatchFull-lip strike; adjustable tubular latch (2-3/8″ or 2-3/4″)
Use case: Residential and light commercial entries needing reliable keypad access with auto-relock and panic-free inside egress—no wiring required.
- Stores up to 19 user codes; easy programming at the door
- Auto-Lock relocks after entry (~5 seconds)
- Screwdriver install on standard 161 preps
- Conventional key override (Schlage C keyway)
| Installation Instructions | FE575 Install Guide (PDF) |
| User / Programming Guide | BE365/FE575/FE595 User Guide (PDF) |
| Finish Reference | Schlage Finish Quick Reference (PDF) |
Installation Difficulty
Level 2 — Confident DIYer: Basic tools and door-prep familiarity required; keypad setup at the door; no building wiring.
Alarm Lock Trilogy DL1300 — Narrow Stile Keypad Trim, 26D/10B, 2,000 Users, Audit Trail
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Trilogy DL1300 — Narrow Stile Keypad Retrofit Trim
Alarm Lock Trilogy DL1300 is a stand-alone, battery-powered narrow-stile keypad trim for aluminum storefront doors using Adams Rite® style latches/bolts. Supports up to 2,000 users, 40,000-event audit trail, and 500-event schedules; keypad or DL-Windows PC programmable. Weather-resistant with all-metal 12-button keypad and key override. Works with AR 4710/4730/4900 deadlatches and 1850/1950/MS1850S/MS1950 deadbolts (with compatible inside hardware).
Lead time: Commonly stocked in 26D Satin Chrome and 10B Duronodic Bronze.
-
VendorAlarm Lock (Napco Security Technologies)
-
Series / ModelTrilogy Narrow Stile — DL1300 (PIN only)
-
Users / Features2,000 users • 40k event audit • 500-event schedules
-
ProgrammingKeypad or DL-Windows PC (AL-PCI2-U / AL-DTM III)
-
Power2 × CR123 3V lithium (included), low-battery alert
-
Use / RangeWeather-resistant; approx. −31°F to +151°F (−35°C to +66°C)
-
Door / PrepNarrow stile aluminum; retrofit outside trim (non-handed)
-
Compatible Inside LocksAdams Rite® 4710/4730/4900 deadlatches; 1850/1950/MS1850S/MS1950 deadbolts
- 26D / 626 — Satin Chrome (DL1300/26D1)
- 10B / 613 — Duronodic Bronze (DL1300/10B1)
| Users | 2,000 PIN users |
| Audit / Schedules | 40,000-event audit trail; 500-event schedules; real-time clock |
| Keypad | All-metal, 12-button; vandal-resistant |
| Cylinder | Mortise cylinder key override (Alarm Lock cam) |
| Power | 2 × CR123 lithium; ~100k typical cycles |
| Operating Range | ≈ −31°F to +151°F (−35°C to +66°C) |
| Trim Size | Approx. 14-3/8″ H × 1-3/4″ W × 1-5/8″ D |
| Compatibility | Adams Rite® 4710/4730/4900, 1850/1950/MS1850S/MS1950 |
Programming & maintenance references for Trilogy Narrow Stile.
Installation Difficulty
Level 3 — Intermediate: Narrow-stile prep, cylinder cam selection, DL-Windows setup recommended.
dormakaba Simplex LP1010 Mechanical Pushbutton Lever Lock — 26D/10B, Key Override
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Simplex LP1010 — Mechanical Lever Keypad Lock (with Key Override)
The dormakaba Simplex LP1010 is a heavy-duty mechanical pushbutton lever lock—no batteries or wiring. Single code entry (thousands of combinations), key override, free egress, and optional passage mode. Cylindrical latch with 2-3/4″ or 2-3/8″ backset; field-reversible handing.
Lead time: Usually stocked in 26D Satin Chrome; 10B (Oil-Rubbed Bronze) varies by distributor.
-
Vendordormakaba
-
Series / ModelSimplex LP1000 Series — LP1010 (lever)
-
PowerMechanical (no batteries or wiring)
-
EntrySingle access code (pushbuttons) + key override
-
Latch / BacksetsCylindrical latch; 2-3/4″ or 2-3/8″ backset
-
Door Thickness≈1-3/8″ to 2″ (kit-dependent)
-
HandingField-reversible (non-handed)
-
Code ChangeFrom exterior with key in place
-
FeaturesVandal-resistant keypad • Optional passage • Free egress
- 26D / 626 — Satin Chrome (typical stock)
- 10B / 613 — Oil-Rubbed Bronze (varies by distributor)
Other architectural finishes are special-order — call for availability.
| Model | LP1010 — Lever, mechanical keypad, key override |
| Backsets | 2-3/4″ (std) • 2-3/8″ (alt.) |
| Latch | Deadlocking cylindrical latch |
| Door Thickness | ≈1-3/8″ to 2″ (kit-dependent) |
| Code Capacity | Single code, thousands of combinations |
| Passage | Optional passage (toggle) where permitted |
| Keys/Cylinders | Accepts mortise cylinder for key override (by keyway) |
Official installation & combo-change references from dormakaba Americas.
Installation Difficulty
Level 3 — Intermediate: Cylindrical prep, handing check, and combo setup.
dormakaba Simplex 3000 Narrow Stile Mechanical Pushbutton Lock — 26D/55, Thumbturn + Key Override
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Simplex 3000 — Narrow Stile Pushbutton Lock (Thumbturn, No Power)
The dormakaba Simplex 3000 is a mechanical pushbutton lock for narrow stile aluminum/glass doors (storefront). Single-code keypad (no batteries), key override, passage & lockout modes. Works with Adams Rite-style mortise deadlatches (purchased separately). Order the exterior trim plus the handed drive assembly to match handing and backset.
Lead time: 26D Satin Chrome and 55 Duranodic are commonly stocked; verify drive-assembly backset/hand before ordering.
-
Vendordormakaba
-
Series / ModelSimplex 3000 — Narrow Stile, Thumbturn + Key Override
-
PowerMechanical (no batteries or wiring)
-
EntrySingle code via pushbuttons + key override
-
ModesPassage (by key) • Lockout (by key)
-
Locking DeviceAdams Rite 4510/4710/4910 mortise latch (not included)
-
Stile / DoorNarrow stile; min stile ≈ 1-7/8″; door thickness up to ≈ 1-3/4″
-
HandingTrim is non-handed; drive assembly is handed (order LH or RH)
-
Backsets31/32″ • 1-1/8″ (also supports 1-1/2″ with 3030/3040)
- 26D / 626 — Satin Chrome
- 55 / 695 — Duranodic (Dark Bronze)
Other architectural finishes considered special order; call to confirm.
| Operation | Single-code pushbutton entry; key override; free egress |
| Modes | Passage (by key) • Lockout (by key) |
| Drive Assemblies | 3010/3020 = 31/32″ (RH / LH) • 3030/3040 = 1-1/8″ or 1-1/2″ (RH / LH) |
| Key Cylinder | MS-type mortise cylinder (override) — not included |
| Supplied | Install manual, template, combination change key, screwdriver |
| Weather | Weather-resistant exterior housing |
| Warranty | 1 year (manufacturer) |
Note: Order the trim + the correct drive assembly + an Adams Rite-style latch to complete a working set.
Reference videos; follow dormakaba documentation for exact steps.
Installation Difficulty
Level 3 — Intermediate: Narrow-stile layout, correct drive assembly (hand/backset), code setup.
Alarm Lock Trilogy DL1300 — Narrow Stile Keypad Lever Trim (Audit Trail)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Trilogy DL1300 — Narrow Stile Keypad Lever (Audit Trail)
Alarm Lock Trilogy DL1300 is a narrow-stile, keypad-only access control trim for aluminum/glass doors (Adams Rite® deadlatches), supporting 2,000 users, 40,000-event audit trail, and up to 500 scheduled events. Non-handed, battery powered (2 × CR123A), vandal-resistant 12-button metal keypad.
- VendorAlarm Lock (Napco)
- Series / ModelTrilogy Narrow Stile / DL1300
- Users / Audit2,000 users • 40,000-event audit trail
- Schedules500 timed events; real-time clock
- Power2 × 3V CR123A lithium; ~80k cycles
- Environment−31°F to +151°F (−35°C to +66°C)
- CompatibilityAdams Rite® 1850, 1950, 4710, 4730, 4900, 4070*
- Backsets31/32″ • 1-1/8″ • 1-1/2″ (of latch)
- HandingNon-handed; field reversible
- US26D — Satin Chrome (DL1300/26D1)
- US10B — Duronodic / Oil-Rubbed Bronze (DL1300/10B1)
| Code Length | 3–6 digits |
| Dimensions | 14-3/8″ H × 1-3/4″ W × 1-5/8″ D (trim) |
| Door / Stile | 1-3/4″ door • ≥2″ stile |
| Cylinder | Std. 1-1/4″ mortise cylinder included; IC core options supported |
| Materials | All-metal, vandal-resistant keypad • clutch lever |
| Weight (ship) | ~7 lb |
Installation Difficulty
Alarm Lock Trilogy PDL1300 — Narrow Stile PIN/Prox Keypad Lever (Audit Trail)
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Trilogy PDL1300 — Narrow Stile PIN/Prox Keypad Lever
Alarm Lock Trilogy PDL1300 is a narrow-stile access trim for aluminum/glass doors (Adams Rite® deadlatches), with a built-in HID prox reader + keypad for PIN or card entry. Supports 2,000 users, 40,000-event audit trail, and up to 500 scheduled events. Battery powered (2 × CR123A), non-handed, vandal-resistant 12-button metal keypad.
- VendorAlarm Lock (Napco)
- Series / ModelTrilogy Narrow Stile / PDL1300
- Users / Audit2,000 users • 40,000-event audit trail
- SchedulesUp to 500 timed events; real-time clock
- EntryPIN (3–6 digits), Prox card/fob, or combo
- Power2 × 3V CR123A lithium (incl.)
- Compat.Adams Rite® 1850, 1950, 4710, 4730, 4900, 4070
- Door/Stile1-3/4″ door • ≥2″ stile
- HandingNon-handed; field reversible
- US26D — Satin Chrome (PDL1300/26D1)
- US10B — Duronodic / Oil-Rubbed Bronze (PDL1300/10B1)
| Code Length | 3–6 digits |
| Dimensions (trim) | ≈14-3/8″ H × 1-3/4″ W × 1-5/8″ D |
| Cylinder | Std. 1-1/4″ mortise cylinder (SC1) |
| Construction | All-metal, vandal-resistant keypad • clutch lever |
| Ship Weight | ~7 lb |
Installation Difficulty
Cal-Royal ZWDB-10 Z-Wave Touch Screen Electronic Deadbolt
CALL FOR PRICING
Please contact us by email or phone for pricing on this item.
Cal-Royal ZWDB-10 — Electronic Z-Wave Deadbolt (Keyed Override)
Cal-Royal ZWDB-10 is a Z-Wave enabled touchscreen electronic deadbolt with keyed override. Supports standard 2-1/8″ cross-bore and 1″ edge-bore, adjustable backset 2-3/8″ or 2-3/4″. 30 user codes (4–10 digits), random pre-entry, auto-lock, service code, low-battery alert. Powered by 4× AA.
- TechnologyBuilt-in Z-Wave (908.4 MHz)
- Users1 admin • 30 codes • 4–10 digits
- SecurityRandom pre-entry • Service code • Auto-lock
- Door Thickness1-3/8″ to 1-3/4″ (35–45 mm)
- Backset2-3/8″ or 2-3/4″ (adjustable)
- Bore Prep2-1/8″ cross-bore • 1″ edge-bore
- Latch/Strike1″ × 2-1/4″ square corner (both)
- Deadbolt1″ throw, anti-saw pin
- Power4× AA 1.5V (alkaline)
- US26 — Polished Chrome
- US26D — Satin Chrome
- US12P — Satin Bronze (Clear Coated)
| Model | ZWDB-10 — Touchscreen Electronic Deadbolt |
| Wireless | Z-Wave, 908.4 MHz |
| User Capacity | 30 user codes + admin; 4–10 digits |
| Door Prep | 2-1/8″ cross-bore • 1″ edge-bore • Adj. backset 2-3/8″ or 2-3/4″ |
| Components | Zinc alloy & steel • 1″ throw deadbolt w/ anti-saw pin |
| Power / Alerts | 4× AA alkaline • Low-battery indicator/alarm |
| Applications | Residential & standard-duty commercial |
Installation Difficulty
Level 2 — Skilled DIY: Standard deadbolt prep; keypad setup; Z-Wave pairing.

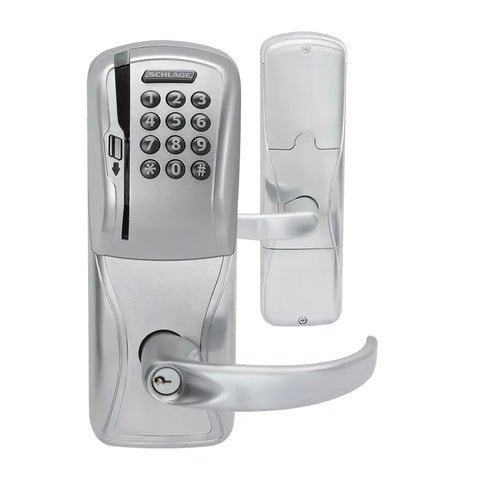

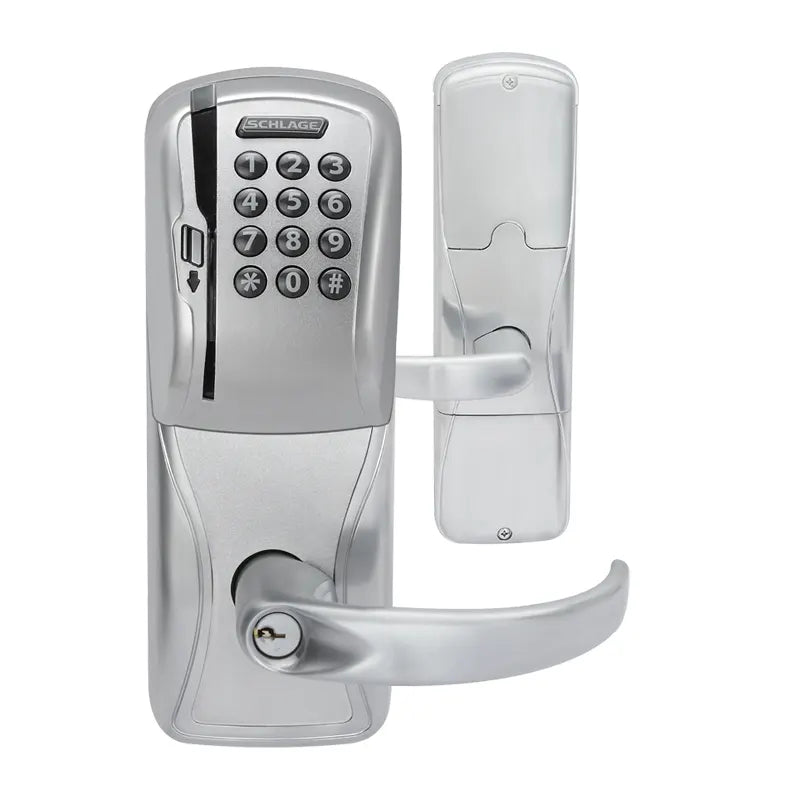

SCHLAGE AD250-CY50
Sold Out
Please contact us by email or phone for pricing on this item.
SCHLAGE AD250-CY50 Offline Rights-on-Card Lock
The AD-250 is a unique offline lock solution in which access rights are stored on the user’s magnetic stripe credential, not on the lock.
This allows dynamic rights management on the card without reprogramming each lock individually. The lock still maintains an audit trail of events at the door. This makes it an intelligent and economical solution for campus environments with a large number of users and offline openings.
The AD-250 is part of the adaptable AD Series and is easily upgradable to a networked wireless lock with its patented modular design if requirements change in the future.
The Schlage Utility Software (SUS) mobile app and cable, when used in conjunction with your access control software, allows you to update lock programming and retrieve audits at the lock. Lock and unlock schedules, as well as time zones and holidays can be programmed through software provider solution for added security and convenience.
Available chassis include cylindrical, mortise, mortise deadbolt and exit trim.
SCHLAGE AD250-CY50
Security
- Classroom/storeroom, office, privacy and apartment functions available
- Multi-factor authentication capability when installed with keypad + card reader
Efficiency
- Add users without visiting lock - user rights are stored on magnetic stripe credentials
- Supports holidays and time zones1 to enable auto lock and unlock during specified periods
- Modular design enables upgrade from standalone lock to networked locking solution without removing lock from door
Convenience
- Unlimited number of users1 and up to 10,000 audits
- Up to 2 years battery life with status indicator for easy maintenance
- Programming updates can be made immediately at the door using the SUS mobile app on Android devices and cable
1 Depending on access control software capability
AD-250 Reader options
- Magnetic stripe reader; swipe or insertion style
- Magnetic stripe reader with keypad; swipe or insertion style
User verification
- Capable of credential verification <1 second
- Unlimited users
- Up to 10,000 audits
Programming interface
- Schlage Utility Software (SUS) mobile app transfers programming information from computer to lock using the SUS-A USB cable
- PACS provider provides access control management software for user, audit and functionality management
Additional
- Battery life - up to 2 years with 4 AA batteries
- Exterior Temp: -31° to 151°F (-35° to 66°C)
- Interior Temp: 32° to 120°F (0° to 49°C) (battery)
- Humidity: 0 - 100% non-condensing
For full electronic specifications please reference AD-250 data sheet.
Chassis options
- Cylindrical
- Mortise
- Mortise deadbolt
- Exit trim
- Each offered with LED indicator or push button depending on lock function choice
Cylinder and keys
- Key override: standard
- Standard: Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys
- Factory master keying available
- Conventional (KIL), FSIC, and SFIC cylinder options
- Less cylinder options to fit common Sargent®, Corbin Russwin®, Medeco®, Yale® and Falcon® cylinders
- View more Lever and Cylinder Compatibility
For full mechanical specifications please reference the AD-250 data sheet.
- 8 popular lever styles
- 8 finishes
- Weather-resistant for interior and perimeter applications
- Athens
- Boardwalk
- Broadway
- Latitude
- Longtitude
- Rhodes
- Sparta
- Tubular
- 605 Bright brass
- 606 Satin brass
- 612 Satin bronze
- 643e Aged bronze (simulated equivalent)
- 619 Satin nickel
- 625 Bright chrome
- 626 Satin chrome
- 626AM Satin chrome with antimicrobial coating
Designed to create an attractive and cohesive building-wide look when paired with other Schlage, Von Duprin or LCN devices.
Product information
- AD 250 data sheet
- AD and CO lever and cylinder compatibility data sheet
- AD Series exit trim data sheet
- AD 993 Interior Push Button Retrofit Kit sell sheet
- Allegion Commercial Warranty
Category information
Related product information
- Schlage Utility Software (SUS) data sheet
- Schlage Express™ offline access control software data sheet
Technical resources
Installation Instructions and User Guides
- AD Series how-to videos
-
AD Series Cylindrical installation instructions
- AD Series Mortise installation instruction
- AD Series Mortise Exit Device installation instructions
- AD Series Exit Device installation instruction
- AD 993 Interior Push Button Retrofit Kit installation instructions
- AD Series 7-Pin KIL Tailpiece instructions
- AD Series Reader Replacement installation instructions
- Schlage AD Series FCC/IC Compliance Statement
Firmware and Release Notes
- Schlage AD Series AD.A.144.1 Firmware and Release Notes, July 2025
- Schlage AD-Series AD.A.144 Firmware and Release Notes, June 2024
- Schlage AD Series AD.A.143 Firmware and Release Notes, January 2024
AD Series Cylindrical
- What’s in the box
- How to install

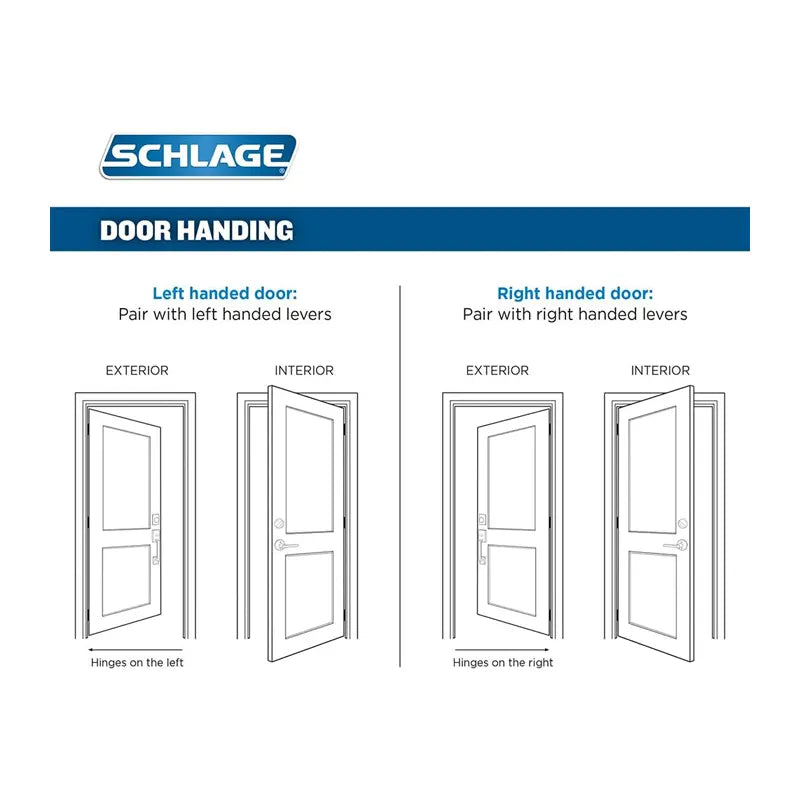

- How to re-hand
- How to do the electrical hook up
- How to prep the door
- How to upgrade the credential reader
AD Series Mortise
- What’s in the box
- How to install
- How to re-hand
- How to do the electrical hook up
- How to prep the door
- How to upgrade the credential reader
AD Series 993 Exit Trim
- What’s in the box
- How to install
- How to re-hand
- How to do the electrical hook up
- How to prep the door
- How to upgrade the credential reader
For additional videos, including how to utilize your legacy HHD, please visit Schlage AD Series YouTube Channel.
Installation Difficulty

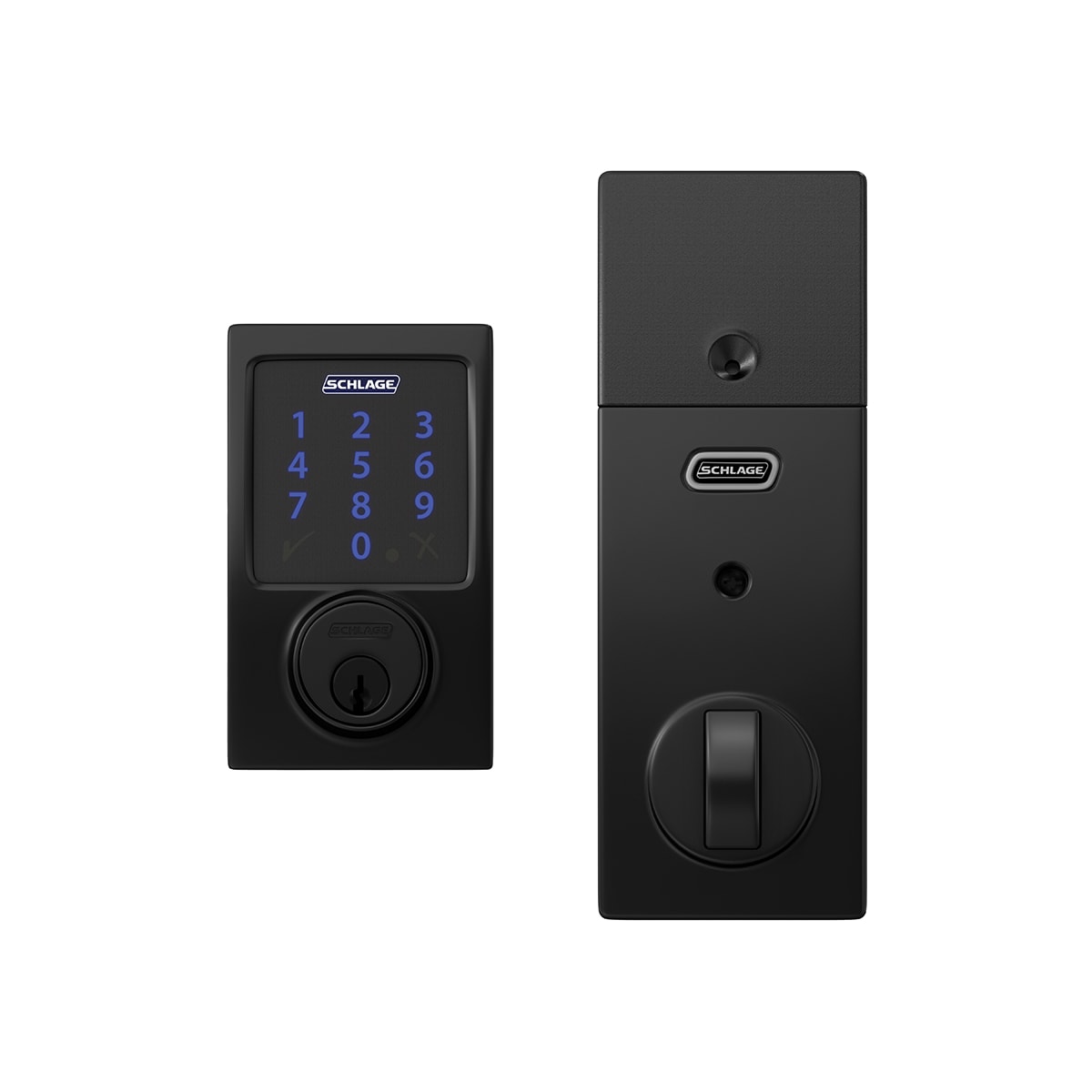

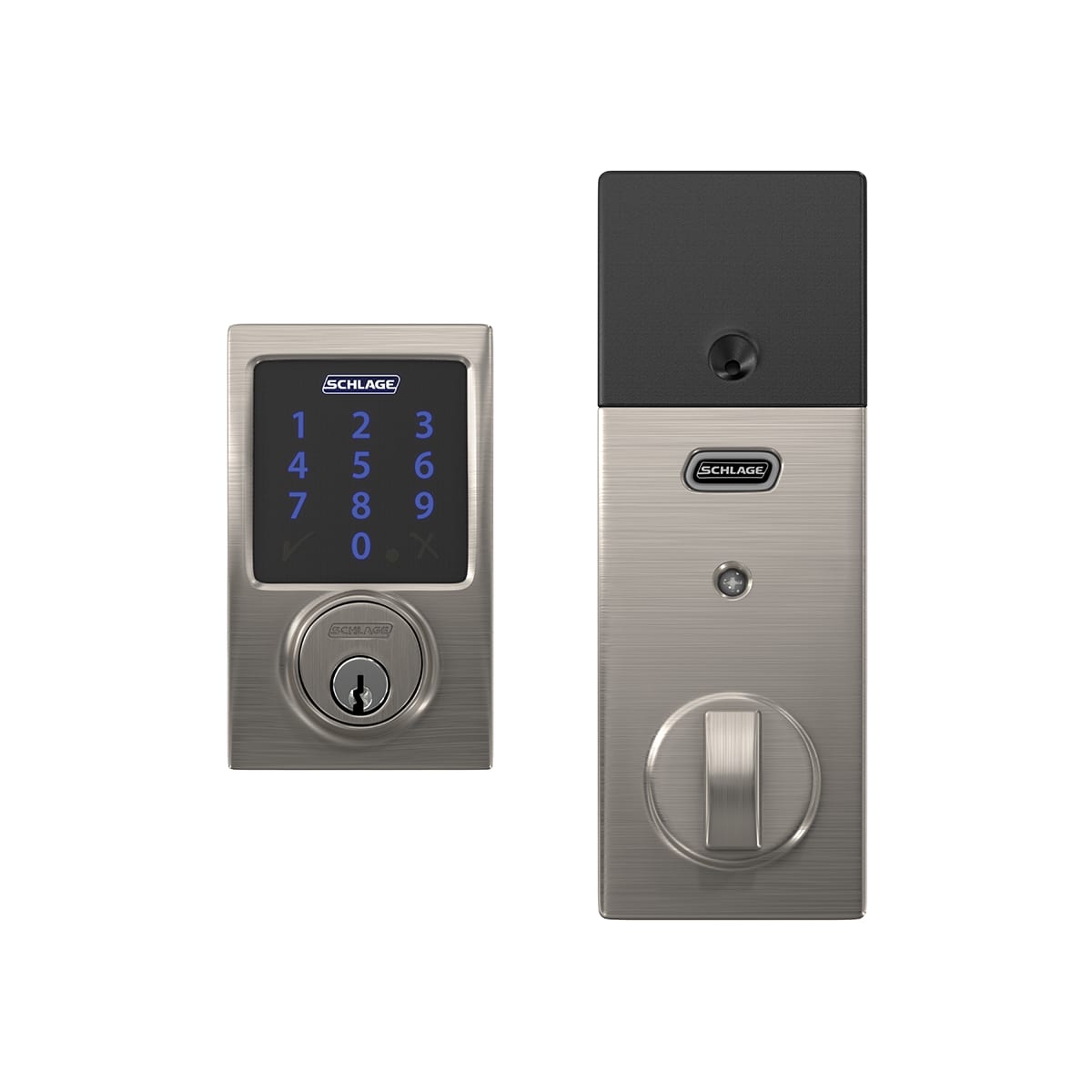

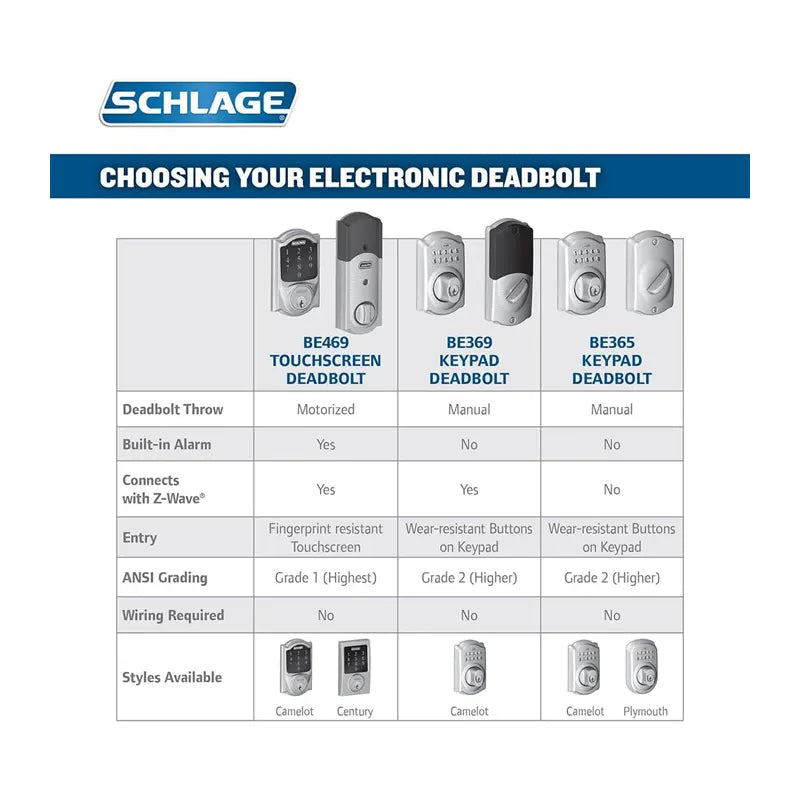

Schlage BE469
Sold Out
Please contact us by email or phone for pricing on this item.

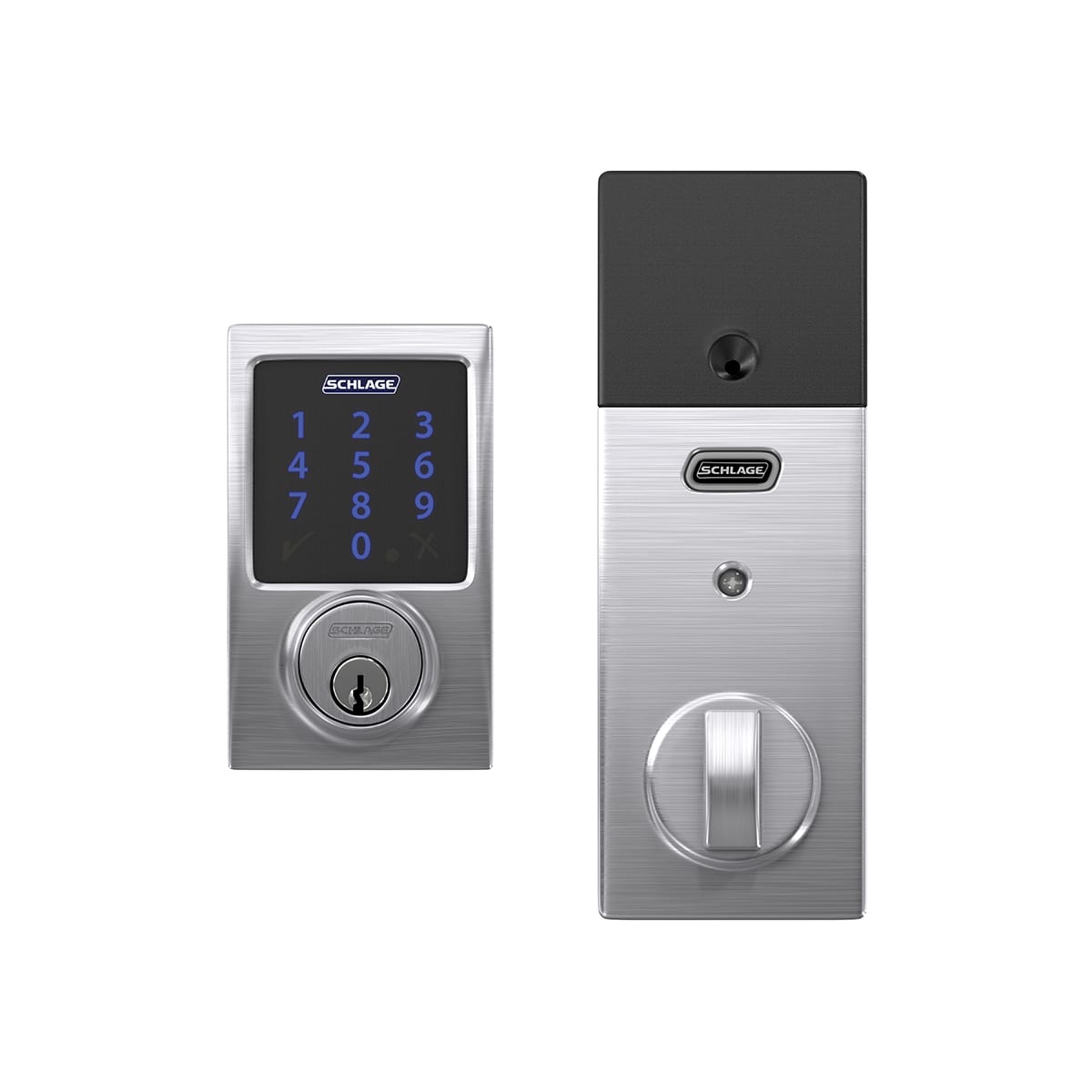

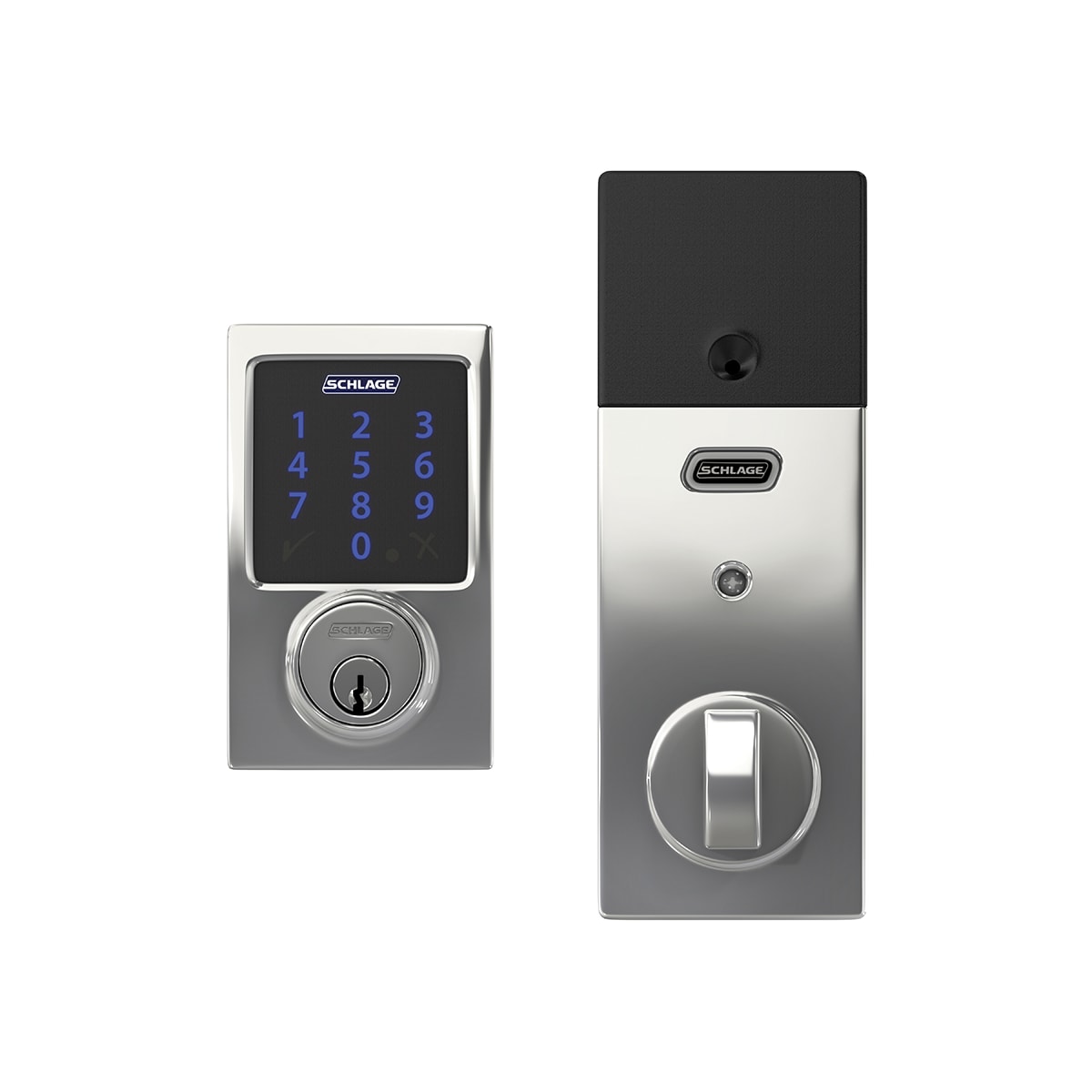

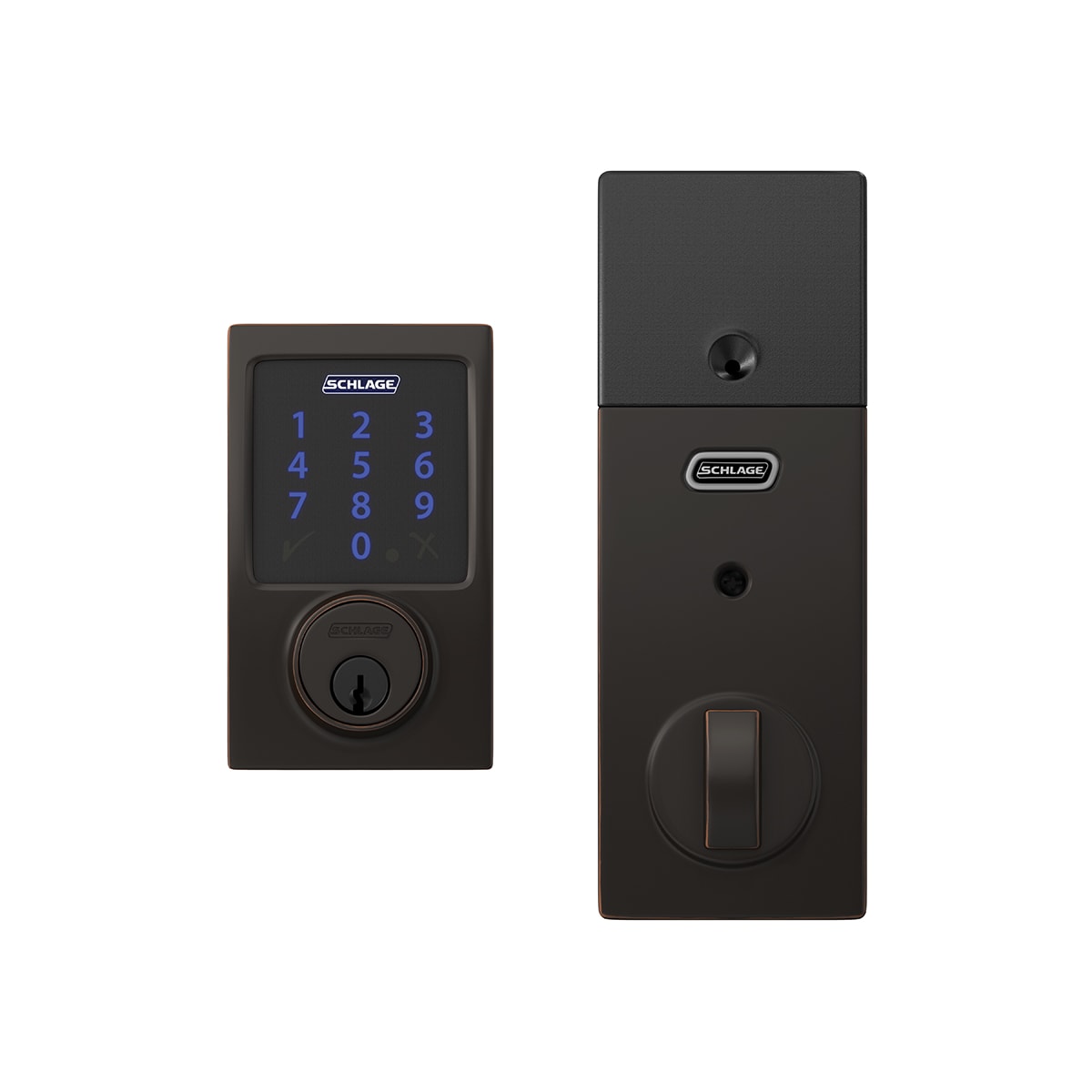

Schlage BE469
The Schlage Connect touchscreen allows you to lock and unlock doors without the use of a key, an ideal solution for front, back and garage doors. This Schlage BE469ZP Century electronic deadbolt has a keypad on the exterior and a thumb turn on the interior. There is an auto-lock feature associated with this series which will automatically relock the door anytime it’s left unlocked.
Schlage BE469 Touchscreen Deadbolts can be used as a single standalone deadbolt, but also have the optional feature of tying into the home automation system which allows for total home control and automation through smartphones or any internet connected device.
For residential single-family residences. Durable resistive touchscreen with a matte finish to protect against fingerprints and smudges.
Z-Wave Plus Intelligence
- Allows for cell phone controlled locking and unlocking
- Customize lock codes, alarms and schedules
- Utilizes Z-Wave Plus wireless mesh networking
- Allows for further integration with thermostats, lights, cameras and other electronics
- Remote access requires a compatible home automation or security system. The deadbolt will still function as a keypad lock with built-in alarm without one of these systems. Please contact your Z-Wave provider to see if this product is supported.
-

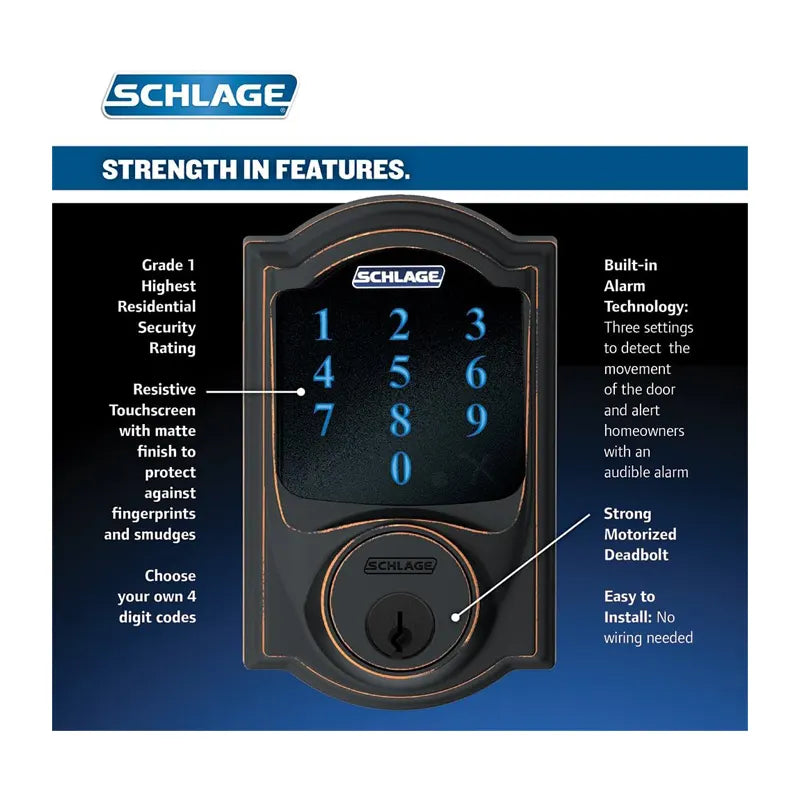

Anti-pick shield protects against lock tampering
-
BHMA/ANSI Grade 1 certified, the highest residential rating.
-
Durable Resistive Touchscreen with matte finish to protect against fingerprints and smudges
-
Strong motorized bolt automatically locks and unlocks when a user code is entered
-
Build-in Alarm Technology senses movement of the door and alerts homeowners with an audible alert
-
Select between three alerts- activity, tamper or forced entry alert- and customized to meet fit your security needs
-
Backed by a lifetime limited mechanical and finish warranty and 1-year electronics warranty.
-
Works with Nexia, SmartThings, Wink & Ring home automation systems
-
Works with Alexa & Google Assistant voice assistants
-
Holds up to 30 User Codes
-
Applications: Residential single family doors
-
Certifications: Grade 1 ANSI/BHMA certified
-
Keying: 5-pin tumbler, C Keyway, 1 key included
-
Door range: 1-3/8” to 1-3/4” (35mm-44mm) standard
-
Operating Temperatures: Outside escutcheon: -35C to 66C, Inside escutcheon: -10C to 49C
- Aged Bronze
- Bright Chrome
- Matte Black
- Satin Chrome
- Satin Nickel
Instructional Videos
Installation Difficulty
Level 1 — Skilled DIY: Anyone who can read instructions and use basic tools can install this product.

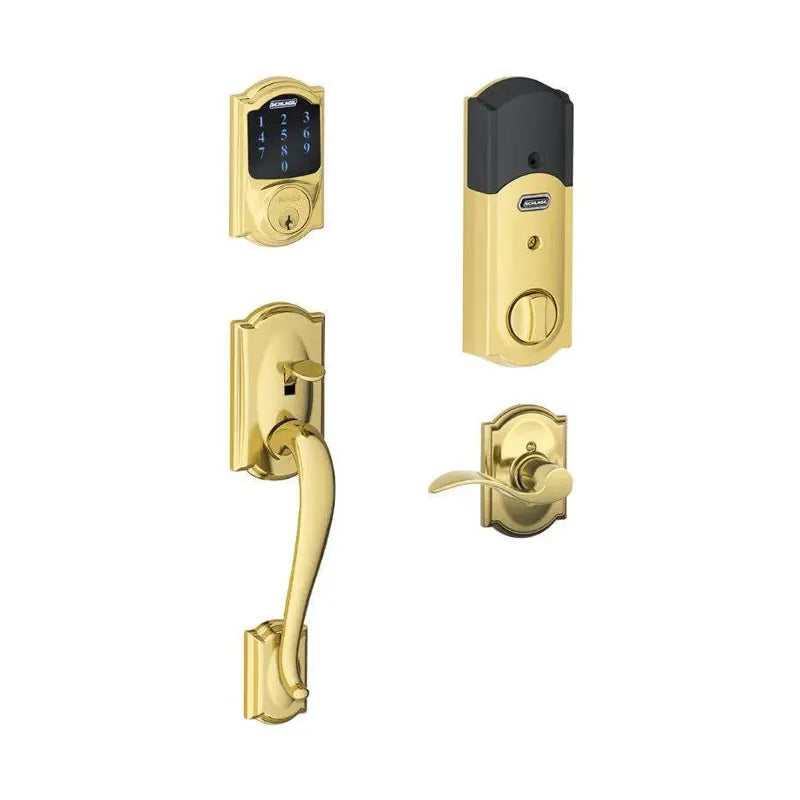

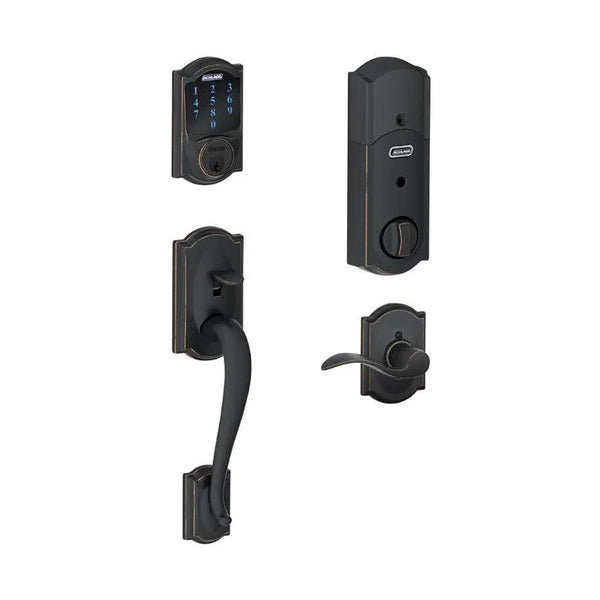

Schlage FE469
Sold Out
Please contact us by email or phone for pricing on this item.

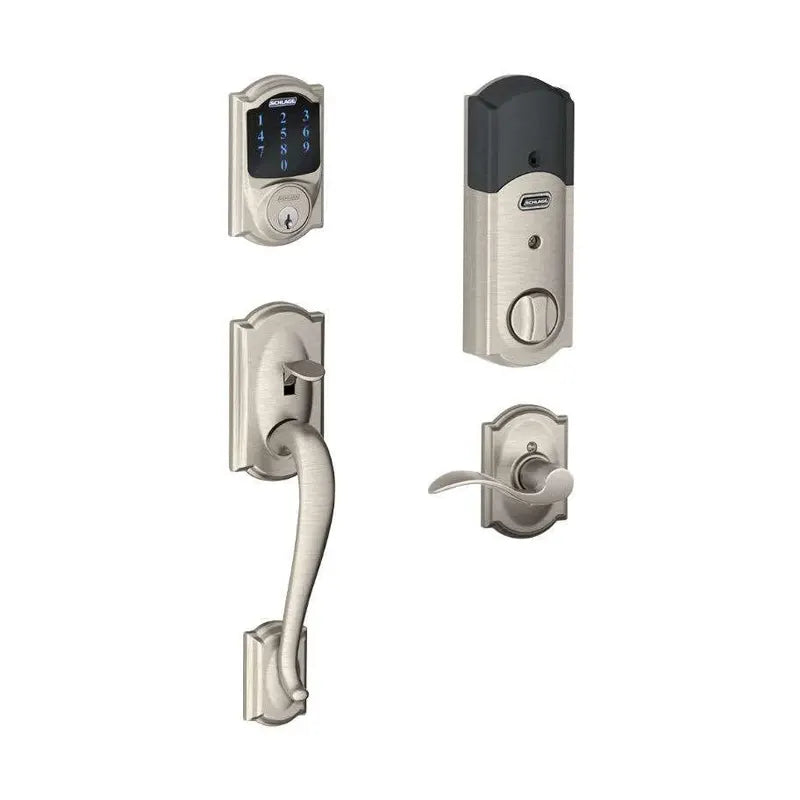

Schlage FE469
The Touchscreen Deadbolt with Handleset and Decorative Interior Trim combines all of the best security features into one keyless front entry door lock, redefining what it means to be secure. The innovative touchscreen feature provides the convenience of going keyless. No more keys to lose, hide, carry or forget. The fingerprint-resistant touchscreen ensures numbers won’t be detectable to intruders after repeated use, safeguarding your home even more. Schlage's Touchscreen Deadbolt with Alarm combines our best security features into one door lock: Grade 1 certification, an Anti-pick shield, Built-in Alarm technology. The Schlage Connect front entry lock is also enabled to work with Nexia Home Intelligence, a home automation system that allows you to control locks, thermostats, lights, cameras and more — from wherever you and the Internet happen to be.
Z-Wave Certified
This is a Z-Wave device that can be controlled remotely by connecting it to one of these systems.
Home Automation is a style of living. It is about always being connected to the home you love. These systems* allow you to control your connected home devices such as door locks, thermostats, lights, motion sensors, cameras, water sensors, and more, all remotely from a computer or smartphone.
*Also works with Samsung SmartThings, Ring, Wink, Iris, ADT Pulse, Alarm.com, Honeywell, HomeSeer, LG Smart Security, Staples' Connect, Harmony by Logitech, and many more.
-
Anti-pick shield protects against lock tampering
-
BHMA/ANSI Grade 1 certified, the highest residential rating.
-
Durable Resistive Touchscreen with matte finish to protect against fingerprints and smudges
-
Strong motorized bolt automatically locks and unlocks when a user code is entered
-
Build-in Alarm Technology senses movement of the door and alerts homeowners with an audible alert
-
Select between three alerts- activity, tamper or forced entry alert- and customized to meet fit your security needs
-
Backed by a lifetime limited mechanical and finish warranty and 1-year electronics warranty.
-
Works with Nexia, SmartThings, Wink & Ring home automation systems
-
Works with Alexa & Google Assistant voice assistants
-
Holds up to 30 User Codes
-
ANSI Grade 1 Highest Residential Security
-
Durable Resistive Touchscreen with matte finish to protect against fingerprints and smudges (can be used with gloves)
-
Camelot handle set and latitude Lever with century trim
-
Anti-pick shield protects against lock tampering
-
Strong motorized bolt automatically locks and unlocks when a user code is entered
-
Build-in Alarm Technology senses movement of the door and alerts homeowners with an audible alert
-
Select between three alerts- activity, tamper or forced entry alert- and customized to meet fit your security needs
-
Remote Lock and unlock from anywhere with your cell phone, and schedule lock codes. Simply pair to Z-Wave controller, or alarm system. Need a controller, check out Ezlo Atom, Ezlo Plus, Ezlo Secure, or Smartthings hub
-
Key Override: Bump Resistant 5-Pin Cylinder, includes 1 Backup Emergency Key (Extra keys sold separate at checkout)
-
Battery life approximately 1 year, 4 AA Batteries Included
-
Backset: Universally made for 2 3/8″ and 2 3/4″ preps
-
Fits virtually all swing doors
-
Lock and Handleset Extension Kits available for thick doors
-
High-speed internet connection (DSL, or cable) required for wireless remote lock, unlock, and monitoring features from a PC. Cell phones must be web-enabled
- Aged Bronze
- Polished Brass
- Satin Nickel
Instructional Videos
Installation Difficulty
Level 1 — Skilled DIY: Anyone who can read instructions and use basic tools can install this product.
Dormakaba Simplex 5000
Sold Out
Please contact us by email or phone for pricing on this item.
Dormakaba Simplex 5000
The ALREX PRO Hydraulic Door-Closer Hinge redefines door control, blending hydraulic precision with spring-hinge reliability. Built for demanding environments, its stainless-steel design ensures smooth, code-compliant performance while preventing disruptive slams—now with UL 10C 3-hour fire-rated certification for commercial use. Hold Open available for non-fire rated openings.
Applications
- Medical
- Arch Doors
- Custom Applications / OEM
- Transom Doors
- Hospitality
- Multi-Family
- Gates
-
Intelligent Speed Control: Adjustable hydraulic tension ensures smooth closing, preventing abrupt closures even in high-traffic areas.
-
5-Year Warranty: Confidence in quality and performance
-
UL 10C Fire Compliance: 3-hour fire-rated protection meets strict commercial building codes (NFPA 80/ADA).
-
Heavy-Duty Construction: 304 stainless steel body withstands 1,000,000+ test cycles.
-
Patent #10633905: Innovative engineering backed by patented technology.
-
Positive Latching Mechanism: Secures doors firmly into frames.
-
Architectural-Grade Aesthetics: Slim profile integrates seamlessly with modern door designs.
-
Satin Chrome 26D (626) housings and levers
-
Black (676) housings with Satin Chrome (626) levers and accents
-
Bright Brass 03 (605) housings and levers
-
Satin Brass 04 (606) housings and levers
-
Bright Chrome 026 (625) housings and levers
-
Dark Bronze 744 housings and levers with brass accents
Technical Details
Backset:
- Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset
- Exit Device: Varies by Exit Device
- Mortise: 2¾" (70 mm) backset
Latch: ½" (13 mm) latch, ¾" (19 mm) latch (optional)
Exit Device: Not supplied (see list on below for compatibility)
Exit Device Latch: Supplied with Exit Device
Minimum Stile Recommended: 5" (127 mm)
Exit Device Compatibility—Simplex 5000 Exit Trim
- Arrow S1250, Dorex 8500R/8500F, Sargent 8888
- Arrow S3883F/S3800, Dorex 9500PR/9500FR, Von Duprin 22/22F
- Black & Decker (K-2) QED111/112, dormakaba 9300/F9300, Von Duprin 98/98F
- Cal Royal 9800, Monarch 18R*, F18R*, Von Duprin 99/99F
- Cal Royal 2200, Precision 21/FL21, Von Duprin XP98/99
- Corbin Russwin ED5200/5200A, Sargent 2828, Yale YME2100/2100
- Detex 1001 BP1, Sargent 3828, Yale 7100
- Detex 10/F10 Series, Sargent 8810E/8800
*(requires special K-Hub Adapter)
Universal Lever Key-in-Cylinders: Includes dormakaba1599 6-pin cylinder (prepped to dormakaba 90 or Schlage "C" Keyway, keyed different) and tailpieces for compatibility with:
- Abloy 5277, Corbin Russwin 2000-03, Marks
- Abloy 5477, dormakaba 1539, Medeco 20W200H1
- Arrow C100, dormakaba Gemini 4730, Sargent 10 Line
- ASSA 65611, dormakaba Peaks 1099, Schlage 23-001
- ASSA 65691, dormakaba 1599, Schlage Primus 20-760
Australian: dormakaba expert 107K5, Boyd KC286
European: Quattro S/Expert, AP2 (5 and 6-pin)
Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length)
Removable Cores: Large format—ASSA/Medeco/Yale/Abloy (5 or 6-pin), Corbin Russwin (6 or 7-pin), Schlage, and Sargent
Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
Door Thickness:
- Cylindrical: 1⅜" (35 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (51 mm).
- Exit Trim and Mortise: 1¾" (44 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm).
Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant, wear tested for extensive use in indoor and outdoor applications
Fire Rating: 3-hour UL/ULC fire rating for "A" label doors and installed with an existing fire-ratedexit device (where applicable)
Warranty: Three-year warranty
Installation Difficulty
Level 1 — Skilled DIY: Anyone who can read instructions and use basic tools can install this product.
Schlage FE595
Sold Out
Please contact us by email or phone for pricing on this item.
Schlage FE595
The Schlage FE595 CAM/ACC Camelot Keypad Flex-Lock entry leverset with accent lever offers the best in security and convenience. The Flex-Lock feature allows you to switch between unlocked or automatic re-locking with the turn of a button. No keys to hide, lose, carry or forget. The free-spinning keyway prevents wrench attacks and is easy to turn when the correct code is entered. Patented key override feature includes two keys. Comes preset with one unique 6-digit programming code, two unique 4-digit user codes, and the Schlage 5-pin C keyway. You can easily add or delete codes right at the keypad using the lock's unique 6-digit programming code. Includes a 9-volt battery, a 6-digit programming code, and two 4-digit user codes pre-set at the factory. Keypad has a low battery indicator with a visual and audible warning. Ready to install right out of the box.
-
Meets ANSI Grade 2 security requirements
-
Lifetime limited mechanical and finish warranty
-
Three-year limited electronics warranty
- Aged bronze (Schlage FE595 CAM 716 ACC)
- Antique pewter (Schlage FE595 CAM 620 ACC)
- Antique brass (Schlage FE595 CAM 609 ACC)
- Lifetime bright brass (Schlage FE595 CAM 505 ACC)
- Satin chrome (Schlage FE595 CAM 626 ACC)
- Satin nickel (Schlage FE595 CAM 619 ACC)
| Product Dimensions (4.0") | 3" x 6.5" x 6.5" |
| Battery | 9V battery (1) |
| Latch Throw | 1/2" throw, 7/8" housing diameter |
| Cylinder Open | 5-pin, C keyway |
| Door Thickness | 1-3/8" to 1-3/4" |
| Cross Bore | 2-1/8" |
| Latch Faceplate Size | 1" x 2-1/4" radius corner |
| Latch/Backset | 2-3/8" to 2-3/4" adjustable |
| Latch Faceplate Options | Spring latch radius corner and circular drive-in faceplates |
| Strike | 1-5/8" x 2-1/4", radius corner, full lip latch strikes |
| Keys | 1 Key |
| Codes | 2 pre-set unique 4-digit access codes, storage of up to 19 access codes |
| Operating Temperatures | Outside lock body (exterior mounted): -35C to 66C Inside lock body (interior mounted): -10C to 50C |
Installation Difficulty
Level 1 — Skilled DIY: Anyone who can read instructions and use basic tools can install this product.
Company Info
Resources
Why Buy From Us?
Huge Inventory
Huge Inventory
No Hassle Returns
Satisfaction
Guaranteed
Guaranteed
News & Updates
Sign up to get the latest on sales, new releases and more …
