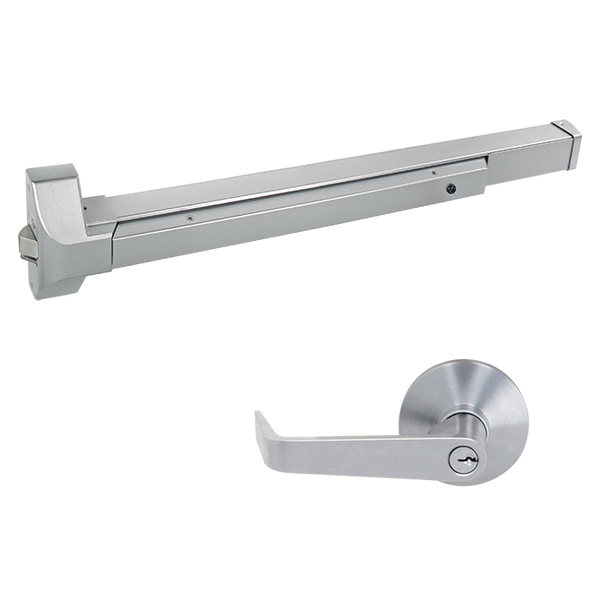

Cal-Royal 5000 & F5000 Fire Rated Series Rim Exit Device

$111.00

Qty

5000 & F5000 SERIES
- ANSI A156.3, GRADE 1 Heavy Duty Rim Exit Device
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
- UL Listed for Fire Exit Hardware. 3 hours.
- (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
- Chassis mounted unit construction.
- Available in standard functions. Lever and knob trims have an optional clutch freewheeling mechanism. Rose covers 161 cut out.

For Doors - 1 ¾" thick standard. 3 ¾" minimum stile width for single or double door application using standard 938 strike and pull or lever trims.
Chassis - Steel (Panic & Fire Grade)
Cover - Covers stock hollow metal doors with 161 cut out
Mounting - Furnished standard with wood and machine screws. Available with thru-bolts on request. Thru bolts are standard packaging on fire-rated devices.
End Cap - Steel construction
Hand - Non-Handed, center hub.
Latch Bolt - Stainless steel ¾" throw
Spring - Steel throughout
ANSI Standard - A156.3, Grade 1
Rail Assembly - Heavy gauge steel, painted.
Strike - 938 packed standard.
Dogging Feature - Allen-type key furnished standard on non-fire labeled devices.
Mullion - Available.
UL and ULC Listed - 5000 Series for panic. F5000 Series for fire exit hardware for all types of 3' x 7' single doors and 6' x 7' double doors for up to 3-hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
Finish - Aluminum (ALUM), Stainless Steel (US32D)
Anti-Microbial Coating - Available on US32D only. Use part # ANTB-EXIT

All exit devices shall be of touch bar design with smooth operation and be operative over ⅔ of the door’s clear opening width
All exit devices must be listed under “Panic Hardware” in the Accident Equipment List of Underwriters’ Laboratories, Inc. where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC 7-2-1997 codes
All exit devices shall be of chassis mounted unit construction

wrench wrench Challenging
Recommended for Experienced Installers, but not rocket science.

$216.50

The PDQ 4200 Series offers a reliable and economical solution for compliance with life safety code requirements.

Available with matching door trim - choose from a Grip Pull with Thumbpiece or Lever. Includes standard Schlage SC1 cylinder. See photo.

RAIL: Heavy gauge steel or stainless steel
TOUCH PAD: Heavy gauge steel or stainless steel
LATCH BOLT: Stainless steel dead locking / 3/4” throw Rim / 5/8” throw SVR
PROJECTION: 2-5/8” projection
HAND: Device and trim are non-handed
DOGGING: Hex key dogging
APPLICATION: Rim
STILE WIDTH: 4-1/4” minimum
DOOR THICKNESS: 1-3/4”
DOOR WIDTH: For doors up to 3 foot wide
FASTENERS: Fasteners furnished for wood and metal door applications / Sex nuts and bolts standard with fire labeled devices
CERTIFICATION: U.L./U.L.C. listed for “Panic”, Complies with U.L. 10C and UBC 7.2 (1997)
WARRANTY: Five (5) year limited factory warranty

Satin Stainless Steel 630/US32D

Satin Chrome 626/US26D

Aluminum 695

wrench wrench Challenging
Recommended for Experienced Installers, but not rocket science.
