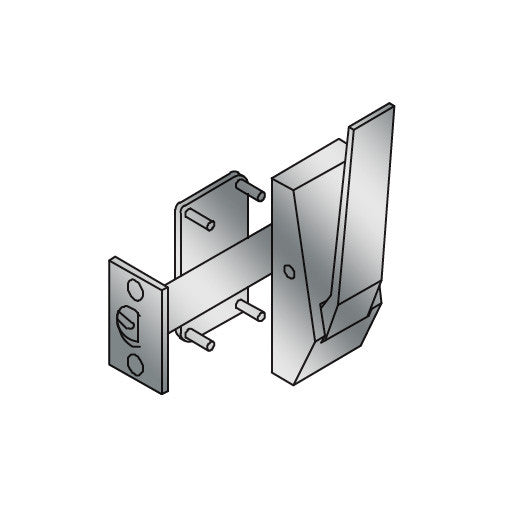

ABH 6837 Reverse Low Profile Hospital Pull Up Latch - Right Hand

The ABH 6837 Reverse Low Profile Hospital Pull Up Latch - Right Hand is ideal for time-out rooms, behavioral settings and other similar institutions. It is a sleek and durable solution for commercial and institutional applications. It is designed to allow a door to be opened with an easy push or pull action.

This ABH Mfg. product is similar to products from Trimco. See the Cross Reference Chart in the ABH Catalog (under Downloads, below) for more information.

This item normally ships out within 2 weeks.

  • Ideal for time-out rooms, behavioral settings and other similar institutions
  • Latch bolt is always retracted until handle is activated
  • When handle is activated, the latch bolt projects until the handle is released
  • Push or pull handle trim assembly on one side and flat plate on other side of door
  • Cylindrical reverse latch application - passage function
  • 1-3/4" standard door thickness (specify if different)
  • Meets ADA requirements
  • Trim is mounted using four thru-bolts for maximum stability
  • Handing of unit is field-reversible by easily reversing the cam holder assembly on the backside of the unit
  • Linear acting cam which provides for a smoother operating unit
  • One continuous spring provides a smoother operation and an extended life for the unit
  • UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
  • 1/2" Latch Bolt Throw
  • Patent# 7,258,374

US32D Satin Stainless Steel

US10 Satin Bronze

US10B Dark Bronze

US26D Satin Chrome Plated

US4 Satin Brass

US26 Bright Chrome Plated

US3 Bright Brass

US32 Bright Stainless Steel


  • All Stainless Steel Components
  • Security fasteners for all exposed screws
  • Lead provided to cover cut-outs made in lead-lined doors
  • Anti-microbial clear coating applied to handles and covers
  • Hip Paddle
  • Extended Handle
  • Aluminum Slip-On Handle Extension
  • Special Door Thickness
  • Entrance Only
  • Exit Only

Installation Challenge Level

Recommended for Experienced Installers.
